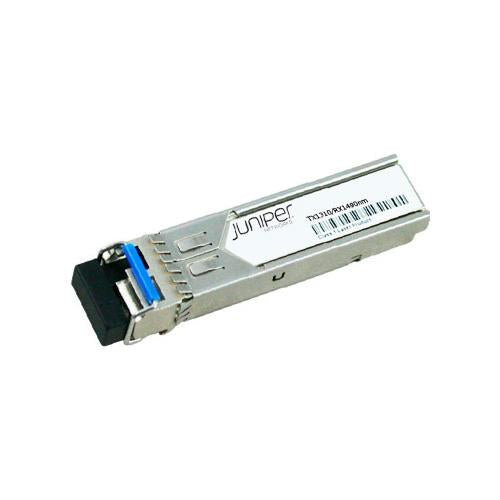

Juniper EX-SFP-1GE-LX Transceiver
- Small Form Factor Pluggable 1000Base-LX Gigabit Ethernet Optics
$1,400.00
$672.00
Instant Savings
$728.00
1000BASE-LX, 1Gbps, Single Mode (SMF), LC Connector, 1310nm, Digital Diagnostic Monitoring (DDM), Distances up to 10km (6.2mi)
| Specifications | EX-SFP-1GE-LX |
| Description | EX-SFP-1GE-LX is a SFP 1000Base-LX 1 Gigabit Ethernet Optics Module, 1310nm for up to 10Km Transmission |
| Product Family | Juniper Transceivers |
| Product Type | Optical Transceiver |
| Transceiver Type | SFP |
| Signaling rate, each lane | 1.25 Gbps |
| Connectors | Duplex LC |
| Fiber mode | MMF |
| Wavelength range | 1270 nm to 1355 nm (1310) |
| Transmit power range | -9.5 to -3 |
| Receive power range | -19 to -3 |
| Max Power consumption (W) | 1 W |
| Operating Temperature | –5° C to 70° C |
| DOM | Yes |
| Wavelength (nm) | Cable Type | Core Size (Microns) | Modal Bandwidth (MHz*km) | Cable Distance |
|---|---|---|---|---|
| 1310 | SMF | - | - | 10 km |
| MMF | 62.5 | 500 | 550 m | |
| 50.0 | 500 | 550 m |
