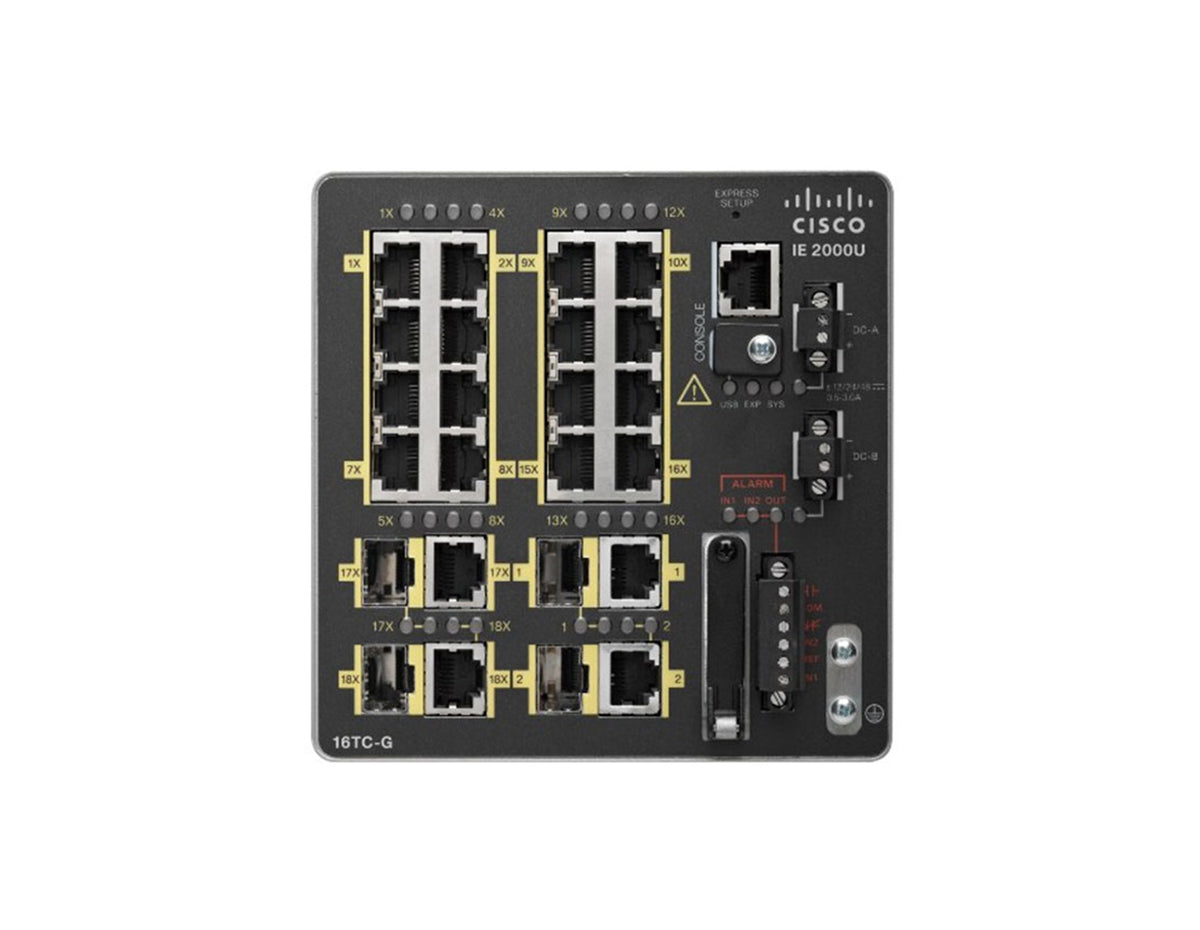

Cisco IE-2000U-16TC-GP Switch

Name: Cisco IE-2000U-16TC-GP Switch
Brand: Cisco
SKU: IE-2000U-16TC-GP-NEW
Price: 1375.0 USD
Availability: InStock

Part Number: IE-2000U-16TC-GP

Technical Details

Switch Managed 16 x 10/100 + 2 x Gigabit combo (RJ-45/SFP) DIN Rail Mountable PoE+

$5,086.41

$1,375.00

73% OFF

You Save: $3,711.41

Ask an Expert

sales@networkdevicesinc.com

1-201-559-1474

Availability: In Stock

Condition: Brand New Sealed

Free Shipping on Orders $100+Arrives in 1-6 business days within the U.S.

International DeliveryWorldwide shipping in 7–15 business days

30 Days Return

12 Months Warranty Support

sales@networkdevicesinc.com

1-201-559-1474

Cisco IE-2000U-16TC-GP Industrial Ethernet Switch

The Cisco IE-2000U-16TC-GP is a rugged, highly reliable industrial Ethernet switch designed for utility networks and demanding environments. This model provides 16 Fast Ethernet downlinks and 2 Gigabit combo uplinks (RJ-45/SFP) and supports PoE/PoE+ when paired with appropriate power supplies (e.g., up to 4 PoE or 2 PoE+ ports with 65W PSUs; maximum PoE/PoE+ with 170W PSUs). It is engineered to operate under extreme conditions while offering advanced Layer 2 features for effective segmentation and traffic control.

Key Features:

16 x Fast Ethernet Ports: Reliable connectivity for industrial devices.
PoE/PoE+ Support: Power delivery to endpoints (port counts dependent on installed PSU).
2 x Gigabit Combo Uplinks: Flexible RJ-45/SFP options for scaling.
Ruggedized Design: Substation compliance (IEC 61850-3, IEEE 1613) and fanless operation.
Layer 2 Management: VLANs, QoS, IGMP snooping, security features, and rich diagnostics.

Technical Overview:

Recommended for: Utility and industrial deployments requiring PoE and flexible uplinks.
Ports: 16 x FE downlinks, 2 x GE combo uplinks (RJ-45/SFP).
Operating Temperature: Wide industrial range with altitude de-rating guidance.
Management: GUI (Cisco Configuration Professional), CLI, and SNMP.
Form Factor: Compact, DIN-rail mountable chassis.

You can check the related tab for the Cisco IE-2000U-16TC-GP datasheet.

Properties

Properties	Cisco IE-2000U-16TC-GP
Description	Industrial Ethernet switch with 16 Fast Ethernet 10/100BASE-T RJ-45 downlinks and 2 Gigabit combo uplinks (RJ-45/SFP), with PoE/PoE+ capability for utility and industrial environments; ships with required SD swap drive and essential hardware.
Product Family	Industrial Ethernet 2000U
Product Type	Ethernet Switch
Switches
Total Ports	18
RJ45 Ports	16 FE
Combo Ports (SFP or RJ45)	2 GE
SFP Ports	-
Manufacturing License	LAN Base
IEEE 1588	X
PRP	X
PoE(+)	X
Software Features
LAN Base license	Features
Per port per VLAN ingress policing	Resilient Ethernet Protocol
SCADA protocol classification using ACLs	FlexLink
Per GOOSE VLAN classification/statistics	Link-state tracking
Configurable egress buffers/thresholds	xSTP: 802.1s/802.1w
Strict priority queuing with optional policer	EtherChannel/LACP/Port Aggregation Protocol (PAgP)
Web- and MAC-based authentication	External alarm contacts
Port security plus Cisco enhancements	Modbus memory map support
DHCP snooping, dynamic ARP inspection, IP source guard	FEFI
Spanning Tree Protocol security mechanisms	Cisco Configuration Professional
Storm control	Utility-specific Smartport macros
Wire-speed L2-L4 ACLs	DHCP autoconfig/image upgrade UL60950-1 and CSA60950-1
Private VLAN	Config rollback/replace
Secure connectivity: SSH/SSL/SCP	SPAN/RSPAN
RADIUS/TACACS+	Layer 3 IP SLA
SNMPv3 crypto	GOLD
Configuration file security	OBFL
UNI/ENI and NNI port types (configurable on all ports)	Time Domain Reflectometry (copper ports)
Configurable per VLAN MAC learning	Digital Optical Monitoring (DOM), optical ports
MAC address learning and aging notifications	Ethernet OAM
Configurable control plane security	Connectivity Fault Management (CFM)
IEEE 802.1x and identity-based network services	IEEE 802.1ag Ethernet in the first mile (EFM)
IEEE 802.1AR for hardware-based security	IEEE 802.3ah Ethernet LMI (PE) -MEF
Ethernet LMI (CE): MEF	CFM to E-LMI Interworking
CFM to EFM Interworking	802.1ag plus IPSLA (Ethernet SLAs)
Parallel Redundancy Protocol (PRP)	PoE and PoE+
Utility	MODBUS TCP/IP Server
Note: IP Services (SIEUISK9T-15002EK=) is required for the following Layer 3 features.
Static routing, Inter-VLAN routing	HSRP
Multi-VRF CE (VRF-lite)	Multicast routing: PIM (SM, DM)
Policy-based routing	Source Specific Multicast
RIP Versions 1 and 2	Source Specific Multicast mapping
EIGRP, OSPF, and IS-IS	Bidirectional Forwarding Detection
BGPv4	Multicast support for VRF (mVRF-Lite)
IPv6 routing	VRF-aware services (ARP, ping, SNMP, HSRP, uRPF, syslog, traceroute, FTP, TFTP)
Dimensions (H x W x D)	5.1 x 5.0 x 5.26 in (130 x 127 x 134 mm)
Weight	4.35 lbs (1.97 kg)

Specifications

Specifications	IE-2000U-16TC-GP
DRAM	256 MB DRAM with ECC memory
Flash / Removable Storage	1 GB removable SD flash memory card (CG swap drive) – 128 MB usable space
Hardware	Mini-USB connector; dual DC inputs; alarm I/O (two inputs, one relay output)
Max. Forwarding Bandwidth	3.8 Gbps
Max. Switching Bandwidth	7.6 Gbps
Max. Forwarding Rate	5.66 Mpps
Egress Buffer	2 MB
Unicast MAC Addresses	8000
Internet Group Management Protocol (IGMP) Multicast Groups	1000
Max. VLANs	1005
IPv4 MAC Security ACEs	375 (default TCAM template)
Alarm	Alarm I/O: two alarm inputs to detect dry contact open or closed, one alarm output relay. 48 VDC, 0.5A max
Power Consumption	13–20 W
Connectors and Cabling	100BASE-FX MMF (2 km), -LX SMF (10 km), -ZX SMF (100 km), BX10 SMF (10 km); SFP and CWDM SFP-based ports: LC fiber connectors; 10/100/1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling
Mean Time Between Failure (MTBF)	535,190 hours
Operating Temperature	Operating: -40°C to +75°C; -40°C to +70°C (vented, 40 LFM); -40°C to +60°C (sealed, 0 LFM); -34°C to +75°C (fan/blower, 200 LFM); -40°C to +85°C (IEC 60068-2-2 environmental test, 100 hours); Relative humidity: 5%–95% non-condensing
Storage Temperature	-50°C to +85°C
Operating Altitude	Up to 10,000 ft
Safety Certifications	UL 60950-1; CSA 60950-1; EN 60950-1; IEC 60950-1 (CB)
Substation Compliance	IEC 61850-3; IEEE 1613
Standard Electromagnetic Emissions Certifications	FCC Part 15 Class A; EN 55022 Class A (CISPR22 Class A); ICES-003 Class A; EN 300 386; VCCI Class A; AS/NZS CISPR22 Class A; CNS 13438 Class A; KN 22 Class A; CE Marking
Industrial Control Safety	UL508; CSA C22.2 No. 142
Hazard Locations	ANSI/ISA 12.12.01 (Class 1, Div 2 A-D) (requires cabinet enclosure); UL/CSA 60079-0, -15 (Class 1, Zone 2, Group II gases, requires cabinet enclosure); EN 60079-0, -15 ATEX (Class I, Zone 2, Group II gases, requires cabinet enclosure); IEC 60079-0, -15 (Class I Zone 2, Group II gases, requires cabinet enclosure); CSA 213
EMC Interface Immunity	EN 55024 (CISPR 24); AS/NZS CISPR 24; KN 24; IEC61000-4-2 (Criteria A - Class 2); IEC61000-4-3/ENV50204 (Criteria A); IEC61000-4-4 (Criteria A/B); IEC61000-4-5 (Criteria B); IEC61000-4-6 (Criteria A)

Accessories

Accessories and License Upgrade PIDs
Product Number
IE-SW-SPARE	Spare IOS upgrade part number (L2 to L3 features)
MEM-SD-1GB-RGD	1 GB industrial-grade Secure Digital (SD) memory card
STK-RACKMNT-2955	19 in. DIN rail mount kit
SIEUISK9T-15002EK=	IP Services Software License for IE-2000U switches
IE 2000U Series Power Supplies
PWR-IE50W-AC=	50W AC Power Supply
PWR-IE50W-AC-IEC=	50W AC Power Supply (IEC)
PWR-IE65W-PC-AC=	65W PC-AC Power Supply (supports up to 4 PoE or 2 PoE+ ports)
PWR-IE65W-PC-DC=	65W PC-DC Power Supply (supports up to 4 PoE or 2 PoE+ ports)
PWR-IE170W-PC-AC=	170W PC-AC Power Supply (maximum PoE/PoE+ support)
PWR-IE170W-PC-DC=	170W PC-DC Power Supply (maximum PoE/PoE+ support)
SFPs
GLC-FE-100FX-RGD=	100BASE-FX Rugged SFP for Fast Ethernet SFP Ports
GLC-FE-100LX-RGD	100BASE-LX10 Rugged SFP for Fast Ethernet SFP Ports
GLC-FE-T-I=	100BASE-T for Fast Ethernet SFP Ports
GLC-FE-100FX=	100BASE-FX SFP for Fast Ethernet SFP Ports
GLC-FE-100LX=	100BASE-LX10 SFP for Fast Ethernet SFP Ports
GLC-FE-100EX=	100BASE-EX for Fast Ethernet SFP Ports
GLC-FE-100ZX=	100BASE-ZX for Fast Ethernet SFP Ports
GLC-FE-100BX-D=	100BASE-BX10-D SFP for Fast Ethernet SFP Ports
GLC-FE-100BX-U=	100BASE-BX10-U SFP for Fast Ethernet SFP Ports
GLC-SX-MM-RGD=	1000BASE-SX short wavelength; rugged
GLC-LX-SM-RGD=	1000BASE-LX/LH long wavelength; rugged
GLC-ZX-SM-RGD=	1000BASE-ZX extended distance; rugged
GLC-BX40-U-I=	1000BASE-BX40-U for 40km Single-Fiber Bidirectional Applications; with DOM
GLC-BX40-D-I=	1000BASE-BX40-D for 40km Single-Fiber Bidirectional Applications; with DOM
GLC-BX40-DA-I=	1000BASE-BX40-D (Alternative) for 40km Single-Fiber Bidirectional Applications; with DOM
GLC-BX80-U-I=	1000BASE-BX80-U for 80km Single-Fiber Bidirectional Applications; with DOM
GLC-BX80-D-I=	1000BASE-BX80-D for 80km Single-Fiber Bidirectional Applications; with DOM
GLC-SX-MMD=	1000BASE-SX short wavelength; with DOM
GLC-LH-SMD=	1000BASE-LX/LH long-wavelength; with DOM
GLC-EX-SMD=	1000BASE-EX long-wavelength; with DOM
GLC-ZX-SMD=	1000BASE-ZX extended distance; with DOM
GLC-BX-D=	1000BASE-BX10-D downstream bidirectional single fiber; with DOM
GLC-BX-U=	1000BASE-BX10-U upstream bidirectional single fiber; with DOM
CWDM-SFP-xxxx= (8 freq)	Longwave xxxx-nm laser, single mode
DWDM-SFP-xxxx= (40 freq)	1000BASE-DWDM SFP
SFP-GE-S=	Cisco 1000BASE-SX SFP transceiver module for MMF, 850-nm wavelength, extended operating temperature range.
SFP-GE-L=	Cisco 1000BASE-LX/LH SFP transceiver module for MMF and SMF, 1300-nm wavelength, extended operating temperature range.
SFP-GE-Z=	Cisco 1000BASE-ZX SFP transceiver module for SMF, 1550-nm wavelength, extended operating temperature range.
GLC-SX-MM=	Cisco 1000BASE-SX SFP transceiver module for MMF, 850-nm wavelength, commercial operating temperature range.
GLC-LH-SM=	Cisco 1000BASE-LX/LH SFP transceiver module for MMF and SMF, 1300-nm wavelength, commercial operating temperature range.
GLC-ZX-SM=	Cisco 1000BASE-ZX SFP transceiver module for SMF, 1550-nm wavelength, commercial operating temperature range.
GLC-TE=	1000BASE-T standard
GLC-T=	1000BASE-T SFP transceiver module for copper networks, commercial operating temperature range.
