| Specifications |

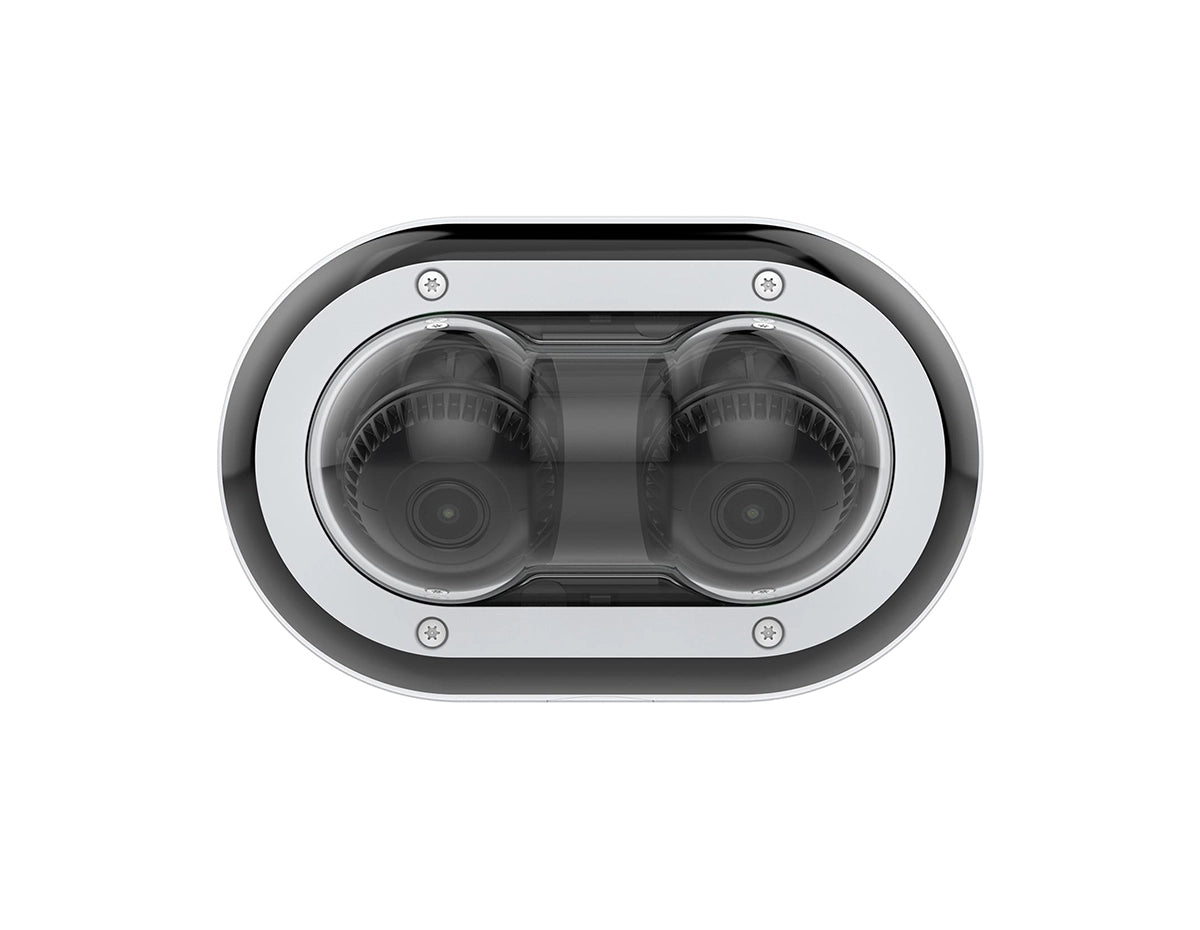

AXIS P4707-PLVE Panoramic Camera |
| Camera |
| Image sensor |
2 x 1/2.7” progressive scan RGB CMOS |
| Lens |
Varifocal, 3.3–8.1 mm, F1.9–3.2 |
| Horizontal field of view: 98°–36° |
| Vertical field of view: 69°–27° |
| Diagonal field of view: 133°–46° |
| Minimum focus distance: 0.5 m (1.6 ft) |
| Fixed iris, IR corrected, remote zoom and focus |
| Day and night |
Automatically removable infrared-cut filter |
| Minimum illumination |
Color: 0.19 lux at 50 IRE, F1.9 |
| B/W: 0 lux at 50 IRE, F1.9 |
| 0 lux with IR illumination on |
| Shutter speed |
1/33500 s to 1/5 s with 60/50 Hz |
| Camera angle adjustment |
Pan ±110° |
| Tilt ±75° |
| Rotation ±170° |
|
| System on chip (SoC) |
| Model |
ARTPEC-8 |
| Memory |
2048 MB RAM, 8192 MB Flash |
| Compute capabilities |
Deep learning processing unit (DLPU) |
| Video |
| Video compression |
H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles |
| H.265 (MPEG-H Part 2/HEVC) Main Profile |
| Motion JPEG |
| Resolution |
4:3: 2x 2592x1944 (2x 5MP) to 2x 640x480 |
| 16:9: 2x 2560x1440 (2x Quad HD) to 2x 640x360 |
| Frame rate |
Up to 30/25 fps (60/50 Hz) in all resolutions |
| Video streaming |
Multiple, individually configurable streams in H.264, H.265, and |
| Motion JPEG |
| Axis Zipstream technology in H.264 and H.265 |
| Controllable frame rate and bandwidth |
| VBR/ABR/MBR H.264/H.265 |
| Low latency mode |
| Image settings |
Saturation, contrast, brightness, sharpness, Forensic WDR, white |
| balance, day/night threshold, tone mapping, exposure mode, |
| exposure zones, compression, rotation: 0°, 90°, 180°, 270° |
| including Corridor Format, mirroring, dynamic text and image |
| overlay, polygon privacy mask |
| Audio |
| Audio streaming |
Audio in, simplex |
| Two-way audio via edge-to-edge technology |
| Audio encoding |
24bit LPCM, AAC-LC 8/16/32/44.1/48 kHz, G.711 PCM 8 kHz, |
| G.726 ADPCM 8 kHz, Opus 8/16/48 kHz |
| Configurable bit rate |
| Audio output/output |
External microphone input or line input, ring power, digital audio |
| input, automatic gain control |
| Network speaker pairing |
| Audio features through port cast technology: two-way audio |
| connectivity, voice enhancerExternal microphone input or line input, ring power, digital audio |
| input, automatic gain control |
| Network speaker pairing |
| Audio features through port cast technology: two-way audio |
| connectivity, voice enhancer |
| Network |
| Network protocols |
IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, HTTP/2, TLS, QoS |
| Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), |
| UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, |
| NTS, RTSP, RTCP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, |
| DHCPv4/v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog |
| (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf) |
| System Integration |
| Application Programming Interface |
Open API for software integration, including VAPIX® and |
| AXIS Camera Application Platform; specifications at axis.com |
| One-click cloud connection |
| ONVIF® Profile G, ONVIF® Profile M, ONVIF® Profile S, and |
| ONVIF® Profile T |
| Onscreen controls |
IR illumination |
| Autofocus |
| Privacy mask |
| Play media clip |
| Event conditions |
Analytics, virtual inputs through API |
| Audio: audio detection |
| Device status: above operating temperature, above or below |
| operating temperature, below operating temperature, within |
| operating temperature, IP address removed, new IP address, |
| network lost, system ready, ring power overcurrent protection, |
| live stream active, casing open |
| Digital audio: digital signal contains Axis metadata, digital signal |
| has invalid sample rate, digital signal missing, digital signal okay |
| Edge storage: recording ongoing, storage disruption, storage |
| health issues detected |
| I/O: manual trigger, virtual input |
| MQTT: subscribe |
| Scheduled and recurring: schedule |
| Video: average bitrate degradation, day-night mode, live stream |
| open, tampering |
| Event actions |
Overlay text, day/night mode, flash status LED |
| Audio clips: play, stop |
| Illumination: use lights, use lights while the rule is active |
| MQTT: publish |
| Notification: HTTP, HTTPS, TCP and email |
| Pre- and post-alarm video or image buffering for recording or upload |
| Record video: SD card and network share |
| SNMP traps: send, send while the rule is active |
| Upload of images or video clips: FTP, SFTP, HTTP, HTTPS, network |
| share and email |
| Built-in installation aids |
Pixel counter, remote zoom and focus, level grid |
| Analytics |
| AXIS Object Analytics |
Object classes: humans, vehicles (types: cars, buses, trucks, bikes) |
| Scenarios: line crossing, object in area, crossline counting, |
| occupancy in area, time in area |
| Up to 10 scenarios |
| Metadata visualized with trajectories, color-coded bounding |
| boxes and tables |
| Polygon include/exclude areas |
| Perspective configuration |
| ONVIF Motion Alarm event |
| Metadata |
Object data: Classes: humans, faces, vehicles (types: cars, buses, trucks, bikes), license plates |
| Attributes: Vehicle color, upper/lower clothing color, confidence, |
| position |
| Event data: Producer reference, scenarios, trigger conditions |
| Applications |
Included |
| AXIS Object Analytics, AXIS Video Motion Detection, active |
| tampering alarm, audio detection |
| Support for AXIS Camera Application Platform enabling |
| installation of third-party applications, see axis.com/acap |
| Cybersecurity |
| Edge security |
IP66-, IP67-, NEMA 4X-rated, IK10 impact-resistant, aluminium |
| and plastic casing with polycarbonate hard-coated dome, |
| sunshield (PC/ASA) |
| Color: white NCS S 1002-B |
| For repainting instructions of casing |
| contact your Axis partner. |
| Network security |
IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2), IEEE 802.1AR, |
| HTTPS/HSTS, TLS v1.2/v1.3, Network Time Security (NTS), X.509 |
| Certificate PKI, IP address filtering |
| Documentation |
AXIS OS Hardening Guide |
| Axis Vulnerability Management Policy |
| Axis Security Development Model |
| AXIS OS Software Bill of Material (SBOM) |
| General |
| Casing |
IP66-, IP67-, NEMA 4X- and IK10-rated |
| Polycarbonate hard-coated dome |
| Aluminum and plastic casing, weathershield |
| Color: white NCS S 1002-B or black NCS S 9000-N |
| Mounting |
Mounting bracket with junction box holes (double-gang, |
| single-gang, 4” square, and 4” octagon) |
| ¼”-20 UNC tripod screw thread |
| ½” (M20) conduit side entry |
| Sustainability |
PVC and BFR/CFR free, 7% recycled plastics, 2% bioplastics |
| Power |
Power over Ethernet (PoE) IEEE802.3at Type 2 Class 4 |
|
Typical (IR off): 5.2 W (max 10.6 W)
Typical (IR on): 10.7 W (max 17.5 W)
|
| Connectors |
Shielded RJ45 10BASE-T/100BASE-TX/1000BASE-T PoE |
| 3.5 mm mic/line in |
| IR illumination |
OptimizedIR with power-efficient, long-life |
| 850 nm IR LEDs |
| Range of reach 15 m (50 ft) or more depending on the scene |
| Storage |
Support for microSD/microSDHC/microSDXC card |
| Support for SD card encryption (AES-XTS-Plain64 256bit) |
| Recording to network-attached storage (NAS) |
| For SD card and NAS recommendations see axis.com |
| Operating conditions |
(-30 °C to 50 °C (-22 °F to 122 °F) |
| Maximum temperature according to NEMA TS 2 (2.2.7): 74 °C |
| (165 °F) |
| Start-up temperature: -30 °C |
| Humidity 10–100% RH (non-condensing) |
| Storage conditions |
(-40 °C to 65 °C (-40 °F to 149 °F) |
| Humidity 5–95% RH (non-condensing) |
| Approvals |
EMC |
| CISPR 32 Class A, CISPR 35, EN 50121-4, |
| EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, |
| FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4, |
| KS C 9832 Class A, KS C 9835, RCM AS/NZS CISPR 32 Class A, |
| VCCI Class A |
| Safety |
| CAN/CSA-C22.2 No. 60950-22, CAN/CSA C22.2 No. 62368-1, |
| IEC/EN/UL 62368-1, IEC/EN/UL 60950-22, IEC/EN 62471, |
| IS 13252 |
| Environment |
| IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, |
| IEC 60068-2-27, IEC 60068-2-78, IEC/EN 62262:2002 IK10, |
| IEC/EN 60529 IP66/IP67, MIL-STD-810H (Method 501.7, |
| 502.7, 505.7, 506.6, 507.6, 509.7, 512.6)*, |
| NEMA 250 Type 4X, |
| NEMA TS 2 (2.2.7-2.2.9), VDMA 24364 |
| Network |
| NIST SP500-267 |
| *: Method 505.7 with weathershield |
| Dimensions |
Height: 88 mm (3.5 in) |
| Width: 133 mm (5.2 in) |
| Length: 208 mm (8.2 in) |
| Weight |
975 g (2.1 lb) |
| Included accessories |
Installation guide, Windows® decoder 1-user license, connector |
| kit, weathershield, connector guard |
| Video management software |
AXIS Companion, AXIS Camera Station, video management |
| software from Axis Application Development Partners available |
| at axis.com/vms |
| Languages |
English, German, French, Spanish, Italian, Russian, Simplified |
| Chinese, Japanese, Korean, Portuguese, Polish, Traditional |
| Chinese, Dutch, Czech, Swedish, Finnish, Turkish, Thai, Vietnamese |
