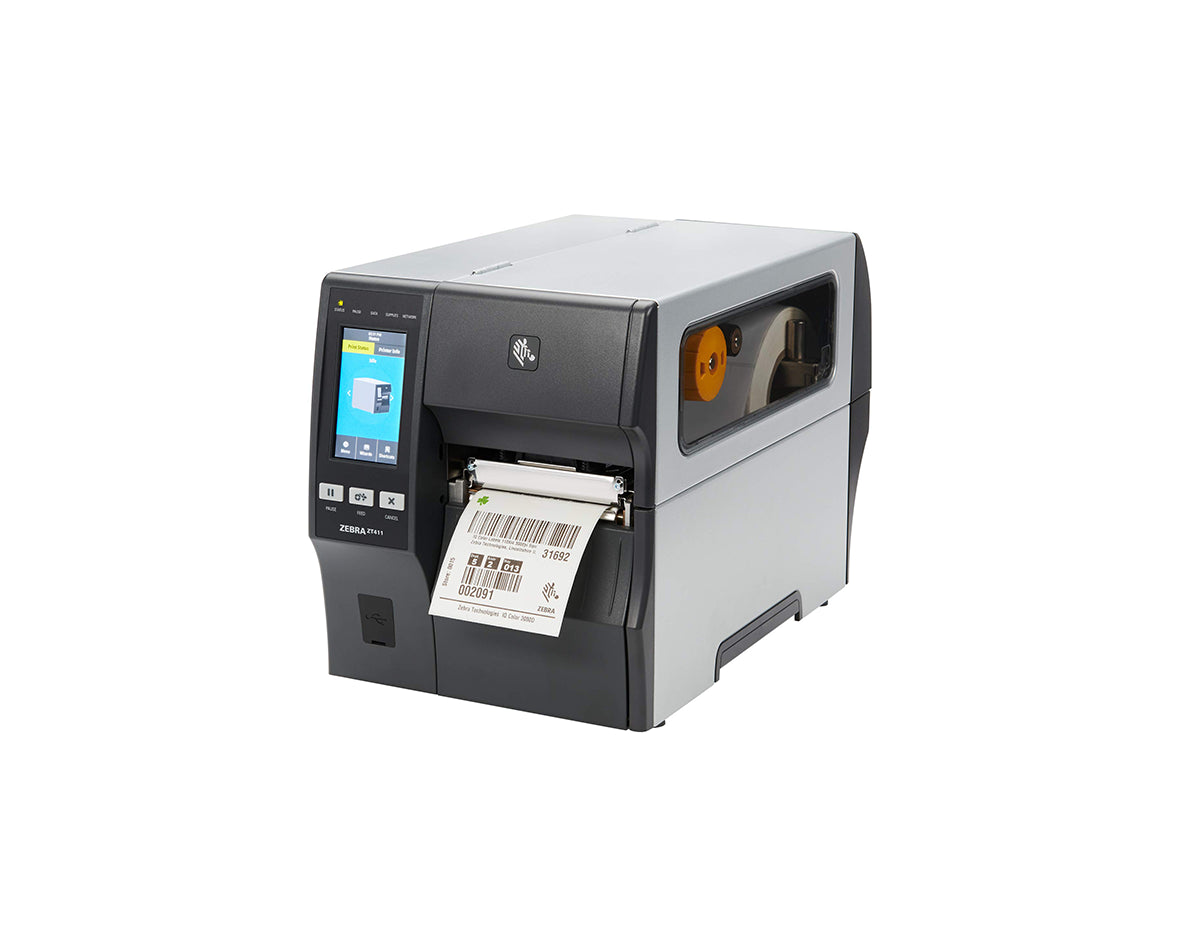

ZEBRA ZT41142-T010000Z INDUSTRIAL PRINTER (ZT411)

Accessories

Options and Accessories
Communication	Two open communication slots to add internal cards for: Dual band 802.11ac Wi-Fi and Bluetooth Parallel (bi-directional interface) 10/100 Ethernet Applicator interface
Media Handling	Rewind: Internally rewinds a full roll of printed labels on 3core, or peels and rewinds liner (factory installed only) Peel: Front-mount, passive peel option Peel: Liner take-up additional full-roll liner takeup spindle accommodates standard printer base Cutter: Front-mount guillotine cutter and catch tray 1 in. I.D. Core media supply hanger (ZT411 only) Ink-side in ribbon supply (ZT411 only)
RFID	Supports tags compatible with: UHF EPC Gen 2 V2, ISO/IEC 18000-63 and RAIN RFID protocols Integrated RFID system is user-upgradable in the field and available on both 4 in. and 6 in. models Adaptive Encoding Technology automatically selects optimum encode settings Field installable on-metal RFID kit available*
Keyboard Display Unit	ZKDU keyboard display units for stand-alone printing applications

Specifications

Specifications	ZT411
Memory	256 MB SDRAM memory 512 MB on-board linear Flash memory
Maximum Print Width	4.09 in./104 mm
Print Length	203 dpi: 157 in./3988 mm 300 dpi: 73 in./1854 mm 600 dpi: 39 in./991 mm
Maximum Print Speed	14 ips/356 mm per second
Media Sensors	Adjustable dual media sensors: transmissive and reflective
Maximum Label Length	39.0 in./991 mm
Maximum Media Width	1.00 in./25.4 mm to 4.5 in./114 mm tear/cutter 1.00 in./25.4 mm to 4.25 in./108 mm peel/rewind
Maximum Media Roll Size	8.0 in./203 mm O.D. on a 3 in./76 mm I.D. Core
Media Thickness	0.0023 in./0.058 mm to 0.010 in./0.25 mm
Media Types	Continuous, die-cut, notch, black-mark
Ribbon Standard Length	1476 ft./450 M
Ribbon Width	2.00 in./51 mm to 4.33 in./110 mm
Ribbon Core	1.0 in./25 mm I.D.
Fonts and Graphics	16 resident expandable ZPL II bitmap and two resident scalable ZPL fonts Asian and other international scalable and smooth bitmapped fonts Unicode: For multi-language printing Downloadable objects include graphics, scalable and bitmap fonts, label templates and formats IBM Code Page 850 international character sets are available in the fonts A, B, C, D, E, F, G and 0 through software control Code Page 1250, 1252, 1253, 1254, 1255 Support with font 0 64 MB user-available non-volatile memory storage for downloadable objects 8 MB user-available SDRAM
Barcode Symbologies
Linear Barcodes	Code 11, Code 39, Code 93, Code 128 with subsets A/B/C and UCC Case Codes, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2- or 5-digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar, Planet Code
2-Dimensional	Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, TLC 39, MicroPDF, RSS-14 (and composite), Aztec
Firmware	ZBI 2.0 Optional powerful programming language that lets printers run standalone applications, connect to peripherals, and much more. ZPL and ZPL II® Zebra Programming Language provides sophisticated label formatting and printer control and is compatible with all Zebra printers. EPL and EPL2 Eltron® Programming Language with Line Mode simplifies label formatting and enables format compatibility with legacy applications. (EPL available on 203 dpi models only.)
Operating Temperature	Thermal transfer: 40º F to 104º F/5º C to 40º C Direct thermal: 32º F to 104º F/0º C to 40º C
Storage Temperature	-40º to 140ºF (-40º to 60ºC)
Operating Humidity	20% to 85% non-condensing
Storage Humidity	5% to 85% non-condensing
Safety	IEC 60950, EN 55022 Class B, EN 55024, EN 61000-3-2, EN 61000-3-3
Emissions	cTUVus, CE Marking, FCC-B, ICES-003, VCCI, C-Tick, NOM, S-Mark (Arg), CCC, CU, BSMI, KCC, SABS, IN-Metro

Properties

Properties	Zebra ZT411 ZT41142-T010000Z
Description	Label printer, Monochrome, DT/TT, 203 dpi, USB 2.0, serial, Bluetooth 4.1, up to 840.9 inch/min, LAN, USB host, Tear bar
Product Family	ZT400 Series
Product Type	Label Printer
Standard Features	Print Methods: Thermal transfer and direct thermal printing Construction: Metal frame and bi-fold metal media cover with enlarged clear viewing window Side-loading supplies path for simplified media and ribbon loading Thin film printhead with E3 Element Energy Equalizer for superior print quality Communications: USB 2.0, high-speed, RS-232 Serial, 10/100 Ethernet, Bluetooth 4.1, Dual USB Host 4.3-inch color touch display with intuitive menu for quick operation and settings management Bi-colored status LEDs for quick printer status ENERGY STAR qualified
Communication	USB 2.0, high-speed, RS-232 Serial, 10/100 Ethernet, Bluetooth 4.1, Dual USB Host
Printing	Thermal transfer and direct thermal printing
Resolution	203 dpi/8 dots per mm 300 dpi/12 dots per mm (optional) 600 dpi/24 dots per mm (optional for ZT411 only
Dimensions (W x H x D)	10.6 x 12.75 x 19.5 in. (269 mm x 324 mm x 495 mm)
Weight	36 lbs./16.33 kg
Power	Auto-detectable (PFC Compliant) 100-240VAC, 50-60Hz, ENERGY STAR qualified
