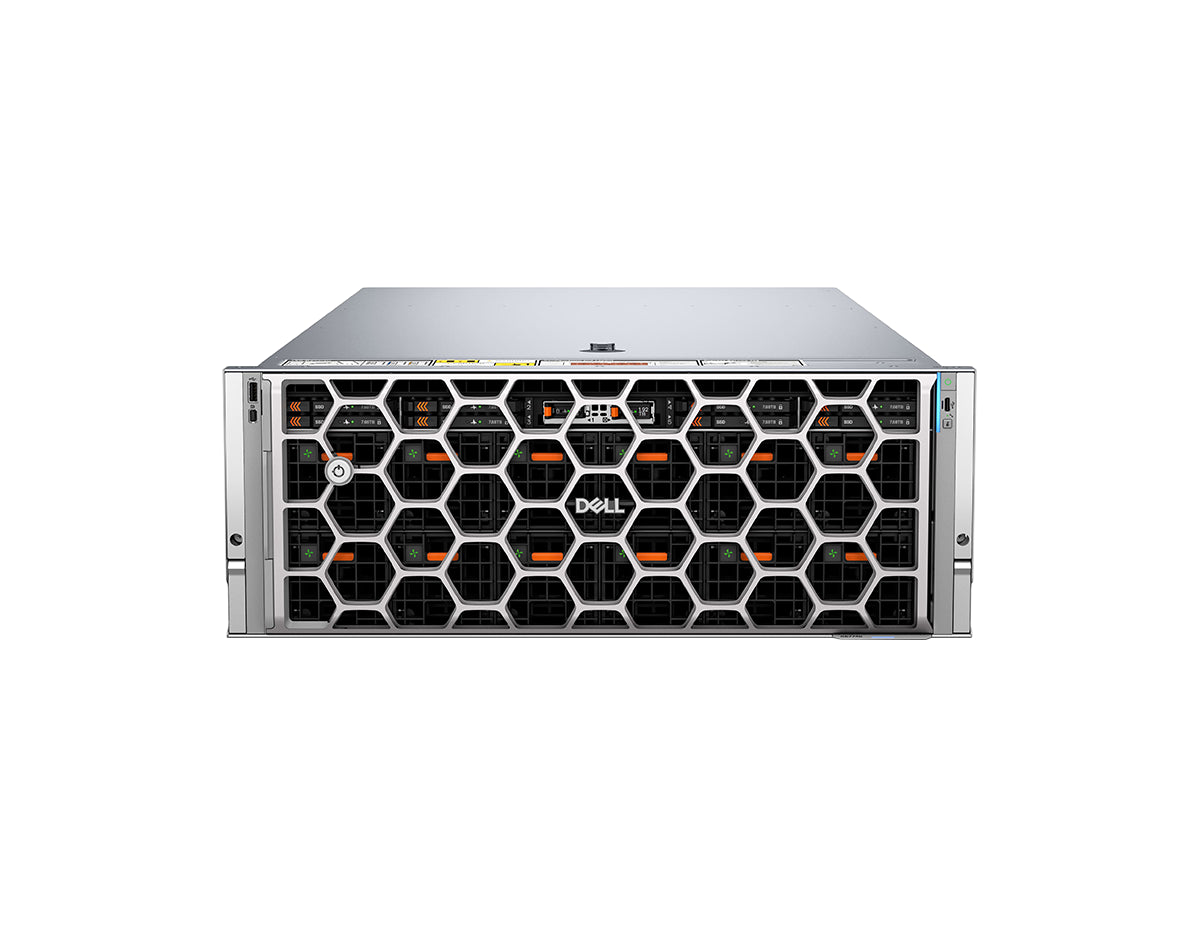

Dell PowerEdge XE7740 4U AI Inference Server

Dell PowerEdge XE7740 for AI and Accelerated Computing

The Dell PowerEdge XE7740 is a high-performance 4U rack server purpose-built for evolving AI-powered enterprise demands, accelerated GPU computing, and dense infrastructure workloads. Powered by dual Intel Xeon 6 processors, highly flexible PCIe Gen5 acceleration capabilities, and advanced high-speed storage architectures, it provides the agility required for fast-moving workflows across finance, healthcare, manufacturing, and retail sectors.

Key Benefits and Features

• Supports two Intel Xeon 6 series processors with up to 86 cores per processor for exceptional multithreaded compute density.
• Engineered for modern AI acceleration with structural support for up to 8 double-wide 600W or 16 single-wide 75W PCIe accelerators.
• Features 32 DDR5 DIMM slots supporting RDIMMs up to 3 TB at speeds up to 6400 MT/s, ensuring minimal latency for expansive data sets.
• Accommodates up to 8 EDSFF E3.S Gen5 NVMe SSDs delivering ultra-fast read/write storage pools up to 122.88 TB.
• Streamlines data center scaling via 8 additional front-serviceable PCIe slots dedicated to high-performance AI cluster backend network configurations.
• Simplifies infrastructure administration through the iDRAC10 environment and automated OpenManage management portfolio features.

Ideal Use Cases

• Enterprise AI Inferencing operations and insight discovery.
• AI model fine-tuning and adaptation pipelines.
• AI-powered High-Performance Computing (HPC) environments.
• Highly scalable and virtualized high-density enterprise deployments.

Technical Specifications

• Brand: Dell Technologies
• Model: PowerEdge XE7740
• Processor Support: Two Intel Xeon 6 series processors with up to 86 cores per processor
• Memory: 32 DDR5 DIMM slots supporting RDIMM up to 3 TB maximum capacity (unregistered ECC DDR5 only)
• GPU Support: Up to 8x PCIe Gen 5 x16 DW-FHFL accelerators up to 600W (such as Intel Gaudi 3 and NVIDIA H200 NVL) or 16x PCIe Gen 5 x16 SW-FHFL accelerators up to 75W
• Drive Support: Up to 8 x EDSFF E3.S Gen5 NVMe SSDs up to 122.88 TB
• Rack Height: 4U Form Factor
• Network Options: 1 x OCP NIC card 3.0 (optional) alongside integrated backend network expansion avenues
• Management: iDRAC10, iDRAC Direct, iDRAC Service Module (ISM), OpenManage Enterprise, and RACADM CLI
• Operating Systems: Canonical Ubuntu Server LTS, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi

Build Your AI Infrastructure with Dell XE7740

Deploy the Dell PowerEdge XE7740 to combine open ecosystem accelerator flexibility, hardened silicon Root of Trust security, and air-cooled 4U rack deployment efficiency within modern corporate data ecosystems.

Brand	Dell Technologies
Model	PowerEdge XE7740
SKU	XE7740
Product Type	Server
Series	PowerEdge XE series
Rack Height	4U
Cooling Options	Air cooling
Dimensions	174.3 mm x 482 mm x 899.56 mm with bezel / 886.73 mm without bezel

Processors	Two Intel® Xeon® 6 series processors with up to 86 cores per processor
Memory	32 DDR5 DIMM slots, supports RDIMM up to 3 TB max, speeds up to 6400 MT/s (Supports unregistered ECC DDR5 DIMMs only; future releases will support up to 4 TB)
GPUs	Up to 8x PCIe Gen 5 x16 DW-FHFL up to 600W (e.g., Intel® Gaudi® 3, NVIDIA H200 NVL) or 16x PCIe Gen 5 x16 SW-FHFL up to 75W
Internal Boot	Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1 DC-MHS). HWRAID 1, 2 x M.2 NVMe SSDs
Drives	Up to 8 x EDSFF E3.S Gen5 NVMe (SSD) max 122.88 TB
Power Supplies	3200W Titanium 200-240 V AC or 240 V DC, hot swap redundant (Multi capacity: 3200W for 220.1-240 V AC or 2900W for 200-220 V AC)
PCIe Slots	Up to 8 PCIe Gen5 x16 SW-FHHL cards, each up to 150W (for AI cluster backend network interfaces)
Network Options	1 x OCP NIC card 3.0 (optional)
Hot-swappable Fans	Up to four sets of high performance (HPR) platinum grade fans (dual fan module) installed in mid tray + up to twelve high performance (HPR) platinum grade fans installed on the front
Embedded Management	iDRAC10, iDRAC Service Module (ISM), iDRAC Direct, iDRAC RESTful API with Redfish, RACADM CLI
Front Ports	1 x USB 2.0 Type-A (optional), 1 x Mini-Display port (optional), 1 x USB 2.0 Type-C dual mode (Host/iDRAC Direct port)
Rear Ports	1 x Dedicated iDRAC/BMC Direct Ethernet port, 2 x USB 3.1 Type A port, 1 x VGA (Rear Ports on DC-SCM)
Internal Ports	1 x USB 3.1 Type-A
Operating Systems and Hypervisors	Canonical Ubuntu Server LTS, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
