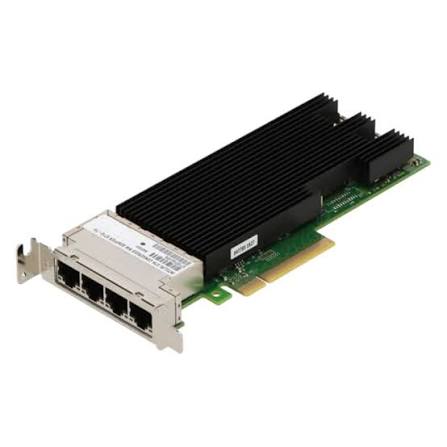

Intel X710T4G1P5 X710-T4 Quad-Port 10GBASE-T Network Adapter
Quad-Port 10GBASE-T Connectivity for Data Center Networks
The Intel Ethernet Network Adapter X710-T4 is a quad-port 10GBASE-T network adapter designed for high-density server and data center connectivity. Four RJ45 connections support standard copper cabling, while autonegotiation between 100 Mb/s, 1GbE, and 10GbE helps integrate the adapter with existing network infrastructure. The adapter uses a PCI Express 3.0 x8 host interface and the Intel Ethernet Controller XL710.
The X710-T4 supports cable distances of up to 100 meters with CAT6A for 10GBASE-T, while 10GBASE-T over CAT6 is supported up to 55 meters. Hardware-assisted virtualization and packet-processing technologies include SR-IOV, Virtual Machine Device Queues, Flexible Port Partitioning, Intel Ethernet Flow Director, Dynamic Device Personalization, and DPDK optimization.
Key Benefits and Features
- Quad-Port 10GBASE-T: Four RJ45 connections provide dense copper Ethernet connectivity
- Multi-Speed Networking: Supports 100 Mb/s, 1GbE, and 10GbE operation
- Extended Copper Reach: Supports 10GBASE-T up to 100 meters using CAT6A cabling
- Virtualization Support: Includes SR-IOV, VMDq, and Flexible Port Partitioning
- Packet Processing: Intel Ethernet Flow Director, DDP, DPDK, and checksum offloads support efficient traffic handling
Ideal Use Cases
- Virtualized server infrastructure
- Cloud and Network Functions Virtualization deployments
- 10GbE copper network upgrades
- Top of Rack, Middle of Row, and End of Row architectures
Deploy Intel X710-T4 for Flexible 10GbE Copper Networking
Choose the X710T4G1P5 for quad-port 10GBASE-T connectivity, multi-speed RJ45 networking, PCIe 3.0 x8 integration, virtualization offloads, and copper cable reach up to 100 meters with CAT6A.
| Brand | Intel |
| SKU | X710T4G1P5 |
| Product Type | Ethernet Network Adapter |
| Series | Intel Ethernet 700 Series |
| Port Count | Quad-port |
| Interface | Four RJ45 connectors |
| Network Speed | 100 Mb/s, 1GbE, 10GbE |
| Host Interface | PCIe 3.0 x8 |
| Controller | Intel Ethernet Controller XL710 |
| Dimensions | 167 mm x 69 mm |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |
| Product Name | Intel Ethernet Network Adapter X710-T4 |
| Model / SKU | X710-T4 (X710T4G1P5) |
| Controller | Intel Ethernet Controller XL710 |
| Port Count & Interface | Quad-Port RJ45 Copper |
| Data Rate Supported Per Port | 100 Mb/s, 1 GbE, 10 GbE (Autonegotiation) |
| Host Bus Interface | PCI Express 3.0 x8 (8 GT/s) |
| Cable Distances | 10GBASE-T: 100 m using CAT6A, 55 m using CAT6 100BASE-T / 1000BASE-T: 100 m using CAT5e, CAT6, or CAT6A |
| Virtualization Features | SR-IOV (up to 128 Virtual Functions per device), Next-Generation VMDq (up to 256 VMs), Flexible Port Partitioning (FPP) |
| Network Virtualization Offloads | VXLAN, GENEVE, NVGRE, MPLS, VXLAN-GPE with NSH |
| Traffic Steering & Acceleration | Intel Ethernet Flow Director, Dynamic Device Personalization (DDP), DPDK Optimized |
| Hardware Offloads | Tx/Rx IP, SCTP, TCP, and UDP checksum offloading (IPv4, IPv6) |
| Power Consumption | 10GbE: 24.7 W Typical / 28.9 W Max 1GbE: 12.0 W Typical / 18.1 W Max 100 Mbps: 9.2 W Typical / 14.9 W Max |
| Form Factor & Dimensions | Low Profile Card (167 mm x 69 mm) |
| Included | Full-height bracket installed; low-profile bracket included in package |
