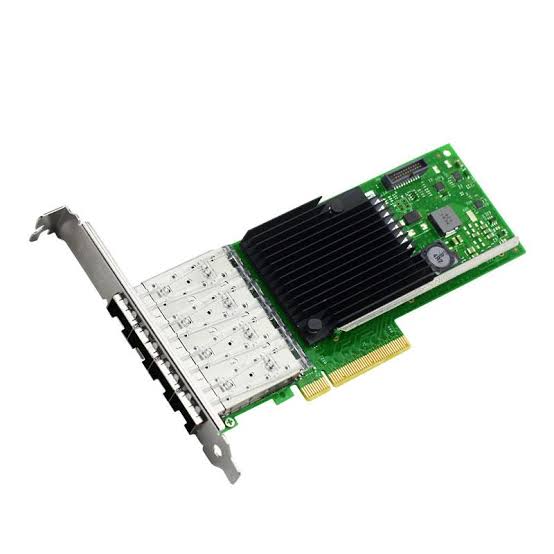

Intel X710DA4G2P5 X710-DA4 Quad-Port 10GbE SFP+ Adapter

Quad-Port 10GbE Connectivity for Virtualized Data Centers

The Intel Ethernet Converged Network Adapter X710-DA4 is a quad-port 10GbE SFP+ adapter built for server, cloud, enterprise IT, and network virtualization environments. The X710DA4G2P5 configuration uses a low-profile form factor and PCI Express 3.0 x8 host interface, combining four SFP+ connections with the Intel Ethernet Controller X710-BM2.

The X710 platform supports 10GBASE-SR and 10GBASE-LR optical transceivers as well as SFP+ Direct Attach Copper media. Hardware-assisted network processing includes Intel Ethernet Flow Director, Dynamic Device Personalization, DPDK optimization, VMDq, and PCI-SIG SR-IOV. Network virtualization offloads support VXLAN, GENEVE, NVGRE, MPLS, and VXLAN-GPE with Network Service Headers.

Key Benefits and Features

• Quad-Port 10GbE: Four SFP+ connections support high-density server and data center networking
• Flexible Media Support: Supports 10GBASE-SR, 10GBASE-LR, and SFP+ Direct Attach Copper connections
• Virtualization Support: PCI-SIG SR-IOV supports up to 128 virtual functions per device, while VMDq supports up to 256 VMs
• Network Overlay Offloads: Supports VXLAN, GENEVE, NVGRE, MPLS, and VXLAN-GPE with NSH
• Packet Processing: Intel Ethernet Flow Director, DDP, and DPDK optimization support efficient traffic processing

Ideal Use Cases

• Virtualized server infrastructure
• Cloud and Network Functions Virtualization deployments
• Enterprise 10GbE network consolidation
• High-density server-to-switch connectivity

Deploy Intel X710-DA4 for High-Density 10GbE Networking

Choose the X710DA4G2P5 for quad-port 10GbE SFP+ connectivity, PCIe 3.0 x8 integration, virtualization offloads, flexible optical or DAC media, and advanced packet-processing capabilities.
