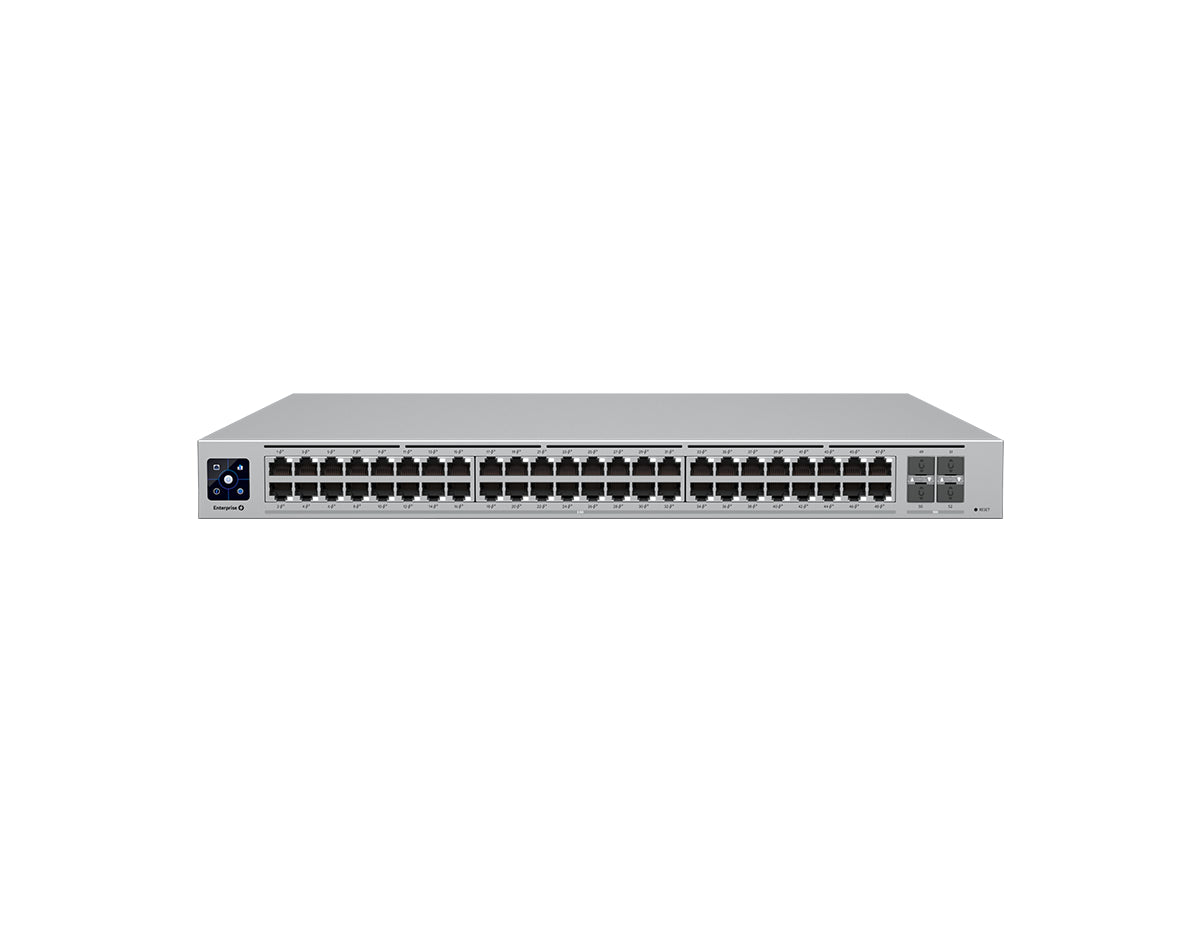

Ubiquiti UniFi USW-ENTERPRISE-48-POE Switch

High-Performance Switching for Modern Enterprise Networks

The Ubiquiti UniFi Enterprise 48 PoE (USW-ENTERPRISE-48-POE) delivers robust multi-gigabit performance with 48×2.5GbE PoE+ ports and 4×10G SFP+ uplinks, providing the throughput needed for dense, high-bandwidth environments. Backed by a 720W PoE budget and full Layer 3 capabilities, it enables efficient powering and segmentation of advanced deployments. A 1.3" LCM touchscreen simplifies monitoring, troubleshooting, and on-site management for IT teams.

Key Benefits & Features

• 48×2.5GbE PoE+ Ports: Power access points, cameras, and VoIP devices with up to 32W per port and a 720W total PoE budget.
• 10G Fiber Uplinks: Four SFP+ ports deliver high-capacity aggregation for scalable network expansion.
• Advanced Layer 3 Support: Includes inter-VLAN routing, DHCP server/relay, and static routing for optimized network control.
• High Throughput Architecture: 320 Gbps switching capacity and 238 Mpps forwarding ensure smooth, latency-free traffic distribution.
• Integrated 1.3" Touchscreen: Local diagnostics and configuration with real-time insights via a bright color LCM display.

Ideal Use Cases

• High-density enterprise networks requiring multi-gigabit connectivity
• Large wireless deployments with PoE-powered access points
• Security camera infrastructures using PoE+ power delivery
• Campus, hospitality, and education networks with high user counts
• Organizations requiring Layer 3 routing and simplified cloud management

Technical Specifications

• Ethernet Ports: 48×2.5GbE RJ45 PoE+ ports
• Uplink Ports: 4×10G SFP+
• PoE Budget: 720W total (PoE+)
• Max PoE per Port: Up to 32W
• Switching Capacity: 320 Gbps
• Non-Blocking Throughput: 160 Gbps
• Forwarding Rate: 238 Mpps
• Layer 3 Features: DHCP server/relay, inter-VLAN routing, static routing
• Dimensions: 442 × 400 × 44 mm (1U)
• Operating Temperature: 23–104 F (-5 to 40 C)
• Display: 1.3" LCM touchscreen

Upgrade Your Infrastructure with Enterprise-Grade Performance

Order today and scale your network with multi-gigabit efficiency.

Model	USW-Enterprise-48-PoE
Product Type	Layer 3 Managed Enterprise Switch
Ethernet Ports	48 × 2.5 GbE RJ45 (All PoE+)
Uplink Ports	4 × 10G SFP+
PoE Standard	802.3at PoE+
Max PoE Power per Port	32W
Total PoE Budget	720W
Switching Capacity	320 Gbps
Non-Blocking Throughput	160 Gbps
Forwarding Rate	238 Mpps
Layer 3 Capabilities	DHCP Server, DHCP Relay, Static Routing, Inter-VLAN Routing
VLAN Support	1,000
MAC Address Table	32,000
IPv4 Routes	16,000
Packet Buffer	4 MB
Redundancy	USP RPS DC Power Backup
Display	1.3" LCM Touchscreen
Enclosure	SGCC Steel
Dimensions (W × D × H)	442 × 400 × 44 mm (17.4 × 15.7 × 1.7 in)
Weight	6.2 kg (13.7 lb) without brackets; 6.3 kg (13.9 lb) with brackets
Operating Temperature	23 to 104 F (-5 to 40 C)
Operating Humidity	10% to 90% non-condensing
Certifications	CE, FCC, IC, Anatel; NDAA Compliant

PoE Specifications	48 × PoE+ ports; 32W max per port; 720W total PoE availability
Power Supply	100–240V AC, 50/60 Hz; AC/DC Internal Power Supply (870W)
Max Power Consumption	150W (without PoE); 870W (with PoE)
Power Redundancy	USP RPS DC input supported
Layer 3 Features	DHCP Server, DHCP Relay, Static Routing, Inter-VLAN Routing
Layer 2 Features	LACP, STP/RSTP, QoS (DSCP), IGMP Snooping, LLDP-MED, Voice VLAN
Security Features	MAC & IP ACLs, DHCP Snooping, Port Isolation, Storm Control
Management Platform	UniFi Network (v6.2.26 or later)
Heat Dissipation	511.8 BTU/hr (excluding PoE output)
ESD Protection	±16 kV Air; ±12 kV Contact
Physical Form Factor	1U Rackmount
Supported Rack Depth	600–1,200 mm (23.6–47.2 in)

Included in the Box

Power Cable; Rackmount Kit; Documentation
