OMNILINK TM-M30II-NT POS RECEIPT PRINTER
| Model: | TM-M30II |
| Detail: | OmniLink TM-m30II-NT POS Receipt Printer (TM-M30II) The OmniLink TM-m30II-NT point-of-sale thermal receipt printer offers dual USB and Ethernet connectivity. This compact 3" printer features a contemporary industrial design and the |
| Price: | $210.00 |
| Condition: | Brand New Sealed |
| Availability: | Out of Stock |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |
Description

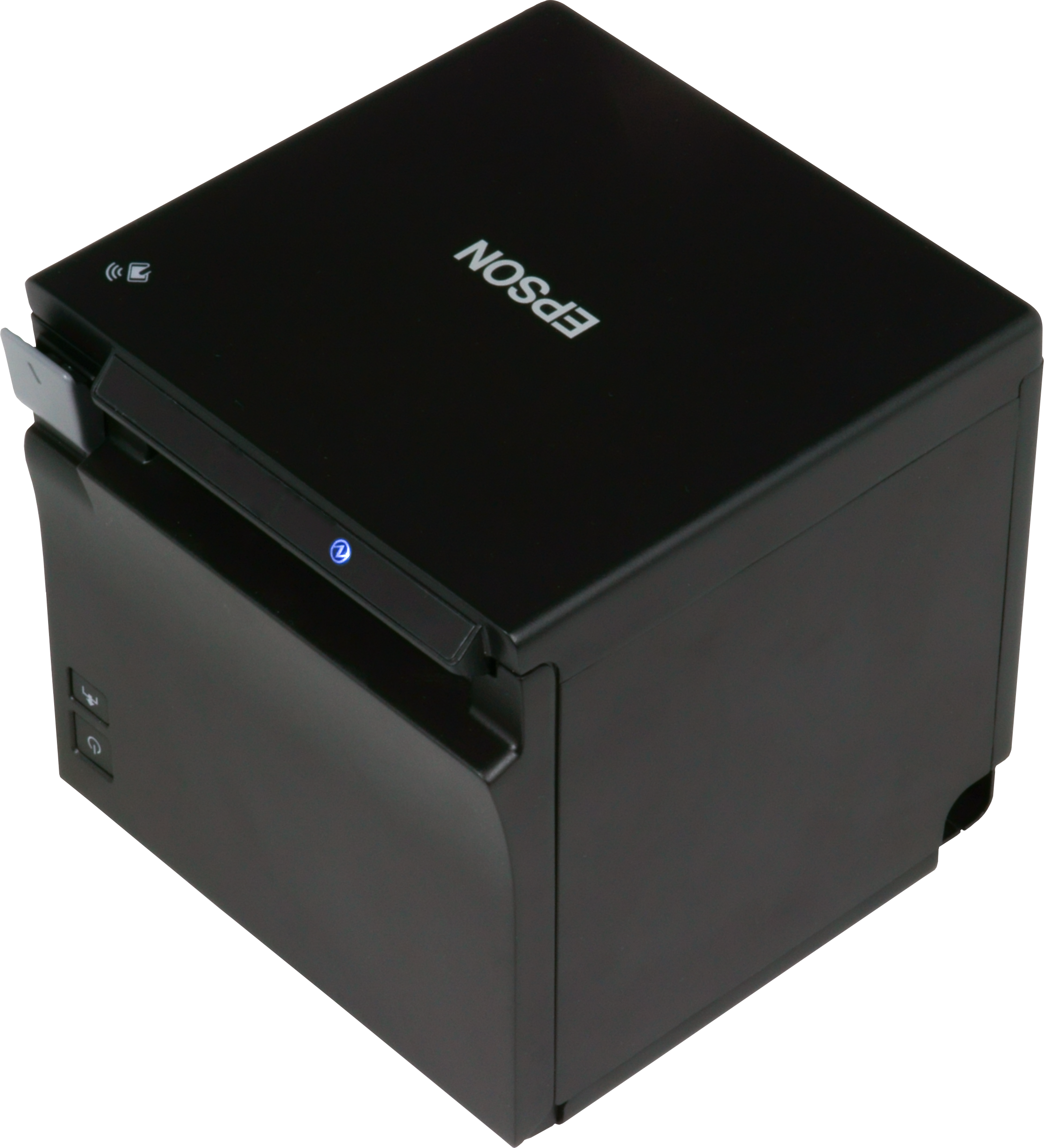

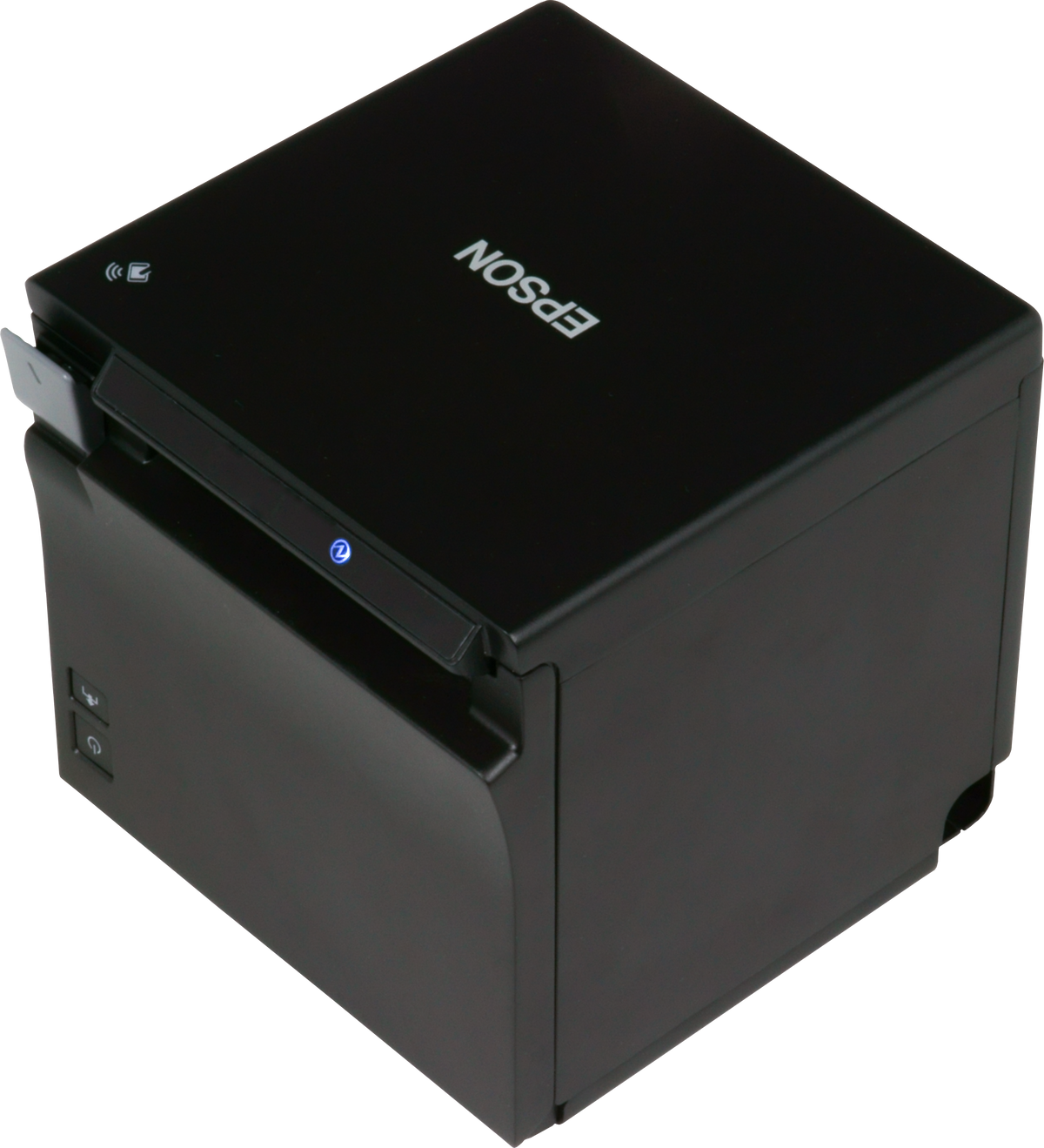

OmniLink TM-m30II-NT POS Receipt Printer (TM-M30II)
The OmniLink TM-m30II-NT point-of-sale thermal receipt printer offers dual USB and Ethernet connectivity. This compact 3" printer features a contemporary industrial design and the capability to charge a tablet or smartphone while communicating data through a single USB cable. It is well-suited for specialty stores, boutiques, small restaurants, bars, cafes, delis, and food trucks. Furthermore, the TM-m30II-H printer is furnished with a paper sensor for early detection of paper roll depletion.
Quick Specs:
- Print Method: Thermal
- Print Speed: 250mm/second
- 203 dpi
- Vertical and horizontal
Please see the related tabs for the TM-M30II datasheet and compatible accessories.
Accessories
</p> <table width=">
Specifications
| Specifications | OmniLink TM-m30II-NT POS Receipt Printer | ||||||||
| Print Method | Thermal | ||||||||
| Print Speed | 250 mm/second | ||||||||
| Print Resolution | 203 dpi | ||||||||
| Print Direction | Vertical and horizontal | ||||||||
| Print Fonts | |||||||||
| Fonts/Column Capacity | Font A: 12 x 24 48 cpl (default); Font B: 10 x 24 57 cpl; Font C: 9 x 17 64 cpl, Kanji Font A: 24 x 24 24 cpl; Kanji Font B: 20 x 24 28 cpl (Japanese), 36 cpl (Korean) |
||||||||
| Character Size | Font A: 1.25 x 3.00 mm Font B: 1.13 x 3.00 mm Font C: 0.88 x 2.13 mm Kanji Font A: 2.50 x 3.00 mm Kanji Font B: 2.26 x 3.00 mm |
||||||||
| Character Set | 95 Alphanumeric, 18 International, 128 x 43 Graphic, Japanese (11,233 characters of JIS X0213:2004, 1 special character), Simplified Chinese (28,553 characters of GB18030-2000), Traditional Chinese (13,535 characters of Big5), Korean (8,366 characters of KSC5601) |
||||||||
| Barcode | UPC-A, UPC-E, JAN8 / EAN8, JAN13 / EAN13, Code39, Code93, Code128, ITF, CODABAR (NW-7), GS1-128, GS1 DataBar, Code 128 Auto |
||||||||
| Two-dimensional Symbol Printing | PDF417, QR Code, MaxiCode, DataMatrix, Aztec Code, Two-dimensional GS1 DataBar, Composite Symbology | ||||||||
| Media Handling | |||||||||
| Media Dimensions | 80 mm: 79.5 ± 0.5 x 83 mm 3.13" ± 0.02" (width) x 3.27" (roll diameter) 58 mm: 57.5 ± 0.5 x 83 mm 2.26" ± 0.02" (width) x 3.27" (roll diameter) |
||||||||
| Thickness | 48 – 80 μm | ||||||||
| Type | Thermal roll paper | ||||||||
| Paper Feed Method | Friction feed | ||||||||
| Paper Back Feed | Yes | ||||||||
| Width | 3.12"/79.5 mm | ||||||||
| Paper Loading | Drop-in | ||||||||
| Roll Diameter (Max) | 3.27"/83 mm | ||||||||
| Core Diameter (Min) | 0.71"/18 mm | ||||||||
| Paper Guide | Yes | ||||||||
| Auto Cutter | Yes | ||||||||
| Connectivity | |||||||||
| Interface (Ethernet model) | Built-in USB-Type-B (USB 2.0, Full-speed) + Ethernet 10/100Base-T/TX + 1 x USB Type-A (Device Charging Port: 2.1A) + 1 x USB-Type-A (Standard) | ||||||||
| Supported Operating Systems | iOS®, Android™, Windows®, Mac® OS X®, GNU (Linux) | ||||||||
| Easy Setting Function | NFC*, QR code Easy Setting Tool TM Utility (iOS, Android), TM-m30II Utility (Windows), EpsonNetConfig, TM Bluetooth Connector *NFC tag requires use of a device that includes an NFC reader, and may require additional software. |
||||||||
| Easy Setting Tool | TM Utility (iOS, Android), TM-m30II Utility (Windows), EpsonNetConfig, TM Bluetooth Connector | ||||||||
| Reliability* |
Printer Reliability 17 million printing lines MTBF 360,000 hours MCBF 65,000,000 lines Auto Cutter Reliability 2.2 million cuts |
||||||||
| Printer Reliability | 17 million printing lines MTBF 360,000 hours MCBF 65,000,000 lines |
||||||||
| Auto Cutter Reliability | 2.2 million cuts | ||||||||
| *Epson’s statements about reliability levels are only estimates based on normal use of the printer using tested media only. See www.epson.com/testedmedia for more information on Tested Media. These reliability statements are not warranties of the media or Epson’s printers, and the only warranties for printers are the limited warranty statements for each printer. | |||||||||
| General | |||||||||
| NV Bit Image Memory | 12KB (max) | ||||||||
| NV Graphics | 384KB (max) | ||||||||
| Receive Buffer | 4KB or 45byte | ||||||||
| Development Kit | Epson® ePOSTM SDK (iOS, Android, JavaScript), TM Print Assistant (iOS, Android), OPOS ADK/OPOS ADK for .NET (Windows), JavaPOS ADK (Windows, Linux) | ||||||||
| Drivers | Epson Advanced Printer Driver (APD), TM Virtual Port Driver, Mac Printer Driver, CUPS Driver | ||||||||
| Other Tools | Deployment Tool, Monitoring Tool, TM-m30II Firmware Updater | ||||||||
| Software | TM Utility (iOS, Android), TM-m30II Utility (Windows Desktop), EpsonNet Config (Win, Mac), TM Bluetooth Connector, Deployment Tool, Monitoring Tool |
||||||||
| Audible Alert | Optional External Buzzer (OT-BZ20) | ||||||||
| LED Indicators | Orange LEDs – Error, Paper Out; Blue LEDs – Power, Ethernet | ||||||||
| Sensors | Paper End, Cover Open, Near-end Sensor (Select SKUs) | ||||||||
| D.K.D. Function | Yes | ||||||||
| Power Consumption | Operating 32.8 W, Standby 1.6 W (AC115 V/60 Hz) | ||||||||
| Power Source | Adapter PS-180 | ||||||||
| Power Saving | Yes | ||||||||
| Temperature | 5 °C to 45 °C | ||||||||
| Relative Humidity | 10 – 90% | ||||||||
| Acoustic Noise Level | 55 db | ||||||||
| Standards and Approvals | EMI FCC Class A, ICES-003 Class A Safety Standard UL62368-1/CSA C22.2 No.62368-1 |
||||||||
| Dimensions (W x D x H) | 5" x 5" x 5" 127 x 127 x 135 mm |
||||||||
| Weight | 2.87 lb/1,300 g | ||||||||
| Color | ENB9 (Epson White), EBCK (Epson Black) | ||||||||
| Cash Drawer Kick | Yes | ||||||||
| USB-Network-Tethering* | Yes *Only works with iOS devices. | ||||||||
| Smart Device Charging | Yes (2.1 A) | ||||||||
| Data Communication | iOS and Android ( Feature available for iOS devices and Android devices running Android 10 or later.) | ||||||||
| USB POS Peripheral Device Support | Up to 2 | ||||||||
| Eco Features | |||||||||
| Paper-saving Mode ENERGY STAR® qualified (select SKUs) RoHS compliant Recyclable product* Epson America, Inc. is a SmartWay® Transport Partner** *For convenient and reasonable recycling options, visit www.epson.com/recycle ** SmartWay is an innovative partnership of the U.S. Environmental Protection Agency that reduces greenhouse gases and other air pollutants and improves fuel efficiency. |
|||||||||
| What’s in the Box | |||||||||
| OmniLink TM-m30II-NT, Power Supply - Adapter PS-180 with AC Cable, Power Switch Cover, Roll Paper (for checking initial movement of the printer), Setup Guide, 58 mm Roll Paper Guide (Contents vary by individual sku) |
|||||||||
