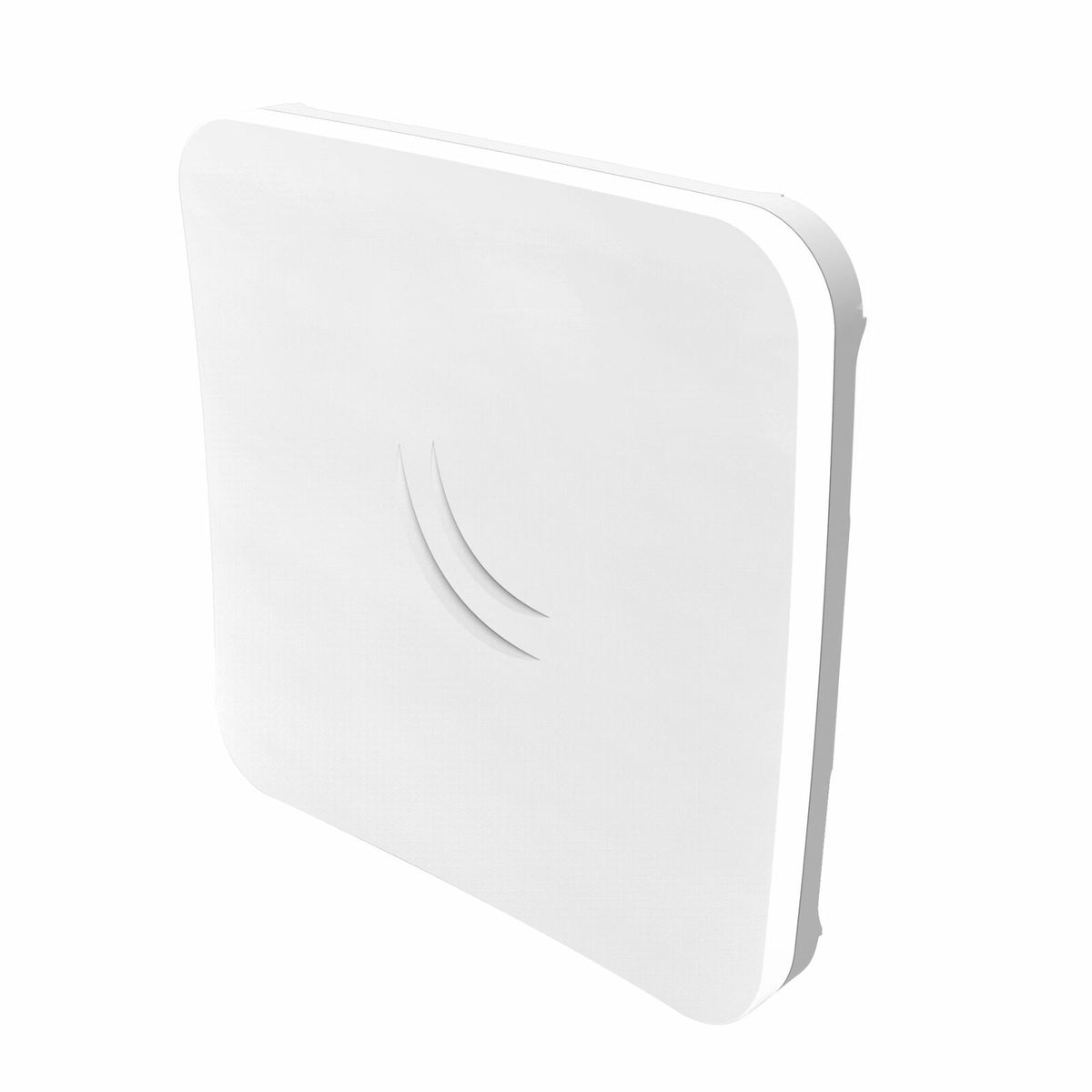

MikroTik SXTsq Lite2 Outdoor Access Point

MikroTik RBSXTSQ2ND Access Point

The RBSXTsq2nD is a wireless outdoor access point that features a compact design and high gain antenna, which enhances connectivity. It is engineered for effortless installation and is equipped with a weatherproof enclosure, rendering it suitable for outdoor deployment. Offering a cost-effective solution, the RBSXTsq2nD is an ideal option for extending wireless network coverage to outdoor spaces.

Quick Specs:

• 1x 10/100 Ethernet Port
• PoE in: Passive PoE
• QCA9533, 1 core, 650 MHz CPU
• RouterOS

Please see the related tabs for the RBSXTsq2nDdatasheet and compatible accessories.

Properties	MikroTik SXTsq Lite2 RBSXTSQ2ND
Description	Low-cost small-size 10dBi 2.4GHz dual chain integrated CPE/Backbone
Product Family	SXT Series
Product Type	Access Point
10/100 Ethernet ports	1
Dimensions	129 x 129 x 34 mm
Number of DC inputs	1 (PoE-IN)
Max power consumption	5 W
Cooling type	Passive
PoE in	Passive PoE
PoE in input Voltage	10-30 V

Specifications	RBSXTSQ2ND
Memory	64 MB
Flash Storage size	16 MB
CPU	QCA9533 650 MHz
CPU core count	4
OS	RouterOS level 3 license
Wireless capabilities
Wireless 2.4 GHz Max data rate	300 Mbit/s
Wireless 2.4 GHz number of chains	2
Wireless 2.4 GHz standards	802.11b/g/n
Antenna gain dBi for 2.4 GHz	10
Wireless 2.4 GHz chip model	QCA9533
Wireless 2.4 GHz generation	Wi-Fi 4
Wireless specifications
5 GHz
1MBit/s	Transmit (dBm): 30 Receive Sensitivity: -100
11MBit/s	Transmit (dBm): 30 Receive Sensitivity: -93
6MBit/s	Transmit (dBm): 30 Receive Sensitivity: -94
54MBit/s	Transmit (dBm): 26 Receive Sensitivity: -80
MCS0	Transmit (dBm): 30 Receive Sensitivity: -94
MCS7	Transmit (dBm): 25 Receive Sensitivity: -75
MTBF	Approximately 100.000 hours at 25C
Temperature	-40°C to 70°C tested
Certification	CE, FCC, IC, EAC, ROHS
IP	IP54

24V 0.38A power adapter

Metal ring (one)

PoE injector
