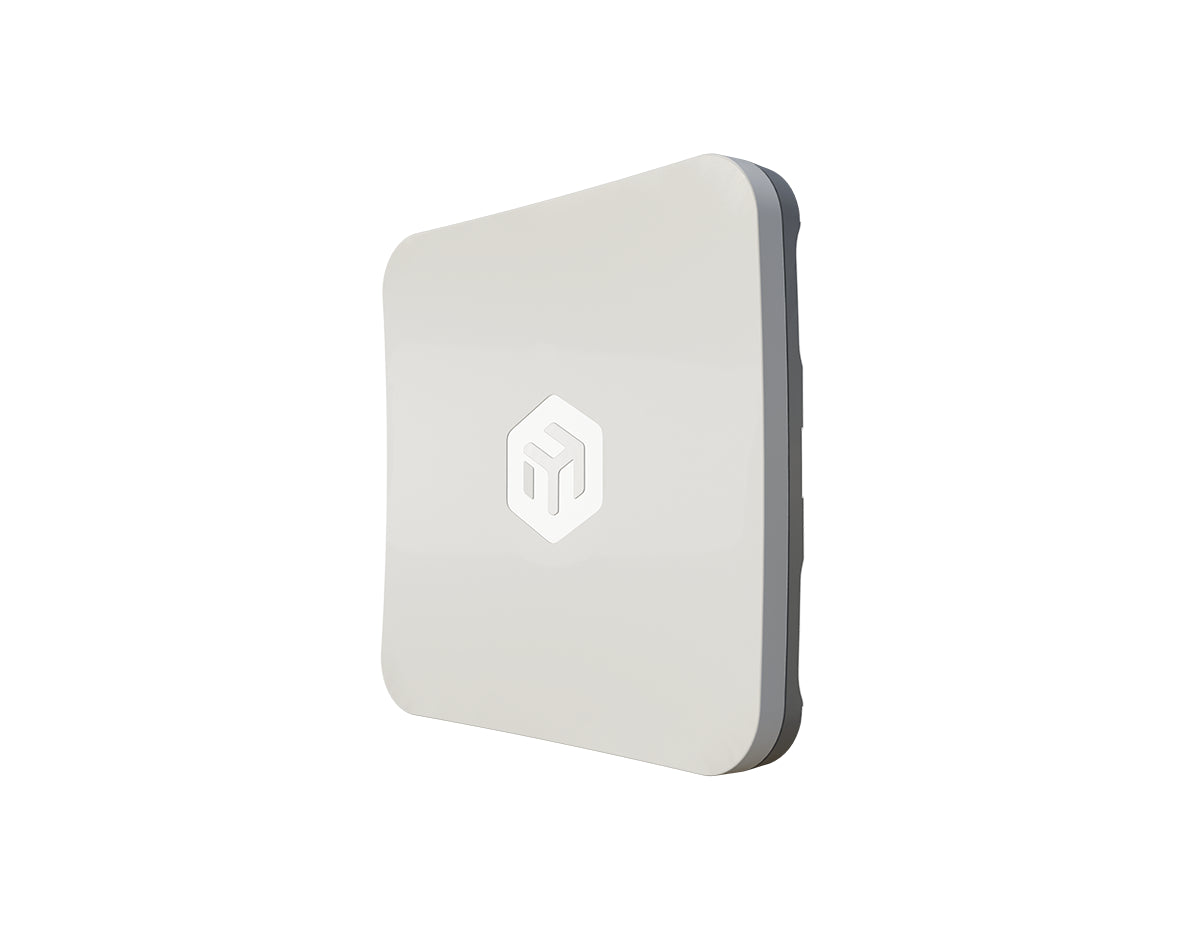

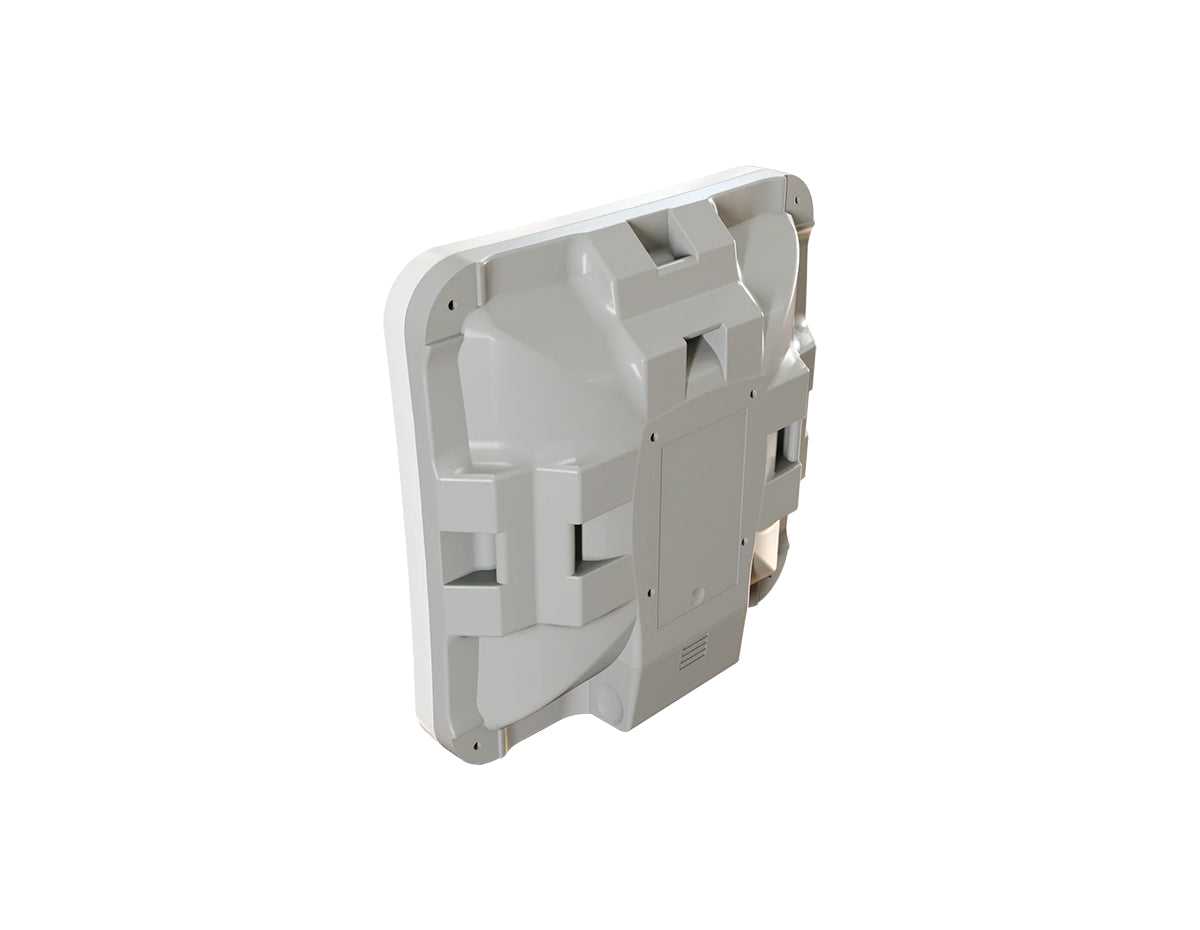

MikroTik SXTsq 5 ax (SXTsq-5axD-US) Wireless Router

Compact Outdoor Wi-Fi 6 CPE Built for Reliable 5 GHz Links

The MikroTik SXTsq 5 ax (SXTsq-5axD-US) is a compact, weatherproof 5 GHz Wi-Fi 6 CPE designed for stable point-to-point links and last-mile client connectivity. Its integrated 16 dBi directional antenna helps maintain link quality in challenging RF environments, while the Gigabit Ethernet port supports real-world throughput for cameras, remote offices, and WISP subscriber sites.

Key Benefits & Features

• Wi-Fi 6 performance at 5 GHz: 802.11a/n/ac/ax support with up to 1200 Mbit/s max data rate for efficient spectrum usage.
• Directional 16 dBi antenna: Built-in gain improves signal focus for longer distances and more stable links.
• Gigabit Ethernet uplink: 1× 10/100/1000 port helps avoid wired bottlenecks.
• Simple single-cable powering: Passive PoE-in (12–28 V DC) for clean outdoor installs.
• RouterOS v7 Level 4: Can be configured as an access point (AP mode) or CPE, enabling flexible deployments.

Ideal Use Cases

• Point-to-point wireless bridges for buildings and remote sites
• WISP subscriber CPE for last-mile connectivity
• Outdoor connectivity for IP cameras and perimeter devices
• Temporary links for events, construction sites, or backup WAN paths
• Rooftop / mast deployments where compact size and low power matter

Technical Specifications Summary

• CPU: Dual-Core IPQ-5010, 800 MHz
• Memory & Storage: 256 MB DDR3L RAM; 128 MB NAND
• Wireless: 5 GHz 802.11a/n/ac/ax (Wi-Fi 6), 2 chains; max data rate 1200 Mbit/s
• Antenna: Integrated 16 dBi directional
• RF performance (examples): 6MBit/s Tx 24 dBm / Rx -96 dBm; 54MBit/s Tx 21 dBm / Rx -80 dBm; MCS11 Tx 16 dBm / Rx -67 dBm
• Power: Passive PoE-in 12–28 V DC; max power consumption 6 W; included adapter 24 V 0.38 A
• Physical & Environment: 129 × 129 × 34 mm; IP55 enclosure; -40°C to +70°C tested ambient
• Compliance IDs: FCC ID TV7SXTS5AX; IC ID 7442A-SXT5AX

Upgrade Your Wireless Link Today

Deploy a compact, weatherproof 5 GHz Wi-Fi 6 CPE with a directional 16 dBi antenna and Passive PoE powering. Order the MikroTik SXTsq 5 ax (SXTsq-5axD-US) today.

Model	MikroTik SXTsq 5 ax
SKU / Model (US Version)	SXTsq-5axD-US
Product Code	SXTsq-5axD
Product Type	Outdoor 5 GHz Wi-Fi 6 (802.11ax) CPE / directional wireless unit
Wireless Standards	802.11a/n/ac/ax (5 GHz, Wi-Fi 6)
Operating Frequency (US)	5170–5835 MHz (factory locked; cannot be removed)
Max Wireless Data Rate (5 GHz)	1200 Mbit/s
Antenna Gain	16 dBi
Ethernet Ports	1× 10/100/1000 (Gigabit) Ethernet
Power Input	Passive PoE-in, 12–28 V DC
Max Power Consumption	6 W
Operating System	RouterOS v7 (License Level 4)
Enclosure Rating	IP55

CPU	Dual-Core IPQ-5010, 800 MHz
CPU Architecture	ARM 64bit
RAM	256 MB DDR3L
Storage	128 MB NAND
Wireless Interface Model	QCN-6102
Wireless Chains (5 GHz)	2
Wireless Generation	Wi-Fi 6
RF Performance (5 GHz)	6MBit/s: Tx 24 dBm / Rx -96 dBm; 54MBit/s: Tx 21 dBm / Rx -80 dBm; MCS7: Tx 20 dBm / Rx -75 dBm; MCS9: Tx 18 dBm / Rx -70 dBm; MCS11: Tx 16 dBm / Rx -67 dBm
Dimensions	129 × 129 × 34 mm
MTBF	Approximately 100,000 hours at 25°C
Tested Ambient Temperature	-40°C to +70°C
Power Adapter (Included)	24 V, 0.38 A
FCC ID	TV7SXTS5AX
IC ID	7442A-SXT5AX
Regulatory Note (5150–5250 MHz)	Operation in 5150–5250 MHz band is only for indoor use to reduce potential interference to co-channel mobile satellite systems
EU Declaration of Conformity (Product Family)	RED 2014/53/EU; RoHS 2011/65/EU incl. (EU) 2015/863; EN IEC 62311:2020; LVS EN IEC 62368-1:2024; EN 301 489-1 V2.2.3; EN 301 489-17 V3.3.1; EN 301 893 V2.2.1; IEC 63000:2018

Included

24 V 0.38 A power adapter, Gigabit PoE injector, Hose clamp
