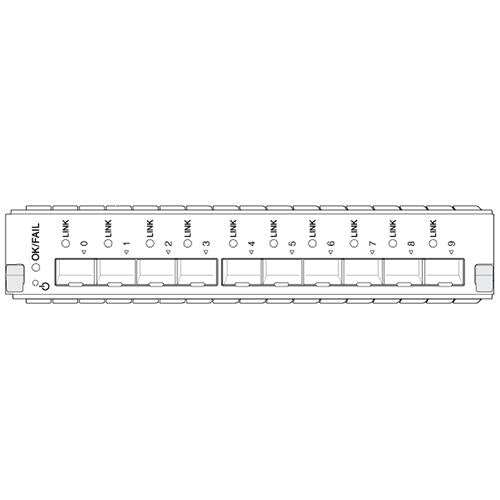

Juniper SRX-MIC-10XG-R Interface Card

Boost High-Speed Networking with the Juniper SRX-MIC-10XG-R

The Juniper SRX-MIC-10XG-R expands your SRX5000 Series Service Gateways with ten 10GbE SFP+ ports, providing a scalable, reliable solution for bandwidth-intensive and latency-sensitive environments. Designed for IOC2 slots, this module delivers powerful 10GbE performance ideal for enterprises and service providers consolidating traffic at scale.

Engineered for dense deployments and high-throughput operations, the SRX-MIC-10XG-R enhances network flexibility while maintaining platform efficiency and security. Its modular design ensures seamless integration into SRX5400, SRX5600, and SRX5800 systems.

Key Benefits & Features

• High-Density 10GbE Ports: Provides 10x10GE SFP+ interfaces to support demanding data, voice, and application workloads.
• IOC2 Compatibility: Fits directly into IOC2 cards, enabling consistent integration across SRX5000 gateways.
• Optimized for Scalability: Allows flexible network growth with modular port expansion without chassis upgrades.
• Reliable Performance: Ideal for high-speed routing, edge security, and service provider aggregation environments.
• Efficient Power Consumption: Typical 65W power draw supports efficient, high-density deployments.

Ideal Use Cases

• High-speed data center interconnects
• Service provider aggregation and core networking
• Enterprise edge routing and security environments
• Scalable SRX5000 Series firewall deployments
• Traffic consolidation for multi-tenant or large enterprise networks

Technical Specifications

• Ports: 10x10GE SFP+
• Compatibility: IOC2 cards for SRX5400, SRX5600, SRX5800
• Power Consumption: Approx. 65W (Typical)
• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Storage Temperature: -40°C to 70°C (-40°F to 158°F)
• Humidity: 5% to 90% non-condensing
• Dimensions: 1.6 x 14.5 x 11.2 in (4.1 x 36.8 x 28.4 cm)
• Weight: 3.5 lbs (1.6 kg)
• Use Case: Enterprise & service provider high-speed networking
• Form Factor: MIC for IOC2

Upgrade Your SRX Gateway with 10GbE Capacity

Order today and expand your SRX5000 performance instantly.

Model	SRX-MIC-10XG-R
Product Type	10x10GE SFP+ MIC Module
Ports	10 × 10G SFP+
Compatibility	IOC2
Speed	10 Gbps
Use Case	Enterprise / Service Providers
Form Factor	Module
High-Speed Networking	Yes
Scalable Solution	Yes
Configured Option	Yes

Module Type	10G SFP+ Line Card (MIC)
Supported Transceivers	10GBASE-SR, 10GBASE-LR, SFP+ Direct Attach Cable
Application Scenarios	High-speed data centers; Service provider networks; Enterprise edge routing
Network Compatibility	IOC2
Data Rate	10 Gbps per port
Total Ports	10 SFP+
Suitable Platforms	SRX5400, SRX5600, SRX5800

SFP-10G-SR	10GBASE-SR SFP+ Module, MMF
SFP-10G-LR	10GBASE-LR SFP+ Module, SMF
CAB-SFP-SFP-1M	1-meter SFP+ Direct Attach Cable
