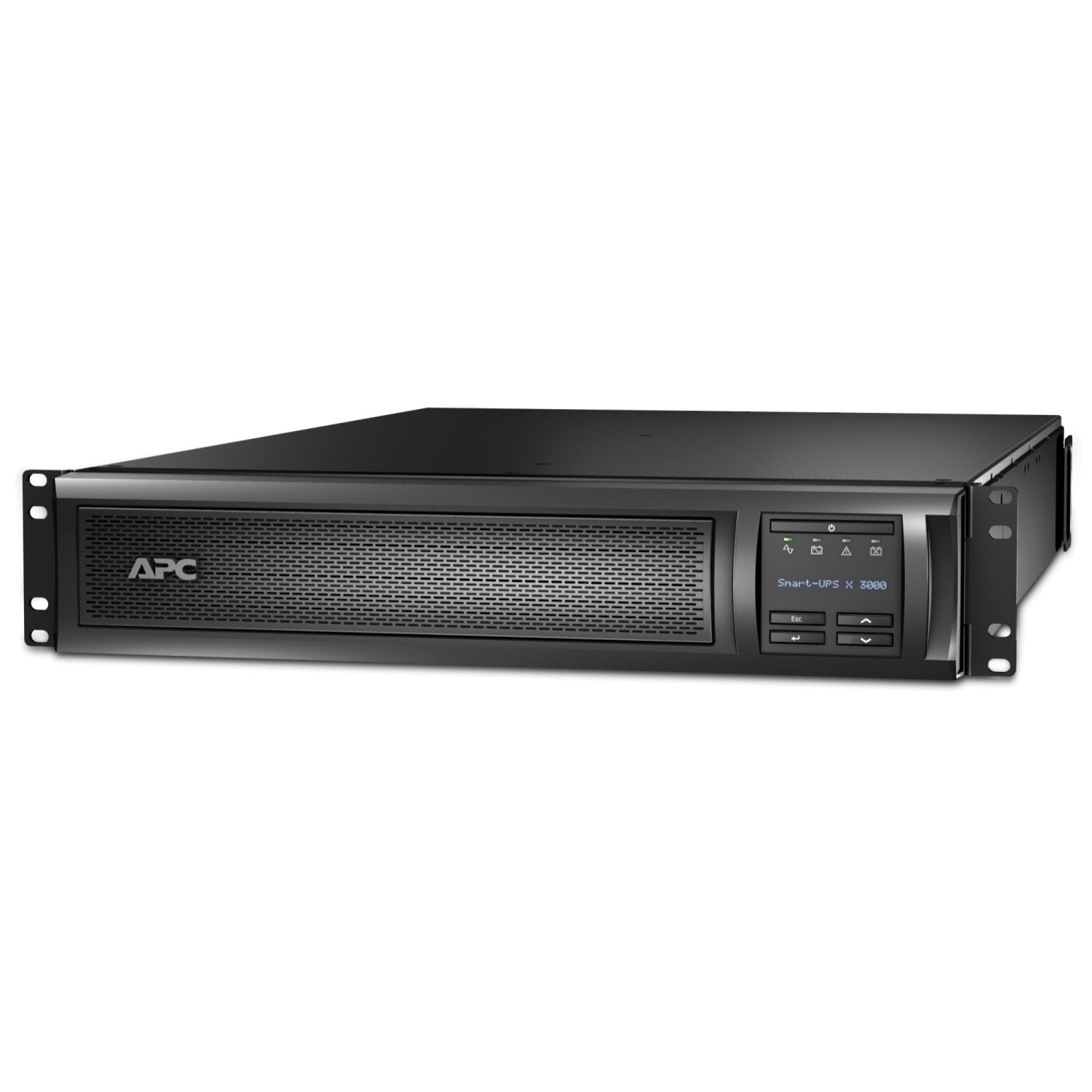

APC SMX3KRMLVNCUS - Smart-UPS X 2880VA 2U Rack/Tower Convertible UPS

Overview

The APC Smart-UPS X SMX3KRMLVNCUS delivers 2880VA / 2700W of reliable backup power in a versatile 2U rack/tower convertible design. Engineered for enterprise environments, it combines pure sine wave output, line-interactive topology, and advanced Automatic Voltage Regulation (AVR) to ensure clean, consistent power delivery for servers, network devices, and critical IT infrastructure. With SmartConnect Ethernet and a pre-installed Network Management Card, it offers robust local and remote monitoring capabilities.

Key Features & Benefits

• 2880VA / 2700W Capacity: Provides high power density to support demanding IT loads and network hardware.
• Line-Interactive Topology: Automatic voltage regulation stabilizes input fluctuations without drawing on battery power.
• Pure Sine Wave Output: Ensures clean and reliable power for sensitive equipment.
• SmartConnect & NMC: Integrated Ethernet port and Network Management Card 3 for advanced monitoring and control.
• Rack/Tower Convertible: Flexible 2U form factor supports diverse deployment requirements.
• Extended Runtime Options: Compatible with additional battery packs for scalable backup duration.

Technical Deep Dive

The SMX3KRMLVNCUS leverages line-interactive topology with AVR, correcting input voltage drops and surges before they affect connected equipment. This reduces unnecessary battery use and extends operational life.

Its pure sine wave output ensures sensitive IT infrastructure—such as servers, storage, and networking gear—receives clean, stable power even during disturbances. With a maximum output of 2700 watts, it provides reliable coverage for medium to large loads.

Management is streamlined through APC SmartConnect Ethernet and a pre-installed Network Management Card 3. These tools enable cloud-enabled monitoring, environmental sensing, and remote control, giving IT teams complete visibility and control over power conditions across distributed sites.

Ideal Applications

• Enterprise server rooms and network closets
• Branch offices requiring high-availability power
• Healthcare and financial IT systems
• Edge computing and distributed IT environments
• Critical business applications needing extended runtime

Frequently Asked Questions (FAQs)

Q1: How is the SMX3KRMLVNCUS installed?
A: It comes with rack mounting hardware, support rails, and removable feet, making it easy to deploy in either rackmount (2U) or tower configurations.

Q2: What performance can I expect?
A: This UPS delivers 2880VA / 2700W of power with a 3-hour recharge time. Runtime depends on load level and can be extended with external battery packs. Actual runtime varies by equipment and environment.

Q3: How can the UPS be managed?
A: The unit includes an LCD control panel, SmartConnect Ethernet port, and a pre-installed Network Management Card 3, providing local, cloud-based, and remote monitoring options.

Brand	APC by Schneider Electric
Model	SMX3KRMLVNCUS
Product Type	Smart-UPS X, Line-Interactive (Extended Runtime)
Form Factor	Rack/Tower Convertible 2U
Dimensions (H x W x D)	3.35" x 17.01" x 26.26" (8.5 x 43.2 x 66.7 cm)
Weight	84.77 lb (38.45 kg)
Color	Black
Number of Rack Units	2U
Cable Length	8 ft (2.4 m)
Cooling

Capacity	2880 VA / 2700 W
Input Voltage	120 V (other: 100 V, 110 V, 127 V) • Operating range: 70–153 V
Input Connection Type	NEMA L5-30P
Input Frequency	50/60 Hz ±3 Hz, auto-sensing
Output Voltage	120 V (other: 100 V, 110 V, 127 V)
Output Connections	3 × NEMA 5-15R, 3 × NEMA 5-20R, 1 × NEMA L5-30R
Waveform Type	Sine wave
Topology	Line Interactive
Transfer Time	4 ms typical, 8 ms maximum
Battery Type	Lead-Acid
Battery Recharge Time	3 hours
Battery Life	3–5 years
Replacement Battery	APCRBC117US
Battery Charge Power	245 W rated
Extendable Runtime	Yes
Surge Energy Rating	540 J
Acoustic Noise	55 dBA
Thermal Dissipation	276 BTU/h
Operating Temperature	0–40 °C (32–104 °F)
Operating Humidity	0–95% non-condensing
Altitude	0–10,000 ft operating
Communications	Multi-function LCD, LED status indicators, alarms, USB, RS-232, EPO, SmartSlot (occupied by pre-installed Network Management Card 3)
Certifications	BSMI, CSA, NOM, TÜV, VCCI Class A, TAA compliant
Warranty	3 years repair or replace (excluding battery), 2 years for battery

Rack Mounting Hardware	Included in the box
Rack Mounting Brackets	Included in the box
Rack Mounting Support Rails	Included in the box
Removable Support Feet	Included in the box
Smart-UPS Signalling RS-232 Cable	Included in the box
USB Cable	Included in the box
Network Management Card	Pre-installed in the unit
Documentation	Installation guide, Documentation CD, CD with software
