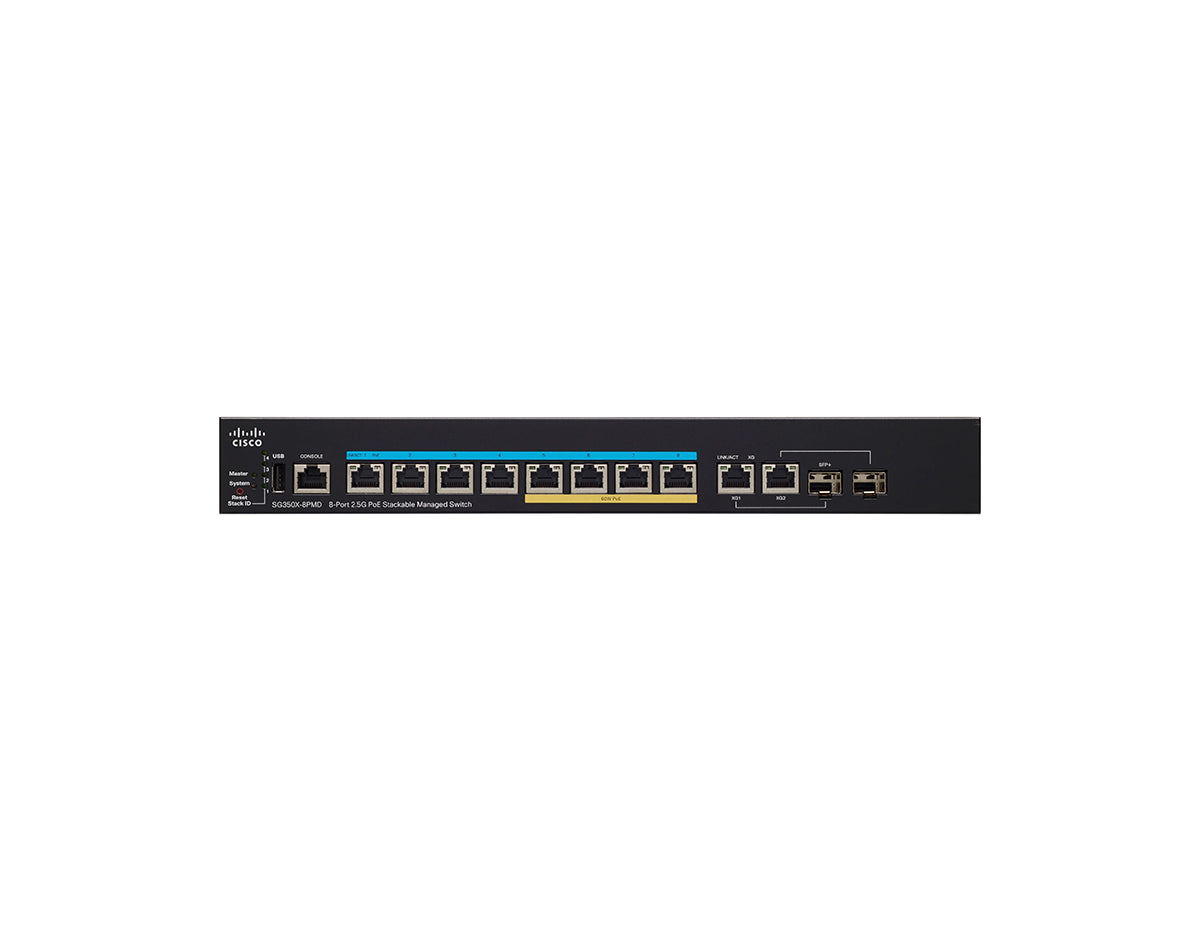

Cisco SG350X-8PMD-K9 Switch

Name: Cisco SG350X-8PMD-K9 Switch
Brand: Cisco
Price: 979.00 USD
Availability: OutOfStock

Part Number: SG350X-8PMD-K9

Technical Details

Managed, Rack-mountable, 8 x 2.5G PoE+ ports, 2 x 10G SFP+ Uplinks, PoE+ (240W), Layer 3

$3,127.21

$979.00

69% OFF

You Save: $2,148.21

Ask an Expert

sales@networkdevicesinc.com

1-201-559-1474

Availability: Request ETA

Condition: Brand New Sealed

Free Shipping on Orders $100+Arrives in 1-6 business days within the U.S.

International DeliveryWorldwide shipping in 7–15 business days

30 Days Return

12 Months Warranty Support

sales@networkdevicesinc.com

1-201-559-1474

Cisco SG350X-8PMD-K9 Switch

The Cisco SG350X-8PMD-K9 is a compact, stackable managed switch designed to deliver 8 Gigabit Ethernet PoE+ ports, with up to 60W per port for powering high-demand devices such as IP phones, wireless access points, and surveillance cameras. Equipped with advanced Layer 3 traffic management and 10 Gigabit uplinks, this switch is perfect for small businesses and satellite offices that require a flexible, scalable, and high-performance networking solution.

Key Features:

8 x Gigabit Ethernet Ports with PoE+: Supports up to 60W per port, perfect for powering high-demand devices like cameras, access points, and phones while delivering fast data transfer.
10 Gigabit Uplinks: Includes 2x 10GBase-T/SFP+ combo uplinks for flexible and high-speed network expansion.
Layer 3 Traffic Management: Advanced features like VLANs, static routing, and access control lists (ACLs) ensure optimized network traffic and enhanced security.
Stacking Capability: True stacking simplifies the management of multiple switches, enabling seamless network scaling.
Energy Efficiency: Compliant with IEEE 802.3az standards, reducing power consumption while maintaining network performance.
Robust Security: Features such as DHCP snooping, IP Source Guard, and dynamic ARP inspection protect the network from unauthorized access.

Technical Overview:

Recommended for: Small businesses or satellite offices needing high-power PoE+ ports and advanced Layer 3 traffic management.
Ports: 8 x 10/100/1000 Mbps Gigabit Ethernet ports with PoE+ (up to 60W per port).
Uplink Modules: 2x 10GBase-T/SFP+ combo uplinks.
Switching Capacity: 160 Gbps.
Forwarding Rate: 119.04 Mpps.
Layer 3 Features: VLANs, static routing, and ACLs for enhanced network control.
Management: Web-based GUI, CLI, and SNMP for comprehensive network management.
Licensing: Network Essential.
Security: Includes DHCP snooping, IP Source Guard, and dynamic ARP inspection.
Energy Efficiency: Supports IEEE 802.3az for energy-efficient operation.

You can check the related tab for the Cisco SG350X-8PMD-K9 datasheet.

Properties

Properties	SG350X-8PMD-K9
Description	— 8x 100M/1G/2.5G PoE+ ports (4 support 60W PoE) — 2x 10G ports (2x 10GBase-T/SFP+ combo) — 240W PoE power budget
Product Family	SG350X Series
Product Type	Small Business Switch
Number of Ports (Gigabit Ethernet)	8x 2.5G + 2x 10G
Network Ports	8x 2.5G
Uplink Ports	2x 10G copper/SFP+ combo
Downlinks total 10/100/1000 ports	-
Power dedicated to PoE	240W
Number of ports that support PoE	8 (4 support 60W PoE)
Power	100 to 240V 50 to 60 Hz, internal, universal
Fans	1
Unit dimensions in. (W x D x H)	13.6 x 1.73 x 9.94

Specifications

Specifications	SG350X-8PMD-K9
Capacity in millions of packets (mpps)	29.76
Switching capacity (Gbps)	80
Flash Memory	256 MB
CPU	800 MHz ARM
CPU Memory	512MB
Packet Buffer	1.5 MB
MAC addresses	16K
Head-of-line (HOL) blocking	Head-Of-Line (HOL) blocking
Quality of Service (QoS)	8 hardware queues, Strict priority and Weighted Round-Robin (WRR), Port based; 802.1p VLAN priority based
Standards	IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3bz 2.5GBase-T and 5GBase-T, IEEE 802.3ad Link Aggregation Control Protocol, IEEE 802.3z Gigabit Ethernet, IEEE 802.3ae 10 Gbit/s Ethernet over fiber for LAN, IEEE 802.3an 10GBase-T 10 Gbit/s Ethernet over copper twisted pair cable, IEEE 802.3x Flow Control, IEEE 802.1D (STP, GARP, and GVRP), IEEE 802.1Q/p VLAN, IEEE 802.1w Rapid STP, IEEE 802.1s Multiple STP, IEEE 802.1X Port Access Authentication, IEEE 802.3af, IEEE 802.3at, IEEE 802.1AB Link Layer Discovery Protocol, IEEE 802.3az Energy Efficient Ethernet, NBASE-T, RFC 768, RFC 783, RFC 791, RFC 792, RFC 793, RFC 813, RFC 826, RFC 879, RFC 896, RFC 854, RFC 855, RFC 856, RFC 858, RFC 894, RFC 919, RFC 920, RFC 922, RFC 950, RFC 951, RFC 1042, RFC 1071, RFC 1123, RFC 1141, RFC 1155, RFC 1157, RFC 1213, RFC 1215, RFC 1286, RFC 1350, RFC 1442, RFC 1451, RFC 1493, RFC 1533, RFC 1541, RFC 1542, RFC 1573, RFC 1624, RFC 1643, RFC 1700, RFC 1757, RFC 1867, RFC 1907, RFC 2011, RFC 2012, RFC 2013, RFC 2030, RFC 2131, RFC 2132, RFC 2233, RFC 2576, RFC 2616, RFC 2618, RFC 2665, RFC 2666, RFC 2674, RFC 2737, RFC 2819, RFC 2863, RFC 3164, RFC 3176, RFC 3411, RFC 3412, RFC 3413, RFC 3414, RFC 3415, RFC 3416, RFC 4330
Operating Temperature	32° to 113°F (0° to 45°C)
Operating humidity	10% to 90%, relative, noncondensing
Certification	UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A

Accessories

Hardware
LEDs	System, master, stack ID, link/speed per port
Cabling type	UTP Category 5 or better; fiber options (Single-Mode Fiber [SMF] and Multimode Fiber [MMF]); coaxial SFP+
Accessories	There is no additional accessory other than the mounting kit and power cord included in the product package.
Supported SFP modules
SKU	Media
MGBSX1	Multimode fiber
MGBLX1	Single-mode fiber
MGBLH1	Single-mode fiber
MGBT1	UTP cat 5e
GLC-SX-MMD	Multimode fiber
GLC-LH-SMD	Single-mode fiber
GLC-BX-U	Single-mode fiber
GLC-BX-D	Single-mode fiber
GLC-TE	UTP cat 5e
SFP-H10GB-CU1M	Copper coax
SFP-H10GB-CU3M	Copper coax
SFP-H10GB-CU5M	Copper coax
SFP-10G-SR	Multimode fiber
SFP-10G-LR	Single-mode fiber
SFP-10G-SR-S	Multimode fiber
SFP-10G-LR-S	Single-mode fiber
Package contents	— Cisco 350X Series Stackable Managed Switch — Power cord — Mounting kit included with all models — Console cable — Quick Start Guide
Minimum requirements	— Web browser: Mozilla Firefox version 34 or later, Microsoft Internet Explorer version 9 or later, Chrome version 40 or later, Safari version 5 or later — Category 5e Ethernet network cable for Gigabit Ethernet speeds at up to 100m; Category 6a Ethernet network cable for 10 Gigabit Ethernet speeds at up to 100m — TCP/IP, network adapter, and network operating system (such as Microsoft Windows, Linux, or Mac OS X) installed
