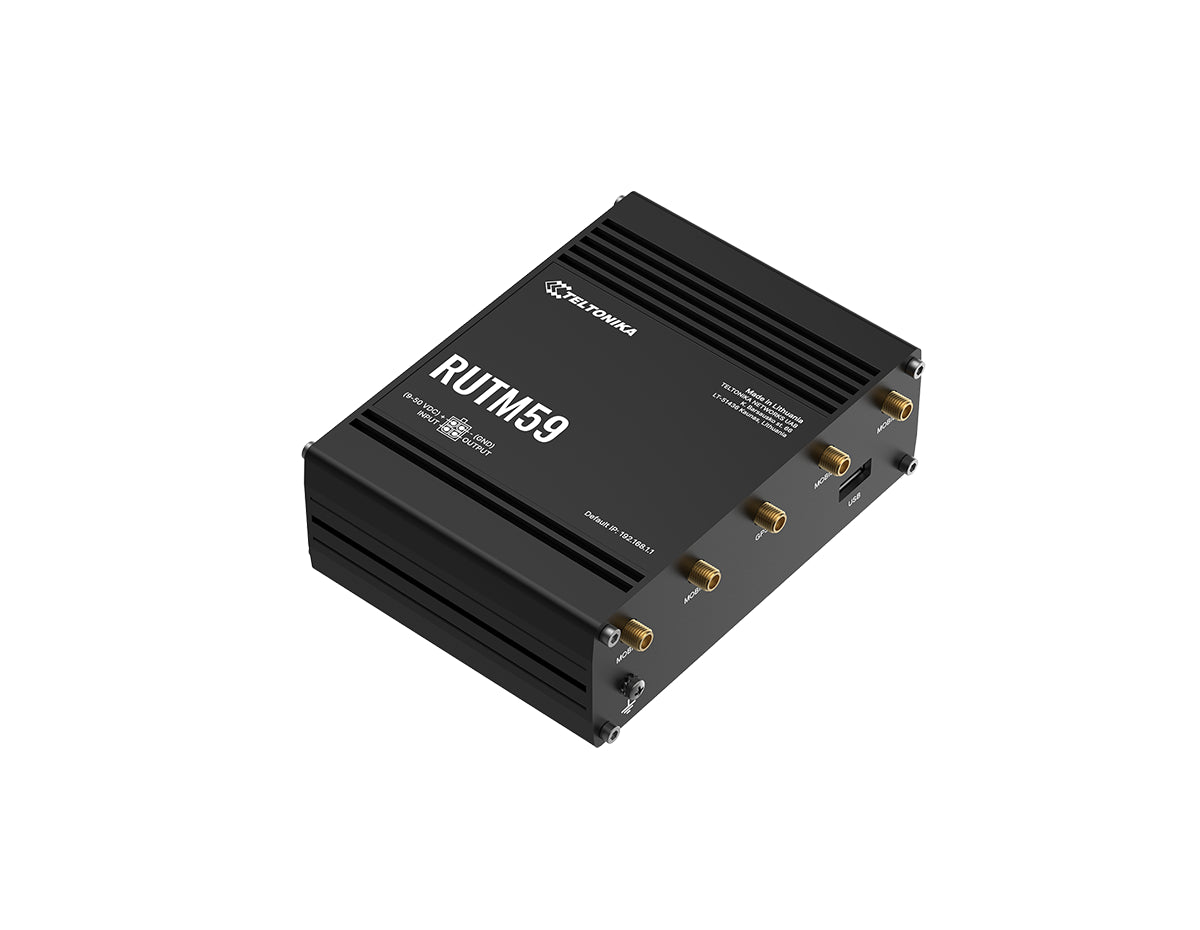

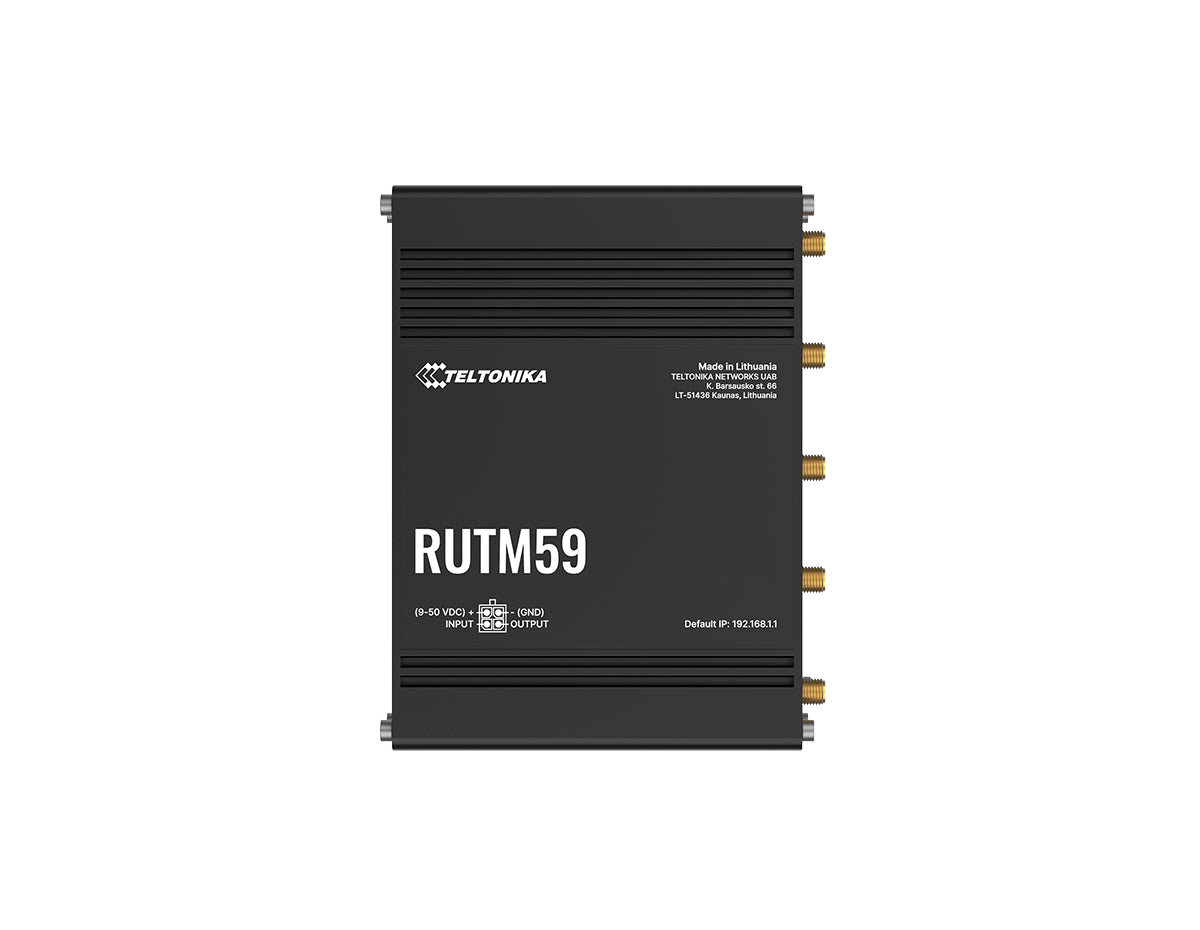

Teltonika RUTM59 5G Industrial Cellular Router (RUTM59000000)

High-Performance 5G Connectivity for Industrial Networks

The Teltonika RUTM59 is a robust 5G industrial router engineered for mission-critical connectivity. Combining ultra-fast 5G speeds with dual SIM redundancy and advanced routing capabilities, it ensures uninterrupted network performance in demanding IoT and enterprise environments. Built on Teltonika’s RutOS platform, it delivers powerful networking, security, and remote management features in a compact industrial-grade design.

Key Benefits & Features

• 5G Ultra-High Speed: Supports 5G Sub-6 GHz with up to 3.4 Gbps download speeds and LTE Cat 19 fallback for reliable high-bandwidth applications.
• Dual SIM Failover: Intelligent auto-switching between SIM cards ensures continuous connectivity during signal loss, roaming, or data limits.
• Advanced Networking Protocols: Supports BGP, OSPF, RIP, VRRP, and VXLAN for enterprise-grade routing flexibility and scalability.
• Industrial Durability: Rugged aluminum housing with a wide operating temperature range from -40 C to 75 C ensures reliable deployment in harsh environments.
• Comprehensive VPN Support: Includes OpenVPN, IPsec, WireGuard, ZeroTier, and Tailscale for secure remote access and encrypted site-to-site connectivity.

Ideal Use Cases

• Industrial IoT deployments requiring resilient, high-speed 5G connectivity.
• Remote monitoring and control systems in energy, water, and utilities.
• Transportation and fleet management via integrated GNSS tracking.
• Enterprise branch backup or primary WAN failover solutions.
• Smart city infrastructure and high-definition surveillance deployments.

Technical Specifications

• Mobile Connectivity: 5G Sub-6 GHz SA/NSA, LTE Cat 19 (DL) / Cat 18 (UL), 3G fallback.

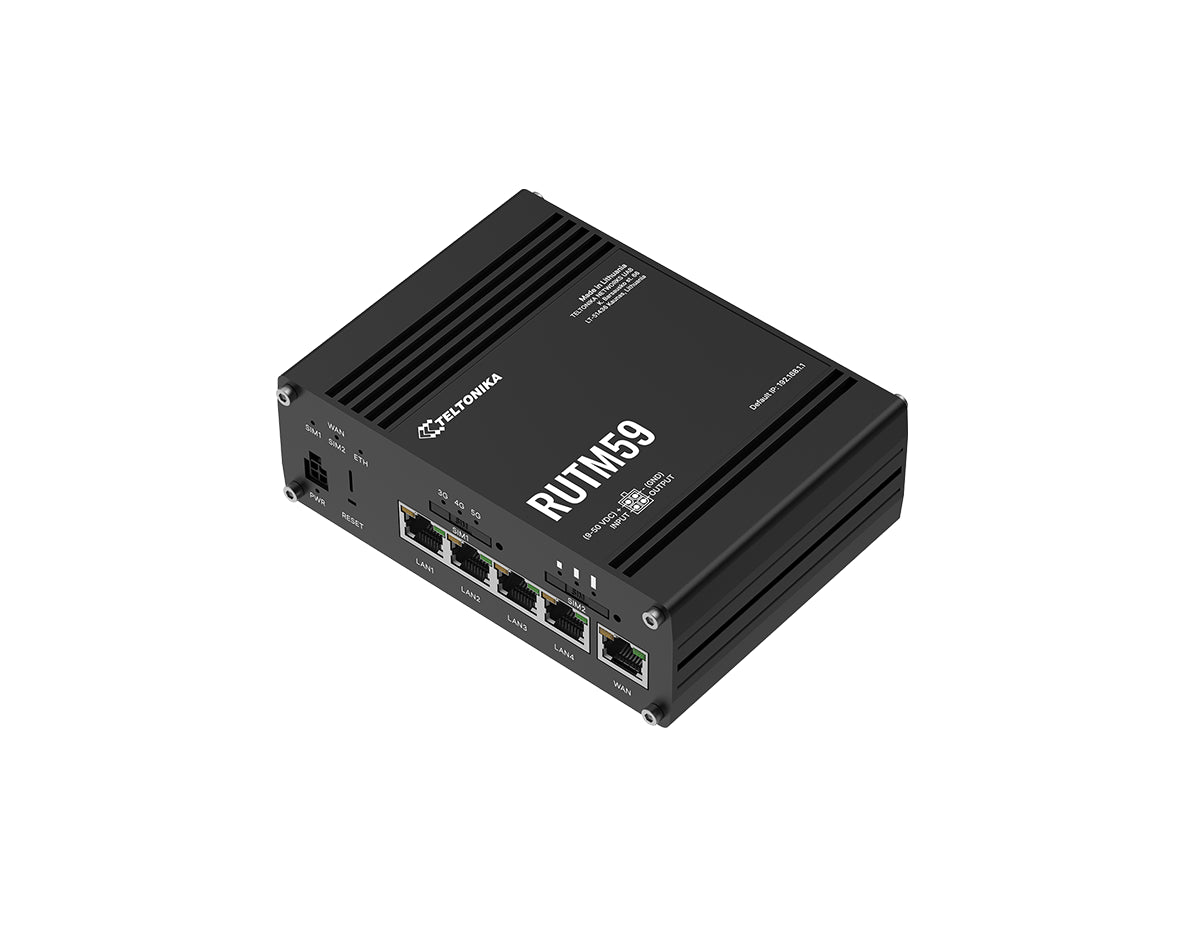

• Ethernet Ports: 5 x 10/100/1000 Mbps Gigabit ports (1 WAN, 4 LAN).
• SIM Slots: Dual Mini SIM (2FF) with multiple auto-switch cases.
• CPU: MediaTek dual-core 880 MHz processor for efficient data handling.
• Memory: 256 MB RAM, 16 MB NOR + 256 MB NAND flash storage.
• GNSS: Integrated GPS, GLONASS, BeiDou, Galileo, and QZSS support.
• Power Input: 9–50 VDC with reverse polarity and surge protection.
• Interfaces: USB 2.0, digital I/O, and SMA antenna connectors.
• Operating System: RutOS (OpenWrt-based Linux OS).
• Operating Temperature: -40 C to 75 C.

Upgrade Your Industrial Connectivity Today

Ensure reliable, high-speed networking with the Teltonika RUTM59. Order today to power your next-generation IoT infrastructure.

Model	RUTM59
Brand	Teltonika
Product Type	Industrial 5G Router
Mobile Technology	5G Sub-6 GHz SA/NSA, 4G LTE Cat 19, 3G
Max Data Rate	5G: Up to 3.4 Gbps DL / 900 Mbps UL; LTE: Up to 1.6 Gbps DL / 200 Mbps UL
SIM Slots	2 x Mini SIM (2FF)
Ethernet Ports	5 x RJ45 (1 x WAN, 4 x LAN) 10/100/1000 Mbps
CPU	MediaTek Dual-Core 880 MHz
RAM	256 MB DDR3
Storage	16 MB NOR Flash, 256 MB NAND Flash
Operating System	RutOS (OpenWrt based Linux OS)
GNSS	GPS, GLONASS, BeiDou, Galileo, QZSS
Digital I/O	1 x Digital Input, 1 x Digital Output (on 4-pin socket)
USB	1 x USB 2.0 Type A
Power Input	9 – 50 VDC
PoE	Passive PoE (9 – 50 VDC, LAN1, Mode B)
Power Consumption	Idle: 5 W; Max: 18 W
Housing	Aluminium
Dimensions	132 x 44.2 x 95 mm
Weight	530 g
Mounting Options	DIN rail, wall mount, flat surface
Operating Temperature	-40 C to 75 C
Operating Humidity	10% to 90% non-condensing
IP Rating	IP30

Routing Protocols	Static, BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP, Policy-based routing
Network Protocols	TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPnP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN
Firewall Features	Port forwarding, traffic rules, custom rules, NAT, NAT-T, NAT64, DMZ, TTL customization
Security Features	DDoS prevention, port scan prevention, access control, SSL certificates, 802.1x, VLAN separation
VPN Support	OpenVPN, IPsec, GRE, PPTP, L2TP, WireGuard, ZeroTier, SSTP, DMVPN, Tinc, Tailscale, Stunnel
Load Balancing	Yes
Failover	Mobile, VRRP, Wired WAN backup
QoS	Traffic prioritization, Smart Queue Management (SQM)
Hotspot	Captive portal with Radius, SMS auth, SSO, customizable themes
Management Interfaces	Web UI, CLI, SSH, SMS, TR-069, SNMP, MQTT, RMS, JSON-RPC
API Support	Teltonika Networks Web API (HTTP/HTTPS)
IoT Platforms	AWS IoT Core, Azure IoT Hub, Cumulocity, ThingWorx
Monitoring	Real-time monitoring, traffic usage history, event logs
GNSS Features	NMEA, NTRIP, Geofencing, coordinate tracking (WebUI, SMS, TAVL, RMS)
USB Functions	Samba share, USB-to-serial, external HDD/modem/printer support
Input/Output Functions	Configurable I/O with event triggers (SMS, Email, RMS) and I/O Juggler

Included

RUTM59 Router; 18 W PSU; 4 x Mobile antennas (swivel, SMA male); 1 x GNSS antenna (adhesive, SMA male, 3 m cable); Ethernet cable (1.5 m); SIM adapter kit; Quick Start Guide; Packaging box
