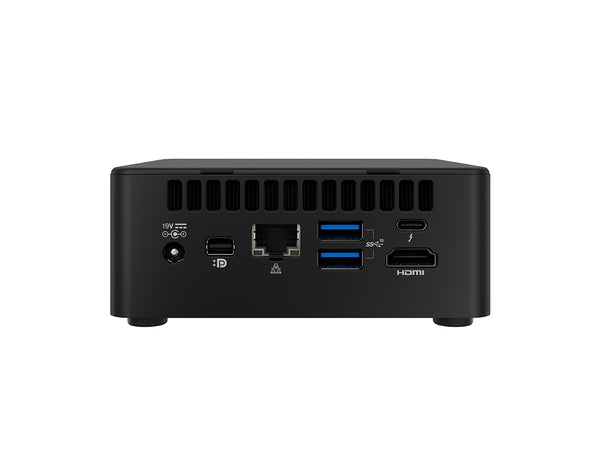

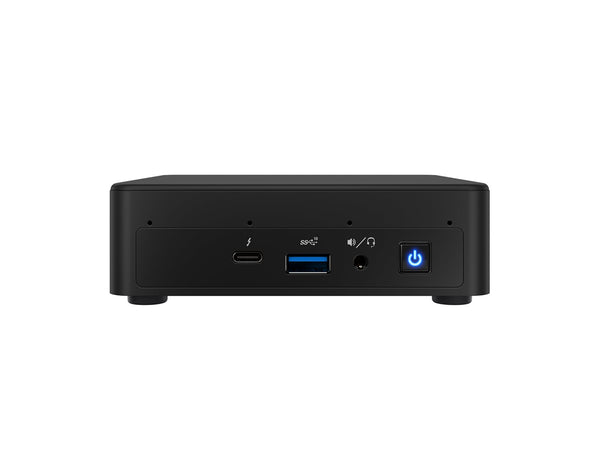

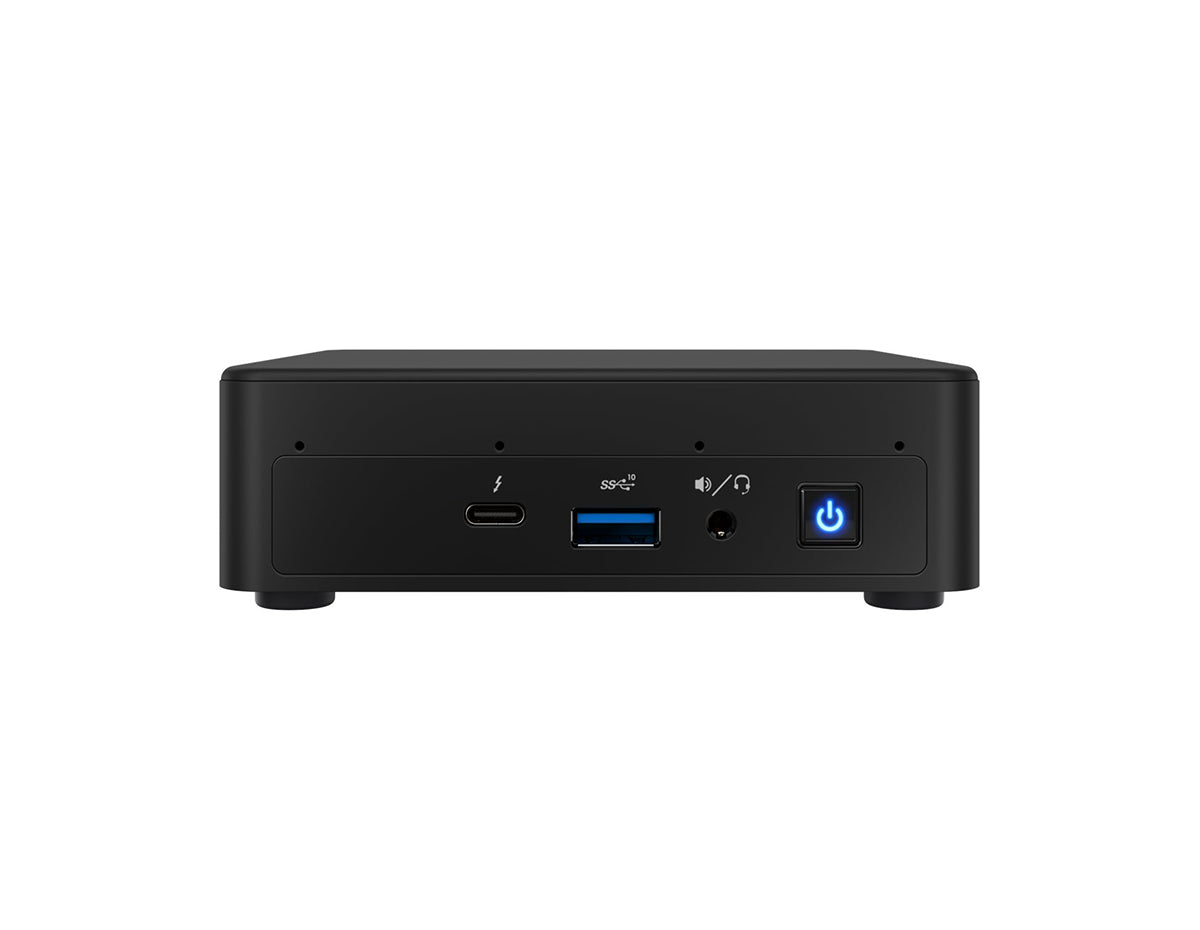

INTEL NUC 11 RNUC11PAHI50Z00
| Model: | RNUC11PAHI50Z00 |
| Detail: | The Intel NUC 11 RNUC11PAHI50Z00 is a compact and efficient computing solution powered by the Intel Core i5 processor. It offers flexibility with 2x DDR4 SODIMM slots and supports m.2/2.5'' HDD/SSD storage configurations. Note that the prices do not include disk, memory, and operating syste |
| Price: | $320.00 |
| Condition: | Brand New Sealed |
| Availability: | Out of Stock |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |
Intel NUC11 RNUC11PAHi50Z00
The Intel NUC 11 RNUC11PAHI50Z00 represents a compact and effective computing option driven by the Intel Core i5 processor. This particular model is engineered to offer both versatility and high performance. It is furnished with an Intel 10/100/1000 Gigabit LAN Network Card to ensure seamless connectivity. Additionally, it provides slots for memory expansion up to 64GB and offers storage options encompassing both m.2 and 2.5'' HDD/SSD, thereby affording users the flexibility to tailor the system to their specific requirements.
Quick Specs:
- Intel Core i5-1135G7 CPU (4 core, up to 4.20GHz)
- 2x ThunderBolt3 port
- 64 MB DDR4 RAM
- M.2 Card Slot (storage): 22x80
Please see the related tabs for the RNUC11PAHI50Z00 datasheet and compatible accessories.
Specifications
| Processor Model | Intel Core i5-1135G7 |
| Processor Cores/Threads | 4 cores / 8 threads |
| Max Turbo Frequency | Up to 4.20 GHz |
| Memory Slots | 2x SO-DIMM |
| Max Memory Capacity | 64 GB |
| Memory Type | DDR4-3200 |
| Storage Interfaces | M.2 22x80 (PCIe 4.0 x4), 2.5" SATA 6.0 Gb/s |
| Graphics | Intel Iris Xe Graphics |
| Ethernet Controller | Intel Ethernet Controller i225-V |
| Wireless Module | Intel Wi-Fi 6 AX201 |
| Front USB Ports | 1x USB 3.2 Gen2 Type-A, 1x USB 3.2 Gen2 Type-C |
| Rear USB Ports | 2x USB 3.2 Gen2 Type-A, 1x USB 3.2 Gen2 Type-C |
| Video Outputs | 1x HDMI 2.0b, 1x Mini DisplayPort 1.4, 1x USB-C (DP1.4) |
| Audio Outputs | 7.1 digital (via HDMI and Mini DP), 3.5mm stereo jack |
| Expansion Slots | 2x M.2 (1x for storage, 1x for Wi-Fi) |
| Power Supply | 19V DC input |
| Chassis Dimensions | 117 x 112 x 51 mm |
| Operating Temperature | 0°C to 40°C |
| Compliance | CE, FCC, RoHS |
Properties
| Product Name | Intel NUC 11 Performance Kit |
| Model Number | RNUC11PAHi50Z00 |
| Processor | Intel Core i5-1135G7 (4 cores, up to 4.20 GHz) |
| Memory Support | Up to 64 GB DDR4-3200 via 2x SO-DIMM slots |
| Storage Options | M.2 22x80 slot and 2.5" SATA drive bay |
| Graphics | Intel Iris Xe Graphics |
| Networking | Intel 10/100/1000 Mbps Ethernet |
| Wireless | Intel Wi-Fi 6 AX201 (Gig+), Bluetooth 5.2 |
| USB Ports | 2x front USB 3.2 Gen2 (Type-A, Type-C); 3x rear USB 3.2 Gen2 (2x Type-A, 1x Type-C) |
| Video Outputs | HDMI 2.0b, Mini DisplayPort 1.4, USB-C (DP1.4) |
| Audio | 7.1 digital (via HDMI and Mini DP); front 3.5mm jack |
| Dimensions | 117 x 112 x 51 mm |
| Power Supply | 19V DC input |
| Operating System | Supports Windows 10/11, 64-bit |
