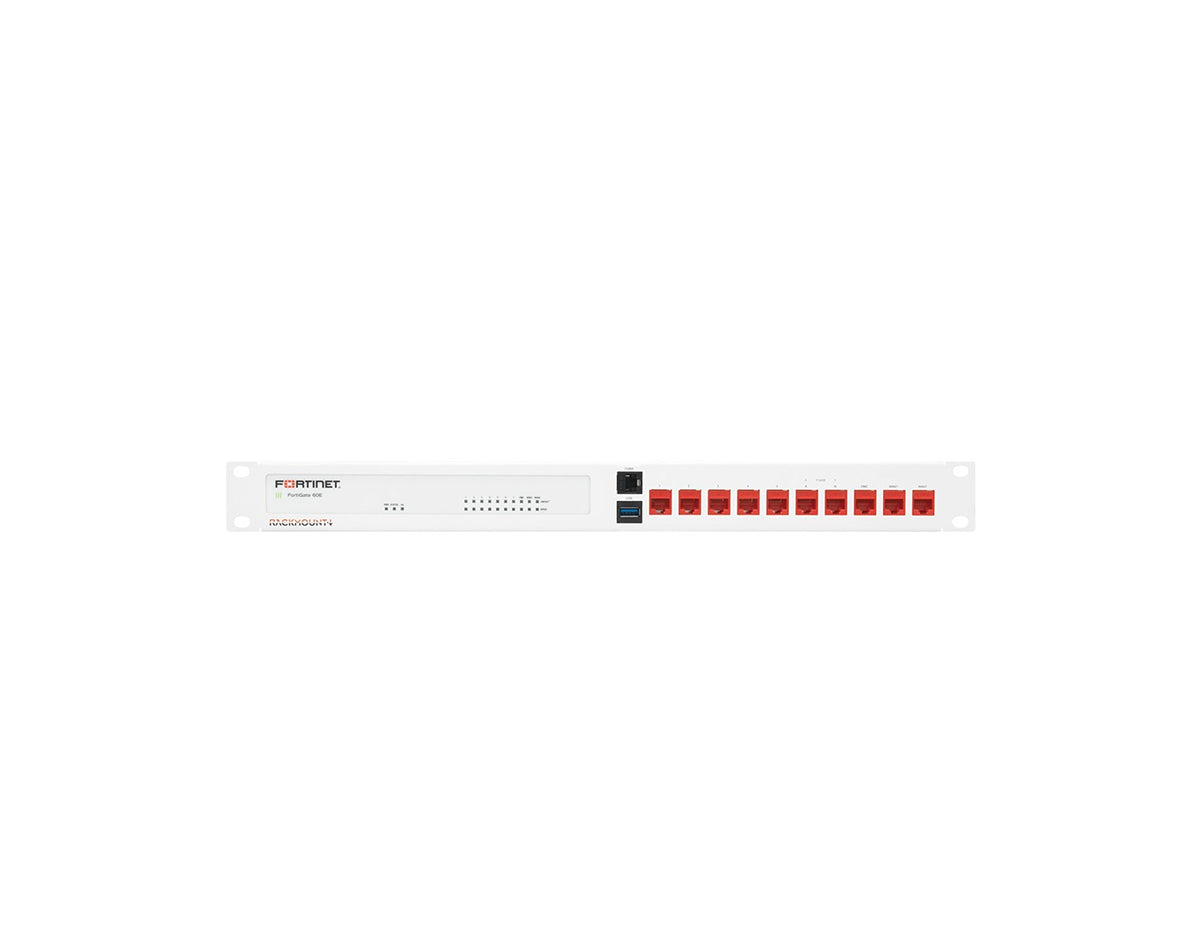

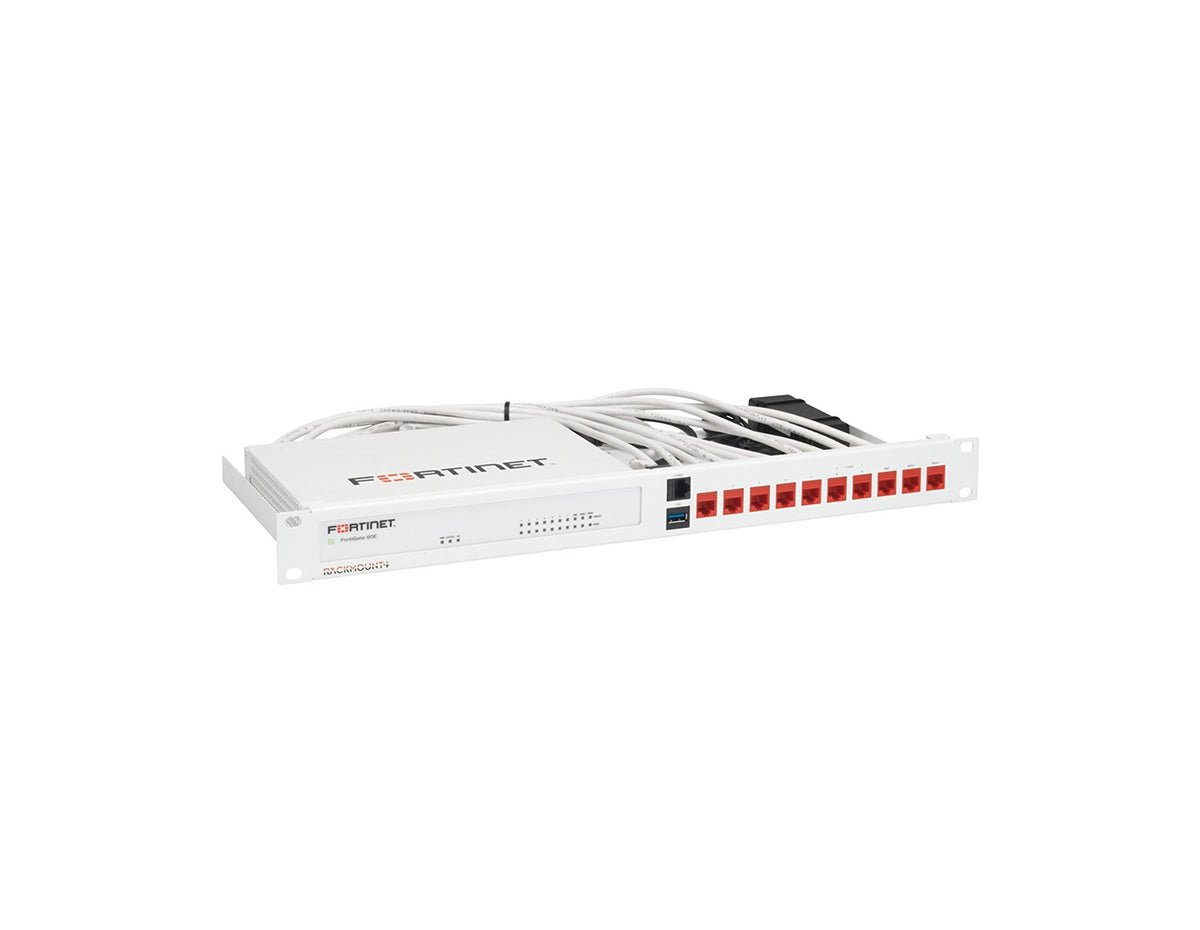

RM-FR-T10 Rack Mount for Fortinet Desktop Firewalls

RM-FR-T10 Rack Mount for Fortinet Desktop Firewalls

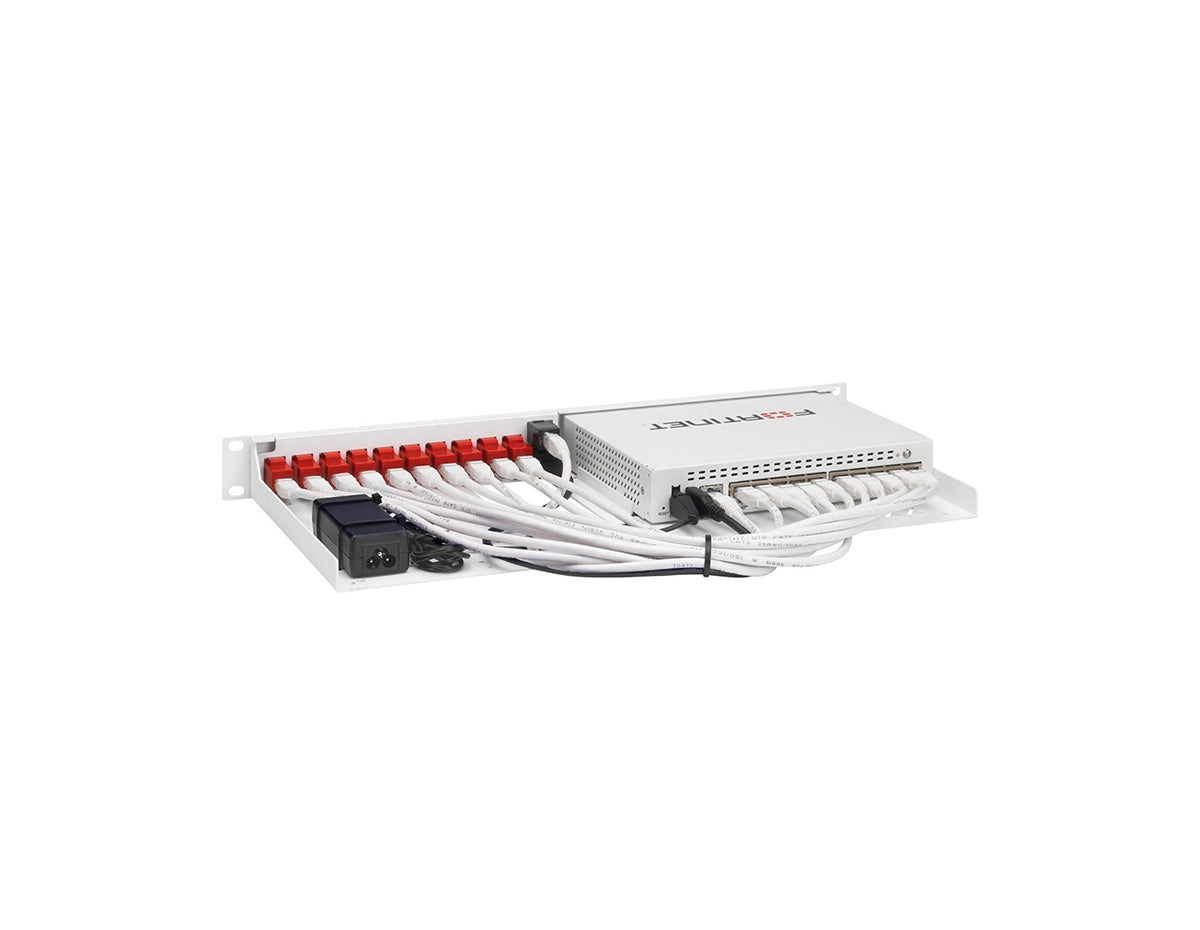

The RM-FR-T10 facilitates the mounting of Fortinet desktop firewalls in a 19" rack, ensuring a precise fit for the specified models. This rack design conveniently brings the connections to the front for accessibility and secures the power supply to prevent accidental disconnection. The assembly process is estimated to require approximately 5 minutes, involving the insertion of the Fortinet device into the kit, installation of retainers, connection of provided cables to the keystones, and attachment of the power supply to the rack.

Quick Specs:

• Supported Models: FortiGate 60E, 60E-POE, 60E-DSL, 61E, 60F, 61F, 70F,71F
• Cables: 11x 0.5m cables
• Couplers: 11x RJ45 couplers / 1x USB coupler
• Height: 1U

Please see the related tabs for the RM-FR-T10 datasheet and compatible accessories.

Properties	RM-FR-T10
Description	RM-FR-T10: Mount your Fortinet desktop firewalls in a 19" rack effortlessly. Front-facing connections for easy access, with a fixed power supply to prevent accidental loss. Assembly in 5 minutes: slide in, attach, connect, and secure.
Product Family	Fortinet Fortirack Rackmount Kits
Product Type	Rack Mount
Key Features	• Rack Mount Kit for Fortinet desktop firewalls • Tailored fit for listed Fortinet models • Front-facing connections for easy access • Fixed power supply prevents accidental loss of power • Easy assembly in approximately 5 minutes • Simple installation: slide-in device, attach retainers

Specifications	RM-FR-T10
Color	RAL 9003 Signal White
Height	1U
Dimensions (height x width x depth)	44 x 482 x 217mm
Number of connections brought to the front	12
Console port to the front	Yes
Cables	11x 0.5m cables
Couplers	11x RJ45 couplers 1x USB coupler
Supported Models	FortiGate 60E FortiGate 60E-POE FortiGate 60E-DSL FortiGate 61E FortiGate 60F FortiGate 61F FortiGate 70F FortiGate 71F
What's in the box	1x FortiRack + RJ45 couplers Cables Assembly materials Installation guide
