MIKROTIK SXTSQ 5 AC ACCESS POINT (RBSXTSQG-5ACD-US)
| Model: | RBSXTSQG-5ACD-US |
| Detail: |
|
| Price: | $75.00 |
| Condition: | Brand New Sealed |
| Availability: | Out of Stock |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |
Description

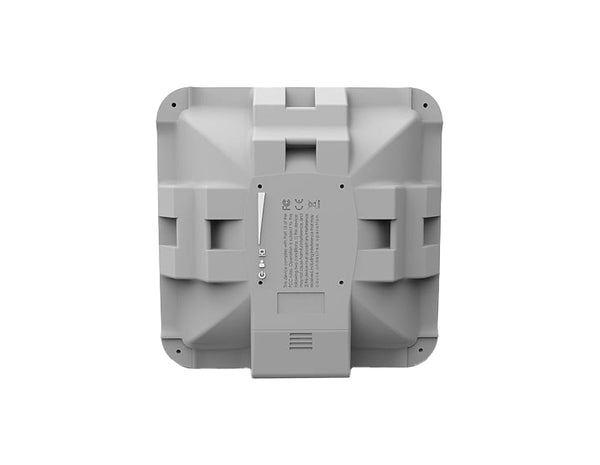

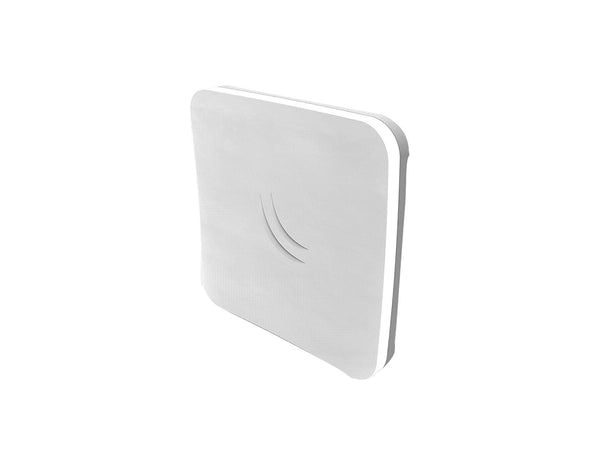

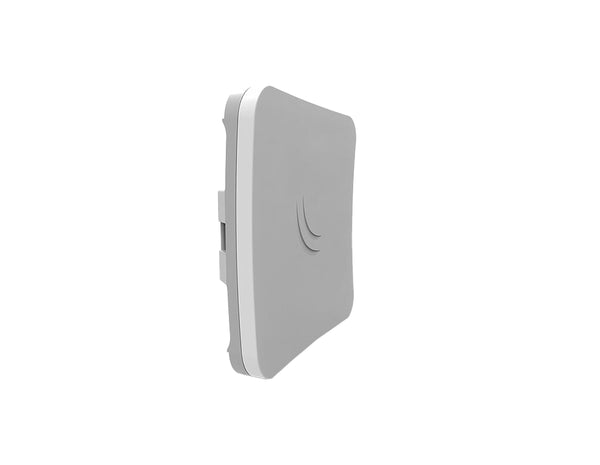

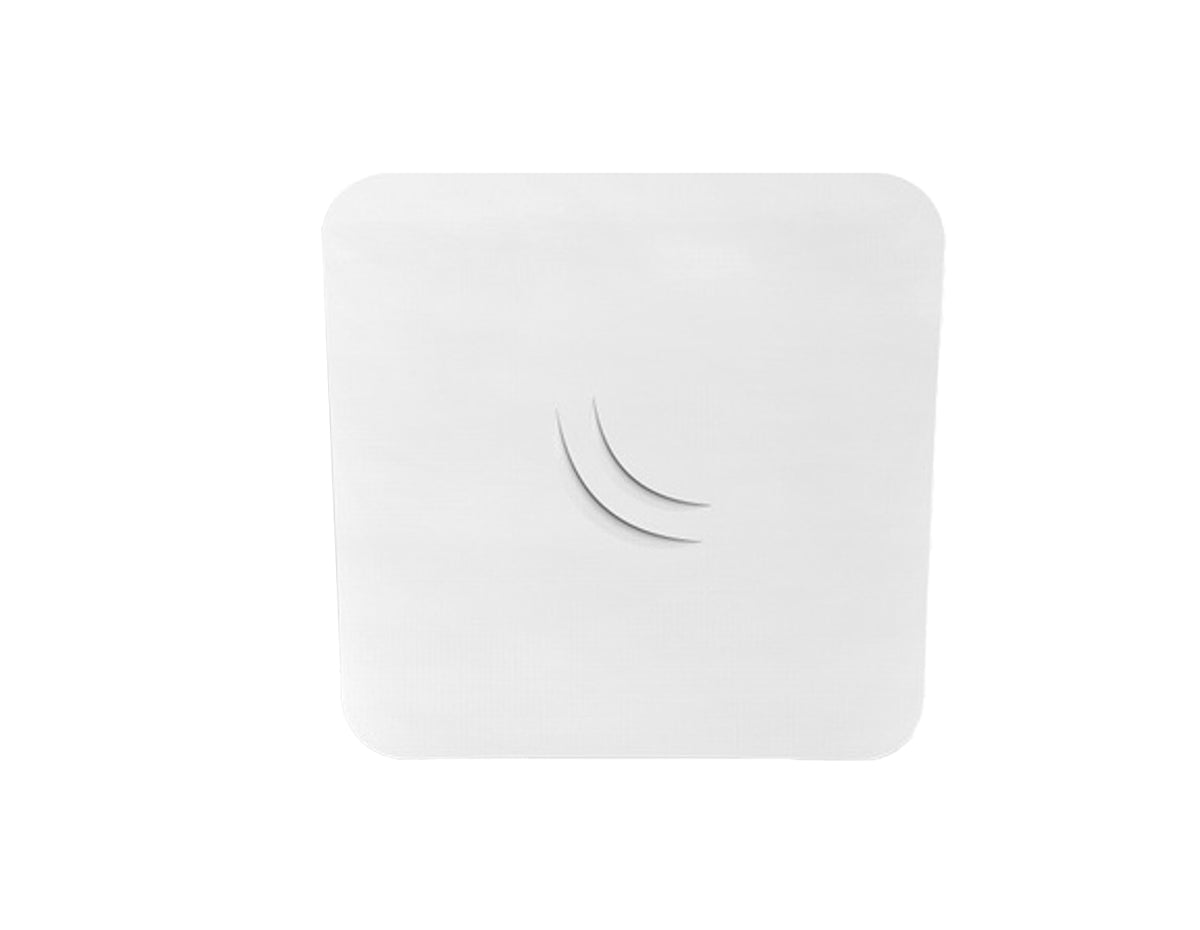

MikroTik RBSXTsqG-5acD-US Access Point
The RBSXTsqG-5acD-US is a small and portable outdoor 5Ghz 802.11ac wireless device with a built-in antenna, ideal for establishing point-to-point connections or for use as a CPE unit. It comes with a single 10/100/1000 Mbit Ethernet port to take advantage of the high speeds offered by the 802.11ac protocol. The durable housing has openings for attaching a hose clamp mount in three different locations and can be easily mounted on horizontal railings. The RBSXTsqG-5acD-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock cannot be removed due to country regulations.
Quick Specs:
- 1x 10/100/1000 Gigabit Ethernet ports
- IPQ-4018, 4 core, 716 MHz CPU
- PoE in: Passive PoE
- 5 GHz Max Data Rate: 867 Mbit/s
Please see the related tabs for the RBSXTsqG-5acD-US datasheet and compatible accessories.
Accessories
|
24V 0.38A power adapter
|
| Metal ring (one) |
| Gigabit PoE injector |
Specifications
| Specifications | RBSXTSQG-5ACD-US |
| Memory | 256 MB |
| Flash Storage size | 16 MB |
| CPU | IPQ-4018 716 MHz |
| CPU core count | 4 |
| OS | RouterOS level 3 license |
| Wireless capabilities | |
| Wireless 5 GHz Max data rate | 867 Mbit/s |
| Wireless 5 GHz number of chains | 2 |
| Wireless 5 GHz standards | 802.11a/n/ac |
| Antenna gain dBi for 5 GHz | 16 |
| Wireless 5 GHz chip model | IPQ-4018 |
| Wireless 5 GHz generation | Wi-Fi 5 |
| Wireless specifications | |
| 5 GHz | |
| 6MBit/s | Transmit (dBm): 25 Receive Sensitivity: -96 |
| 54MBit/s | Transmit (dBm): 21 Receive Sensitivity: -80 |
| MCS0 | Transmit (dBm): 25 Receive Sensitivity: -96 |
| MCS7 | Transmit (dBm): 20 Receive Sensitivity: -75 |
| MCS9 | Transmit (dBm): 18 Receive Sensitivity: -70 |
| MTBF | Approximately 100.000 hours at 25C |
| Temperature | -40°C to 70°C tested |
| Certification | CE, FCC, IC, EAC, ROHS |
| IP | IP54 |
Properties
| Properties | MikroTik SXTsq 5 ac RBSXTSQG-5ACD-US |
| Description | Low-cost small-size 16dBi 5GHz dual chain integrated CPE/Backbone with AC support and Gigabit Ethernet |
| Product Family | SXT Series |
| Product Type | Access Point |
| 10/100/1000 Ethernet ports | 1 |
| Extras | PCB temperature monitor Voltage Monitor Beeper |
| Dimensions | 129 x 129 x 34 mm |
| Number of DC inputs | 1 (PoE-IN) |
| Max power consumption | 7 W |
| Cooling type | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 10-28 V |
