MIKROTIK SXT SA5 AC ANTENNA (RBSXTG-5HPACD-SA-US)
| Model: | RBSXTG-5HPACD-SA-US |
| Detail: |
|
| List Price: | |
| Price: | $115.00 |
| You Save: | $4.00 (3% OFF) |
| Condition: | Brand New Sealed |
| Availability: | IN STOCK |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |
Description

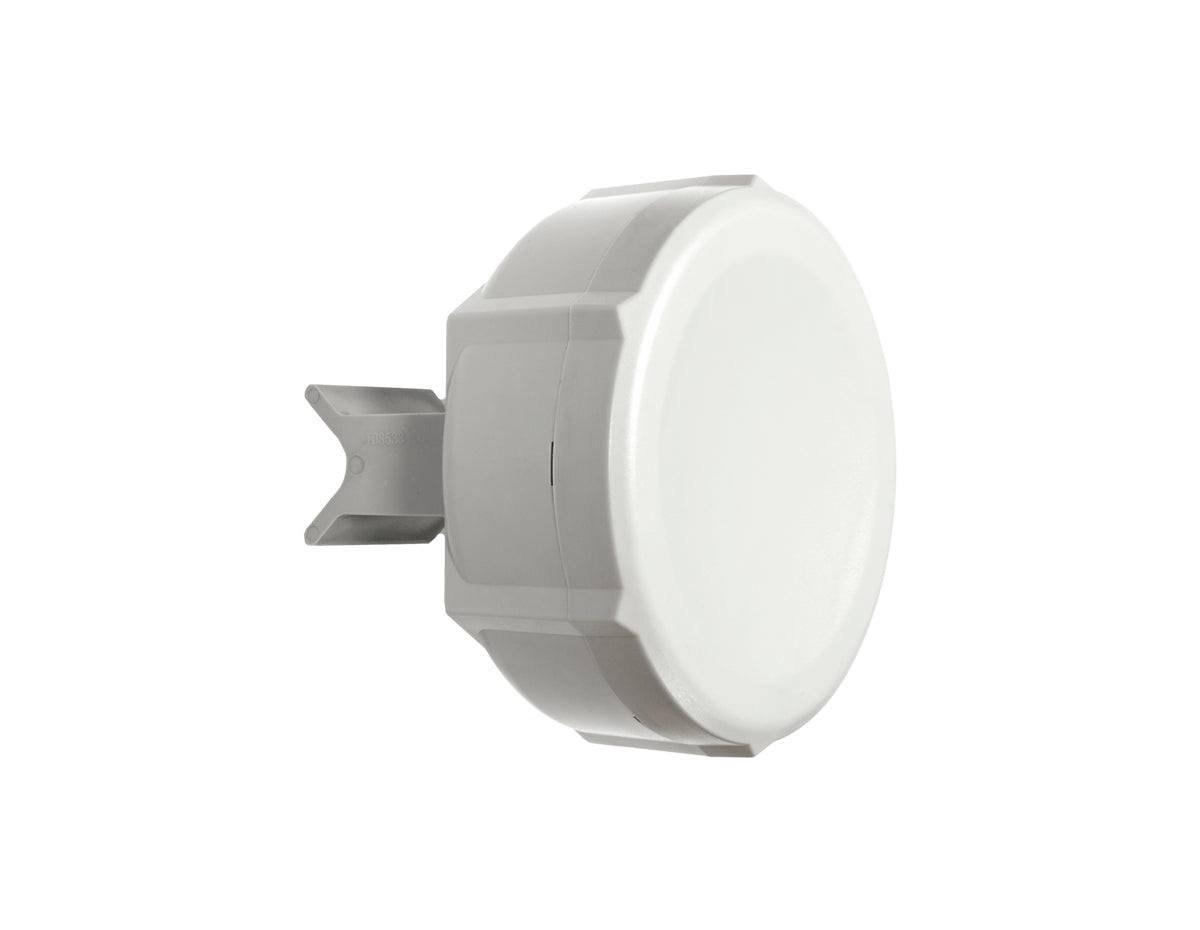

MikroTik RBSXTG-5HPacD-SA-US Antenna
The RBSXTG-5HPacD-SA model features a 90-degree wide beam-width sector antenna and is equipped to support 802.11ac mode. It is also compatible with all legacy RouterBOARD devices, including Nstream and Nv2 protocols, and includes a Gigabit Ethernet port. This product supports passive PoE and 802.3af/at PoE input (15-60V). The RBSXTG-5HpacD-Sar2-US (USA) is factory locked for 5170-5250 MHz and 5725-5835 MHz frequencies. This lock can not be removed due to country regulations.
Quick Specs:
- 1x 10/100/1000 Ethernet Port
- QCA9557, 1 core, 720MHz CPU
- Low latency Point to Point
- RouterOS
Please see the related tabs for the RBSXTG-5HPacD-SA-US datasheet and compatible accessories.
Accessories
| 24V 0.8A power adapter |
| Metal ring (one) |
| Gigabit PoE injector |
| Pole mounting bracket |
Specifications
| Specifications | RBSXTG-5HPACD-SA-US |
| Memory | 128 MB |
| NAND Storage size | 128 MB |
| CPU | QCA9557 720 MHz |
| CPU core count | 1 |
| OS | RouterOS level 3 license |
| Wireless capabilities | |
| Wireless 5 GHz Max data rate | 867 Mbit/s |
| Wireless 5 GHz number of chains | 2 |
| Wireless 5 GHz standards | 802.11a/n/ac |
| Antenna gain dBi for 5 GHz | 14 |
| Wireless 5 GHz chip model | QCA9892 |
| Wireless 5 GHz generation | Wi-Fi 5 |
| Wireless specifications | |
| 5 GHz | |
| 6MBit/s | Transmit (dBm): 31 Receive Sensitivity: -96 |
| 54MBit/s | Transmit (dBm): 28 Receive Sensitivity: -81 |
| MCS0 | Transmit (dBm): 30 Receive Sensitivity: -96 |
| MCS7 | Transmit (dBm): 27 Receive Sensitivity: -77 |
| MCS9 | Transmit (dBm): 22 Receive Sensitivity: -72 |
| MTBF | Approximately 200.000 hours at 25C |
| Temperature | -40°C to 70°C tested |
| Certification | CE, FCC, IC, EAC, ROHS |
| IP | IP54 |
Properties
| Properties | MikroTik SXT SA5 ac RBSXTG-5HPACD-SA-US |
| Description | 802.11ac up to 540Mbit, high output, wide beamwidth sector antenna |
| Product Family | SXT Series |
| Product Type | Access Point |
| Features | Extended temperature range -30C to +80C • Up to 540Mbps throughput • Low latency Point to Point • Supports passive PoE and 802.3af/at PoE input (15-60V) |
| 10/100/1000 Ethernet ports | 1 |
| Number of USB ports | 1 USB type A |
| Extras | PCB temperature monitor Voltage Monitor Beeper |
| Dimensions | 140 x 140 x 56mm |
| Weight without packaging, adapters and cables | 265g |
| Number of DC inputs | 1 (PoE-IN) |
| Max power consumption | 12 W |
| Cooling type | Passive |
| PoE in | 802.3af/at |
| PoE in input Voltage | 12-57 V |
