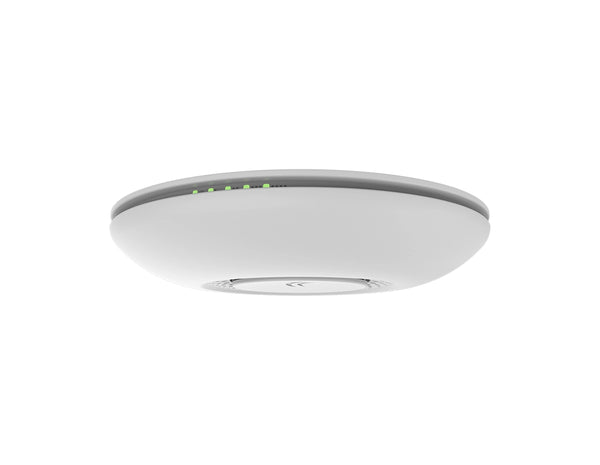

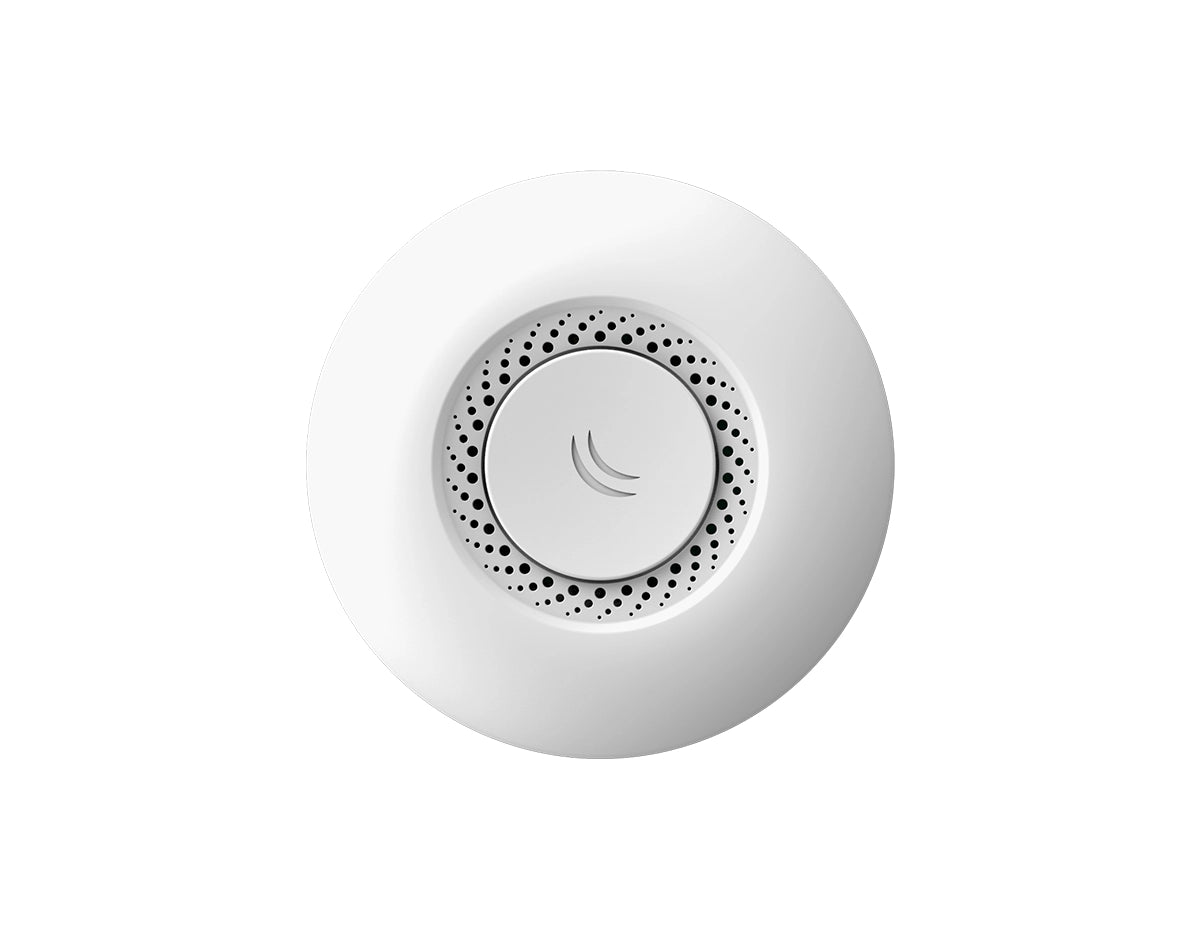

Mikrotik RBcAP2nD Access Point - cAP

Name: Mikrotik RBcAP2nD Access Point - cAP
Brand: Mikrotik
Price: 58.00 USD
Availability: OutOfStock

Part Number: RBCAP2ND

Technical Details

Ceiling AP, Dual-Chain 2.4GHz, 650MHz CPU, RouterOS L4, 802.3at/af support

$58.00

Ask an Expert

sales@networkdevicesinc.com

1-201-559-1474

Availability: Request ETA

Condition: Brand New Sealed

Free Shipping on Orders $100+Arrives in 1-6 business days within the U.S.

International DeliveryWorldwide shipping in 7–15 business days

30 Days Return

12 Months Warranty Support

sales@networkdevicesinc.com

1-201-559-1474

MikroTik RBCAP2ND Access Point

The RBCAP2ND is a 2.4GHz Dual-Chain ceiling access point (AP) with a discreet design that seamlessly integrates into its surroundings, making it well-suited for deployment in hospitality settings such as hotels, airports, and shopping malls. This AP model is compatible with 802.11b/g/n standards and can be powered using Power over Ethernet (PoE). It is an ideal complement to the MikroTik CAPsMAN, a system manager for controlled APs, enabling centralized management of multiple AP devices.

Quick Specs:

1x 10/100 Ethernet Port
QCA9533, 1 core, 650 MHz CPU
PoE-in: 802.3af/at
64 MB RAM

Please see the related tabs for the RBCAP2ND datasheet and compatible accessories.

Properties

Properties	MikroTik cAP RBCAP2ND
Description	Ceiling AP, Dual-Chain 2.4GHz, 650MHz CPU, RouterOS L4, 802.3at/af support
Product Family	cAP Series
Product Type	Access Point
10/100 Ethernet ports	1
Extras	Mode button
Dimensions	185mm diameter, 31mm height
Number of DC inputs	1 (PoE-IN)
Max power consumption	4 W
Cooling type	Passive
PoE in	802.3af/at
PoE in input Voltage	11-57 V

Specifications

Specifications	RBCAP2ND
Memory	64 MB
Flash Storage size	16 MB
CPU	QCA9533 650 MHz
CPU core count	4
OS	RouterOS level 4 license
Wireless capabilities
Wireless 2.4 GHz Max data rate	300 Mbit/s
Wireless 2.4 GHz number of chains	2
Wireless 2.4 GHz standards	802.11b/g/n
Antenna gain dBi for 2.4 GHz	2
Wireless 2.4 GHz chip model	QCA9533
Wireless 2.4 GHz generation	Wi-Fi 4
Wireless specifications
2.4 GHz
1MBit/s	Transmit (dBm): 22 Receive Sensitivity: -96
11MBit/s	Transmit (dBm): 22 Receive Sensitivity: -89
6MBit/s	Transmit (dBm): 20 Receive Sensitivity: -93
54MBit/s	Transmit (dBm): 18 Receive Sensitivity: -74
MCS0	Transmit (dBm): 20 Receive Sensitivity: -93
MCS7	Transmit (dBm): 16 Receive Sensitivity: -71
MTBF	Approximately 100.000 hours at 25C
Temperature	-40°C to 70°C tested
Certification	CE, FCC, IC, EAC, ROHS
IP	IP20

Accessories

24V 0.2A power adapter

Ceiling mount

PoE injector

K-46 screw kit
