MIKROTIK HAP AC ACCESS POINT (RB962UIGS-5HACT2HNT-US)
| Model: | RB962UIGS-5HACT2HNT-US |
| Detail: |
|
| List Price: | |
| Price: | $117.00 |
| You Save: | $12.00 (9% OFF) |
| Condition: | Brand New Sealed |
| Availability: | Out of Stock |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |
Description

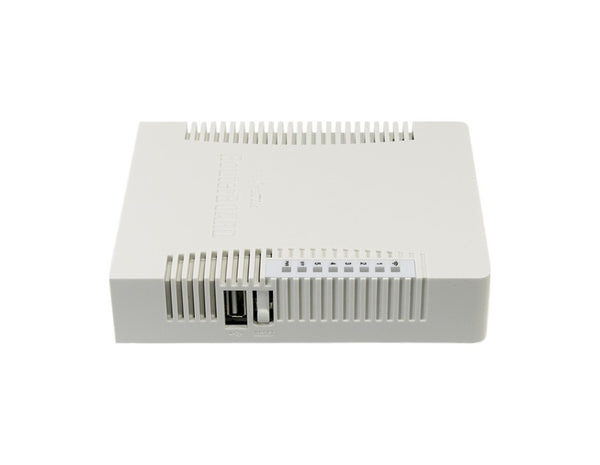

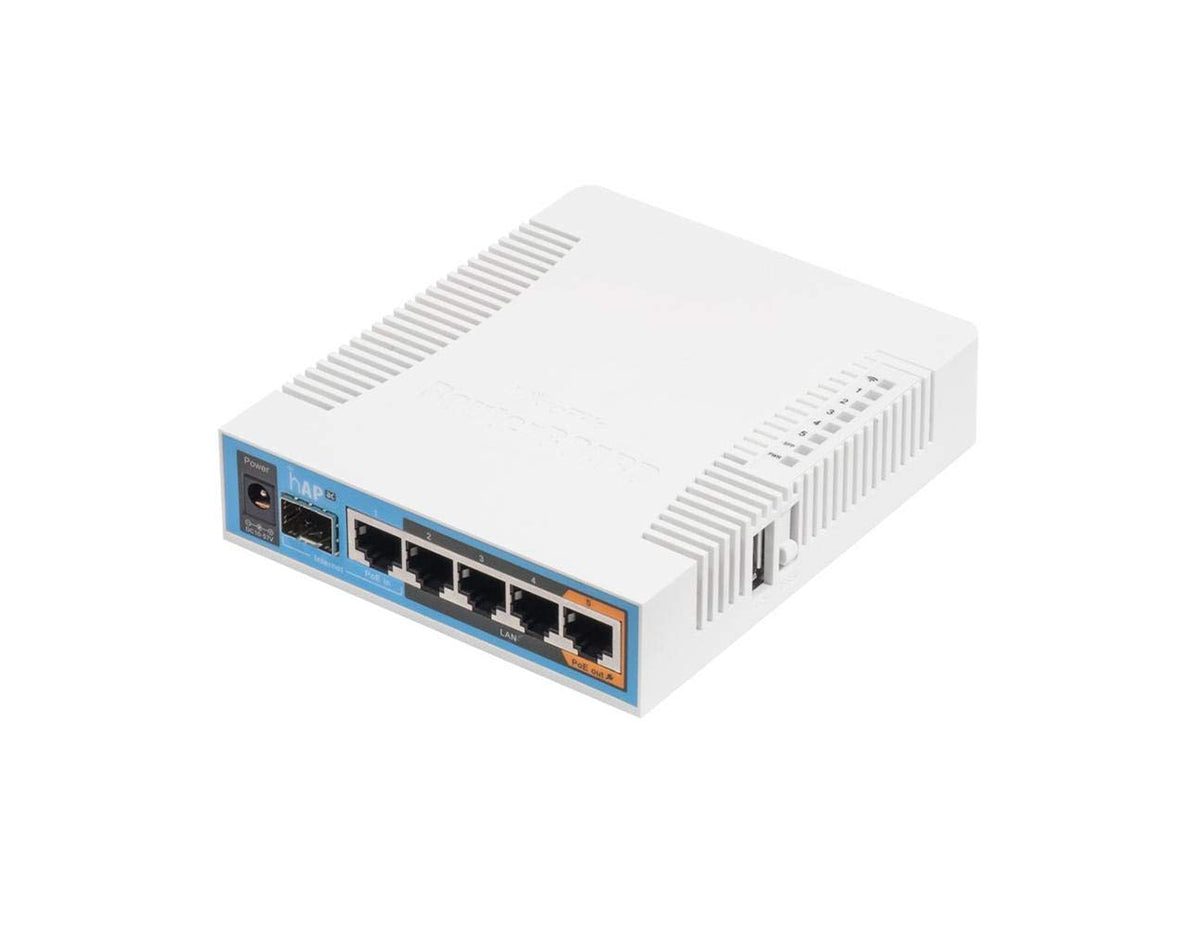

MikroTik RB962UIGS-5HACT2HNT-US Access Point
The RB962UIGS-5HACT2HNT-US is a versatile wireless device designed for use in home or office environments. It operates on dual bands and features Gigabit ports to maximize the benefits of 802.11ac technology, while also ensuring compatibility with older devices operating on 2GHz 802.11 b/g/n and 5GHz a/n modes. It is equipped with omnidirectional antennas, it can be mounted in any location, and its high-power transmitter ensures reliable coverage for mobile devices in homes, offices, or public spaces. The RB962UiGS-5HacT2HnT-US (USA) is factory-locked for 2412-2462MHz, 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed due to country regulations.
Quick Specs:
- 5x 10/100/1000 Ethernet ports
- 1 SFP port uplink
- PoE Out Ports: Ether5
- USB port 3G/4G modem
Please see the related tabs for the RB962UIGS-5HACT2HNT-US datasheet and compatible accessories.
Accessories
24V 1.2A power adapter
Specifications
| Specifications | RB962UIGS-5HACT2HNT-US |
| Memory | 128 MB |
| Flash Storage size | 16 MB |
| CPU | QCA9558 720 MHz |
| CPU core count | 1 |
| OS | RouterOS level 4 license |
| Wireless 2.4 GHz Max data rate | 450 Mbit/s |
| Wireless 2.4 GHz number of chains | 3 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz | 2.5 |
| Wireless 2.4 GHz chip model | QCA9558 |
| Wireless 2.4 GHz generation | Wi-Fi 4 |
| Wireless 5 GHz Max data rate | 1300 Mbit/s |
| Wireless 5 GHz number of chains | 3 |
| Wireless 5 GHz standards | 802.11a/n/ac |
| Antenna gain dBi for 5 GHz | 2 |
| Wireless 5 GHz chip model | QCA9880 |
| Wireless 5 GHz generation | Wi-Fi 5 |
| WiFi speed | AC1750 |
| Wireless specifications | |
| 2.4 GHz | |
| 1MBit/s | Transmit (dBm): 29 Receive Sensitivity: -100 |
| 11MBit/s | Transmit (dBm): 29 Receive Sensitivity: -94 |
| 6MBit/s | Transmit (dBm): 29 Receive Sensitivity: -96 |
| 54MBit/s | Transmit (dBm): 26 Receive Sensitivity: -81 |
| MCS0 | Transmit (dBm): 29 Receive Sensitivity: -96 |
| MCS7 | Transmit (dBm): 25 Receive Sensitivity: -77 |
| 5 GHz | |
| 6MBit/s | Transmit (dBm): 28 Receive Sensitivity: -96 |
| 54MBit/s | Transmit (dBm): 25 Receive Sensitivity: -81 |
| MCS0 | Transmit (dBm): 28 Receive Sensitivity: -96 |
| MCS7 | Transmit (dBm): 24 Receive Sensitivity: -77 |
| MCS9 | Transmit (dBm): 21 Receive Sensitivity: -72 |
| MTBF | Approximately 200.000 hours at 25C |
| Temperature | -40°C to 70°C tested |
| Certification | CE, FCC, IC, EAC, ROHS |
| IP | IP20 |
Properties
| Properties | MikroTik hAP ac RB962UIGS-5HACT2HNT-US |
| Description | Dual chain 5GHz 802.11a/n/ac QCA9892, 128MB RAM, 720 MHz CPU, 25dBi antenna gain |
| Product Family | hAP Series |
| Product Type | Access Point |
| Features | • Triple-chain wireless 2.4 GHz • Triple-chain wireless 5 GHz • 720 MHz CPU • 128 MB of RAM • Five x Gigabit Ethernet ports • SFP cage • Passive PoE output on port 5 • USB port for 3G/4G modem |
| 10/100/1000 Ethernet ports | 5 |
| SFP | 1 |
| Number of USB ports | 1 |
| Extras | PCB temperature monitor Voltage Monitor Beeper |
| Dimensions | 114 x 137 x 29mm |
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 11-57 V |
| Max power consumption | 17 W |
| Cooling type | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 11-57 V |
| PoE-out ports | Ether5 |
| PoE out | Passive PoE |
| Max out per port output (input 18-30 V) | 700 mA |
| Max out per port output (input 30-57 V) | 350 mA |
| Max total out (A) | 700 mA |
