[accessories]
| Included | 24 V 1.2 A power adapter, Wall mount set, DIN rail mount set, USB OTG cable |
[/accessories]

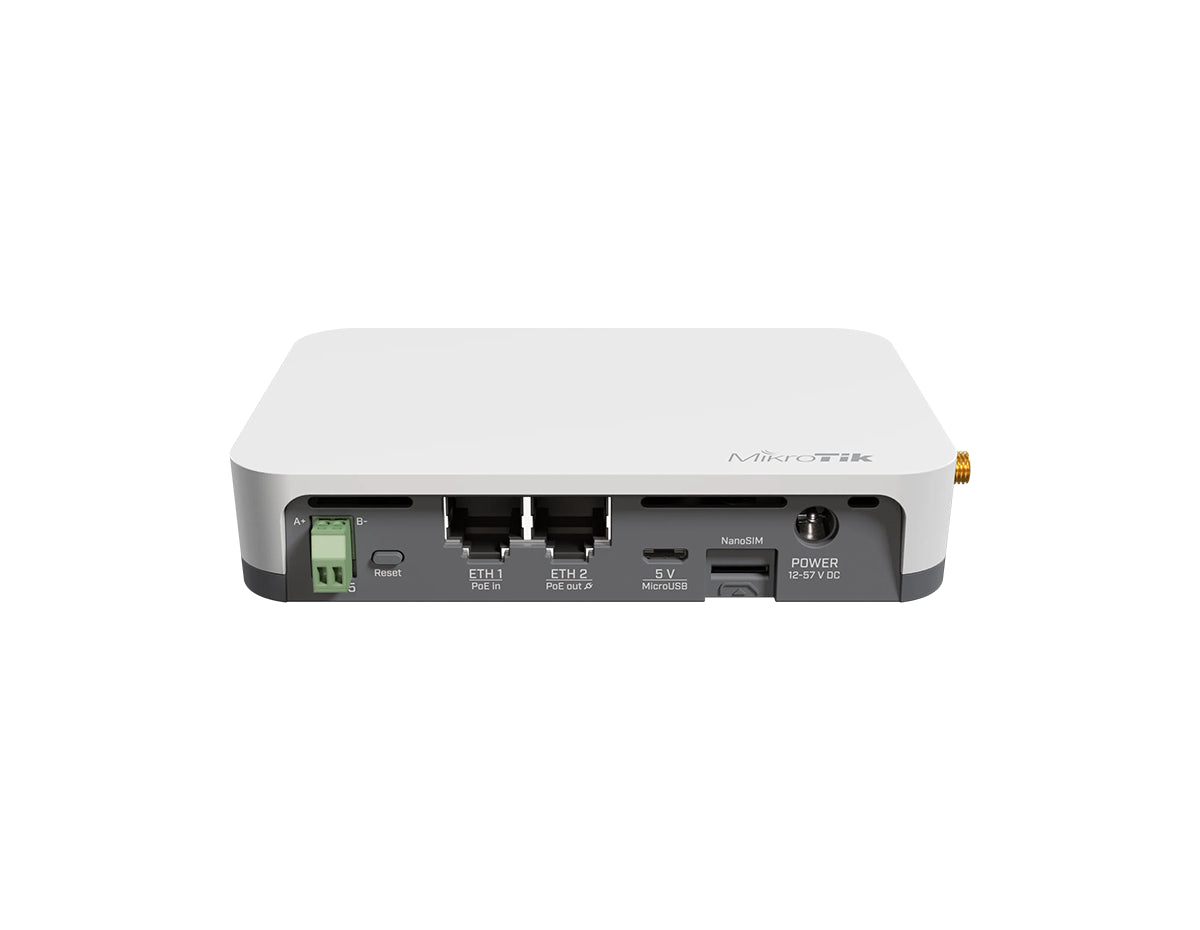

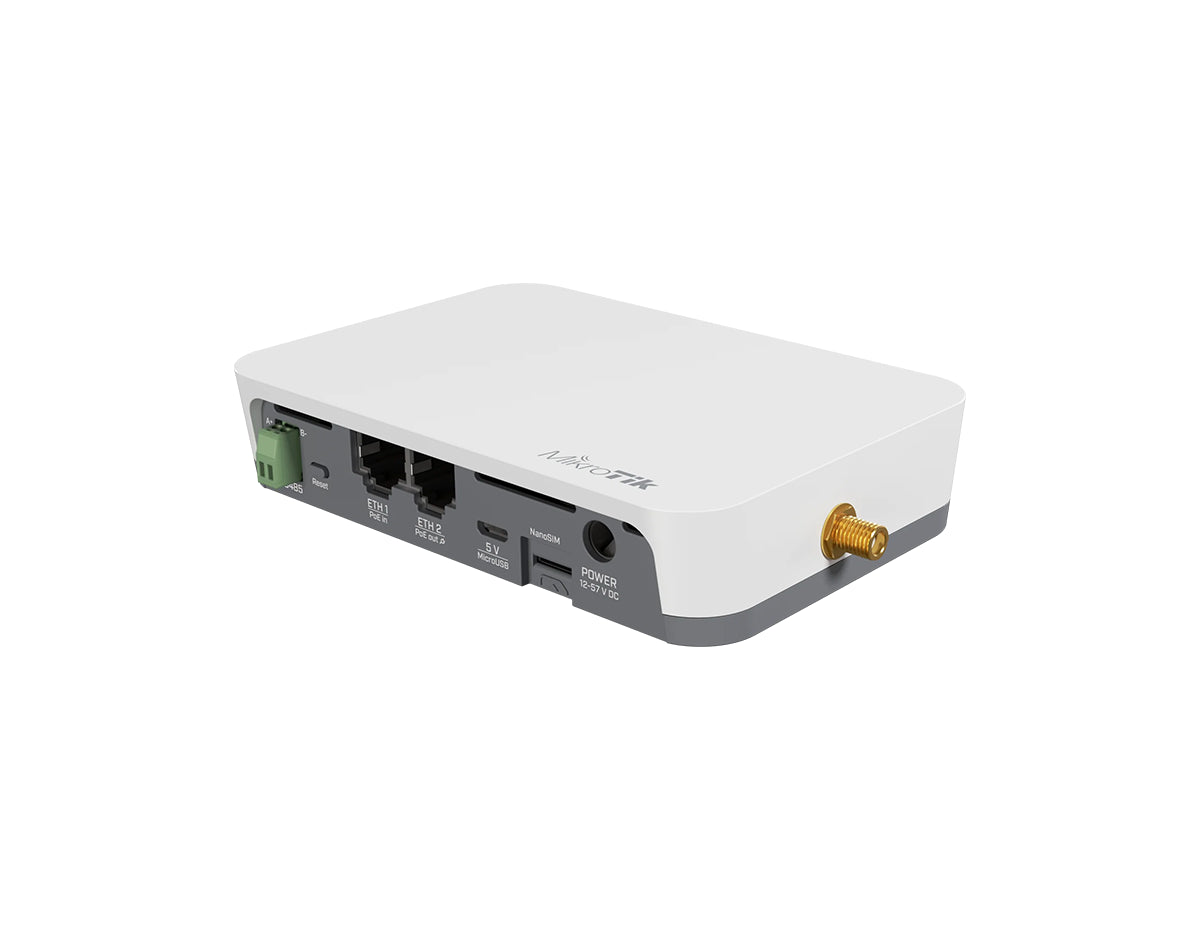

Industrial IoT Gateway for Smart Tracking and Automation
The MikroTik KNOT LR9G is a versatile, industrial-grade gateway designed to bridge the gap between legacy wired hardware and modern cloud-based IoT networks. Supporting LoRa 915 MHz, LTE CAT-M/NB2, and Bluetooth 5.2, this compact device is an ideal centerpiece for smart asset tracking, remote monitoring, and efficient industrial automation. Powered by RouterOS v7, it provides advanced routing and custom scripting capabilities for infrastructure-light environments.
Key Features and Upgrades
- Unified IoT Connectivity: Combines LoRa 915 MHz, LTE CAT-M1/NB2, 2.4 GHz Wi-Fi, and Bluetooth 5.2 to connect a wide array of sensors and devices.
- Concurrent GPS and LTE: Track high-value assets in motion with precise GNSS while maintaining a live LTE CAT-M1 connection for real-time data updates.
- Versatile Powering Options: High flexibility with three DC inputs including PoE-in (802.3af/at), DC jack (12-57V), and MicroUSB. It also features PoE-out on Ether2 to power peripheral devices.
- Enhanced 915 MHz LoRa Reception: Features improved sensitivity for stronger signal penetration and longer range, even in interference-heavy industrial environments.
- Industrial Interface Support: Equipped with RS485/Modbus and GPIO interfaces to bridge legacy industrial equipment to the cloud via MQTT or HTTPS.
Practical IoT Use Cases
- Hospital Asset Tracking: Use Bluetooth beacons and KNOT gateways to monitor critical medical equipment location and status.
- Agriculture and Remote Sites: Gather soil and weather data from long-range LoRa sensors in rural fields via low-power LTE or NB-IoT.
- Cold Chain Monitoring: Convert wired Modbus temperature sensors to TCP for secure data forwarding in refrigerated logistics.

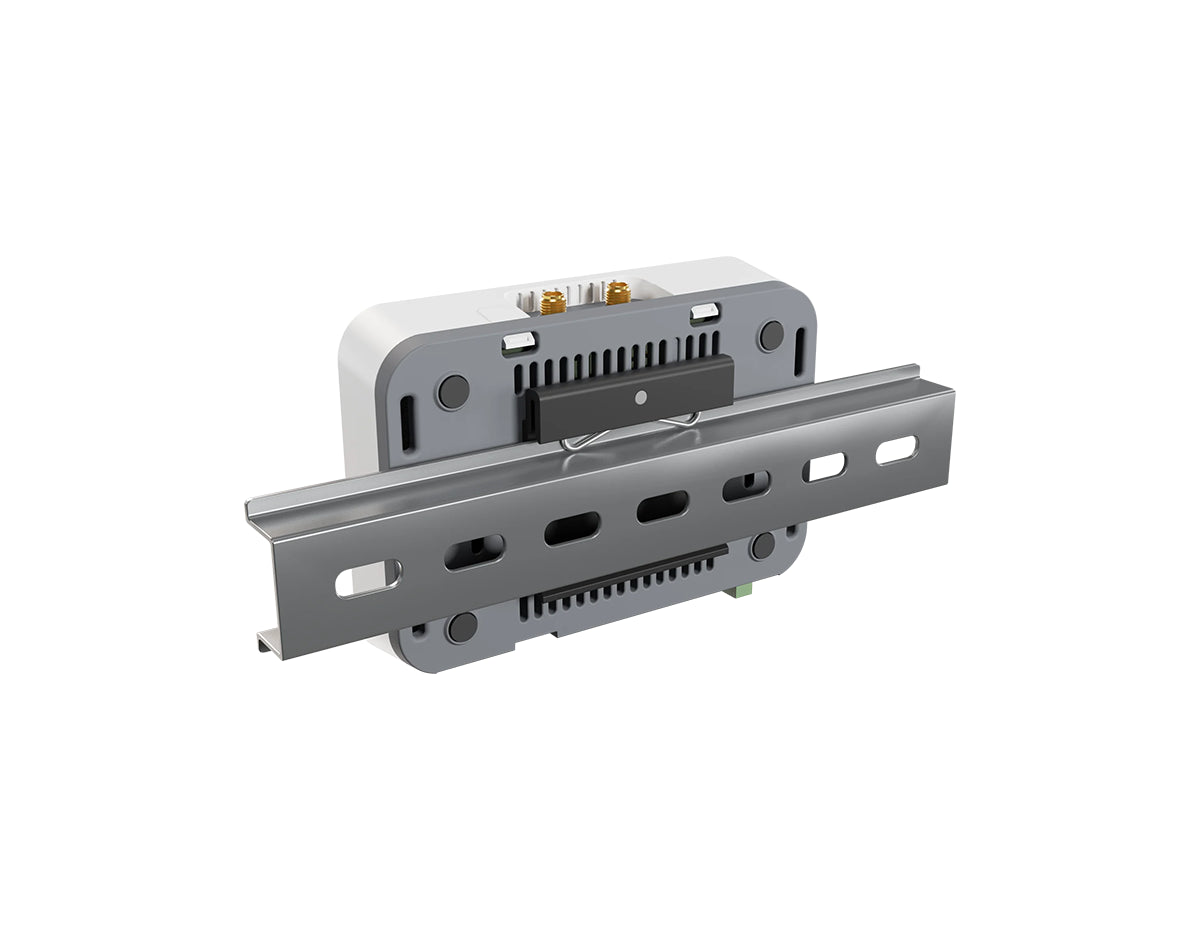

- Industrial Automation: Integrate KNOT into manufacturing environments using DIN rail mounting and GPIO monitoring for smarter cabinet management.
Technical Specifications Overview
- Processor: QCA9531 single-core 650 MHz
- Memory: 64 MB RAM, 16 MB Flash storage
- Networking: 2x 10/100 Mbps Ethernet ports (PoE-in and PoE-out)
- Wireless Standards: 2.4 GHz 802.11b/g/n dual-chain
- Mobile Data: LTE CAT-M1 and NB2 support for global bands

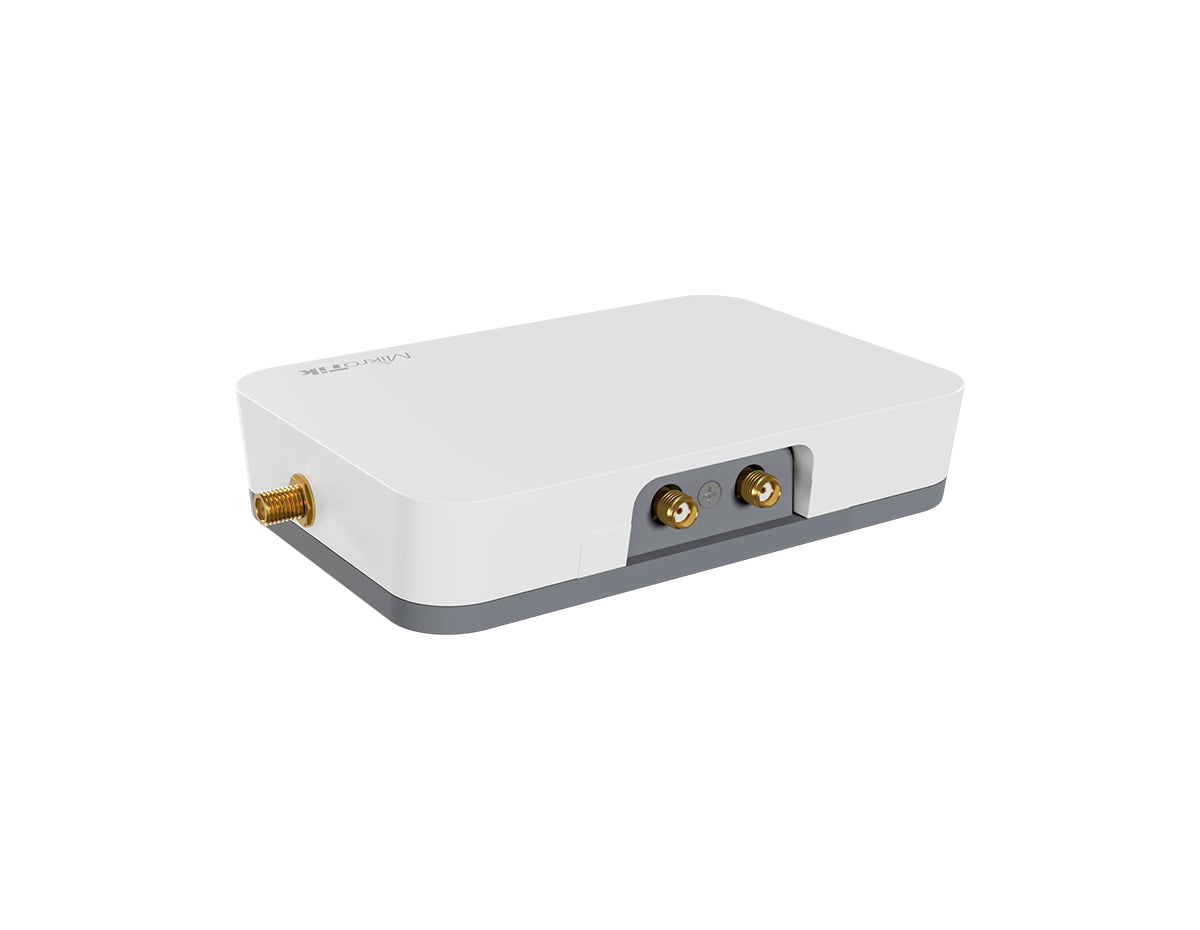

- Antenna Connectors: SMA female connectors for LTE, GPS, and LoRa
- Durability: Rugged design with an operating temperature range of -40C to +70C
Efficient, Cost-Effective IoT Deployment
Maximize your network efficiency with the MikroTik KNOT LR9G. Its low 6W power consumption and small footprint make it perfect for deployments where space and power are at a premium. Order today to simplify your remote monitoring and asset tracking infrastructure.
