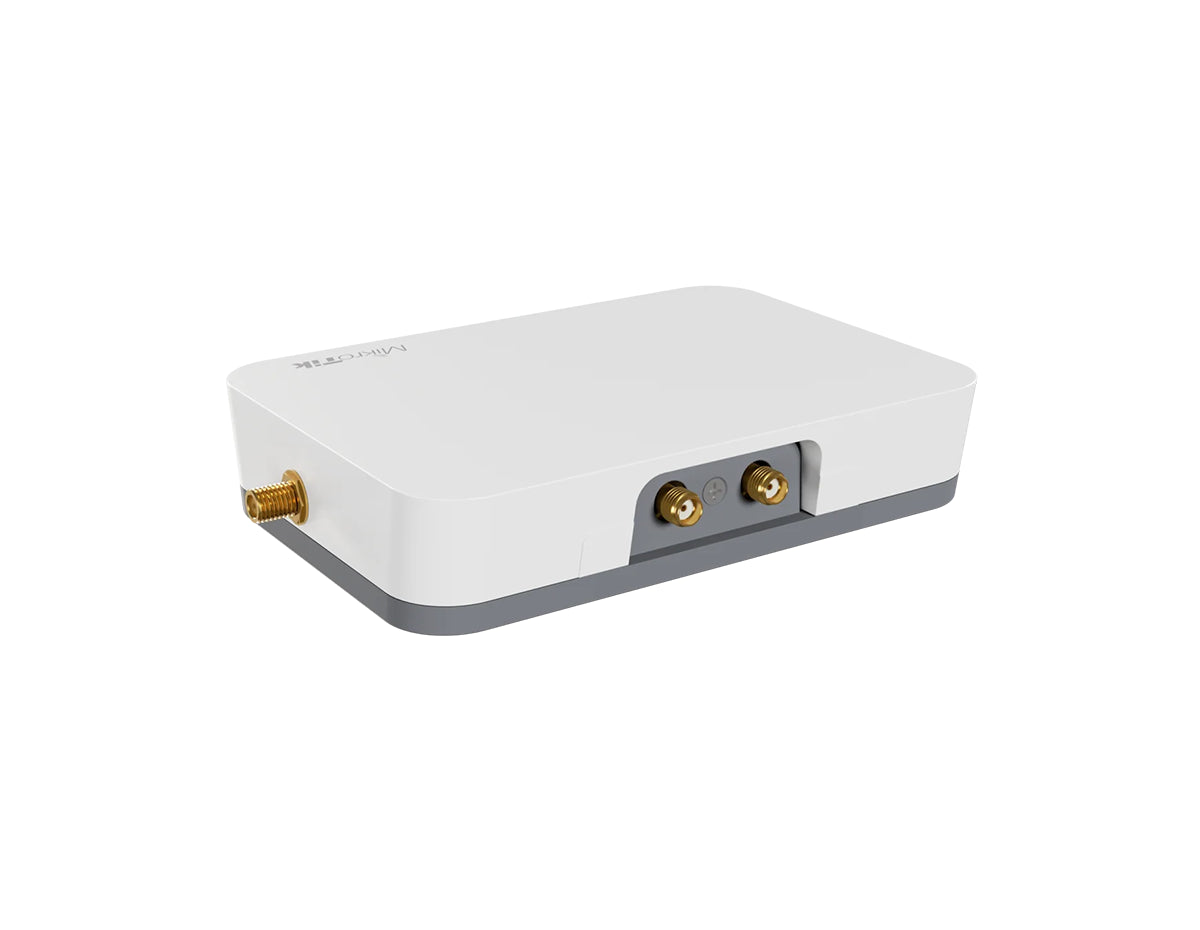

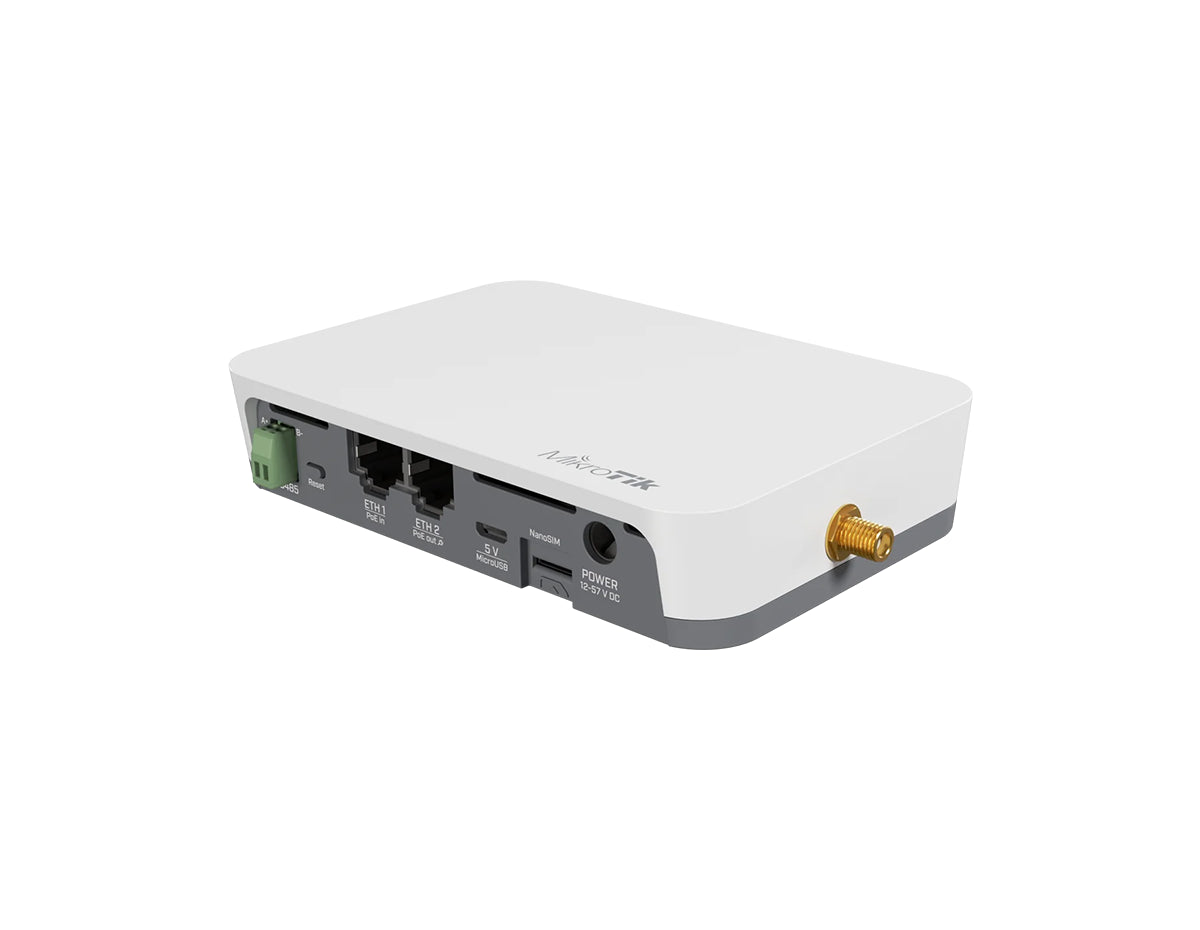

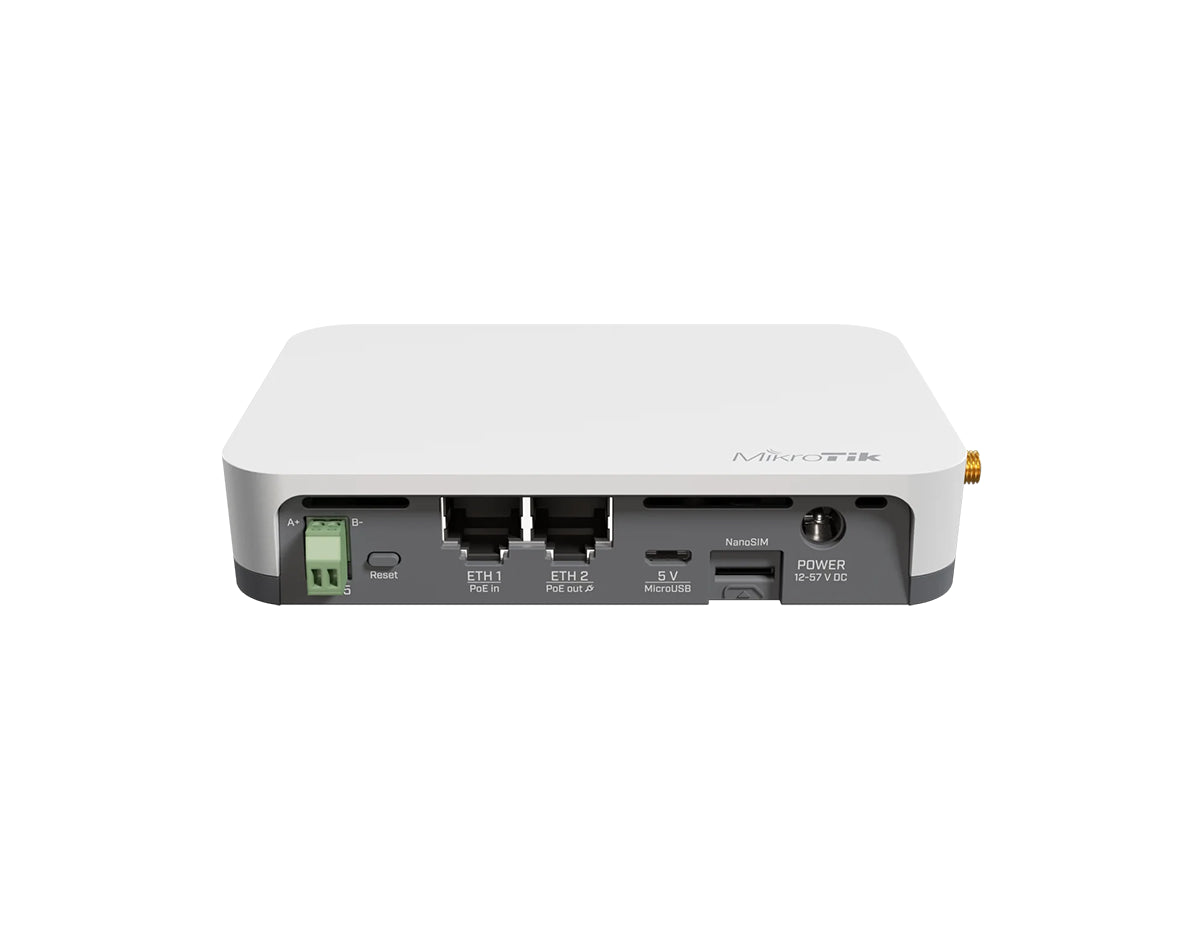

MikroTik RB924iR-2nD-BT5&BG770A&R11e-LR8G KNOT LR8G IoT Gateway

Industrial IoT Connectivity for Smart Monitoring and Automation

The MikroTik RB924iR-2nD-BT5&BG770A&R11e-LR8G KNOT LR8G kit is a compact industrial IoT gateway designed to connect sensors, assets, and remote equipment to modern cloud platforms. Combining LoRa connectivity, LTE Cat M1 and NB2 cellular networking, GNSS positioning, and WiFi, it provides reliable communication for distributed IoT deployments.

Built for environments where infrastructure is limited, the KNOT LR8G enables secure monitoring, automation, and data collection across industries such as healthcare, logistics, agriculture, and industrial automation. With RouterOS v7 and flexible powering options including PoE, MicroUSB, and DC input, it offers powerful edge connectivity in a compact and energy-efficient design.

Key Benefits & Features

• LoRa 868 MHz IoT Connectivity: Designed for long-range, low-power IoT communication, enabling reliable data collection from sensors and devices across large industrial or outdoor environments.
• LTE Cat M1 and NB2 Cellular Modem: Integrated BG770A modem provides low-bandwidth mobile connectivity optimized for IoT deployments, reducing operational costs compared to traditional LTE connections.
• Concurrent GNSS and Cellular Tracking: Built-in GNSS GPS support allows accurate asset tracking while maintaining active LTE connectivity for real-time location and telemetry updates.
• Flexible Network Interfaces: Dual 100 Mbps Ethernet ports support PoE-in and PoE-out, enabling network connectivity and the ability to power additional devices from the gateway.
• RouterOS v7 Platform: MikroTik RouterOS provides advanced routing, scripting, monitoring, and remote management capabilities, giving administrators full control over IoT network infrastructure.

Ideal Use Cases

• Industrial IoT monitoring and automation systems
• Smart agriculture and environmental sensor networks
• Cold chain monitoring and logistics tracking
• Hospital equipment and asset tracking using Bluetooth beacons
• Remote telemetry and infrastructure monitoring

Technical Specifications

• Product Code: RB924iR-2nD-BT5&BG770A&R11e-LR8G
• CPU: QCA9531 650 MHz
• Memory: 64 MB DDR2 RAM
• Storage: 128 MB NAND
• Ethernet Ports: 2x 10/100 Mbps Fast Ethernet
• Wireless: 2.4 GHz 802.11b/g/n WiFi
• LoRa Band: 868 MHz
• Bluetooth: Bluetooth 5.2
• Cellular Modem: BG770A with LTE Cat M1 and NB2
• Operating System: MikroTik RouterOS v7 License Level 4
• Power Options: PoE In 18-57 V, MicroUSB 5 V, DC jack 12-57 V
• Power Consumption: Up to 23 W maximum
• Operating Temperature: -40C to +70C

Build Reliable IoT Networks with MikroTik KNOT

Deploy the MikroTik RB924iR-2nD-BT5&BG770A&R11e-LR8G KNOT LR8G gateway to connect sensors, assets, and industrial systems with secure and scalable IoT connectivity. Order today.

Model	KNOT LR8G kit
Product Code	RB924iR-2nD-BT5&BG770A&R11e-LR8G
Product Type	IoT Gateway
CPU	QCA9531 650 MHz
CPU Architecture	MIPSBE
RAM	64 MB DDR2
Storage	128 MB NAND
Ethernet Ports	2 x 100 Mbps
Wireless Standard	2.4 GHz 802.11b/g/n
Wireless Interface Model	QCA9531
Antenna Gain	1.5 dBi
Antenna Beam Width	360 degree
Bluetooth Version	5.2
GNSS	GPS (MT3337V)
LoRa Band	868 MHz
IoT Modem	BG770A
CAT-M Support	Cat M1
CAT-NB Support	Cat NB2
Operating System	RouterOS v7, License Level 4
Operating Temperature	-40C to +70C
Dimensions	122 x 87 x 26 mm

USB Port	1 x microUSB type AB
Antenna Connector	SMA female
Number of DC Inputs	3 (PoE-In, MicroUSB, DC jack)
PoE-In Input Voltage	18-57 V
MicroUSB Input Voltage	5 V
DC Jack Input Voltage	12-57 V
PoE-In Standard	802.3af/at
PoE-Out	802.3af (Ether2)
Power Adapter Nominal Voltage	24 V
Power Adapter Nominal Current	1.2 A
Max Output per Port (Input < 30 V)	650 mA
Max Output per Port (Input > 30 V)	450 mA
Max Power Consumption (Without Attachments)	6 W
Max Power Consumption	23 W
Wi-Fi Data Rates	1Mbit/s (22 dBm, -96 dBm), 11Mbit/s (22 dBm, -89 dBm), 6Mbit/s (20 dBm, -93 dBm), 54Mbit/s (18 dBm, -74 dBm), MCS0 (20 dBm, -93 dBm), MCS7 (16 dBm, -71 dBm)
CAT NB Bands	B1/B2/B3/B4/B5/B8/B12/B13/B17/B18/B19/B20/B25/B28/B66
CAT M Bands	B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B27/B28/B66

Included

24 V 1.2 A Power Adapter; Wall Mount Set; DIN Rail Mount Set; USB OTG Cable
