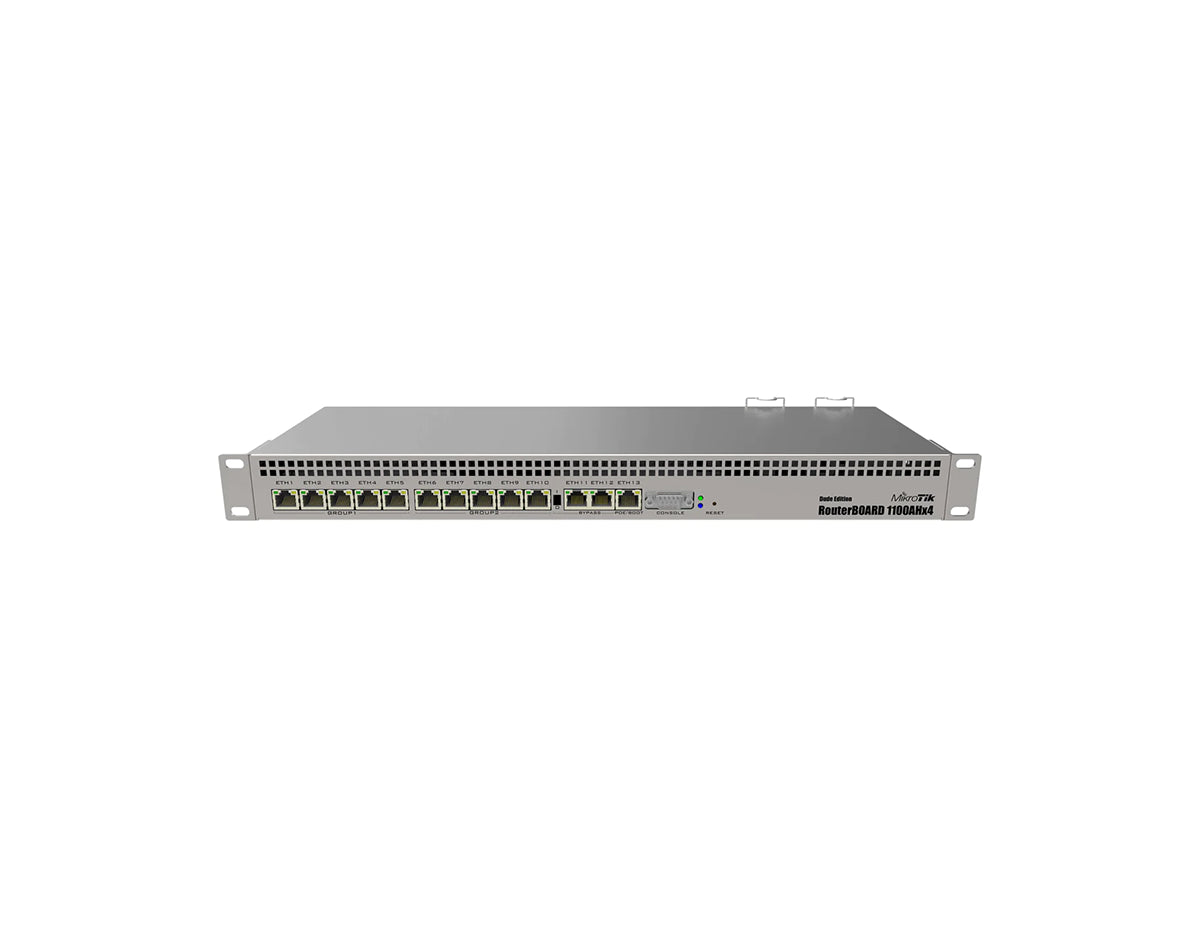

Mikrotik RB1100Dx4 Router - RB1100AHx4 Dude Edition

Mikrotik RB1100Dx4 Router - RB1100AHx4 Dude Edition

Name: Mikrotik RB1100Dx4 Router - RB1100AHx4 Dude Edition
Brand: Mikrotik
Price: 350.00 USD
Availability: OutOfStock

Part Number: RB1100DX4

Technical Details

Powerful 1U rackmount router with 13x Gigabit Ethernet ports, 60GB M.2 drive for Dude database

$350.00

Ask an Expert

sales@networkdevicesinc.com

1-201-559-1474

Availability: Request ETA

Condition: Brand New Sealed

Free Shipping on Orders $100+Arrives in 1-6 business days within the U.S.

International DeliveryWorldwide shipping in 7–15 business days

30 Days Return

12 Months Warranty Support

sales@networkdevicesinc.com

1-201-559-1474

MikroTik RB1100DX4 Router

The RB1100DX4 offers a powerful and efficient routing solution suitable for both individuals and organizations in need of high-performance networking capabilities. These routers are specifically engineered to effortlessly manage demanding networking tasks, delivering users the necessary flexibility and power to accommodate intricate networks and high-speed connectivity. One of the RB1100DX4 Router's notable features is its support for high-speed storage interfaces, including two SATA and two M.2 slots.

Quick Specs:

13x 10/100/1000 Ethernet Ports
1GB RAM
AL21400, 4 cores, 1.4 GHz CPU
2x M.2 Slots

Please see the related tabs for the RB1100DX4 datasheet and compatible accessories.

Properties

Properties	RB1100AHX4
Description	The RB1100AHx4 Dude edition is faster than any previous RouterBOARD device (up to 2.2Gbps with AES128). It features several high speed storage connectors (two SATA and two M.2) for using a Dude database, proxy cache or any other storage intensive feature. It includes a 60GB M.2 drive already installed.
Product Family	Mikrotik RB1100AHX4 Series
Product Type	Ethernet Router
10/100/1000 Ethernet ports	13
Serial console port	RS232
Number of USB ports	1
Memory Cards	1 microSD
SATA ports	2x SATA3
Extended storage	60GB M.2 SSD included
Extras	Current Monitor PCB temperature monitor Voltage Monitor Beeper
Dimensions	443 x 148 x 44 mm
USB slot type	USB type A
Number of AC inputs	2
Number of DC inputs	2 (2-pin terminal, PoE-IN)
2-pin terminal input Voltage	-48, 20-57 V
Max power consumption	33 W
Max power consumption without attachments	25 W
Cooling type	Passive
PoE in	802.3af/at
PoE in input Voltage	20-57 V
Included	SATA cables Rack ears M.2 SSD 60GB Screw and feet kit (K10) 2x IEC cords

Specifications

Specifications	RB1100DX4
Memory	1 GB
NAND Storage size	128 MB
CPU	AL21400 1.4 GHz
CPU core count	4
Switch chip model	RTL8367
OS	RouterOS level 6 license
MTBF	Approximately 200.000 hours at 25C
Temperature	-40°C to 70°C tested
IPsec hardware acceleration	Yes
Certification	CE, EAC, ROHS
IP	IP20
