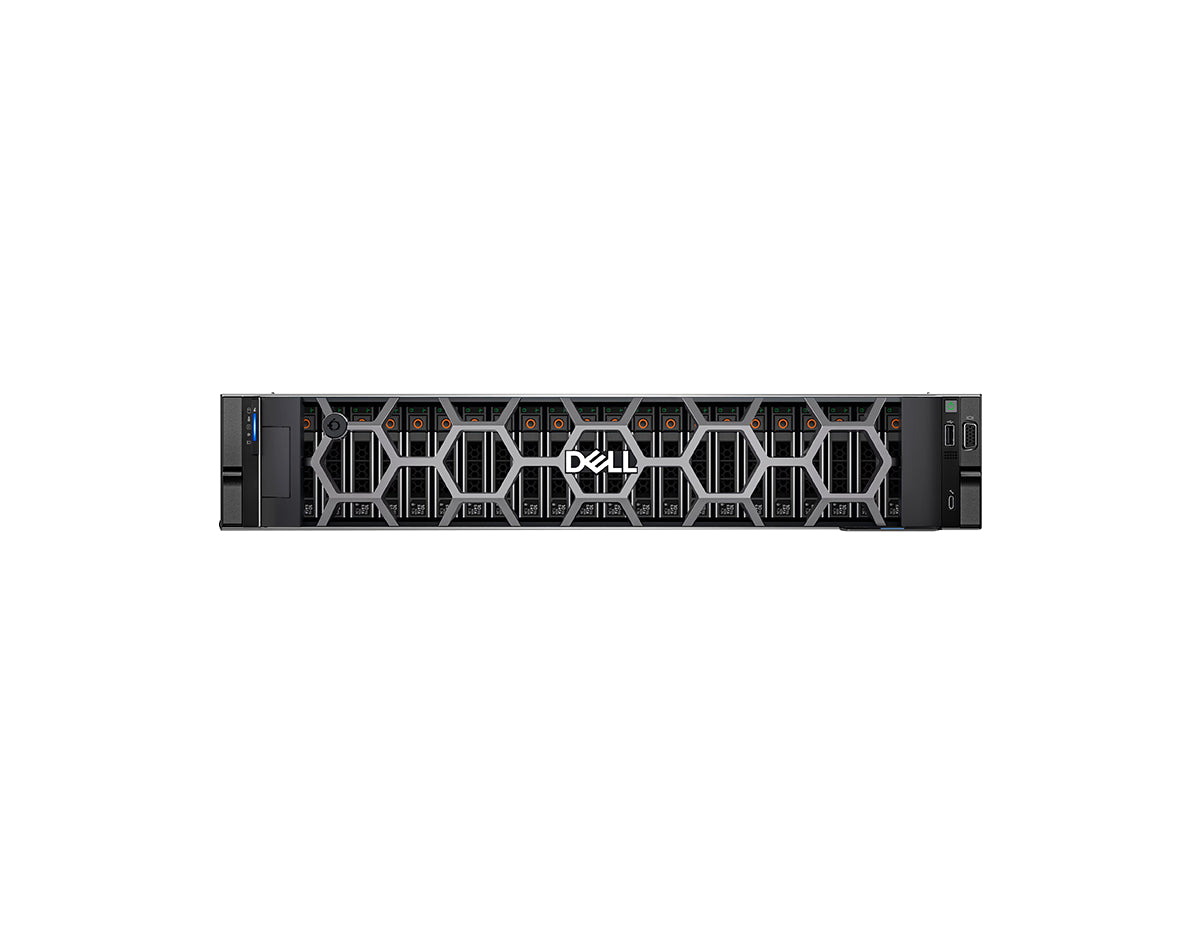

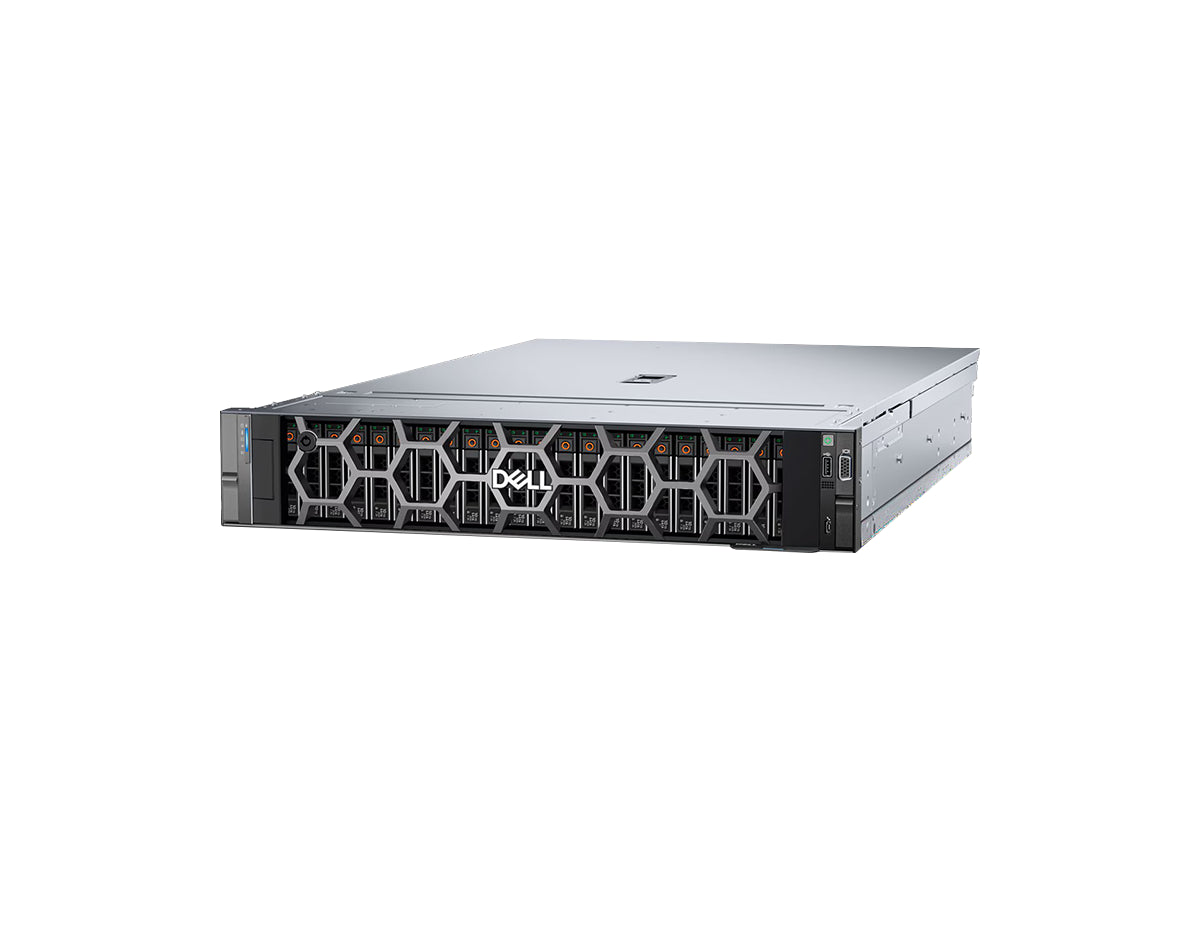

Dell PowerEdge R760 2U Dual-Socket Intel Xeon Rack Server

Powerful 2U Server for Demanding Enterprise Workloads

The Dell PowerEdge R760 is a 2U, two-socket rack server designed for demanding enterprise environments. Built for performance, storage flexibility, and secure systems management, it supports mixed workload standardization, database and analytics, virtual desktop infrastructure, artificial intelligence, and machine learning workloads.

Key Benefits and Features

• Supports up to two 4th Generation Intel Xeon Scalable, Intel Xeon Max, or 5th Generation Intel Xeon Scalable processors.
• Offers 32 DDR5 DIMM slots with registered ECC DDR5 memory support and speeds up to 5600 MT/s with supported 5th Gen Intel Xeon Scalable processors.
• Provides flexible front and rear drive bay options, including SAS, SATA, NVMe U.2 Gen4, and EDSFF E3.S Gen5 NVMe configurations.
• Supports GPU acceleration with up to 2 double-wide 350 W GPUs or 6 single-wide 75 W GPUs.
• Includes Dell iDRAC9 and OpenManage software options for secure, centralized server management.

Ideal Use Cases

• Mixed workload standardization across enterprise IT environments.
• Database and analytics deployments requiring strong compute and memory capacity.
• Virtual desktop infrastructure for centralized desktop delivery.
• AI, machine learning, and GPU-accelerated workloads.
• Scalable data center environments needing flexible storage and PCIe expansion.

Technical Specifications

• Product Type: 2U rack server
• Processor Support: Up to two 4th Generation Intel Xeon Scalable or Intel Xeon Max processors with up to 56 cores per processor, or up to two 5th Generation Intel Xeon Scalable processors with up to 64 cores per processor
• Memory Slots: 32 DDR5 DIMM slots
• Maximum Memory: RDIMM support up to 8 TB
• Memory Speed: Up to 4800 MT/s with 4th Gen Intel Xeon Scalable or Intel Xeon Max processors, up to 5600 MT/s with 5th Gen Intel Xeon Scalable processors
• Drive Bay Options: Up to 12 x 3.5-inch SAS/SATA, up to 24 x 2.5-inch SAS/SATA/NVMe, or up to 16 x EDSFF E3.S Gen5 NVMe front bays
• GPU Support: Up to 2 x 350 W double-wide GPUs or 6 x 75 W single-wide GPUs
• PCIe Expansion: Up to eight PCIe slots with Gen4 and Gen5 configurations
• Embedded Management: iDRAC9, iDRAC Direct, iDRAC RESTful API with Redfish, iDRAC Service Module, Quick Sync 2 wireless module
• Dimensions: 86.8 mm height, 482 mm width, 772.13 mm depth with bezel

Build Scalable Infrastructure with Dell PowerEdge R760

Choose the Dell PowerEdge R760 for a versatile 2U server platform built for compute-intensive applications, flexible storage configurations, GPU acceleration, and secure enterprise management. Order now to upgrade your data center infrastructure.

Brand	Dell
Model	PowerEdge R760
SKU	R760
Product Type	Rack Server
Series	PowerEdge
Form Factor	2U rack server
Processor Support	Up to two 4th Generation Intel Xeon Scalable or Intel Xeon Max processors, or up to two 5th Generation Intel Xeon Scalable processors
Memory	32 DDR5 DIMM slots, supports RDIMM 8 TB max
Drive Bays	Up to 12 x 3.5-inch SAS/SATA, up to 24 x 2.5-inch SAS/SATA/NVMe, or up to 16 x EDSFF E3.S Gen5 NVMe front bays
Dimensions	86.8 mm height x 482 mm width x 772.13 mm depth with bezel

Processor	Up to 56 cores per processor with 4th Generation Intel Xeon Scalable or Intel Xeon Max processors; up to 64 cores per processor with 5th Generation Intel Xeon Scalable processors
Memory Speed	Up to 4800 MT/s on 4th Generation Intel Xeon Scalable or Intel Xeon Max processors; up to 5600 MT/s on 5th Generation Intel Xeon Scalable processors
Memory Type	Registered ECC DDR5 DIMMs only
Storage Controllers	PERC H965i, PERC H755, PERC H755N, PERC H355, PERC H965e, HBA355e, HBA3551, HBA4651, S160
Internal Boot	Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSDs or USB
Front Bays	Up to 12 x 3.5-inch SAS/SATA max 240 TB; up to 24 x 2.5-inch SAS/SATA/NVMe max 368.64 TB; up to 16 x EDSFF E3.S Gen5 NVMe max 122.88 TB
Rear Bays	Up to 2 x 2.5-inch SAS/SATA/NVMe max 30.72 TB; up to 4 x 2.5-inch SAS/SATA/NVMe max 61.44 TB; up to 4 x EDSFF E3.S Gen5 NVMe max 30.72 TB
Cooling Options	Air cooling; Optional Direct Liquid Cooling (DLC)
Fans	Standard fans, High performance Silver fans, High performance Gold fans; up to 6 hot plug fans
Embedded Management	iDRAC9, iDRAC Direct, iDRAC RESTful API with Redfish, iDRAC Service Module, Quick Sync 2 wireless module
Embedded NIC	2 x 1 GbE LOM card optional
Network Options	1 x OCP card 3.0 optional; 1 x Management Interface Card optional
GPU Options	Up to 2 x 350 W double-wide and 6 x 75 W single-wide
Front Ports	1 x iDRAC Direct Micro-AB USB port, 1 x USB 2.0, 1 x VGA

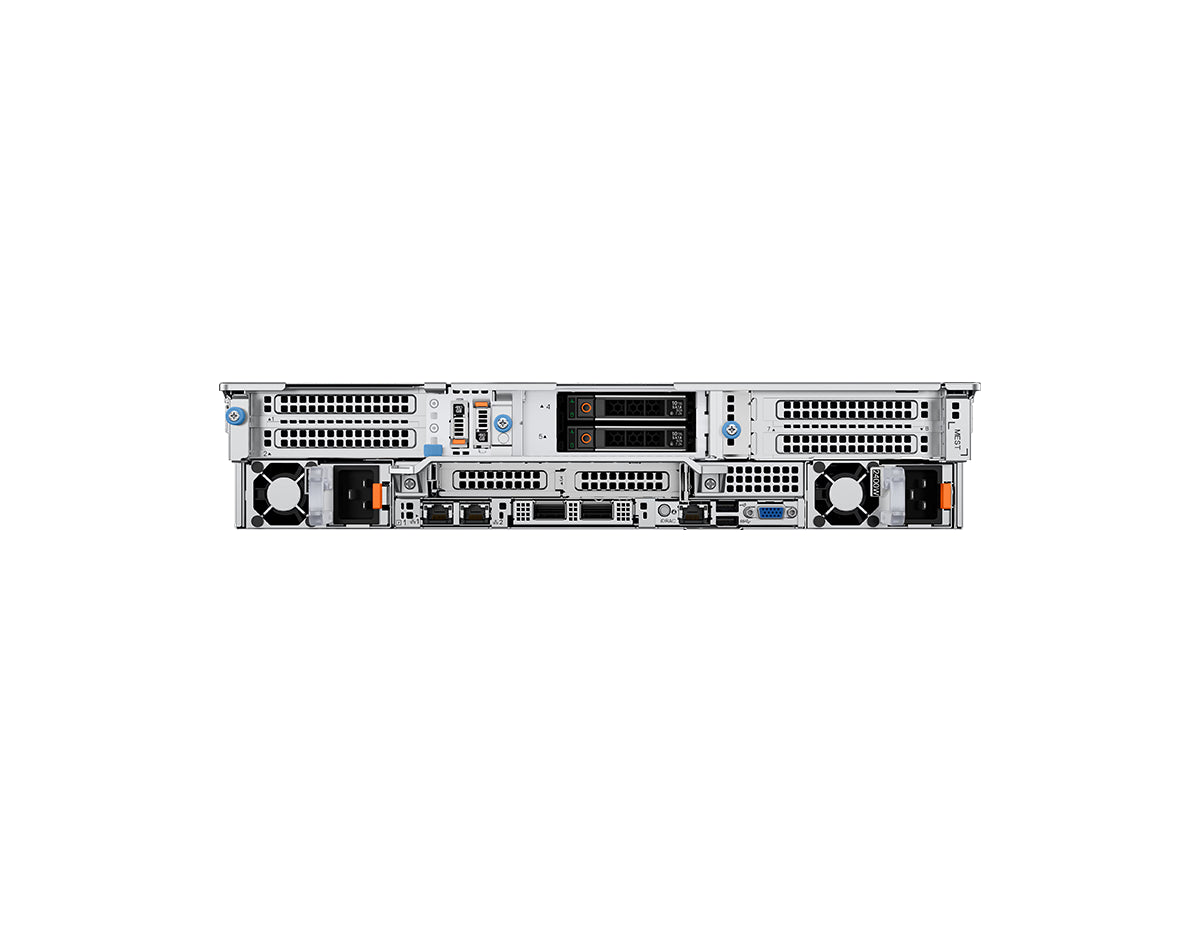

Rear Ports	1 x Dedicated iDRAC Ethernet port, 1 x USB 2.0, 1 x USB 3.0, 1 x VGA, 1 x Serial optional
Internal Ports	1 x USB 3.0 optional
PCIe	Up to eight PCIe slots with Gen4 and Gen5 configurations
Operating Systems	Canonical Ubuntu Server LTS, Microsoft Windows Server with Hyper-V, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
Security Features	Cryptographically signed firmware, Data at Rest Encryption, Secure Boot, Secure Erase, Secured Component Verification, Silicon Root of Trust, System Lockdown, TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
