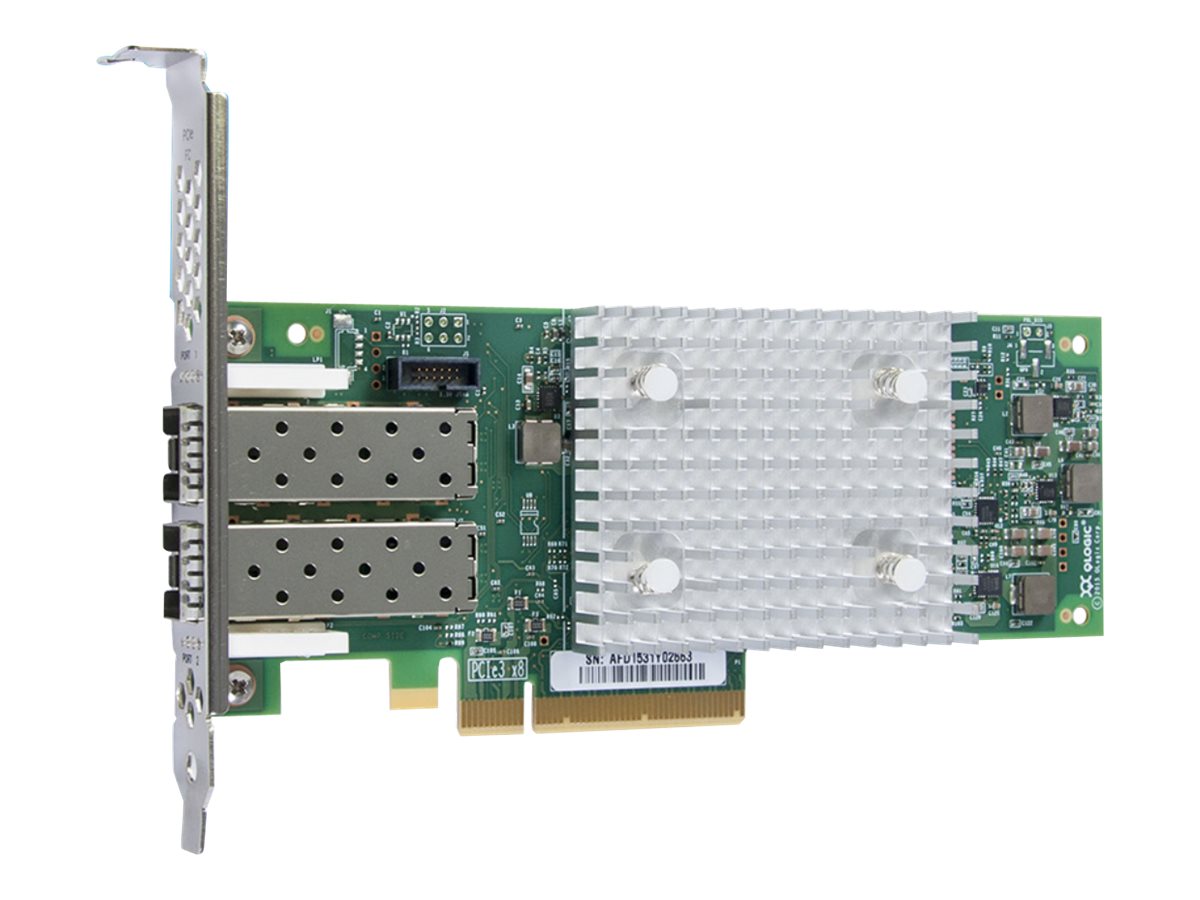

Marvell QLogic QLE2742-SR Dual-Port 32GFC Fibre Channel HBA
Dual-Port 32GFC Connectivity for Enterprise SANs
The Marvell QLogic QLE2742-SR is based on the QLE2742 dual-port 32GFC Fibre Channel host bus adapter platform for high-performance storage networking. The adapter uses a PCIe 3.1 x8 host interface and provides two 32GFC ports for SAN environments supporting demanding enterprise, virtualized, and private cloud workloads.
The QLogic 2740/2760 Series delivers up to 2.6 million IOPS and supports Fibre Channel NVMe alongside traditional FCP storage. FC-NVMe capability enables simultaneous access to NVMe and FCP storage on the same port, helping organizations use modern flash storage while maintaining Fibre Channel infrastructure. Marvell StorFusion technology adds provisioning, diagnostics, QoS, and resiliency capabilities to the adapter platform.
Key Benefits and Features
- Dual-Port 32GFC: Two 32GFC Fibre Channel ports for high-bandwidth SAN connectivity
- PCIe 3.1 Host Interface: PCI Express 3.1 x8 interface for the dual-port QLE2742
- High IOPS Performance: 2740/2760 Series performance scales up to 2.6 million IOPS
- FC-NVMe Support: Supports simultaneous NVMe and FCP storage access on the same port
- Port-Level Scalability: Supports 2,048 concurrent logins and 2,048 active exchanges per port
Ideal Use Cases
- Enterprise Fibre Channel SAN infrastructure
- All-flash array storage environments
- Virtualized and private cloud platforms
- FC-NVMe and FCP storage deployments
Deploy QLogic 32GFC for High-Performance Fibre Channel Storage
Choose the QLE2742-SR for dual-port 32GFC connectivity, PCIe 3.1 x8 integration, FC-NVMe support, and high-throughput enterprise SAN access.
| Brand | Marvell QLogic |
| Model | QLE2742 |
| Product Type | 32GFC Fibre Channel Host Bus Adapter |
| Series | 2740/2760 Series |
| Form Factor | Low-profile PCIe card |
| Port Count | Dual-port |
| Fibre Channel Speed | 32GFC |
| Host Interface | PCIe 3.1 x8 |
| Dimensions | 6.6 inches × 2.731 inches |
| Product Name | Marvell QLogic QLE2742-SR Dual-Port 32GFC PCIe 3.1 x8 Host Bus Adapter |
| Model / Part Number | QLE2742-SR (QLE2742-SR-CK) |
| Port Count | Dual-Port |
| Fibre Channel Speed | 32GFC |
| Host Interface | PCI Express 3.1 x8 |
| Per-Port Throughput | 6,400 MBps full-duplex line rate per port |
| Aggregate Throughput | Up to 25,600 MBps (2740/2760 Series Platform) |
| IOPS Performance | Up to 2.6 million IOPS |
| Protocol Support | FCP-4, FC-NVMe-2, FC-TAPE, FC-GS-8, FC-PI-5, FC-PI-6, FC-LS-5, FC-FS-5 |
| Port Virtualization | N_Port ID Virtualization (NPIV) |
| Concurrent Logins | 2,048 concurrent logins per port |
| Active Exchanges | 2,048 active exchanges per port |
| Form Factor | Low-Profile PCIe Card (6.60 in. x 2.731 in.) |
| Included Optics | Pre-installed 32GFC SR Optical SFP+ Transceivers |
