Model: PVDM2-8
Detail: Voice/fax module (8 channels), for Cisco 2611, 2621, 2651, 2811, 2821, 2851
List Price: US$400.00
You Save: $370.00 (93% OFF)
Condition: Brand New Sealed
Availability: IN STOCK
Shipping: FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods.
Tax: $0.00 Tax Outside New Jersey

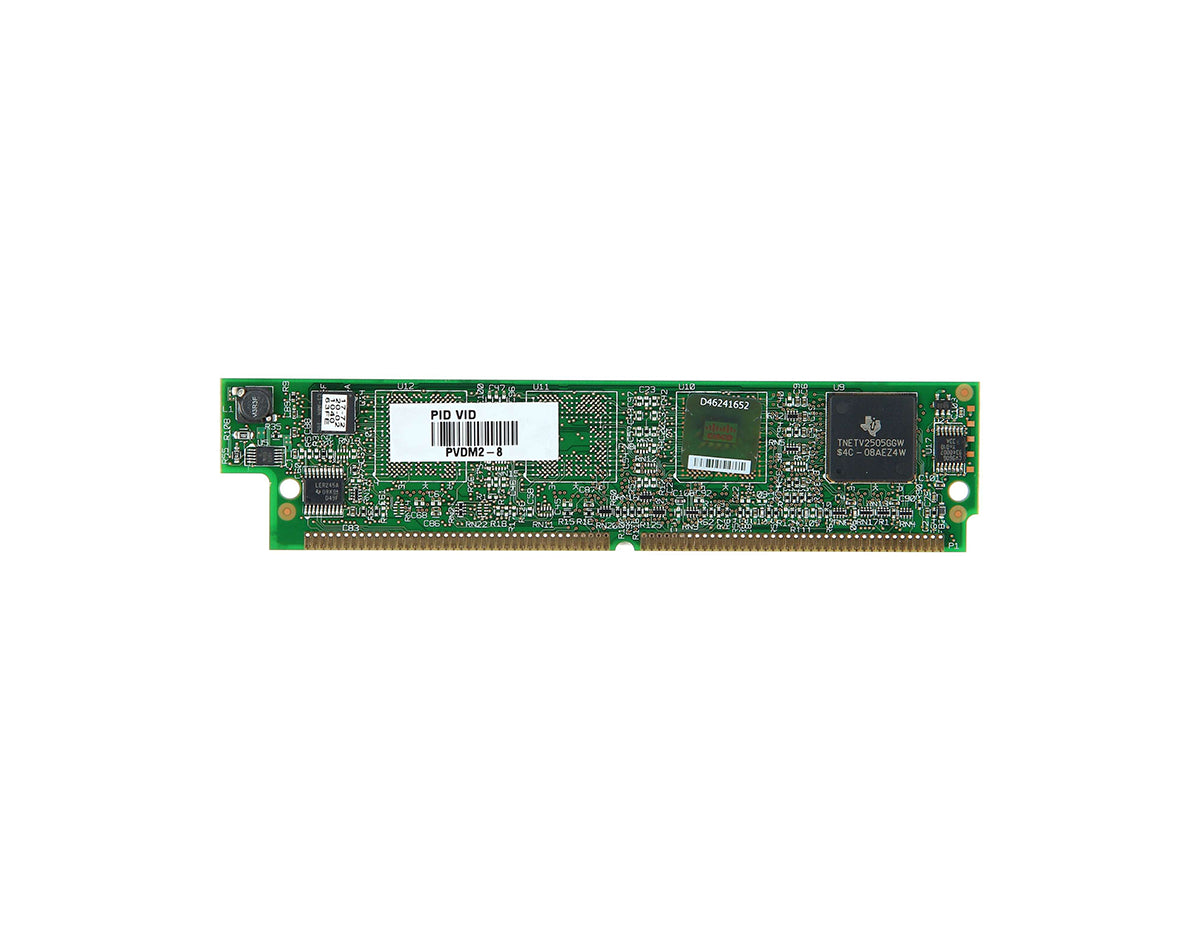

Install Cisco PVDM2-8 Expansion Module for IP Telephony Solutions

Cisco PVDM2-8 Expansion Module comes with a high-density packet voice Digital Signal Processor. It enables Cisco Systems Integrated Services Routers to provide high-density voice connectivity, conferencing, and transcoding capabilities in Cisco IP Communications solutions.

Key Benefits of Cisco PVDM2-8 Expansion Module

Cisco PVDM2-8 Expansion Module enables Cisco Integrated Services Routers to provide enterprises and service providers with a toll bypass solution by connecting their existing telephony equipment, such as private branch exchanges [PBXs], Key systems, analog telephones, and fax machines, to a toll-free data network. It helps migrate customers to Cisco AVVID (Architecture for Voice, Video and Integrated Data) IP telephony solutions.


Cisco PVDM2-8 Expansion Module Overview


Description 8-channel packet fax and voice DSP module
Maximum Number of Channels in G.711 8
Maximum Number of Channels in High-Complexity Codecs 4
Maximum Number of Channels in Medium-Complexity Codecs 4


DSP  Texas Instruments TNETV2510GGW for PVDM2-16, PVDM2-32, PVDM2-48, and PVDM2-64

 Texas Instruments TNETV2505GGW for PVDM2-8
DSP CPU Clock  200 MHz for TNETV2510GGW

 175MHz for TNETV2505GGW
DSP External Memory 128-megabit synchronous dynamic RAM for each DSP (for both TI 2510 and TI 2505)
Interface 80-pin SIMM interface
Echo Cancellation Software echo cancellation compliant with ITU-I G.168, with 64-ms tail coverage
Safety  IEC 60950 (worldwide) and AS/NZS 3260 (Australia and New Zealand)

 CAN/CSA-C22.2 No. 60950 (Canada) and GB4943-95 (People's Republic of China)

 EN60950 (CENELEC; includes EU and EFTA)

 SS337 (Singapore; PSB approval), NOM-019-SCFI-1998 (Mexico), and UL 60950 3rd edition (United States)
Homologation Platform dependent
Mean Time between Failure (MTBF) System dependent
CISPR22, Class B Emissions
EN55022, Class B Emissions
CFR47, Part 15, Subpart B, Class B Emissions
EN61000-3-2 Harmonics
EN61000-3-3 Flicker
CISPR24 Immunity
EN 55024 Immunity
EN50082-1 Immunity
EN61000-3-2 Harmonics
EN 61000-3-3 Flicker
EN 61000-4-2 Electrostatic discharge (ESD)
EN 61000-4-3 Radiofrequency (RF) fields
EN 61000-4-4 EFT

EN 61000-4-5
EN 61000-4-6 Conducted RF
EN 6100-4-8 Power-frequency magnetic fields
EN 61000-4-11 Voltage dips, sags, and interruptions
