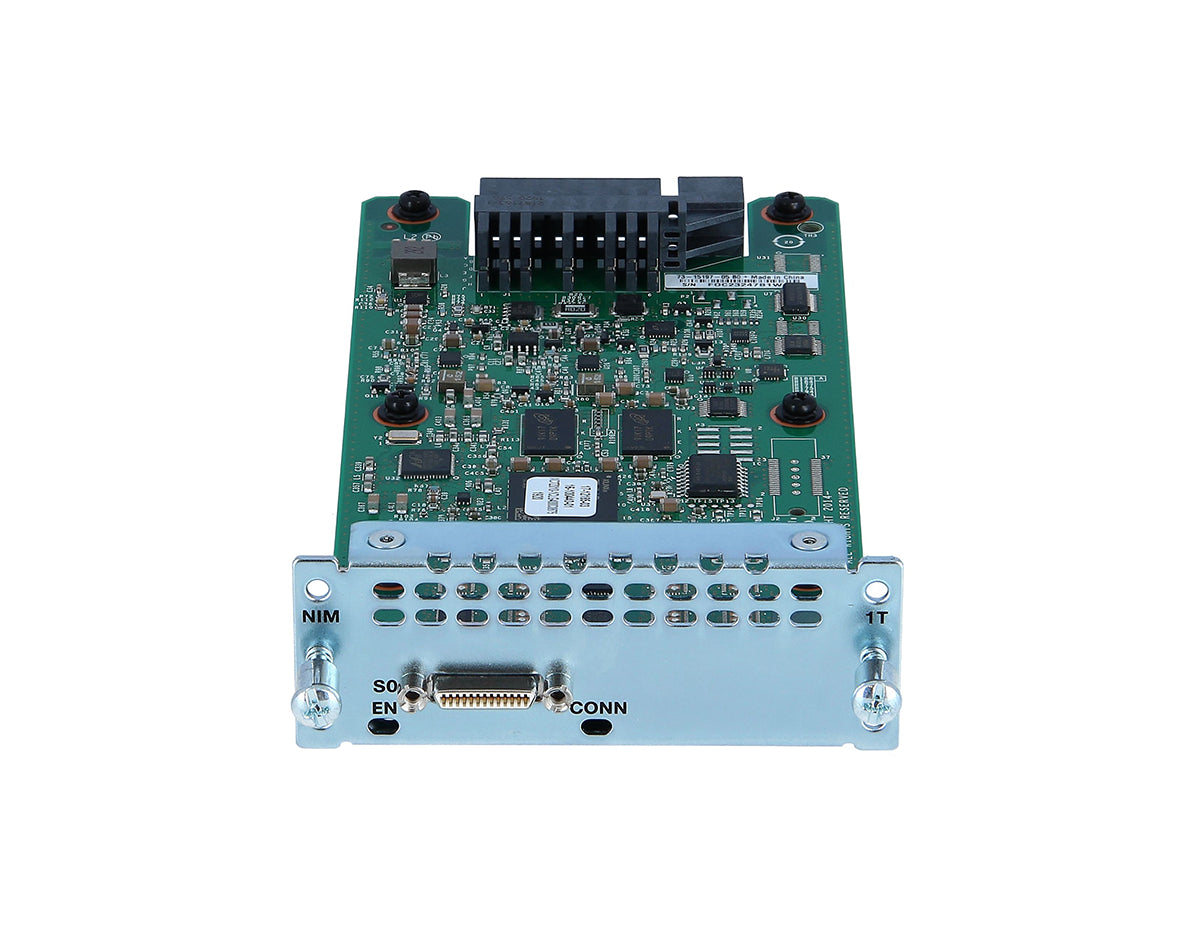

Cisco NIM-1T Network Interface Card

Name: Cisco NIM-1T Network Interface Card
Brand: Cisco
SKU: NIM-1T-NEW
Price: 275.00 USD
Availability: InStock

Part Number: NIM-1T

Technical Details

Serial Adapter RS-232/449/530/V.35/X.21 x 1 For Cisco 4451-X

$715.00

$275.00

62% OFF

You Save: $440.00

Ask an Expert

sales@networkdevicesinc.com

1-201-559-1474

Availability: In Stock

Condition: Brand New Sealed

Free Shipping on Orders $100+Arrives in 1-6 business days within the U.S.

International DeliveryWorldwide shipping in 7–15 business days

30 Days Return

12 Months Warranty Support

sales@networkdevicesinc.com

1-201-559-1474

CISCO NIM-1T Network Interface Module for Superior Throughput

CISCO NIM-1T Interface Module provides Cisco Software-Defined WAN software features and converged branch infrastructure. It's designed with superior throughput capabilities to form building blocks of next-generation branch-office WAN solutions.

Key Benefits of CISCO NIM-1T Network Interface Module

CISCO NIM-1T Network Interface Module offers up to three integrated network interface module slots and allows for flexible configurations. Get up to two 2Gbps connections from every NIM slot. Special NIMs add support to Solid State Drives and Hard Disk Drives. Each integrated service slot connects to the system architecture through an up to 2Gbps link.

Properties

Properties	Cisco NIM-1T Network Interface Module
Description	NIM-1T is a Cisco 1-Port Serial WAN Network Interface Card, offering cost-effective virtualized WAN connections in both point-to-point and point-to-multipoint designs.
Product Family	Cisco 4400 Series Integrated Services Router Network Interface Modules (ISRNIMs)
Product Type	Network Interface Module
Connectors	Cisco Smart Serial connectors

Specifications

Specifications	Cisco NIM-1T Network Interface Module
NIM Signaling and Telecom Specifications
Synchronous support	Yes
Synchronous maximum speed (per port)	8 Mbps
Serial protocols	EIA-232, EIA-449, EIA-530, EIA530A, V.35, and X.21
Telecomm post, telephone, and telegraph (PTT)	● TBR1 and 2 ● JATE digital
Homologation Specifications for NIM-1T
Safety	● UL 60950-1 (United States) ● CAN/CSA 22.2, 60950-1 (Canada) ● AS/NZS 60950-1 (Australia/New Zealand) ● EN60950-1 (Europe) ● IEC 60950-1 (International)
Immunity	● EN300386 ● CISPR24 ● EN55024 ● EN50082-1 ● 61000-4-2/3/4/5/6/8/11
Emissions	● FCC Part 15 Class A ● ICES-003 Class A ● EN55022 Class A ● CISPR22 Class A ● AS/NZSCISPR22 Class A ● VCCI Class A ● EN 300386 ● EN61000-3-2/3 ● CNS13438
Physical specifications	● Singlewide NI, no slot restrictions ● Dimensions (H x W x D) 1.25 x 3.50 x 7.24 in. (3.18 x 8.89 x 18.39 cm)
Environmental specifications	● Operating temperature: 32 to 104°F (0 to 40°C) ● Storage temperature: -4 to 149°F (-20 to 65°C) ● Relative humidity: 10 to 90%, non-condensing
