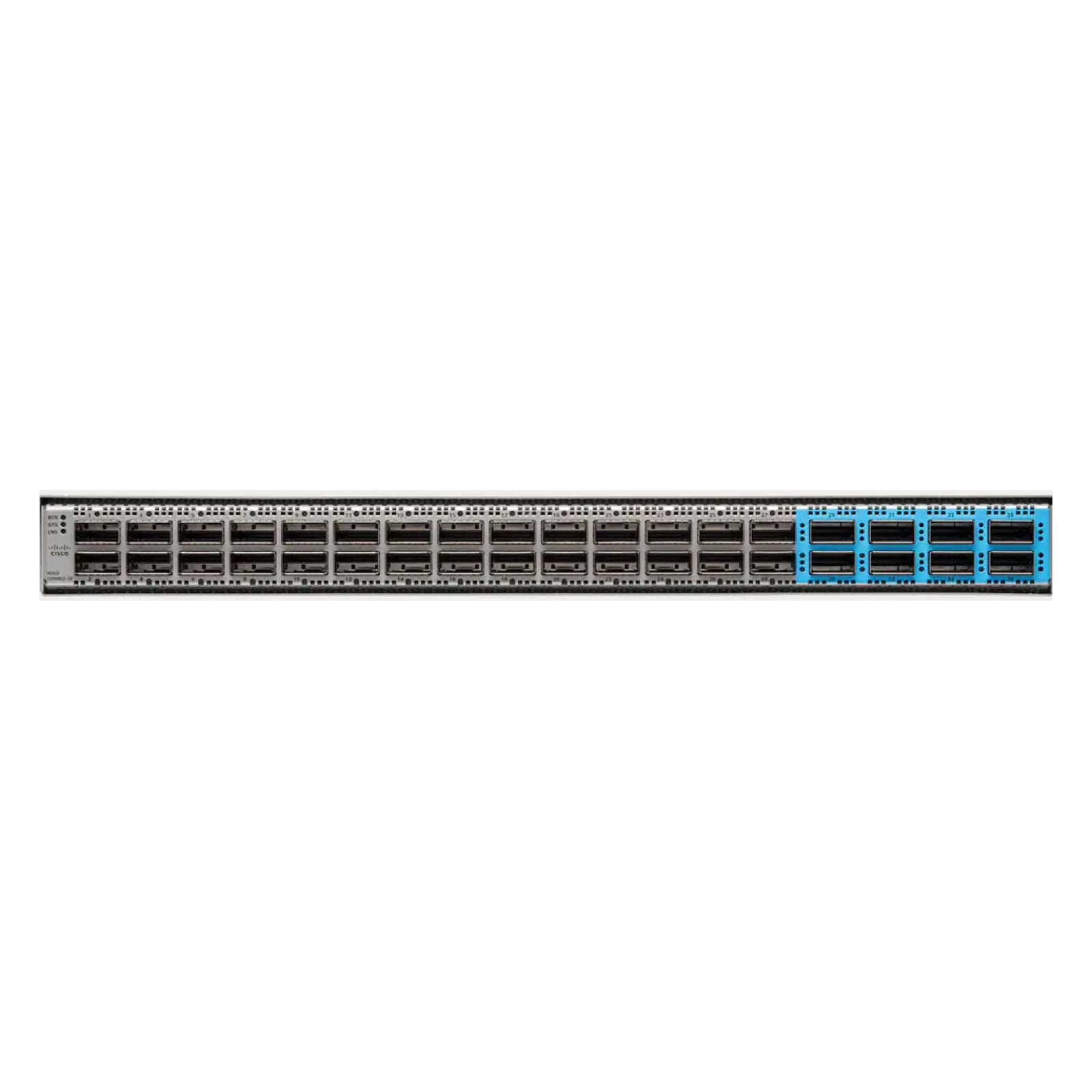

CISCO NEXUS 9300-GX SERIES 36-PORTS MANAGED SWITCH (N9K-C93600CD-GX)
| Part No: | N9K-C93600CD-GX |
| Detail: | Cisco Nexus 9300-GX Series 36x Ports Managed Switch N9K-C93600CD-GX is a high-performance, next-generation data center switch with 28x 100/40G QSFP28 and 8x 400/100G QSFP-DD ports for scalable networkin |
| Price: |
$15,985.00
|
| Condition: | Brand New Sealed |
| Availability: | Ask For ETA |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ, TX, FL and PA |
| Quantity: |
|
Description
Cisco Nexus 9300-GX Series 36-Ports Managed Switch (N9K-C93600CD-GX)
The Cisco Nexus 9300-GX Series N9K-C93600CD-GX is a high-density, high-speed spine-and-leaf data center switch built for next-generation cloud and enterprise networks. Designed to support scalable and flexible deployments, it features 28x 100/40G QSFP28 ports and 8x 400/100G QSFP-DD ports, enabling seamless migration to 400G networking. Based on Cisco Cloud Scale technology, this switch offers high-performance Layer 2 and Layer 3 scalability, making it ideal for virtualized data centers, automated cloud environments, and large-scale network infrastructures.
Key Features:
- High-Density 100G & 400G Connectivity: 28x 100/40G QSFP28 ports and 8x 400/100G QSFP-DD ports.
- Next-Generation Scalability: Supports Cisco ACI or NX-OS mode for flexible deployment options.
- Advanced Layer 2/3 Features: Optimized for high-performance switching and routing.
- High-Speed Data Processing: Powered by a Broadwell-DE CPU with 4 cores.
- Robust Storage & Memory: 16GB NX-OS, 24GB ACI, and 128GB SSD for efficient data management.
- Flexible Management & Connectivity: Includes 1 USB port, 1 RS-232 serial console port, and 2 management ports (1GBASE-T and 1G SFP+).
- Optimized for Cloud & AI Workloads: Delivers ultra-low latency and high bandwidth for demanding applications.
Technical Specifications:
- Model Number: N9K-C93600CD-GX
- Ports: 28x 100/40G QSFP28 and 8x 400/100G QSFP-DD
- CPU: Broadwell-DE, 4 cores
- Memory: 16GB NX-OS, 24GB ACI
- Storage: 128GB SSD
- Management Ports: 1x USB, 1x RS-232 serial console, 2x (1GBASE-T & 1G SFP+)
- Packet Buffer: 80MB centralized buffer
- Cooling System: 5+1 redundant fans, hot-swappable
- Power Supply: Dual 1100W AC/DC redundant power supplies
- Operating Temperature: 0°C to 40°C (32°F to 104°F)
- Dimensions (H x W x D): 1.72 x 17.37 x 25.5 inches (4.37 x 44.13 x 64.8 cm)
- Weight: Varies based on configuration
- Software Support: Cisco ACI, NX-OS mode
Accessories
| Accessory | |
| NXA-FAN-35CFM-PI | 35 CFM fan module |
| NXA-FAN-35CFM-PE | 35 CFM fan module |
| NXA-PAC-1100W-PI2 | 1100W AC power supply |
| NXA-PAC-1100W-PE2 | 1100W AC power supply |
| NXA-PDC-1100W-PI | 1100W DC power supply |
| NXA-PDC-1100W-PE | 1100W DC power supply |
| NXA-PHV-1100W-PI | 1100W HVAC/HVDC power supply |
| NXA-PHV-1100W-PE | 1100W HVAC/HVDC power supply |
| N9K-C9300-RMK | Rack mount kit |
| N9K-C9300-ACK | Fixed accessory kit |
Specifications
| Specification | |
| Power Supply Support | Up to 2 x 1100W (AC/DC/HVDC) – hot-swappable, redundant |
| Typical Power Consumption | 590W |
| Voltage Input Range | 100–240V AC, –40 to –72V DC, 200–277V HVAC, –240 to –380V HVDC |
| Frequency | 50–60 Hz |
| Operating Temperature | 0 to 40°C (32 to 104°F) |
| Storage Temperature | –40 to 70°C (–40 to 158°F) |
| Humidity | 5% to 85% (non-condensing) |
| Altitude | 0 to 4000 m (0 to 13,123 ft) |
| Max IPv4 Routes (LPM) | 896 |
| Max IPv4 Hosts | 896 |
| Max MAC Addresses | 256 |
| Max Multicast Routes | 32 |
| IGMP Snooping Groups | 32 |
| ACL Entries | 20,000 ingress / 8,000 egress (max) |
| VLAN Support | Up to 3967 |
| VRF Instances | Up to 16,000 |
| ECMP Paths | 64-way |
| Port Channels | Up to 512 |
| Links per Port Channel | Up to 32 |
| SPAN Sessions | Up to 4 |
| NAT Entries | 1023 |
| MST Instances | 64 |
| RPVST Instances | 3967 |
| HSRP Groups | 490 |
| Flow Table Size | 64,000 entries |
Properties
| Property | |
| Model | N9K-C93600CD-GX |
| Product Type | Spine and Leaf Data Center Switch |
| Port Configuration | 28 x 100/40G QSFP28 and 8 x 400/100G QSFP-DD |
| Form Factor | 1RU |
| Throughput | Not specified (based on ports, >25 Tbps expected) |
| Buffer Size | 80 MB centralized |
| Operating System | Cisco NX-OS or Cisco ACI |
| CPU | Broadwell-DE, 4 cores |
| System Memory | 16 GB (NX-OS) / 24 GB (ACI) |
| SSD Storage | 128 GB |
| USB Port | 1 |
| Serial Console Port | 1 x RS-232 |
| Management Ports | 1 x 10/100/1000BASE-T and 1 x 1G SFP+ |
| Dimensions (H x W x D) | 1.72 x 17.37 x 25.5 in (4.37 x 44.13 x 64.8 cm) |
