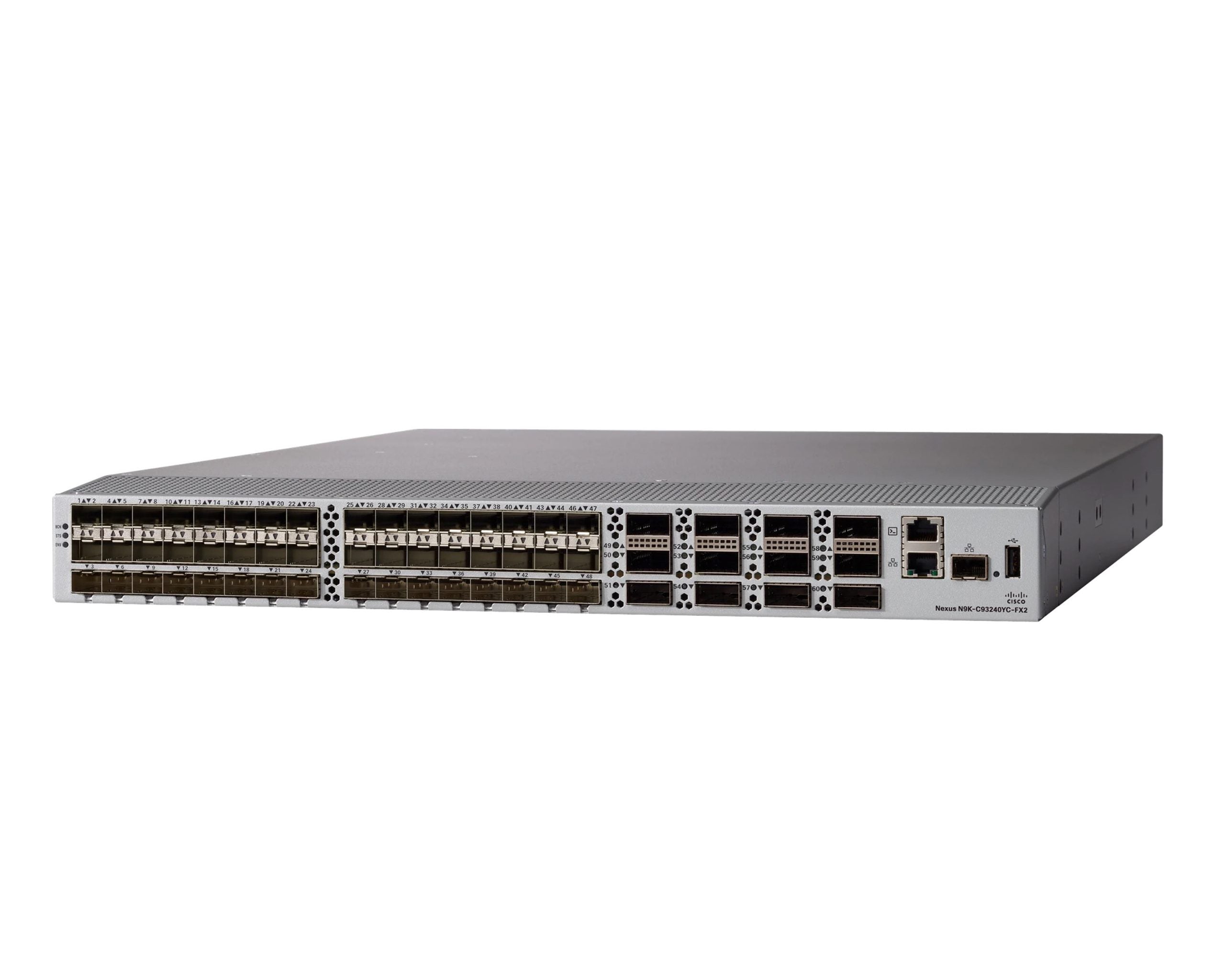

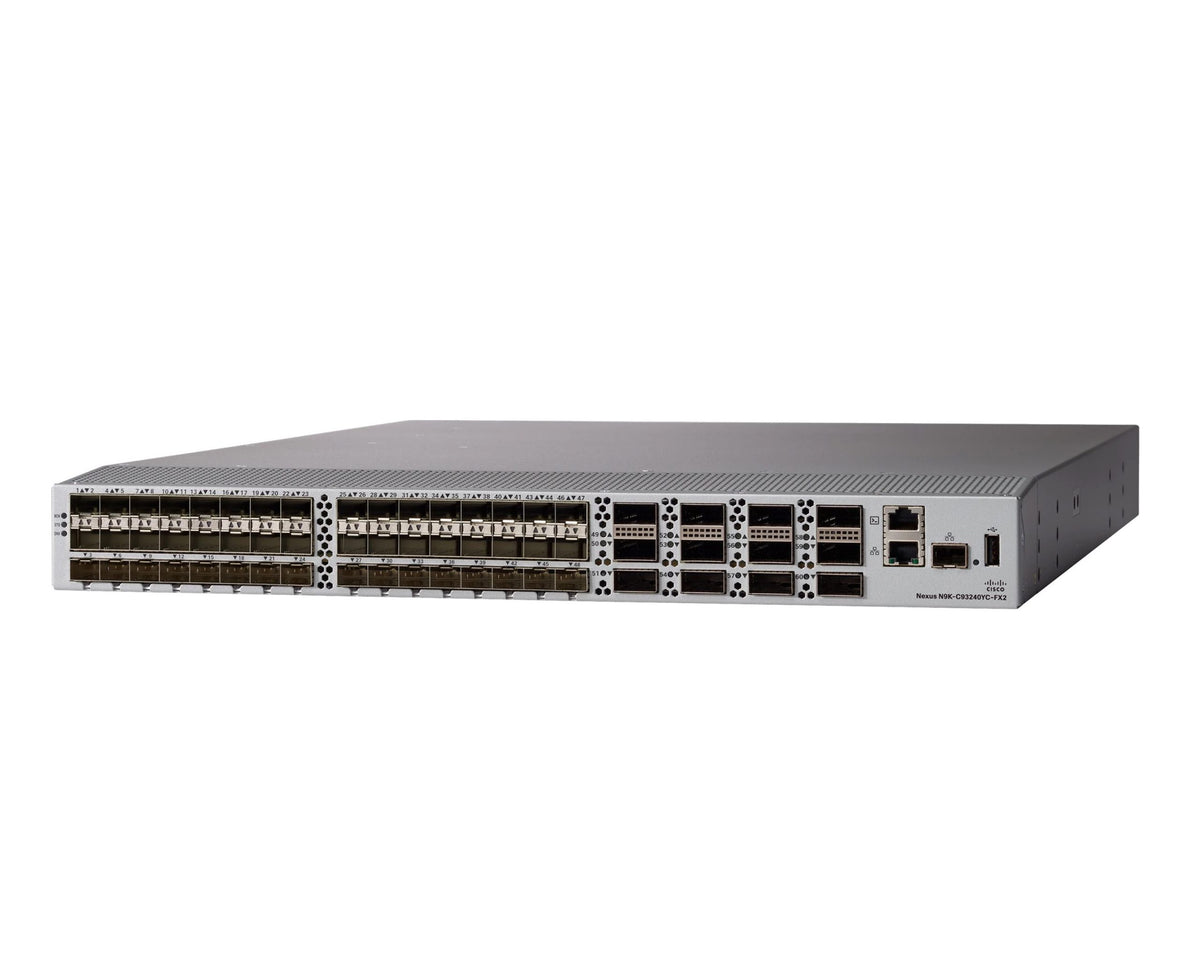

Cisco Nexus 9300 48x 10/25G SFP+ 12x 40/100-Gbps QSFP28 Switch (N9K-C93240YC-FX2)

The Cisco Nexus 93240YC-FX2 is a next-generation data center switch designed for seamless migration from 1G and 10G networks to higher speeds, offering 48 downlink ports supporting 1/10/25G and 12 uplink ports with 40/100G QSFP28 support. Built with Cisco Cloud Scale technology, it ensures high scalability, low latency, and intelligent buffer management. The switch supports advanced Layer 2 and Layer 3 features, making it an ideal solution for enterprises and cloud environments requiring flexible and secure network architecture.

Key Features:

• Flexible Port Speeds: 48x 1/10/25G SFP+ downlink ports and 12x 40/100G QSFP28 uplink ports.
• Advanced Network Efficiency: Supports intelligent buffering and congestion management.
• Optimized for Cloud & AI Workloads: High-speed switching fabric with ultra-low latency.
• Scalable Layer 2/3 Capabilities: Supports up to 896,000 longest prefix match (LPM) routes.
• High-Performance Compute Support: RoCE support for lossless Ethernet.
• Energy-Efficient Operation: 298W typical power consumption, 708W maximum.
• Multiple Management Interfaces: 2 management ports (RJ-45 and SFP+), 1 USB port, and 1 RS-232 console port.

Technical Specifications:

• Model Number: N9K-C93240YC-FX2
• Downlink Ports: 48x 1/10/25G SFP+
• Uplink Ports: 12x 40/100G QSFP28
• CPU: 4-core processor
• System Memory: Up to 24GB
• SSD Storage: 128GB
• Buffer Size: 40MB
• Power Supplies: Up to 2 (750W AC, 1100W AC/DC, HVAC/HVDC)
• Typical Power Consumption: 298W
• Maximum Power Consumption: 708W
• Input Voltage (AC): 100-240V
• Input Voltage (HVAC): 100-277V
• Input Voltage (DC): –40 to –72V
• Input Voltage (HVDC): –240 to –380V
• Frequency (AC): 50-60Hz
• Cooling System: 5 fans, port-side intake and exhaust
• Dimensions (H x W x D): 2.1 x 17.3 x 23.3 inches (5.3 x 43.9 x 59.1 cm)
• MTBF: 365,610 hours
• Maximum Number of LPM Routes: 896,000
• Maximum Number of MAC Address Entries: 256,000
• Maximum Number of VLANs: 4096
• Maximum Number of VRF Instances: 16,000
• Maximum Number of ECMP Paths: 64
• Maximum Number of Port Channels: 512
• Supported Operating Modes: Cisco ACI and NX-OS
