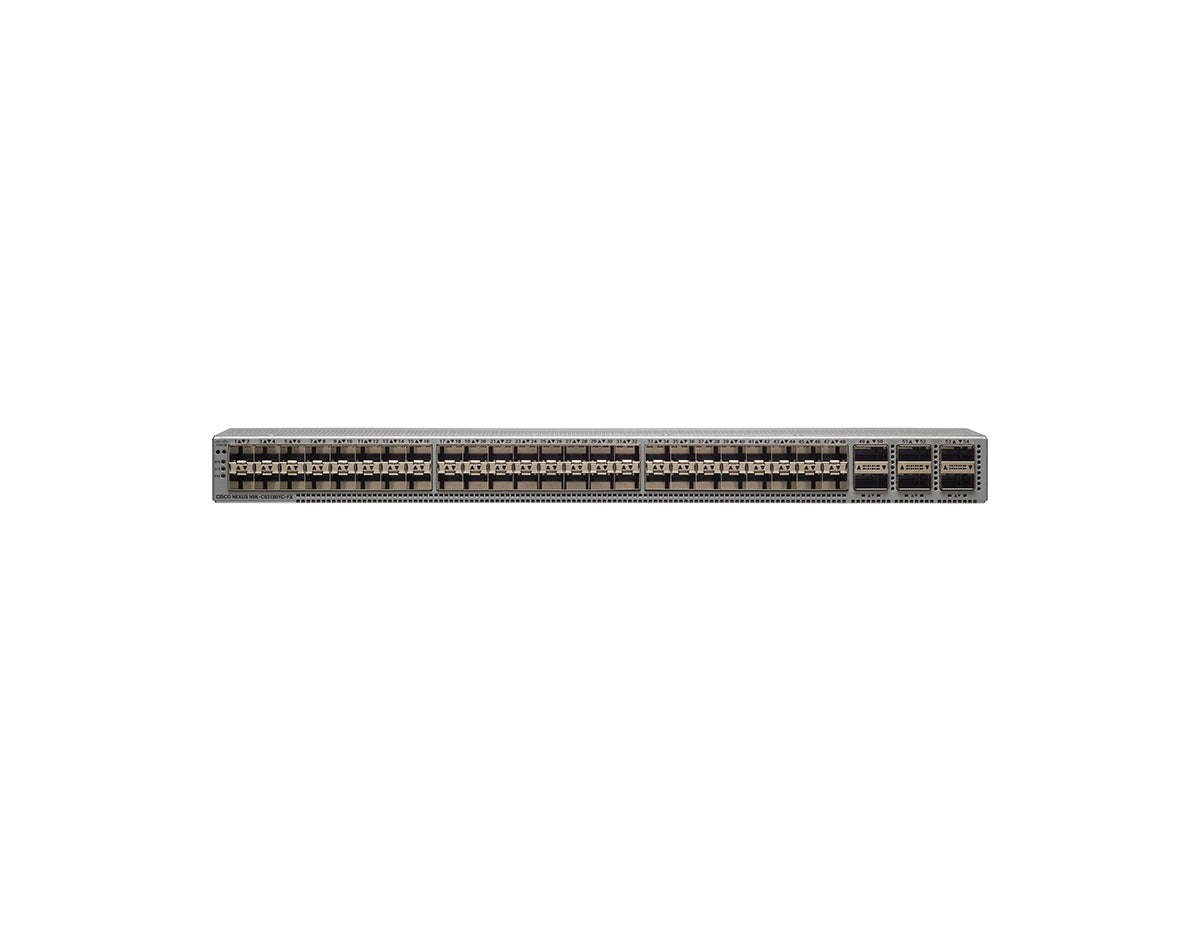

CISCO N9K-C93180YC-FX HIGH-PERFORMANCE 10/25/40/100 GIGABIT ETHERNET SWITCH
| Model: | N9K-C93180YC-FX |
| Detail: |
|
| List Price: | |
| Price: | $10,250.00 |
| You Save: | $24,925.00 (71% OFF) |
| Condition: | Brand New Sealed |
| Availability: | SPECIAL ORDER |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |
Description
Cisco N9K-C93180YC-FX Switch
The Cisco N9K-C93180YC-FX is a versatile, high-performance data center switch designed for scalability and efficiency. With 48 ports supporting 1/10/25-Gbps and 6 uplink ports supporting 40/100-Gbps, it is ideal for cloud environments and large enterprise networks. Built on Cisco Cloud Scale technology, this switch offers wire-rate Layer 2 and Layer 3 features with advanced telemetry and security options. It delivers a total bandwidth of 3.6 Tbps and a forwarding rate of 1.2 bpps, providing fast, reliable network performance.
Key Features:
- 48 x 1/10/25-Gbps Ports: Provides flexible downlink speeds for a wide range of workloads and applications.
- 6 x 40/100-Gbps QSFP28 Uplinks: Ensures high-speed data transfers and scalable network expansion.
- Cloud-Ready Design: Supports Cisco ACI and VXLAN for simplified management and automated network operations.
- Advanced Security: Features MACsec encryption on all ports for enhanced data protection.
- Low Latency: Delivers less than 1 microsecond latency for high-performance environments.
Technical Overview:
- Recommended for: Data centers, cloud environments, and high-performance enterprise networks.
- Ports: 48 x 1/10/25-Gbps, 6 x 40/100-Gbps QSFP28 uplinks.
- Throughput: 3.6 Tbps.
- Forwarding Rate: 1.2 billion packets per second (bpps).
- Latency: Less than 1 microsecond.
You can check the related tab for the N9K-C93180YC-FX datasheet.
Accessories
| NXA-PAC-500W-PI | Nexus 9000 500W AC PS, Port-side Intake |
| NXA-PAC-500W-PE | Nexus 9000 500W AC PS, Port-side Exhaust |
| NXA-PDC-930W-PI | Nexus 9000 930W DC PS, Port-side Intake |
| NXA-PDC-930W-PE | Nexus 9000 930W DC PS, Port-side Exhaust |
| N9K-PUV-1200W | Nexus 9300 1200W Universal Power Supply, Bi-directional air flow and Supports HVAC/HVDC |
| NXA-FAN-30CFM-F | Nexus Single Fan, 30CFM, port side exhaust airflow |
| NXA-FAN-30CFM-B | Nexus Single Fan, 30CFM, port side intake airflow |
| CAB-9K12A-NA | Power Cord, 125VAC 13A NEMA 5-15 Plug, North America (2.5 meter) |
| CAB-AC-L620-C13 | North America, NEMA L6-20-C13 (2.0 meter) |
| CAB-C13-C14-2M | Power Cord Jumper, C13-C14 Connectors, 2 Meter Length (2 meter) |
| CAB-C13-CBN | Cabinet Jumper Power Cord, 250 VAC 10A, C14-C13 Connectors (0.7 meter) |
| CAB-N5K6A-NA | Power Cord, 200/240V 6A North America (2.5 meter) |
| CAB-HVAC-RT-0.6M | HVAC Power cable with right angle connector for RF-LS-25 |
| NXK-ACC-KIT-1RU | Nexus Fixed Accessory Kit with 4-post rack mount kit |
Specifications
| CPU | 6 cores |
| System memory | Up to 32 GB |
| SSD drive | 128 GB |
| System buffer | 40 MB |
| Minimum ACI image | ACI-N9KDK9-12.2A |
| Minimum NX-OS image | NXOS-703I7.1 |
| MTBF | 238,470 hours |
| RoHS compliance | Yes |
| Regulatory Standards Compliance | ● UL 60950-1 Second Edition ● CAN/CSA-C22.2 No. 60950-1 Second Edition ● EN 60950-1 Second Edition ● IEC 60950-1 Second Edition ● AS/NZS 60950-1 ● GB4943 ● 47CFR Part 15 (CFR 47) Class A ● AS/NZS CISPR22 Class A ● CISPR22 Class A ● EN55022 Class A ● ICES003 Class A ● VCCI Class A ● EN61000-3-2 ● EN61000-3-3 ● KN22 Class A ● CNS13438 Class A ● EN55024 ● CISPR24 ● EN300386 ● KN 61000-4 series |
| Operating temperature | 32 to 104°F (0 to 40°C) |
| Warranty | 1-year limited hardware warranty |
Properties
| Properties | 93180YC-FX |
| Description | Nexus 9300 with 48p 1/10G/25G SFP and 6p 40G/100G QSFP28, MACsec, and Unified Ports capable |
| Product Family | Cisco Nexus 9300-FX Series |
| Product Type | Ethernet Switch |
| Ports | 48 x 1/10/25-Gbps and 6 x 40/100-Gbps QSFP28 ports |
| Downlink supported speeds | 1/10/25-Gbps Ethernet 16/32-Gbps Fibre Channel |
| Management ports | 1 RJ-45 port L1 and L2 ports are unused |
| USB ports | 1 |
| RS-232 serial ports | 1 |
| Power supplies (up to 2) | 500W AC, 930W DC, or 1200W HVAC/HVDC |
| Power Max/Avg (AC/DC) | 260W - 425 W |
| Input voltage (AC) | 100 to 240V |
| Input voltage (DC) | –48 to –60V |
| Frequency (AC) | 50 to 60 Hz |
| Fans | 4 |
| Airflow | Port-side intake and exhaust |
| Physical dimensions | 1.72 x 17.3 x 22.5 in. (4.4 x 43.9 x 57.1 cm) |
