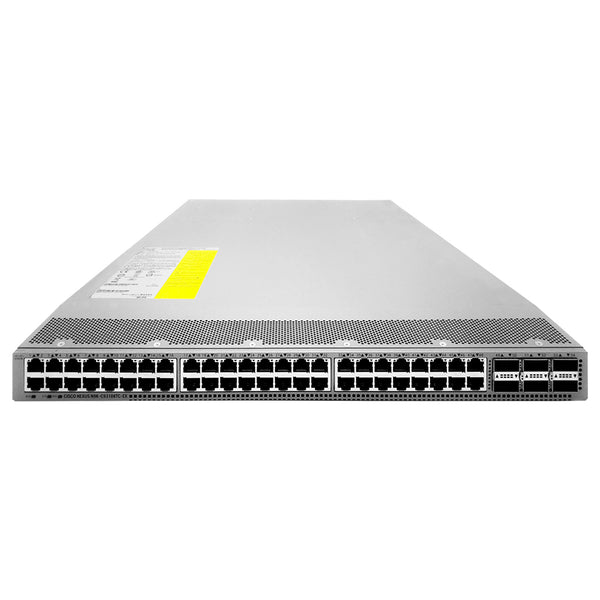

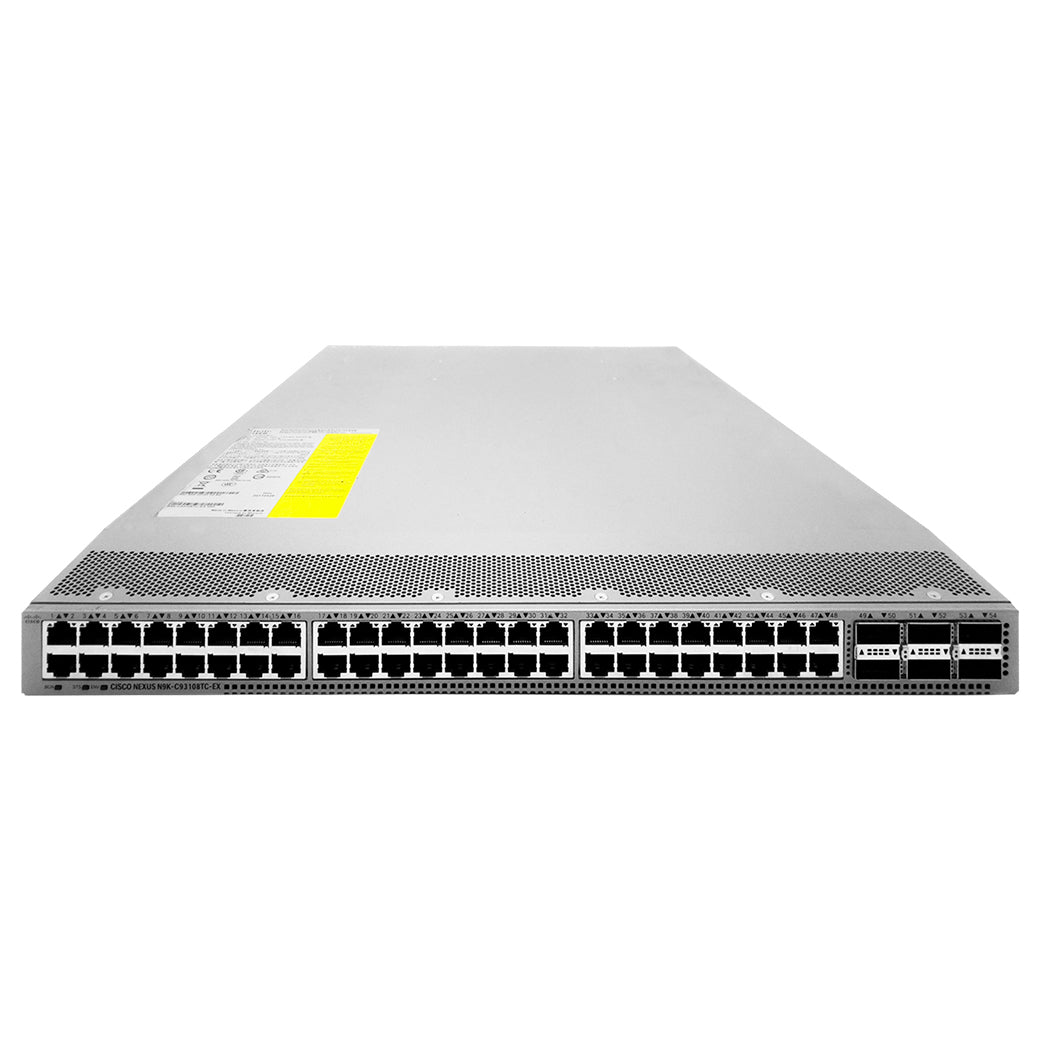

Cisco Nexus 9300 48x MultiGB 6x QSFP28 Switch (N9K-C93108TC-FX3P)

The Cisco Nexus 93108TC-FX3P is a powerful and scalable data center switch designed for high-performance networking. It features 48 multigigabit-capable ports supporting speeds from 100Mbps to 10Gbps and 6 high-speed QSFP28 uplink ports capable of 40/100G connectivity. With its advanced Layer 2 and Layer 3 capabilities, robust security features, and support for Cisco ACI or NX-OS mode, this switch is an ideal choice for enterprises looking to future-proof their network infrastructure. Additionally, the inclusion of PoE++ on all 48 downlink ports allows seamless deployment of power-hungry devices such as high-performance access points and IoT equipment.

Key Features:

• Multigigabit Support: 48 downlink ports with speeds from 100Mbps to 10Gbps.
• High-Speed Uplinks: 6x QSFP28 ports supporting 40G/100G connectivity.
• PoE++ Capabilities: Supports PoE (15W), PoE+ (30W), and UPoE/PoE++ (60W) on all 48 ports.
• Advanced Layer 2 & 3 Switching: Application-Specific Integrated Circuit (ASIC) optimized for high-speed packet processing.
• 40MB Intelligent Buffering: Reduces network congestion for high-performance workloads.
• Flexible Deployment Options: Supports Cisco ACI or NX-OS mode.
• Enterprise-Class Security: Includes MACsec, ACLs, and advanced traffic filtering.
• Energy-Efficient Design: 360W typical power consumption, 530W maximum.

Technical Specifications:

• Model Number: N9K-C93108TC-FX3P
• Downlink Ports: 48x 100M/1G/2.5G/5G/10G BASE-T multigigabit ports
• Uplink Ports: 6x 40/100G QSFP28
• CPU: 4-core processor
• Memory: 16GB (default), expandable to 32GB
• SSD Storage: 128GB
• Buffer Size: 40MB
• Power Supplies: Supports up to two power supplies (1100W AC or 1900W AC options)
• Typical Power Consumption: 360W
• Maximum Power Consumption: 530W
• Input Voltage: 100-240V AC
• PoE Support: PoE (15W), PoE+ (30W), and UPoE/PoE++ (60W) on all 48 ports
• Fan Configuration: 4 hot-swappable fans
• Airflow Options: Port-side intake and port-side exhaust
• Dimensions: 1.72 x 17.3 x 18 inches (4.4 x 43.9 x 45.9 cm)
• Weight: Varies based on configuration
• Compliance: RoHS compliant
• MTBF: 283,100 hours
• Software Support: Cisco ACI and NX-OS mode
• Minimum ACI Release: ACI-15.1.3
• Minimum NX-OS Release: NXOS-9.3.5
