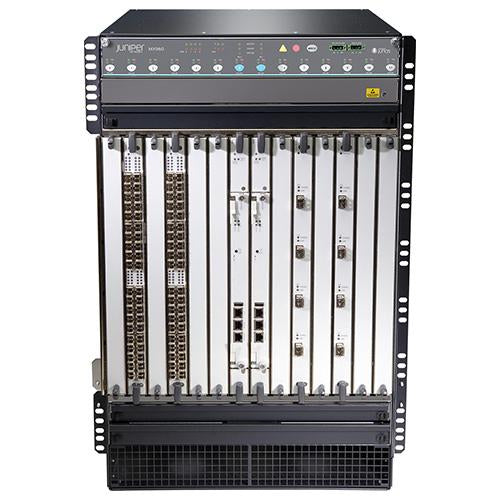

JUNIPER MX960BASE-AC-ECM ROUTER
| Model: | MX960BASE-AC-ECM |
| Detail: |
|
| List Price: | |
| Price: | $80,967.60 |
| You Save: | $15,422.40 (16% OFF) |
| Condition: | Brand New Sealed |
| Availability: | SPECIAL ORDER |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |
Description
The SDN-enabled MX960 Universal Routing Platform has been proven in the world's largest service provider, cable, mobile, and data center networks. It offers up to 12 Tbps of system capacity in one-third of a standard telco rack, with support for high-density 10GbE, 40GbE, 100GbE, and 400GbE interfaces, as well as legacy SONET/SDH, ATM, and PDH connectivity.Accessories
Specifications
| System capacity | 12 Tbps |
| Slot orientation | Vertical |
| Default memory | 2x16 MB NOR flash storage; 64 GB of DDR4 RAM; 2x50 GB SSD |
| Number of cores | 6 cores |
| Security | Firewall filters/ACLs DDoS—control plane DDoS—FlowSpec Stateless filters L2-L4 Stateful services |
| Inline Services | GRE reassembly 1:1 NAT Flow monitoring Video monitoring Lawful intercept Mirroring Corero SmartWall Threat Defense Director SecIntel Threat Intelligence |
| Service Card Supported Services6 | Deep packet inspection CGNAT Flow monitoring Server traffic load balancing7 IPsec Stateful firewall HTTP header manipulation Web filtering DNS sinkhole Intrusion detection system |
| Resiliency | Redundant RE Unified ISSU Nonstop active routing (NSR) Fast restoration Operation, Administration, and Maintenance (OAM) |
| System Virtualization | Enhanced SLA and queuing Junos Fusion Edge (AD) Logical systems Virtual router/switch Path Computation Element Protocol (PCEP) OpenConfig YANG data modeling Juniper Extension Toolkit |
| Operating temperature | 32° to 115° F (0° to 46° C) at sea level |
| Certifications | GR-1089-Core EMC and Electrical Safety - Common Bonding Network (CBN) - National Electrical Code (NEC) - GR-63-Core |
Properties
| Properties | MX960BASE-AC-ECM |
| Description | 14 slot MX960 base chassis with AC power and extended cable manager |
| Product Family | Juniper MX Routers |
| Product Type | Router |
| Slots | 11 MPCs |
| Per slot capacity | 1.5 Tbps |
| Maximum system throughput1 | 12 Tbps |
| PDH | Yes |
| Sonet/SDH | Yes |
| Maximum 1GbE | 440 |
| Maximum 10GbE | 528 |
| Maximum 40GbE | 132 |
| Maximum 100GbE | 120 |
| Maximum 400GbE | 24 |
| 10GbE DWDM | 88 |
| 100GbE DWDM | 22 |
| Rack units | 16 |
| Systems per rack | 3 |
| Redundancy Components | Power supplies, REs, fans |
| Air flow | Front to back |
| Mounting | Front or center |
| Dimensions | 17.37 x 27.75 x 23 in (44.11 x 70.49 x 58.42 cm) |
| Weight fully loaded | 334 lb/151.6 kg |
| Weight unloaded | 150 lbs/68.1 kg |
