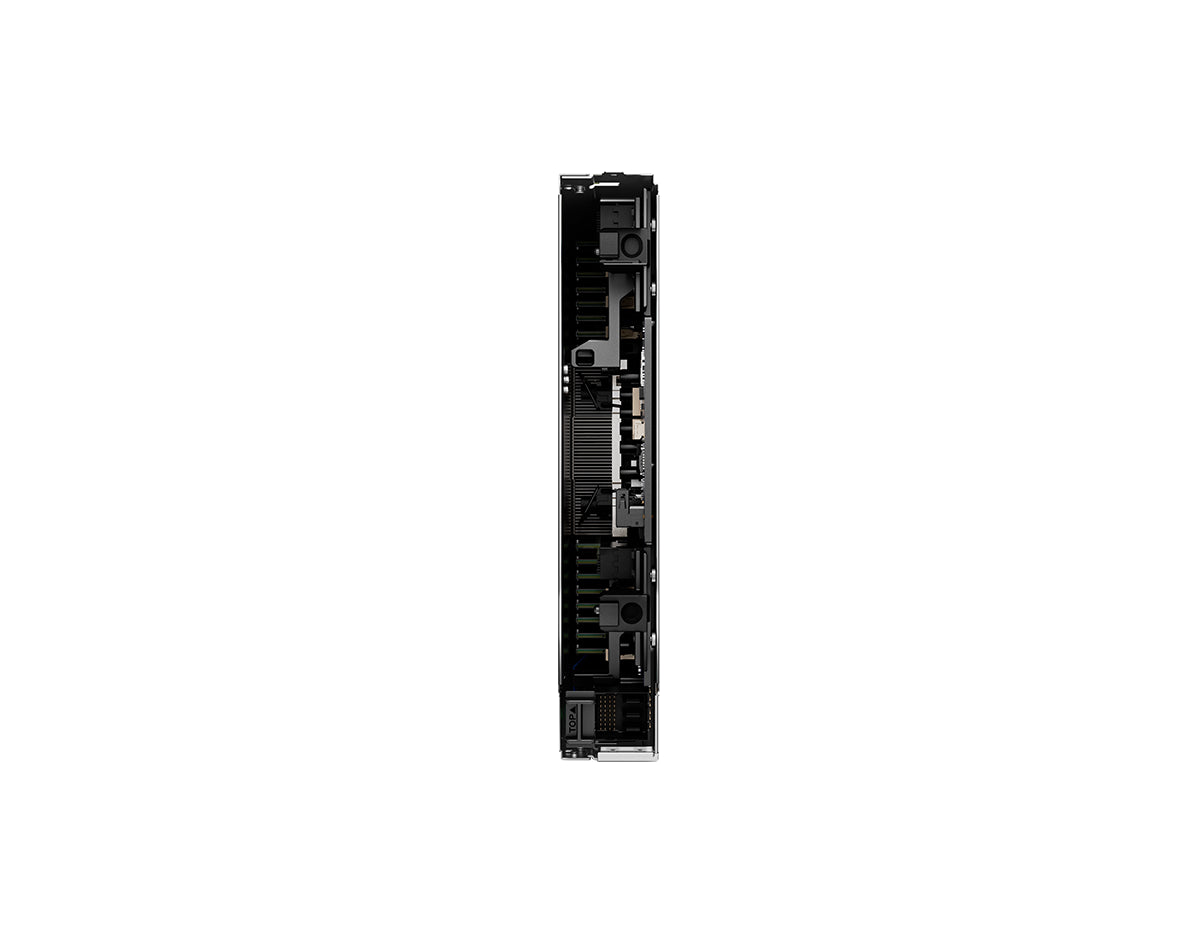

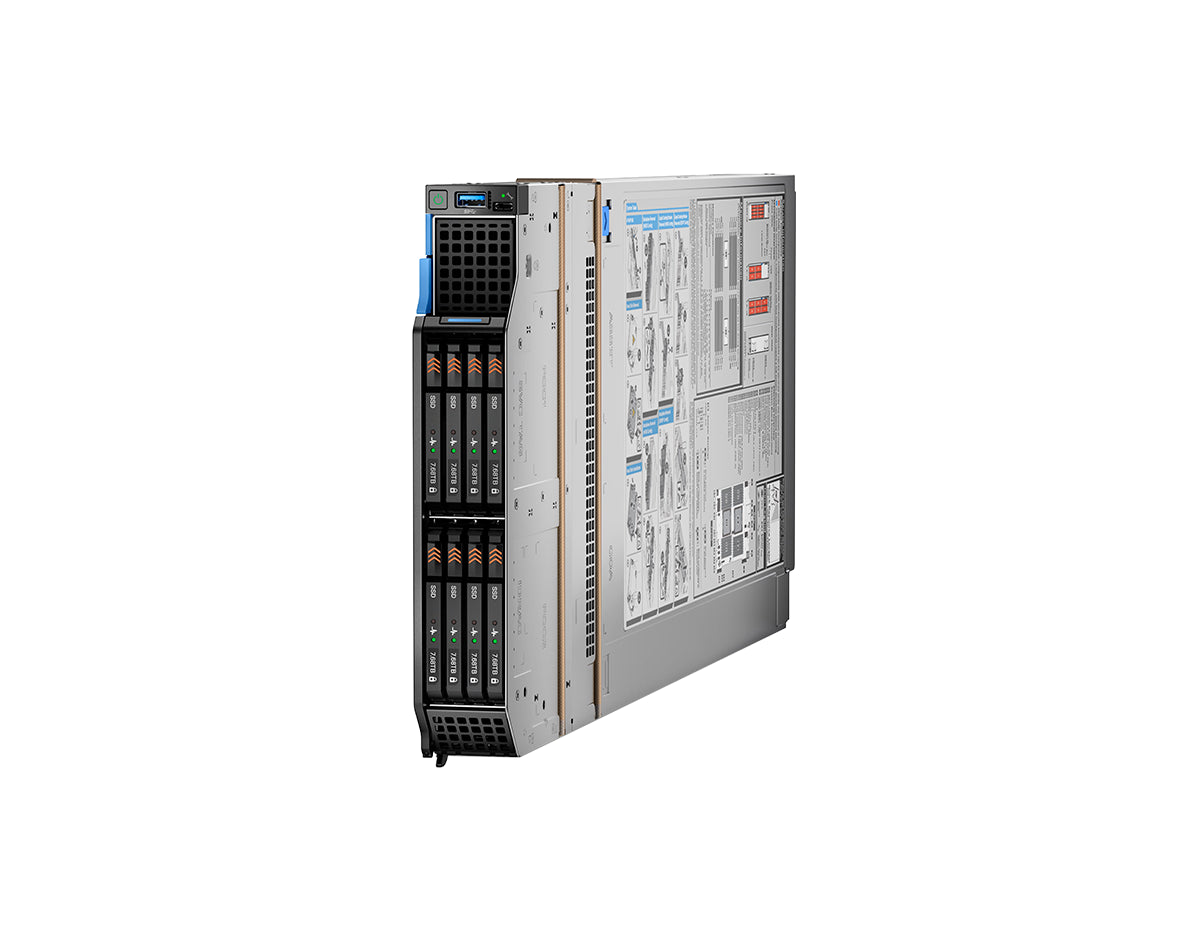

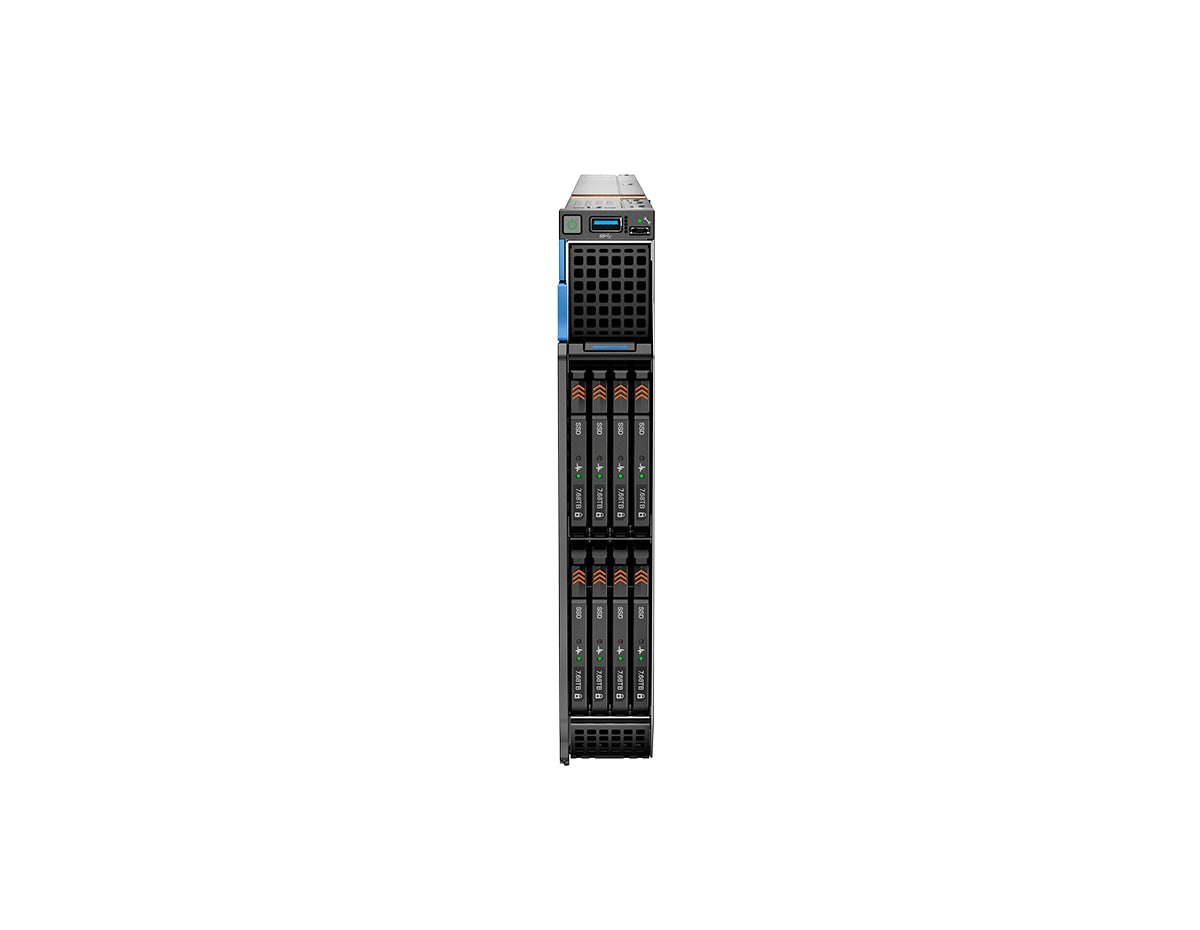

Dell PowerEdge MX760c Modular Compute Sled

Dense Modular Compute for Scalable Data Center Workloads

The Dell PowerEdge MX760c is a high-performance modular compute sled designed for the PowerEdge MX7000 chassis. Built for dense compute environments, it supports demanding workloads such as virtualization, cloud, software-defined infrastructure, big data analytics, and AI inferencing.

Key Benefits and Features

• Supports up to two 4th or 5th Generation Intel Xeon Scalable processors for dense modular compute.
• Offers 32 DDR5 DIMM slots with RDIMM support and memory speeds up to 5600 MT/s.
• Provides flexible storage options including SAS, SATA, NVMe, and E3.s NVMe PCIe Gen5 SSD configurations.
• Integrates with Dell OpenManage Enterprise Modular Edition for centralized chassis-level management.
• Includes security features such as Secure Boot, Silicon Root of Trust, Secure Erase, and cryptographically signed firmware.

Ideal Use Cases

• Virtualization and cloud infrastructure deployments
• Software-defined data center environments
• Big data analytics workloads
• AI inferencing applications
• High-density enterprise compute within MX7000 chassis environments

Technical Specifications

• Brand: Dell
• Model: PowerEdge MX760c
• Product Type: Modular compute sled
• Processor Support: Up to two 4th Generation Intel Xeon Scalable processors with up to 56 cores per processor or up to two 5th Generation Intel Xeon Scalable processors with up to 64 cores per processor
• Chipset: Intel C741 chipset with optional Intel QuickAssist Technology
• Memory: 32 DDR5 DIMM slots, RDIMM support, maximum 8 TB, speeds up to 5600 MT/s
• Drive Bays: Up to 4 x 2.5 inch SAS/SATA, up to 6 x 2.5 inch SAS/SATA, up to 6 x 2.5 inch NVMe/SAS/SATA, or up to 8 x E3.s NVMe PCIe Gen5 SSD
• Management: iDRAC9, iDRAC Direct, iDRAC RESTful API with Redfish, iDRAC Service Module
• Networking Options: Up to 25 Gb CNA/NIC or 100 Gb NIC per port for Mezz A/B, 32 Gb Fibre Channel
• Form Factor: Up to 8 independent hot-swappable, 1U single-width compute sleds in an MX7000 chassis

Upgrade Modular Compute Capacity with Dell MX760c

Choose the Dell PowerEdge MX760c for scalable compute density, flexible storage options, centralized management, and secure enterprise infrastructure within the MX7000 modular platform.

Brand	Dell
Model	PowerEdge MX760c
SKU	MX760c
Product Type	Modular compute sled
Series	PowerEdge MX
Form Factor	Up to 8 independent hot-swappable, 1U single-width compute sled in a MX7000 chassis
Processor Support	Up to two 4th Generation or 5th Generation Intel Xeon Scalable processors
Memory	32 DDR5 DIMM slots, supports RDIMM max 8 TB
Drive Bays	Up to 4 x 2.5-inch SAS/SATA, up to 6 x 2.5-inch SAS/SATA, up to 6 x 2.5-inch NVMe/SAS/SATA, or up to 8 x E3.s NVMe PCIe Gen 5 SSD
Dimensions	51.0 mm H x 257.0 mm W x 631.77 mm D
Weight	8.59 kg

Processor	Up to two 4th Generation Intel Xeon Scalable processors with up to 56 cores per processor; up to two 5th Generation Intel Xeon Scalable processors with up to 64 cores per processor
Chipset	Intel C741 chipset with optional Intel QuickAssist Technology
Memory Speed	Up to 5600 MT/s
Memory Type	Supports registered ECC DDR5 DIMMs only
Storage Controllers	PERC H755 MX, PERC H9651 MX, HBA3501 MX
Internal Boot	USB or Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 1, 2 x M.2 SSDs 480 GB or 960 GB
Software RAID	S160
Drive Capacity	Up to 61 TB with 4 x 2.5-inch SAS/SATA; up to 46.08 TB with 6 x 2.5-inch SAS/SATA; up to 92 TB with 6 x 2.5-inch NVMe/SAS/SATA; up to 61 TB with 8 x E3.s NVMe PCIe Gen 5 SSD
Power Supplies	MX7000 chassis: up to six 3000 W AC Platinum PSU and grid redundancy support
Fans	MX7000 chassis: 5 rear and 4 front-accessible hot-swap fans with full redundancy (Gen 2 fan required)
Embedded Management	OpenManage Enterprise Modular Edition, iDRAC9, iDRAC Direct, iDRAC RESTful API with Redfish, iDRAC Service Module
Security Features	Cryptographically signed firmware, Data at Rest Encryption, Secure Boot, Secured Component Verification, Secure Erase, Silicon Root of Trust, System Lockdown, TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Front Ports	1 x iDRAC Direct port (Micro-AB USB), 1 x USB 3.0
Internal Port	1 x USB 3.0
Networking Options	Up to 25 Gb CNA/NIC or 100 Gb NIC per port for Mezz A/B, 32 Gb Fibre Channel
PCIe	One x16 PCIe Gen4 slot for PERC, one x16 PCIe Gen4 slot for Mezz A, one x16 PCIe Gen5 slot for Mezz B, one x16 PCIe Gen4 slot for Mini Mezz, four x8 PCIe Gen5 connectors for NVMe drive, one x4 PCIe Gen4 for BOSS-N1 HWRAID card
Operating Systems	Canonical Ubuntu Server LTS, Microsoft Windows Server with Hyper-V, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware vSAN/ESXi
