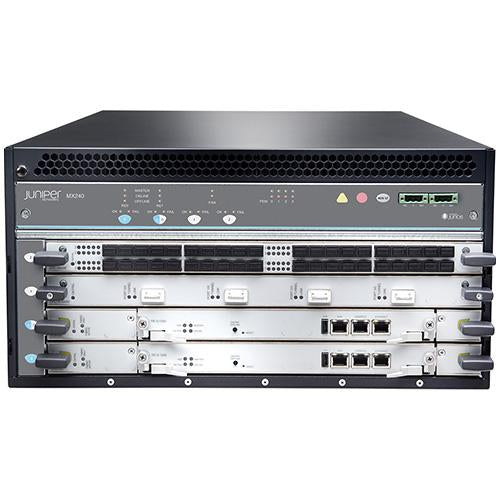

JUNIPER MX240BASE-DC ROUTER

Model: MX240BASE-DC
Detail:
  • MX240 Base Chassis with Midplane, 1 nos. SCB-E, DC Power, Discounted RE
List Price: US$68,040.00
Price:
$47,628.00
You Save: $20,412.00 (30% OFF)
Condition: Brand New Sealed
Availability: SPECIAL ORDER
Shipping: FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods.
Tax: $0.00 Tax Outside NJ and TX
Quantity:
+
-

Description

The SDN-enabled MX240 Universal Routing Platform offers high performance, scale, and investment protection for a wide variety of service provider and enterprise applications. Those include business and residential broadband services and high-volume data center internetworking.

Accessories

Specifications

System capacity 3 Tbps
Slot orientation Horizontal
Default memory 2x16 MB NOR flash storage; 64 GB of DDR4 RAM; 2x50 GB SSD
Number of cores 6 cores
Security Firewall filters/ACLs
DDoS—control plane
DDoS—FlowSpec
Stateless filters L2-L4
Stateful services
Inline Services GRE reassembly
1:1 NAT
Flow monitoring
Video monitoring
Lawful intercept
Mirroring
Corero SmartWall Threat Defense Director
SecIntel Threat Intelligence
Service Card Supported Services6 Deep packet inspection
CGNAT
Flow monitoring
Server traffic load balancing7
IPsec
Stateful firewall
HTTP header manipulation
Web filtering
DNS sinkhole
Intrusion detection system
Resiliency Redundant RE
Unified ISSU
Nonstop active routing (NSR)
Fast restoration
Operation, Administration, and Maintenance (OAM)
System Virtualization Enhanced SLA and queuing
Junos Fusion Edge (AD)
Logical systems
Virtual router/switch
Path Computation Element Protocol (PCEP)
OpenConfig
YANG data modeling
Juniper Extension Toolkit
Operating temperature 32° to 115° F (0° to 46° C) at sea level
Certifications   GR-1089-Core EMC and Electrical Safety
- Common Bonding Network (CBN)
- National Electrical Code (NEC)
- GR-63-Core

Properties

Properties MX240BASE-DC
Description 4 slot MX240 base chassis with 1 fan tray, 1 DC power supply, 1 SCB
Product Family Juniper MX Routers
Product Type Router
Slots 2 MPCs
Per slot capacity 1.5 Tbps
Maximum system throughput1 3 Tbps
PDH Yes
Sonet/SDH Yes
Maximum 1GbE 80
Maximum 10GbE 120
Maximum 40GbE 30
Maximum 100GbE 30
Maximum 400GbE 6
10GbE DWDM 16
100GbE DWDM 4
Rack units 5
Systems per rack 9
Redundancy  Components Power supplies, REs, fans
Air flow Side to side
Mounting Front or center
Dimensions 17.45 x 8.71 x 24.5 (44.3 x 22.1 x 62.2 cm)
Weight fully loaded 130 lb/59 kg
Weight unloaded 52 lbs/23.6 kg
