MIKROTIK MANT30 PA ANTENNA (MTAD-5G-30D3-PA)
| Model: | MTAD-5G-30D3-PA |
| Detail: |
|
| Price: | $195.00 |
| Condition: | Brand New Sealed |
| Availability: | IN STOCK |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |

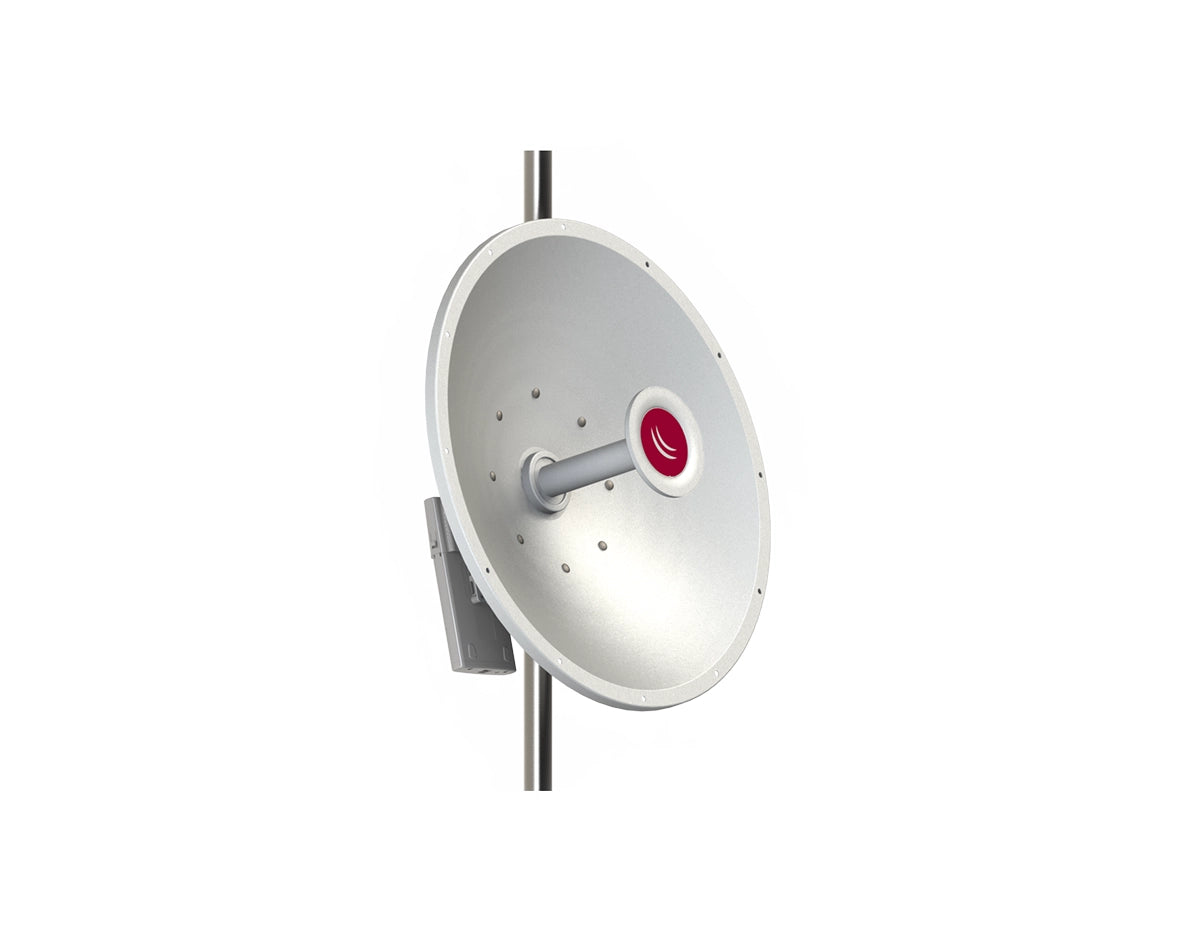

MikroTik MTAD-5G-30D3-PA Antenna

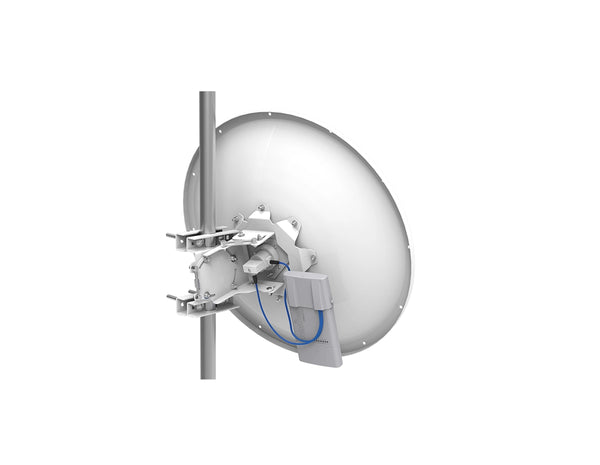

The MTAD-5G-30D3-PA represents a high-quality class 5GHz 30dBi dish antenna designed according to industry-leading standards. This antenna is equipped with a precision alignment mount, which has been meticulously engineered to enhance the accuracy of directional antenna alignment. The mount allows for meticulous fine-tuning adjustments, providing users with precise control over elevation angles and thereby elevating the standard of wireless connectivity. Two modifications are available - with a standard type mount (MTAD-5G-30D3), and with a precision alignment mount (MTAD-5G-30D3-PA). The antennas come packaged with all necessary accessories and cables.
Quick Specs:
- 2x RP-SMA Female
- 700-5.875 GHz - 30 dBi
- Antenna beamwidth: 2.5
- Operating Temperature: -50C to 80C
Please see the related tabs for the MTAD-5G-30D3-PA datasheet and compatible accessories.
Specifications
| Frequency Range | 4.7-5.875 GHz |
| Antenna gain | 30 dBi typically |
| Polarization | Dual (Vertical and Horizontal) |
| 3dB Beamwidth | +/-2.5 deg |
| VSWR | ≤ 1.4 typ, ≤ 1.8 max |
| Port to Port Isolation | >40dB min |
| Front-to-Back Ratio | >30 dB |
| Cross Polarization | >40 dB |
Properties
| Properties | MikroTik mANT30 PA Antenna MTAD-5G-30D3-PA |
| Description | Parabolic dish antenna for 5GHz, 30dBi gain. This model includes precision alignment mount |
| Product Family | mANT30 Series |
| Product Type | Antenna |
| 10/100 Ethernet ports | 1 |
| Dimensions | 70 x 45cm (27.5 x 17.8in) |
| Weight | 5.7kg (12.6 lbs) |
| Packaged size | 73x73x20cm (29x29x8in) |
| Packaged weight | 8.4 kg (18,5) |
| Reflector | Aluminum |
| Wind Survivability | 201kph (125mph) |
| Wind Load (125 mph) | 181.4kg (400 lbs) |
| Pole Mount Diameter Range | 3 to 10cm (1.2 to 3.9in) |
| Connector (2) | RP-SMA Female (outside thread) |
| Power Rating | 100 watts |
| Impedance | 50 ohms |
| Elevation adjustment range | +/- 15 deg |
