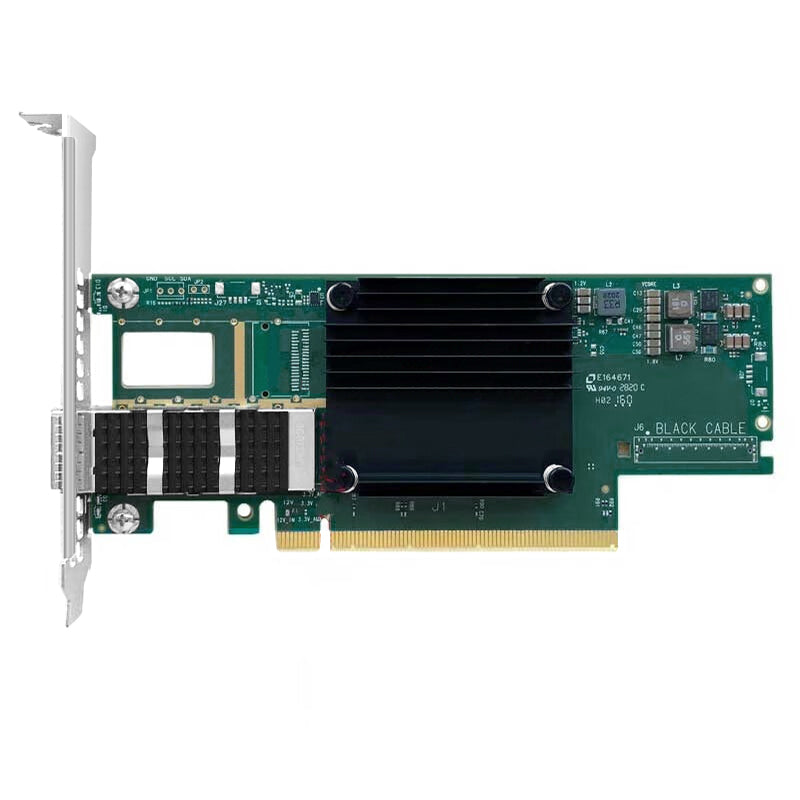

NVIDIA MELLANOX CONNECTX®-6 INFINIBAND/VPI ADAPTER CARD (MCX653105A-ECAT)
| Model: | MCX653105A-ECAT |
| Detail: |
Adapter Card Size: 6.6 in. x 2.71 in. (167.65mm x 68.90mm), Connector: Single QSFP56 InfiniBand and Ethernet (copper and optical),
< |
| Price: | $745.00 |
| Condition: | Brand New Sealed |
| Availability: | Out of Stock |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |
ConnectX-6 VPI Adapter
The ConnectX-6 VPI Adapter is designed to provide high-performance connectivity for both InfiniBand and Ethernet protocols, supporting a range of data rates and features to ensure optimal performance in demanding environments.
Physical Specifications:
- Adapter Card Size: 6.6 in. x 2.71 in. (167.65mm x 68.90mm)
- Connector: Single QSFP56 InfiniBand and Ethernet (copper and optical)
Protocol Support:
- InfiniBand: IBTA v1.4 a
- Auto-Negotiation: 1X/2X/4X SDR (2.5Gb/s per lane), DDR (5Gb/s per lane), QDR (10Gb/s per lane), FDR10 (10.3125Gb/s per lane), FDR (14.0625Gb/s per lane), EDR (25Gb/s per lane) port, HDR100 (2 lane x 50Gb/s per lane)
- Ethernet:
- 100GBASE-CR4, 100GBASE-CR2, 100GBASE-KR4, 100GBASE-SR4, 50GBASE-R2, 50GBASE-R4, 40GBASE-CR4, 40GBASE-KR4, 40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER4, 40GBASE-R2, 25GBASE-R, 20GBASE-KR2, 10GBASE-LR, 10GBASE-ER, 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR, SGMII, 1000BASE-CX, 1000BASE-KX, 10GBASE-SR
Data Rate:
- InfiniBand: SDR/DDR/QDR/FDR/EDR/HDR100
- Ethernet: 1/10/25/40/50/100 Gb/s
- PCIe Gen3/4: SERDES @ 8.0GT/s/16GT/s, x16 lanes (2.0 and 1.1 compatible)
Power and Airflow:
- Voltage: 3.3Aux
- Maximum Current: 100mA
- Typical Power (Passive Cables): 15.6W
- Maximum Power: Please refer to ConnectX-6 VPI Power Specifications (requires NVONline login credentials)
- Maximum Power Available through QSFP56 Port: 5W
- Airflow (LFM) / Ambient Temperature:
- Passive Cables: 300 LFM / 55°C, 200 LFM / 35°C
- NVIDIA Active 2.7W Cables: 300 LFM / 55°C, 200 LFM / 35°C
Environmental:
- Temperature:
- Operational: 0°C to 55°C
- Non-operational: -40°C to 70°C c
- Humidity:
- Operational: 10% to 85% relative humidity
- Non-operational: 10% to 90% relative humidity
- Altitude (Operational): 3050m
Regulatory:
- Safety: CB / cTUVus / CE
- EMC: CE / FCC / VCCI / ICES / RCM / KC
- RoHS: RoHS Compliant
Notes:
- The ConnectX-6 adapters supplement the IBTA auto-negotiation specification to get better bit error rates and longer cable reaches. This supplemental feature only initiates when connected to another NVIDIA InfiniBand product.
- Typical power for ATIS traffic load.
- The non-operational storage temperature specifications apply to the product without its package.
Specifications
| Dimensions | 2.5 x 6.9 inches |
| Warranty | Limited warranty (check manufacturer for specifics) |
Properties
| Product Name | NVIDIA Mellanox ConnectX®-6 InfiniBand/VPI Adapter Card |
| Type | InfiniBand/VPI Adapter Card |
| Interface | PCIe 4.0 |
| Ports | Dual 100 Gb/s Ethernet / InfiniBand ports |
| Max Bandwidth | Up to 200 Gbps (with dual ports) |
| Protocols Supported | InfiniBand, Ethernet, RoCE |
| Form Factor | Half-height, Low-profile |
| Operating Temperature | 0°C to 55°C |
| Power Consumption | 25W typical, 30W maximum |
