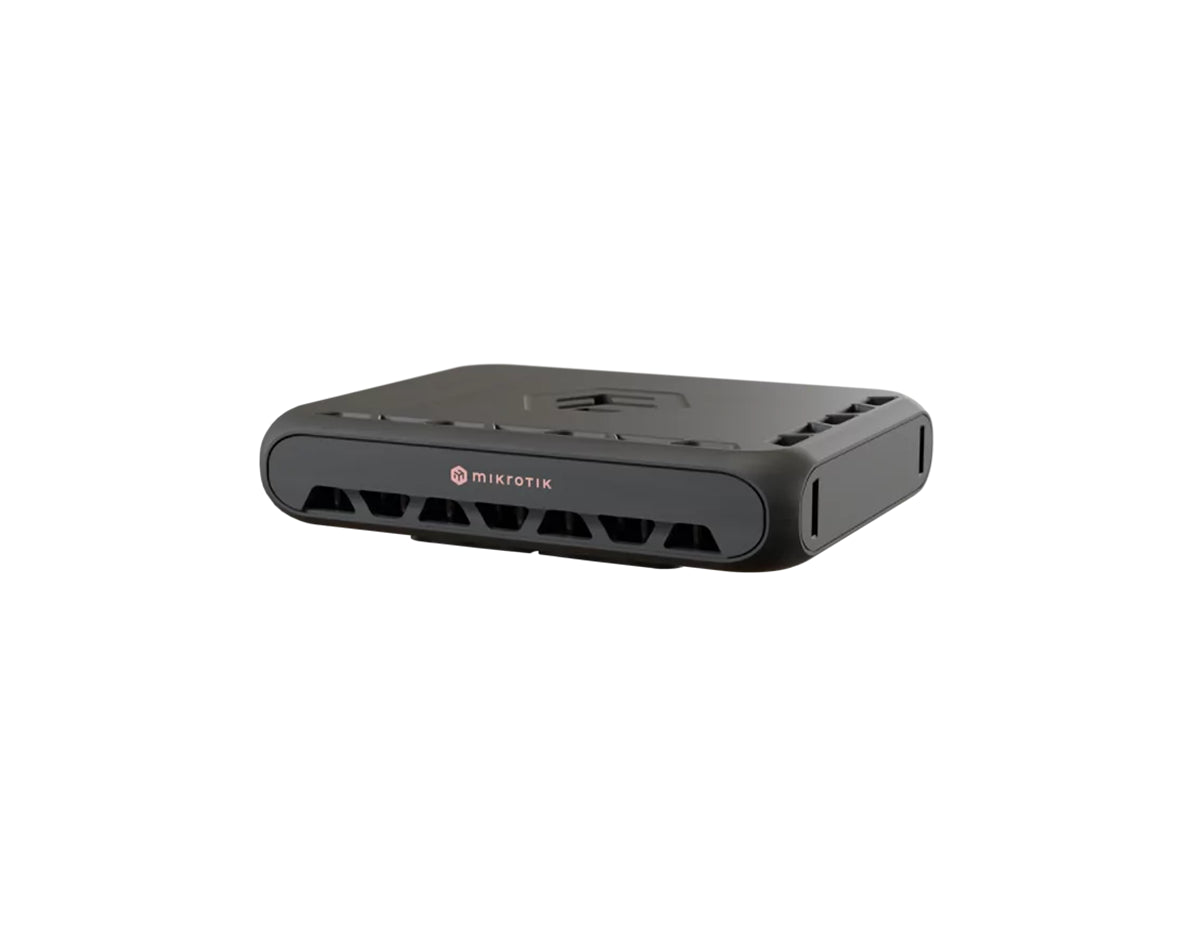

MikroTik hAP be³ Media Wi-Fi 7 Router (MA53UG+HbeH-US)
Triple-band 2x2 MIMO Wi-Fi 7, five 2.5G Ethernet ports, 1.5 GHz quad-core ARM64 CPU, 2 GB DDR4 RAM, Bluetooth 5.4 and Thread, USB-C with dual USB-A and microSD
$177.00
[accessories]
| Included | 24 V 1.5 A power adapter; Case mount; MT Torx (T30 PIN) |
[/accessories]
Wi-Fi 7 Routing for Media, Labs, and Automation
The MikroTik hAP be³ Media is a hybrid router, local media platform, and automation hub for multi-device environments, network labs, workstations, NAS backups, cloud synchronization, VR, and high-resolution streaming. It combines triple-band Wi-Fi 7 across 2.4, 5, and 6 GHz with five 2.5 Gigabit Ethernet ports, allowing fast wired and wireless workloads to operate on one compact device. Wi-Fi 7 Multi-Link Operation is supported in TR-MLMR AP mode, while RouterOS v7 provides routing, firewall, VPN, scripting, BGP, and container capabilities.
Key Benefits and Features
- High-capacity wireless: Triple-band 2x2 MIMO Wi-Fi 7 helps reduce congestion and supports simultaneous modern workloads.
- Multi-gigabit wired access: Five 2.5G Ethernet ports connect ISP uplinks, NAS systems, workstations, and other high-throughput devices.
- Local storage flexibility: One USB-C port, two USB 3.0 Type-A ports, and a microSD slot support local media, backups, and container data.
- Private automation: Bluetooth 5.4, a built-in Thread radio, and container support enable local Matter-over-Thread deployments.
- Compact compute platform: A 1.5 GHz quad-core ARM64 processor and 2 GB DDR4 RAM support complex RouterOS tasks and lightweight hosted services.
Ideal Use Cases
- Multi-device setups with workstations and VR headsets
- Network labs running routing, firewall, VPN, BGP, and container workloads
- NAS backups, cloud synchronization, local file sharing, and high-resolution streaming
- Local IoT automation using Matter-over-Thread devices
- Self-hosted dashboards, password managers, lightweight websites, and security tools
Technical Specifications
- Wireless: 2.4 GHz, 5 GHz, and 6 GHz 2x2 MIMO Wi-Fi 7
- Wi-Fi 7 MLO: Supported in TR-MLMR AP mode
- Ethernet: Five 2.5G ports, including one PoE-in port
- Processor: Quad-core IPQ-5322 up to 1.5 GHz, ARM 64-bit
- Memory and storage: 2 GB DDR4 RAM and 512 MB NAND
- Expansion: One USB Type-C, two USB 3.0 Type-A, and microSD
- Wireless integration: Bluetooth 5.4 and built-in Thread radio
- Operating system: RouterOS v7, License level 6
- Power: 24-57 V DC jack or 802.3af/at PoE-in, 29 W maximum
- Physical and environmental: 187 x 142 x 95 mm, -30°C to +50°C
Centralize Connectivity, Storage, and Automation
Choose the MikroTik hAP be³ Media to combine Wi-Fi 7, multi-gigabit Ethernet, local storage, and customizable automation on one RouterOS platform.
| Brand | MikroTik |
| Model | hAP be³ Media |
| SKU | MA53UG+HbeH-US |
| Product Code | MA53UG+HbeH |
| Product Type | Wi-Fi 7 Hybrid Media and Automation Centre |
| Ethernet Ports | 5 x 2.5G Ethernet ports, including 1 port with PoE-In |
| Wireless | Triple-band 2x2 MIMO Wi-Fi 7 |
| USB Ports | 3 (1 USB Type C + 2x USB 3.0 Type A) |
| Memory Card | microSD |
| PoE Support | PoE-In 802.3af/at |
| Dimensions | 187 x 142 x 95 mm |
| Operating Temperature | -30°C to +50°C |
| CPU | Quad-core IPQ-5322 up to 1.5 GHz |
| CPU Architecture | ARM 64bit |
| RAM | 2 GB |
| RAM Type | DDR4 |
| Storage | NAND 512 MB |
| Switch Chip Model | QCA8386 |
| Wireless Interface Models | 2.4 GHz: IPQ-5322; 5 GHz: QCN-6274; 6 GHz: QCN-6274 |
| Wireless Bands | 2.4 GHz (2x2 MIMO); 5 GHz (2x2 MIMO); 6 GHz (2x2 MIMO) |
| Max Data Rate | 2.4 GHz: 574 Mb/s RX, 688 Mb/s TX; 5 GHz: 2882 Mb/s; 6 GHz: 5764 Mb/s |
| Supported Protocols | 2.4 GHz: 802.11b/g/n/ax/be; 5 GHz: 802.11a/n/ac/ax/be; 6 GHz: 802.11ax/be |
| Antenna Gain | 2.4 GHz: 4 dBi; 5 GHz: 7.5 dBi; 6 GHz: 8 dBi |
| WiFi 7 Multi-Link Operation | Supported (TR-MLMR in AP mode) |
| Bluetooth | 5.4 |
| Matter/Thread Radio | Built-in Thread radio with Matter-over-Thread support |
| Container Support | Full container support |
| Operating System | RouterOS v7, License level 6 |
| DC Inputs | 2 (DC jack, PoE-In) |
| DC Jack Input Voltage | 24-57 V |
| PoE-In Input Voltage | 24-57 V |
| Power Adapter Nominal Voltage | 24 V |
| Power Adapter Nominal Current | 1.5 A |
| Max Power Consumption Without Attachments | 20 W |
| Max Power Consumption | 29 W |
