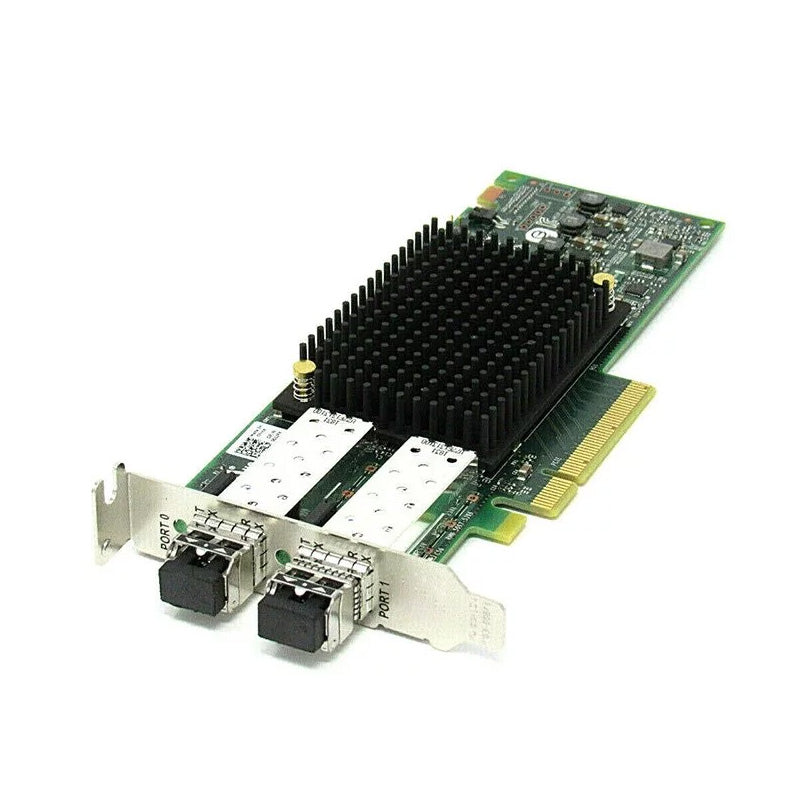

Emulex LPe32002-M2 Dual-Port 32Gb Fibre Channel HBA
High-Speed 32Gb Fibre Channel for Enterprise Storage
The Emulex LPe32002-M2 is based on the dual-port LPe32002 32Gb Fibre Channel host bus adapter platform for high-speed storage connectivity. Designed for demanding virtualized environments, data backup, mission-critical applications, and flash storage infrastructure, the adapter combines two SFP+ Fibre Channel ports with a PCIe 3.0 x8 host interface.
The LPe32002 platform supports 32Gb, 16Gb, 8Gb, and 4Gb Fibre Channel link speeds with automatic negotiation. Its Emulex Engine 501 I/O Controller and Dynamic Multicore Architecture deliver up to 1.6 million IOPS per adapter while dynamically allocating ASIC resources across the dual-port design. ExpressLane technology provides application-level Quality of Service prioritization for storage traffic, while Forward Error Correction and T10-PI support strengthen data integrity.
Key Benefits and Features
- Dual-Port 32Gb Fibre Channel: Two SFP+ based Fibre Channel ports for high-bandwidth SAN connectivity
- Multi-Speed Operation: Supports 32Gb, 16Gb, 8Gb, and 4Gb FC with automatic negotiation
- High IOPS Performance: Delivers up to 1,600,000 IOPS per adapter
- Storage Traffic Prioritization: ExpressLane supports end-to-end Quality of Service application prioritization
- Virtualization Support: Supports NPIV and up to 255 virtual functions
Ideal Use Cases
- Enterprise Fibre Channel SAN infrastructure
- Virtualized server environments
- Flash and solid-state storage arrays
- Data backup and mission-critical applications
Deploy Emulex 32Gb Fibre Channel for High-Bandwidth SAN Access
Choose the LPe32002-M2 for dual-port 32Gb Fibre Channel connectivity, PCIe 3.0 x8 integration, scalable virtualization, and high-performance enterprise storage networking.
| Brand | Emulex |
| SKU | LPe32002-M2 |
| Product Type | 32Gb Fibre Channel Host Bus Adapter |
| Series | LPe32000/LPe32002 |
| Port Count | Dual-port |
| Interface | SFP+ |
| Fibre Channel Speed | 32 Gb |
| Host Interface | PCIe 3.0 x8 |
| I/O Controller | Emulex Engine 501 (XE501) |
| Product Name | ThinkSystem Emulex LPe32002-M2 PCIe 32Gb 2-Port SFP+ Fibre Channel Adapter |
| Model / Part Number | LPe32002-M2 (Part Number: 7ZT7A00519) |
| Port Count | Dual-Port SFP+ |
| I/O Controller | Emulex Engine 501 (XE501) I/O Controller |
| Host Interface | PCI Express 3.0 x8 |
| Fibre Channel Speeds | 32Gb, 16Gb, 8Gb, and 4Gb FC (auto-negotiated) |
| Data Rate | 28.05 Gbps (3200 MBps), 14.025 Gbps (1600 MBps), 8.5 Gbps (800 MBps), 4.25 Gbps (400 MBps) per port full-duplex |
| Performance | Up to 1,600,000 IOPS per adapter |
| Optical Optics Included | Hot-pluggable 32Gbps FC Short-Wave (850 nm) SFP+ Optical Transceivers with LC connectors |
| Topology | Point-to-point and switched fabric |
| Virtualization Support | N_Port ID Virtualization (NPIV), 255 Virtual Functions (VFs), 1024 MSI-X, 16,127 logins/open exchanges |
| Form Factor | Low-Profile MD2 Card (168 mm x 69 mm / 6.60 in. x 2.7 in.) |
| Included Brackets | Standard (3U) and Low-Profile (2U) brackets included |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |
| Included | Two 32 Gb FC SW SFP+ transceivers installed; 3U standard bracket; 2U low-profile bracket; publications flyer |
| Compatible Accessories | Lenovo LC-LC OM3 MMF fiber optic cables: 00MN499, 00MN502, 00MN505, 00MN508, 00MN511, 00MN514, 00MN517, 00MN520 |
