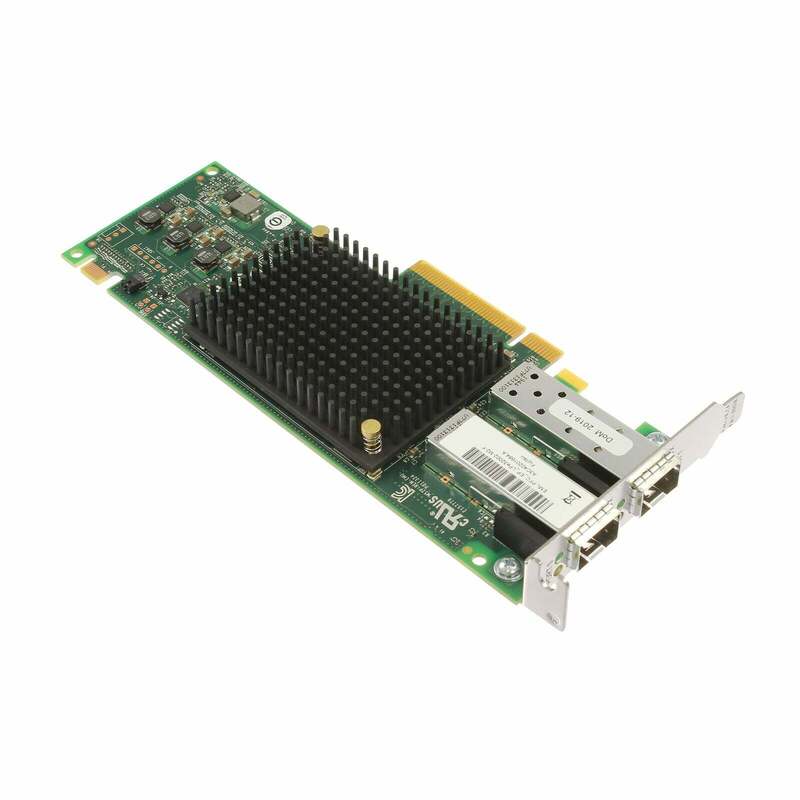

Broadcom Emulex LPe32002-AP Dual-Port 32GFC Fibre Channel HBA
Dual-Port 32GFC Connectivity for High-Performance Storage
The Broadcom Emulex LPe32002-AP is a dual-port Gen 6 Fibre Channel host bus adapter designed for enterprise and cloud storage environments. Built on the XE501 controller with an 8-lane PCIe 3.0 host interface, the LPe32002 architecture supports 32GFC, 16GFC, and 8GFC link speeds with automatic negotiation.
The LPe32002 architecture delivers 6400 MB/s full-duplex line rate per port at 32GFC and over 1.6 million IOPS on a single port. Support for NVMe over Fibre Channel and traditional SCSI over Fibre Channel concurrently enables organizations to deploy low-latency NVMe/FC storage while maintaining established Fibre Channel workloads.
Key Benefits and Features
- Dual-Port 32GFC: Dual-port Fibre Channel architecture for high-bandwidth storage connectivity
- PCIe 3.0 x8 Interface: Eight-lane PCI Express host interface with backward compatibility to PCIe 2.0
- High Throughput: 6400 MB/s full-duplex line rate per port at 32GFC
- NVMe/FC Support: Supports NVMe over Fibre Channel and SCSI over Fibre Channel concurrently
- Data Protection: Forward Error Correction and T10 Protection Information support end-to-end data integrity
Ideal Use Cases
- Enterprise Fibre Channel SAN infrastructure
- Flash and solid-state storage environments
- Virtualized server and cloud deployments
- Concurrent NVMe/FC and traditional SCSI over Fibre Channel environments
Deploy Emulex Gen 6 Fibre Channel for Modern SAN Infrastructure
Choose the LPe32002-AP for dual-port 32GFC connectivity, PCIe 3.0 integration, NVMe/FC support, high-throughput storage access, and enterprise Fibre Channel deployments.
| Brand | Broadcom Emulex |
| SKU | LPe32002-AP |
| Product Type | Gen 6 Fibre Channel Host Bus Adapter |
| Series | LPe32000 Series |
| Form Factor | Short, low-profile PCIe card |
| Port Count | Dual-port |
| Fibre Channel Speed | 32GFC |
| Host Interface | PCIe 3.0 x8 |
| Controller | XE501 |
| Dimensions | 167.64 mm x 68.91 mm (6.60 in. x 2.71 in.) |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |
| Product Name | Emulex LPe32002-AP 32Gb Dual-Port Fibre Channel Host Bus Adapter |
| Model / Part Number | LPe32002-AP |
| Adapter Architecture | Gen 6 Fibre Channel, Dual-Port LPe32002 |
| I/O Controller | XE501 Controller |
| Host Interface | PCI Express 3.0 x8 |
| Port Count | Dual-Port |
| Fibre Channel Speeds | 32GFC, 16GFC, and 8GFC, automatically negotiated |
| 32GFC Throughput | 6400 MB/s full-duplex line rate per port |
| IOPS Performance | Over 1.6 million IOPS on a single port |
| Logins / Active Exchanges | 12,288 per port |
| Port Virtualization | N_Port ID Virtualization (NPIV) |
| Storage Protocols | Concurrent NVMe over Fibre Channel and SCSI over Fibre Channel |
| Form Factor | Short, Low-Profile PCIe Card (167.64 mm x 68.91 mm / 6.60 in. x 2.71 in.) |
| Data Integrity & Features | Forward Error Correction (FEC), T10 Protection Information (T10-PI), ExpressLane application prioritization |
