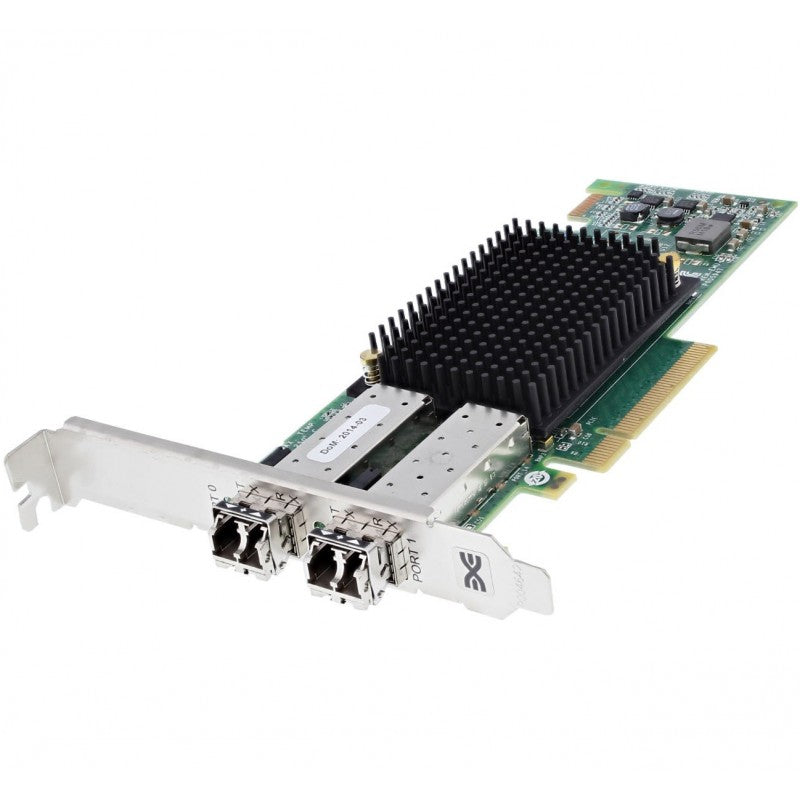

Broadcom Emulex LPe16002B-M6 Dual-Port 16GFC Fibre Channel HBA
Dual-Port 16GFC Connectivity for Enterprise SAN Environments
The Broadcom Emulex LPe16002B-M6 is based on the LPe16002B dual-port 16G Fibre Channel host bus adapter platform. Designed for Fibre Channel storage networking, the adapter supports 16GFC, 8GFC, and 4GFC link speeds with automatic negotiation and provides up to two Fibre Channel ports operating at 16GFC.
The LPe16002B architecture supports up to 1.2 million input/output operations per second and uses Broadcom Emulex Dynamic Multicore Architecture to support demanding virtualized, cloud, and mission-critical storage environments. CPU offload capabilities help reduce processing burden on the host system, while NPIV and Virtual Fabric support provide Fibre Channel virtualization capabilities.
Key Benefits and Features
- Dual-Port Fibre Channel: Supports up to two FC ports at 16GFC
- Flexible Link Speeds: Supports 16GFC, 8GFC, and 4GFC with automatic negotiation
- High IOPS Capability: Delivers up to 1.2 million IOPS
- Virtualization Support: Supports N_Port ID Virtualization (NPIV) and Virtual Fabric
- Data Protection: T10-PI support helps protect against silent data corruption
Ideal Use Cases
- Enterprise Fibre Channel SAN infrastructure
- Server virtualization deployments
- Cloud storage environments
- Mission-critical Fibre Channel workloads
Deploy Emulex 16GFC Connectivity for Fibre Channel Storage
Choose the LPe16002B-M6 for dual-port 16GFC connectivity, automatic multi-speed Fibre Channel operation, PCIe integration, virtualization support, and enterprise SAN deployments.
| Brand | Broadcom Emulex |
| Model | LPe16002B |
| SKU | LPe16002B-M6 |
| Product Type | 16G Fibre Channel Host Bus Adapter |
| Form Factor | Short, low-profile MD2 card |
| Port Count | Dual-port |
| Fibre Channel Speed | 16GFC |
| Optical Interface | Short-wave lasers with LC-type connector |
| Host Interface Standard | PCIe Base Specification 3.0 |
| Dimensions | 167.64 mm × 68.91 mm (6.60 in. × 2.71 in.) |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |
| Product Name | Broadcom Emulex LPe16002B Dual-Port 16GFC PCIe 3.0 Host Bus Adapter |
| Model / Part Number | LPe16002B-M6 (Dell Part Numbers: 406-BBGH / 406-BBHF) |
| Port Count | Dual-Port |
| Fibre Channel Speeds | 16GFC, 8GFC, and 4GFC (auto-negotiated) |
| Host Interface Standard | PCIe Base Specification 3.0 / PCIe Card Electromechanical Spec 3.0 |
| Performance | Up to 1.2 Million IOPS |
| Optical Interface | Short-Wave Lasers with LC-Type Connector (SFP+) |
| Data Rates Supported | 14.025 Gb/s (16GFC), 8.5 Gb/s (8GFC), 4.25 Gb/s (4GFC) |
| Form Factor | Short, Low-Profile MD2 Card (167.64 mm x 68.91 mm / 6.60 in. x 2.71 in.) |
| Virtualization Support | N_Port ID Virtualization (NPIV), Virtual Fabric, 255 VFs |
| Data Protection & Reliability | T10 Protection Information (T10-PI), End-to-End Data Protection (Parity, CRC, ECC) |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |
