Model: | LDF-5 |
Detail: | wireless bridge, long range, outdoor, directional antenna, 5GH |
Price: | $65.00 |
Condition: | Brand New Sealed |
Availability: | IN STOCK |
Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
Tax: | $0.00 Tax Outside NJ and TX |
Quantity: |

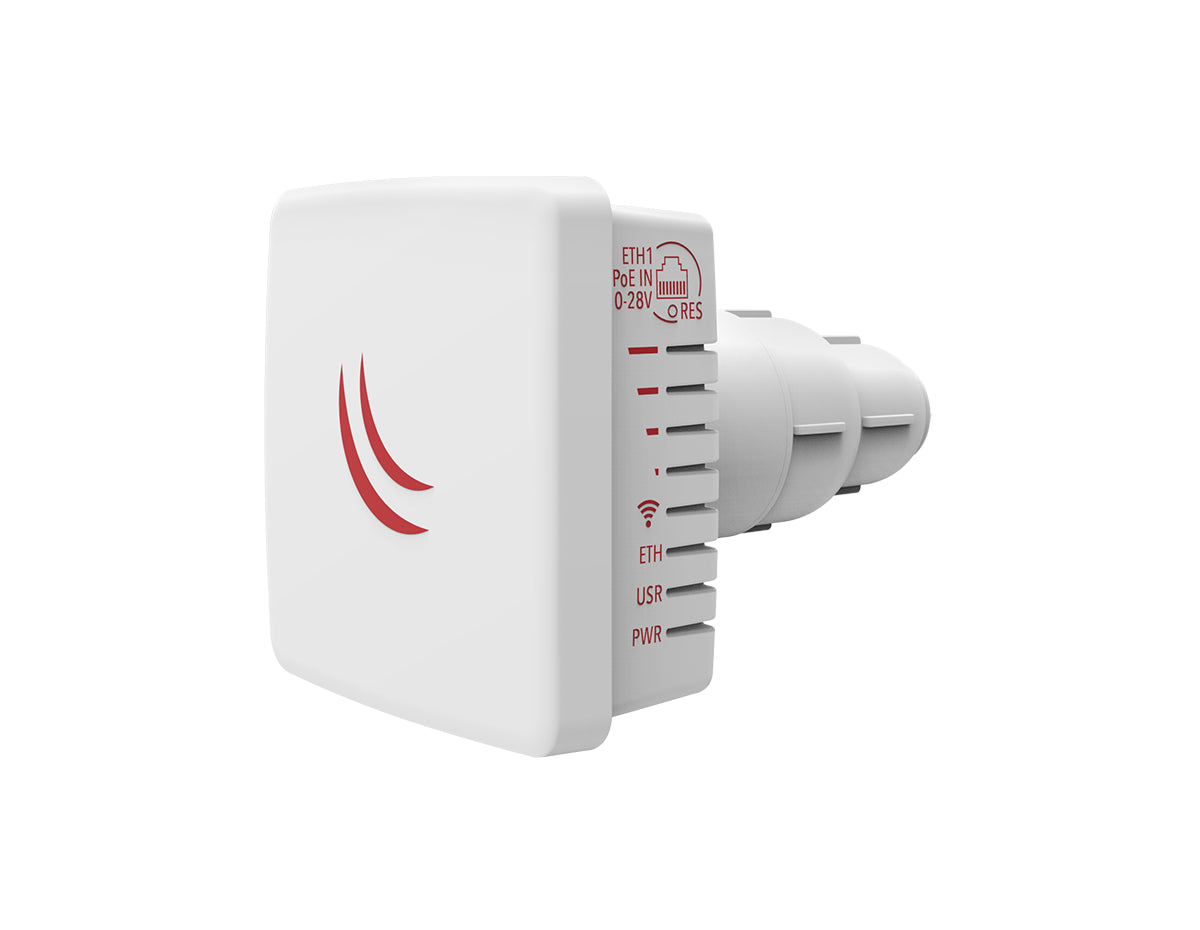

The RBLDF-5nD is an outdoor wireless device featuring an integrated antenna, designed for installation on satellite offset dish antennas. The dish functions as a reflector, enhancing signal strength. The RBLDF-5nD-US is furnished with a Gigabit port and is compatible with 802.11ac for improved data throughput. The RBLDF-5nD-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed due to country regulations.
Please see the related tabs for the RBLDF-5nD-US datasheet and compatible accessories.
Included in package |
24V 0.38A power adapter
PoE Injector |
Specifications | RBLDF-5nD-US |
Architecture | MIPSBE |
CPU | AR9344 |
CPU core count | 1 |
CPU nominal frequency | 600 MHz |
Dimensions | 84x84x115mm |
RouterOS license | 3 |
Operating System | RouterOS |
Size of RAM | 64 MB |
Storage size | 16 MB |
Storage type | FLASH |
MTBF | Approximately 100'000 hours at 25C |
Tested ambient temperature | -40°C to 70°C |
Wireless 5 GHz Max data rate | 300 Mbit/s |
Wireless 5 GHz number of chains | 2 |
Wireless 5 GHz standards | 802.11a/n |
Antenna gain dBi for 5 GHz | 9 |
Wireless 5 GHz chip model | AR9344 |
Wireless 5 GHz generation | Wi-Fi 4 |
Certification | CE, FCC, IC, EAC, ROHS |
IP | IP54 |
Properties | RBLDF-5nD-US |
Description |
Discover the Mikrotik LDF 5 RBLDF-5nD-US, an outdoor wireless system featuring 5 GHz frequency and a powerful integrated antenna. Experience reliable long-range connectivity for your network with this top-tier solution.
|
Product Family |
LDF 5 Series |
Product Type | Outdoor Wireless System |
10/100 Ethernet ports | 1 |
Number of DC inputs | 1 (PoE-IN) |
Max power consumption | 6 W |
Cooling type | Passive |
PoE in | Passive PoE |
PoE in input Voltage | 10-30 V |
Dimensions | 84mm x 84mm x 115mm |
