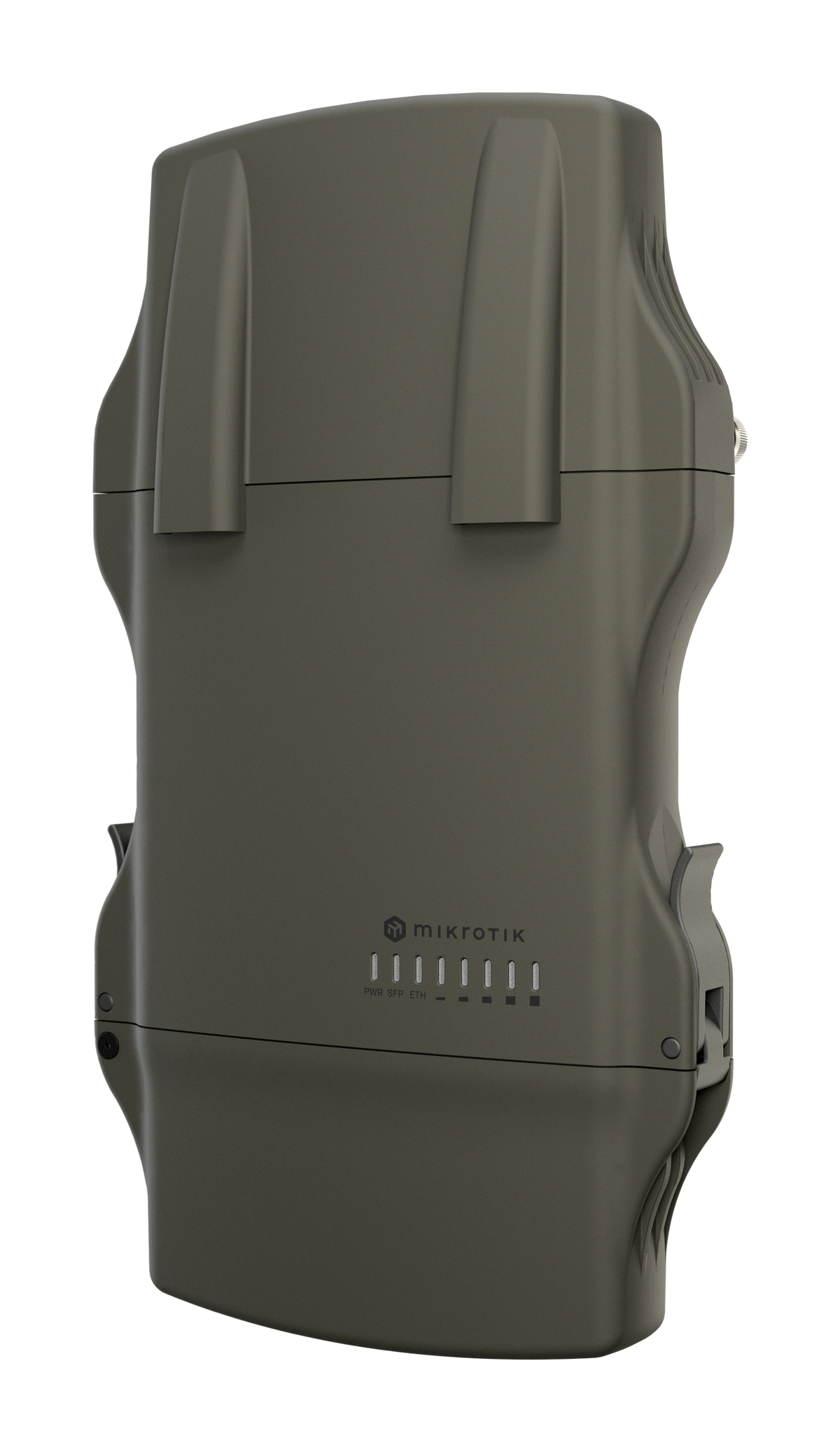

Mikrotik Long-range Dual-band Wi-Fi 6 NetMetal ax Outdoor Access Point (L23UGSR-5HaxD2HaxD-NM)

Name: Mikrotik Long-range Dual-band Wi-Fi 6 NetMetal ax Outdoor Access Point (L23UGSR-5HaxD2HaxD-NM)
Brand: Mikrotik
Price: 158.00 USD
Availability: OutOfStock

Part Number: L23UGSR-5HAXD2HAXD-NM

Technical Details

Dual-band, dual-chain Wi-Fi 6 for increased speed, stability, and performance, Equipped with 1 Gigabit Ethernet port and 2.5 Gbps SFP for high-speed networking, Supports PoE-In and DC jack inputs for versatile deployment options.

$158.00

Ask an Expert

sales@networkdevicesinc.com

1-201-559-1474

Availability: Request ETA

Condition: Brand New Sealed

Free Shipping on Orders $100+Arrives in 1-6 business days within the U.S.

International DeliveryWorldwide shipping in 7–15 business days

30 Days Return

12 Months Warranty Support

sales@networkdevicesinc.com

1-201-559-1474

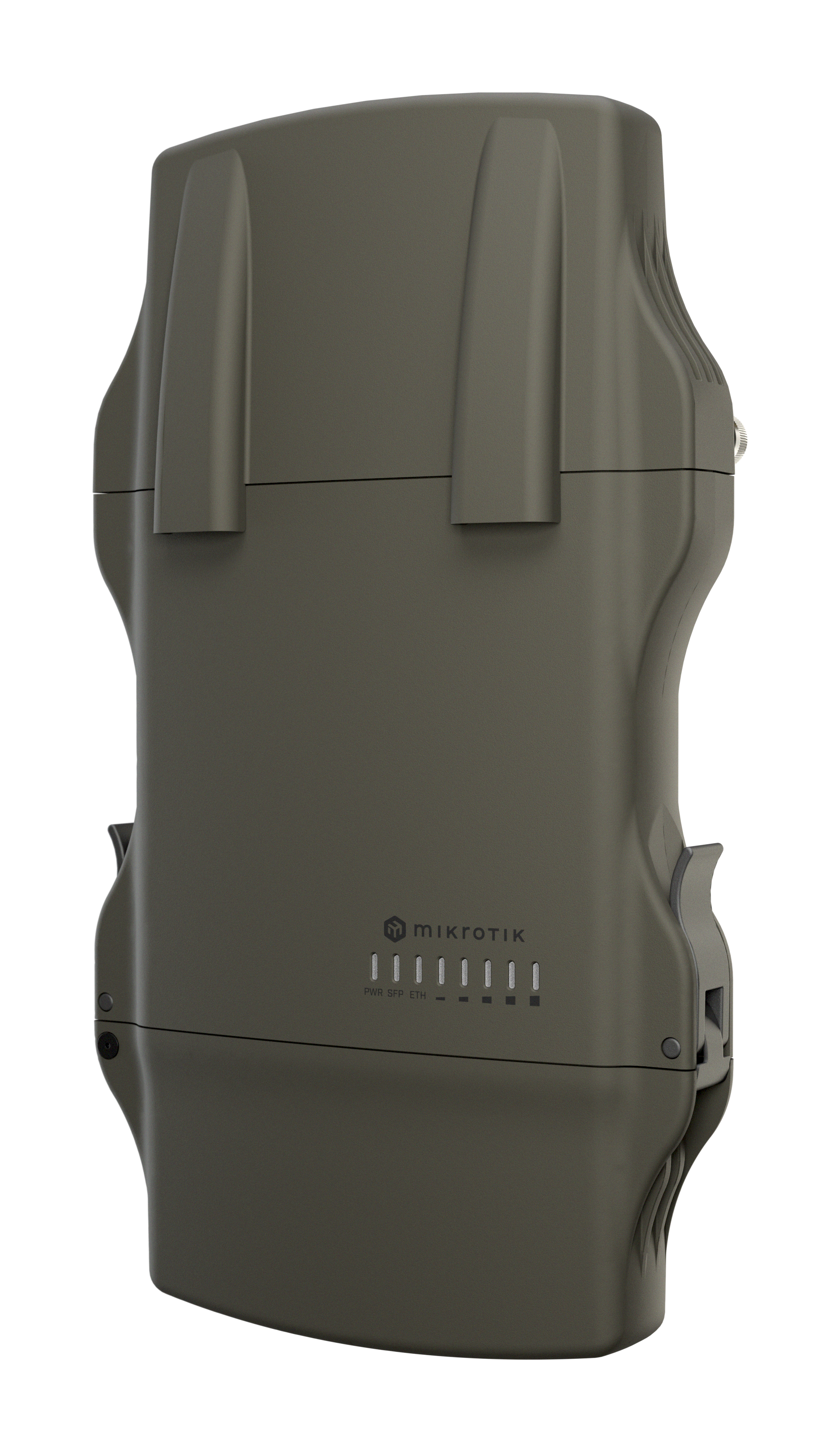

MikroTik NetMetal ax Outdoor Access Point

The MikroTik NetMetal ax is a powerful and rugged outdoor access point designed for extreme environments. Equipped with the latest Wi-Fi 6 technology, this access point delivers fast and stable wireless connections even in challenging conditions. Its durable IP66-rated case protects it from dust and powerful water jets, making it ideal for use in outdoor, industrial, and remote locations. With a dual-band, dual-chain Wi-Fi 6 radio, Gigabit Ethernet, and 2.5 Gbps SFP port, the NetMetal ax provides flexibility, high-speed connectivity, and powerful performance.

Key Features:

Wi-Fi 6 Technology: Dual-band, dual-chain Wi-Fi 6 for increased speed, stability, and performance.
Rugged Design: IP66-rated for protection against dust and powerful water jets, ideal for extreme outdoor conditions.
Customizable: Includes a miniPCIe slot for LTE or LoRa cards, allowing for flexible IoT and mobile internet applications.
High-Speed Connectivity: Equipped with 1 Gigabit Ethernet port and 2.5 Gbps SFP for high-speed networking.
NanoSIM Slot: Integrated NanoSIM slot for LTE connectivity.
Flexible Powering Options: Supports PoE-In and DC jack inputs for versatile deployment options.

Technical Specifications:

CPU: Dual-Core IPQ-5010 800 MHz
RAM: 256 MB DDR3L
Storage: 128 MB NAND
Ethernet Ports: 1 x 1G Ethernet
SFP Ports: 1 x 2.5 Gbps SFP
Wireless Interface: 2.4 GHz 802.11b/g/n/ax and 5 GHz 802.11a/n/ac/ax dual-chain
Operating Temperature: -40°C to +70°C
Powering Options: PoE-In (18-28V), DC jack (12-28V)
Max Power Consumption: 25 W
Dimensions: 143 x 247 x 48 mm

Properties

Product Name	L23UGSR-5HaxD2HaxD-NM
Description	Mikrotik NetMetal ax, a long-range outdoor dual-band Wi-Fi 6 access point designed for rugged environments, offering high-speed connectivity and robust performance.
Wireless Standard	Wi-Fi 6 (802.11ax)
Radio Configuration	Dual-band, 2.4 GHz (2x2 MIMO) and 5 GHz (2x2 MIMO)
Maximum Data Rate	1.8 Gbps combined (574 Mbps on 2.4 GHz, 1200 Mbps on 5 GHz)
Ethernet Ports	1 x 2.5 Gbps Ethernet with PoE-in support
Antenna Type	N-type connectors for external antennas (antennas not included)
Power Supply	Powered via 802.3af/at PoE or DC jack (12-57V)
Operating Temperature	-40°C to 70°C (-40°F to 158°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Humidity	5% to 95% non-condensing
Dimensions	14.3 cm x 14.3 cm x 3.9 cm (5.63 in x 5.63 in x 1.54 in)
Weight	0.865 kg (1.91 lb)
Mounting Options	Pole and wall mount (brackets included)
Usage	Ideal for outdoor environments such as industrial sites, campuses, and remote locations
Durability	IP66-rated for dust and water resistance

Specifications

Frequency Bands	2.4 GHz (up to 574 Mbps) and 5 GHz (up to 1200 Mbps)
Transmit Power	Up to 27 dBm on 2.4 GHz, 30 dBm on 5 GHz
Certifications	CE, FCC, IC, RoHS compliant
Environmental Safety	RoHS 3 compliant (Directive 2015/863/EU), halogen-free components
EMC Compliance	Meets EN 301 489, EN 55032, and FCC Part 15 standards for outdoor equipment
MTBF	>200,000 hours
Heat Resistance	Tested for thermal cycling from -40°C to 70°C for 500 cycles with no failures
Vibration Resistance	Tested under IEC 60068-2-6, up to 3.0 Grms for 5-500 Hz
Shock Resistance	Tested to withstand 25 G for 11 ms under IEC 60068-2-27
Power Consumption	Maximum 15W
Advanced Features	Supports OFDMA, MU-MIMO, and Target Wake Time for efficient wireless performance
Latency	<3 ms under typical conditions
Firmware Updates	Supports automated updates via RouterOS
Ingress Protection	IP66-rated for dust and water resistance
Deployment	Optimized for long-range outdoor installations in challenging environments
Reliability	Tested to maintain stable connections under high humidity and extreme temperatures
Security Features	Supports WPA3 encryption, MAC filtering, and firewall features in RouterOS
