HPE ARUBA 3810M 24SFP+250W SWITCH (JL430A)
| Model: | JL430A |
| Detail: | Managed, Rack-mountable, 24 x 1G/10G SFP+ ports, No Uplinks, PoE+ (250W), Layer 3, |
| Price: | $5,399.00 |
| Condition: | Brand New Sealed |
| Availability: | Out of Stock |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |
Description

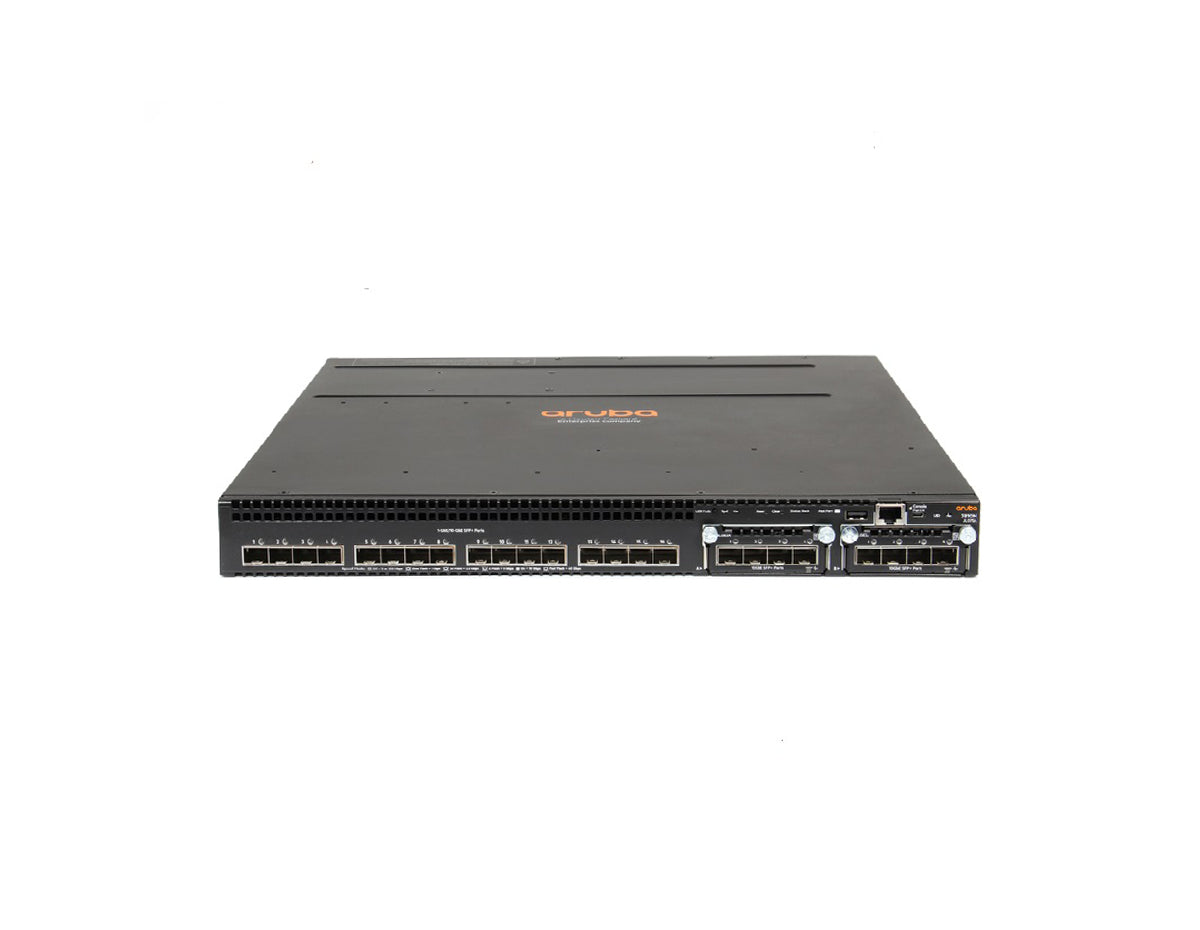

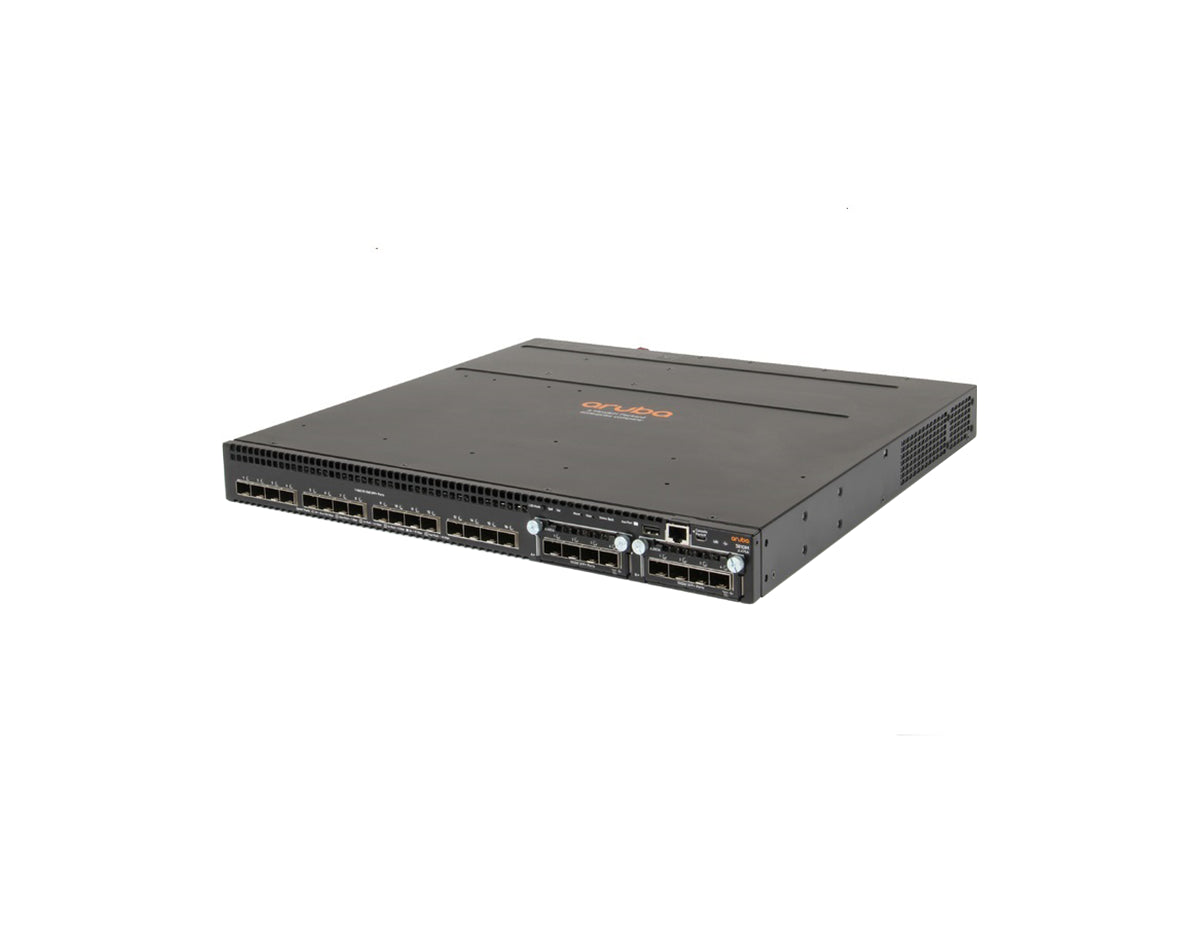

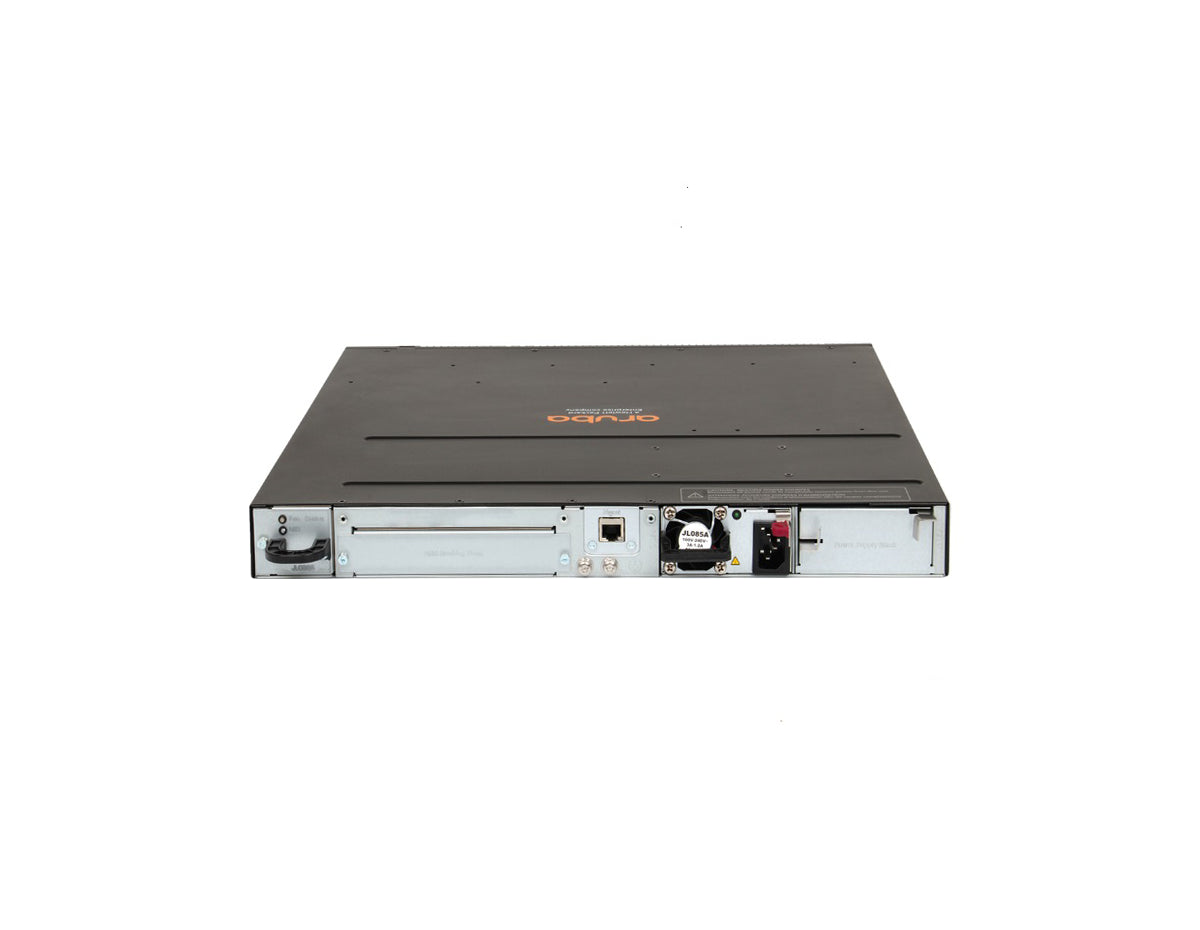

HPE Aruba 3810M 24SFP+ 250W Switch (JL430A)
The HPE Aruba 3810M 24SFP+ 250W Switch (JL430A) is a high-performance Layer 3 switch designed for enterprises requiring advanced flexibility and scalability. It comes with 24 fixed 1/10GbE SFP+ ports for fast, reliable connections. With support for backplane stacking and modular uplink options, this switch ensures high availability and simplified network management, making it ideal for demanding business environments.
Key Features:
- 24 x 1/10GbE SFP+ Ports: Provides high-speed fiber connectivity for enterprise-level networking.
- Modular Uplinks: Supports optional uplink modules including SFP+ and 40GbE, offering adaptability for future expansion.
- Advanced Layer 3 Features: Includes OSPF, BGP, and policy-based routing for enhanced traffic management.
- Backplane Stacking: Supports up to 10 switches in a stack, offering increased scalability and redundancy.
- Cloud and On-Premises Management: Managed through Aruba Central, AirWave, and CLI for real-time monitoring and control.
Technical Overview:
- Recommended for: Enterprises, data centers, and high-demand networks.
- Ports: 24 x 1/10GbE SFP+ ports.
- Switching Capacity: 320 Gbps.
- Forwarding Rate: 190.5 Mpps.
- Layer 3 Features: Supports OSPF, BGP, IPv6, and QoS for advanced network control.
- Management: Managed through Aruba Central, AirWave, CLI, and web-based GUI.
- Energy Efficiency: Compliant with IEEE 802.3az standards for energy-efficient operation.
You can check the related tab for the JL430A datasheet.
Accessories
| Accessories | |
| Included accessories | 1 Aruba 3810 Switch Fan Tray (JL088A) 2 Aruba 3810M 4SFP+ Module (JL083A) 1 Aruba X371 12VDC 250W 100- 240VAC Power Supply (JL085A) |
| Modules | • Aruba 3810M/2930M 4 1/2.5/5/10 GbE HPE Smart Rate Module (JL081A) • Aruba 3810M 4-port Stacking Module (JL084A) • Aruba 3810M/2930M 1QSFP+ 40GbE Module (JL078A) • Aruba 3810M/2930M 4SFP+ MACsec Module (JL083A) • Aruba 3810M 2QSFP+ 40GbE Module (JL079A) |
| TAA-Compliant Transceivers | • Aruba 1G SFP LC SX 500m MMF TAA XCVR (JL745A) • Aruba 1G SFP LC LX 10km SMF TAA XCVR (JL746A) • Aruba 1G SFP RJ45 T 100m Cat5e TAA XCVR (JL747A) • Aruba 10G SFP+ LC SR 300m MMF TAA XCVR (JL748A) • Aruba 10G SFP+ LC LR 10km SMF TAA XCVR (JL749A) |
| Transceivers | • Aruba 100M SFP LC FX 2km MMF XCVR (J9054D) • Aruba 1G SFP RJ45 T 100m Cat5e XCVR (J8177D) • Aruba 1G SFP LC SX 500m MMF XCVR (J4858D) • Aruba 1G SFP LC LX 10km SMF XCVR (J4859D) • Aruba 1G SFP LC LH 70km SMF XCVR (J4860D) • Aruba 10G SFP+ LC SR 300m MMF XCVR (J9150D) • Aruba 10G SFP+ LC LR 10km SMF XCVR (J9151E) • Aruba 10G SFP+ LC LRM 220m MMF XCVR (J9152D) • Aruba 10G SFP+ LC ER 40km SMF XCVR (J9153D) • Aruba 10G SFP+ to SFP+ 1m DAC Cable (J9281D) • Aruba 10G SFP+ to SFP+ 3m DAC Cable (J9283D) • Aruba 10G SFP+ to SFP+ 7m DAC Cable (J9285D) • Aruba 40G QSFP+ LC BiDi 150m MMF XCVR (JL308A) • HPE X142 40G QSFP+ MPO SR4 Transceiver (JH231A) • HPE X142 40G QSFP+ LC LR4 SM Transceiver (JH232A) • HPE X142 40G QSFP+ MPO eSR4 300M XCVR (JH233A) • HPE X242 40G QSFP+ to QSFP+ 1m DAC Cable (JH234A) • HPE X242 40G QSFP+ to QSFP+ 3m DAC Cable (JH235A) • HPE X242 40G QSFP+ to QSFP+ 5m DAC Cable (JH236A) |
| Cables | • Aruba X2C2 RJ45 to DB9 Console Cable (JL448A) • HPE 3800 0.5m Stacking Cable (J9578A) • HPE 3800 1m Stacking Cable (J9665A) • HPE 3800 3m Stacking Cable (J9579A) |
| Power Supply | • Aruba X371 12VDC 250W 100-240VAC Power Supply (JL085A) • Aruba X372 54VDC 680W 100-240VAC Power Supply (JL086A) • Aruba X372 54VDC 1050W 110-240VAC Power Supply (JL087A) |
| Fan Tray | Aruba 3810 Switch Fan Tray (JL088A) |
| Mounting Kit | • HPE X410 1U Universal 4-post Rack Mounting Kit (J9583A) • Aruba X414 1U Universal 4-post Rack Mounting Kit (J9583B) |
Specifications
| Specifications | Aruba 3810M 24SFP+ 250W Switch (JL430A) |
| I/O ports and slots | 24 SFP+ fixed 1000/10000 SFP+ ports; Duplex: 100BASE-TX: half or full; 1000BASE-T: full only; Ports 1-24 support MACSec Supports a maximum of 24 SFP+ ports or 2 40 GbE ports, with optional module(s) or 4 Smart Rate ports |
| Additional ports and slots | 1 stacking module slot 1 RJ-45 serial console port 1 RJ-45 out-of-band management port 1 dual-personality (RJ-45 or USB micro-B) |
| Power supplies | 2 power supply slots 1 power supply included 1 minimum power supply required (ordered separately) |
| Fan tray | Includes: 1 x JL088A 1 fan tray slot Switch ships with 1 JL088A fan tray installed. Spares ordered separately. |
| Physical characteristics | |
| Dimensions | 17.42(w) x 16.98(d) x 1.73(h) in. (44.25 x 43.13 x 4.39 cm) (1U height) |
| Weight | 15.56 lb (7.06 kg) |
| Memory and processor | P2020 Dual Core @ 1.2 GHz, 4 GB DDR3 SDRAM, 1 GB SD Card Dual ARM Cortex A9 @ 1 GHz, 2 GB DDR3 SDRAM; Packet buffer size: 13.5 MB Internal |
| Mounting and enclosure | Mounts in an EIA-standard 19 in. telco rack or equipment cabinet (hardware included); Horizontal surface mounting only |
| Performance | (IPv6 Ready Certified) |
| 1000 Mb Latency | < 2.8 µs (FIFO 64-byte packets) |
| 10 Gbps Latency | < 1.8 µs (FIFO 64-byte packets) |
| 40 Gbps Latency | < 1.5 µs (FIFO 64-byte packets) |
| Throughput | up to 285.7 Mpps (64-byte packets) |
| Routing/Switching capacity | 480 Gbps |
| Switch fabric speed | 508 Gbps |
| Routing table size | 10000 entries (IPv4), 5000 entries (IPv6) |
| MAC address table size | 64000 entries |
| Environment | |
| Operating temperature | 32°F to 113°F (0°C to 45°C) |
| Operating relative humidity | 15% to 95% @ 104°F (40°C), noncondensing |
| Nonoperating/Storage temperature | -40°F to 158°F (-40°C to 70°C) |
| Nonoperating/Storage relative humidity | 15% to 90% @ 149°F (65°C), noncondensing |
| Altitude | up to 10,000 ft (3 km) |
| Acoustic | Power: 39 dB, Pressure: 22.3 dB |
| Primary Airflow Direction | Front to Side and Front to Rear |
| Electrical characteristics | |
| Frequency | 50/60Hz |
| Voltage | JL085A PSU: 100-127/200-240 VAC |
| Current | JL085A PSU (Each): 1A/0.5A |
| Max/Idle Power Rating (Switch+ 1 PSU) | 142W/103W |
| Second PSU Power Adder | 10W |
| Max/Idle Uplink Power Adder |
JL078A: 4W/3W JL079A: 7W/3W JL081A: 4W/3W JL083A: 11W/4W |
| Maximum Heat Dissipation *(Max Case) |
480.81 |
| PoE Power (Max Possible) | N/A |
| Notes | Idle power is the actual power consumption of the device with no ports connected. Maximum power rating and maximum heat dissipation are the worst case theoretical maximum numbers provide for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated. This is a modular product. *Switch + 2 power supplies + one JL083A Uplink. For most accurate heat dissipation, idle and max power for any combination of chassis and accessories, please consult configurator. |
| Safety | EN 60950/IEC 60950; UL 60950; UL 60950-1; CAN/CSA 22.2 No. 60950; EN 60825; CSA 22.2 60950-1; EN62479:2010; EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013; EN 62368-1, Ed. 2; IEC 60950-1:2005 Ed.2; Am 1:2009+A2:2013; IEC 60825:2007; EN60850-1:2007 / IEC 60825-1: 2007 Class1 Class 1 Laser Products / Laser Klasse 1; UL 62368-1 Ed.2 |
| Emissions | FCC Class A; VCCI Class A; EN 55022/CISPR 22 Class A; EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013 |
| Immunity | |
| Generic | EN55022: 2010 |
| EN | EN55024: 2010 |
| ESD | IEC 61000-4-2 |
| Radiated | IEC 61000-4-3; 3 V/m |
| EFT/Burst | IEC 61000-4-4; 1.0 kV (power line), 0.5 kV (signal line) |
| Surge | IEC 61000-4-5; 1 kV/2 kV AC |
| Conducted | IEC 61000-4-6; 3 V |
| Power frequency magnetic field | IEC 61000-4-8; 1 A/m, 50 or 60 Hz |
| Voltage dips and interruptions | IEC 61000-4-11; >95% reductions, 0.5 period; 30% reduction, 25 periods |
| Harmonics | EN61000-3-2:2006 +A1:2009 +A2:2009 Class A |
| Flicker | EN61000-3-3:2008 |
| Management | Aruba Central; Aruba AirWave Network Management; IMC – Intelligent Management Center; Command-line interface; Web browser; Configuration menu; Out-of-band management (RJ-45 Ethernet); In-line and out-of-band; Out-of-band management (serial RS-232c or micro usb) |
Properties
| Properties | JL430A |
| Description | 3810M 24SFP+ 250W Switch 24 SFP+ fixed 1000/10000 SFP+ ports; Duplex: 100BASE-TX: half or full; 1000BASE-T: full only; Ports 1-24 support MACSec |
| Product Family | 3810 Switch Series |
| Product Type | Switch |
| Key Features | • Advanced Layer 3 switch series with backplane stacking, Dynamic Segmentation, low latency and resiliency • Advanced security and network management via Aruba ClearPass Policy Manager, Aruba AirWave and Aruba Central • Modular line rate 10GbE and 40GbE ports for wireless aggregation • HPE Smart Rate for high-speed multi-gigabit bandwidth (IEEE 802.3bz) and PoE+ power • Software defined ready with REST APIs and OpenFlow support |
