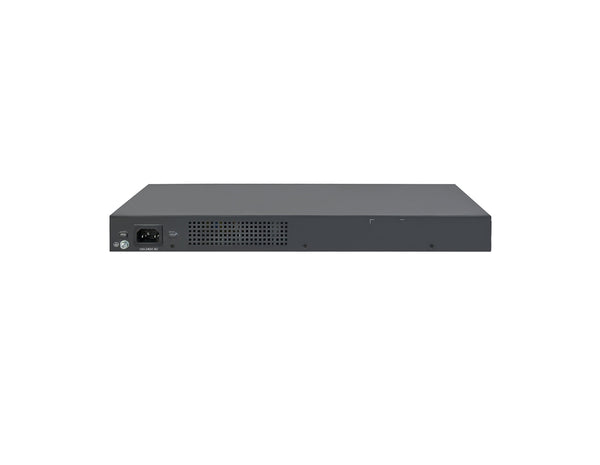

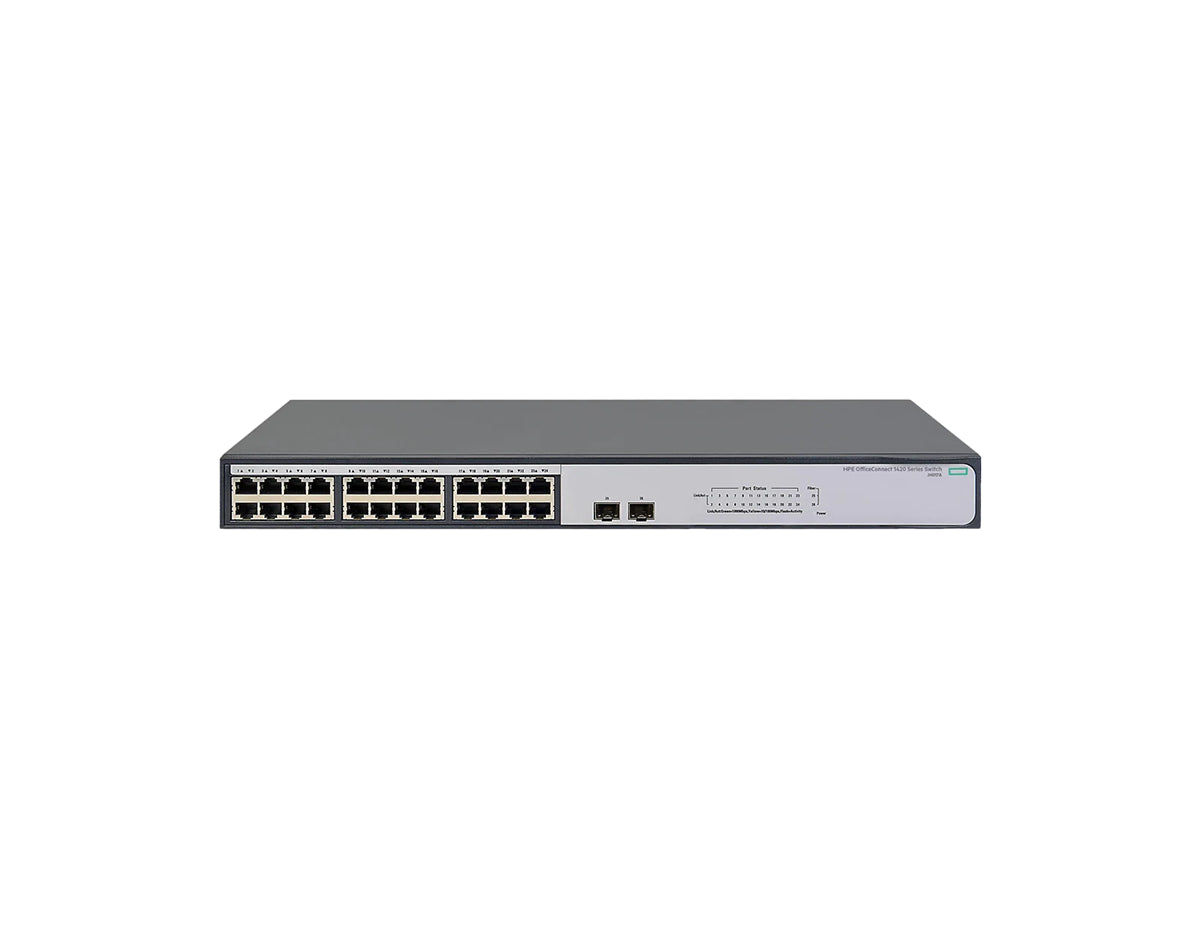

HPE JH017A 1420-24G-2SFP Switch

HPE 1420-24G-2SFP Switch (JH017A)

The HPE OfficeConnect 1420 Switch Series delivers cost effective gigabit Ethernet (1GbE) connectivity offering small businesses 10 times the performance of Fast Ethernet with unmanaged plug-and-play simplicity. All models support silent fanless operation, automated features for hands off operation and low power consumption. TheHPE 1420-24G-2SFP Switch (JH017A) comes with 24 RJ-45 autosensing 10/100/1000 ports and 2 SFP 100/1000 Mbps ports.

Key Features:

• 24 x 10/100/1000 + 2 x Gigabit SFP
• IEEE 802.3x flow control


Find detailed specifications of the Aruba JH017A in the tabs.



Product Name	HPE 1420-24G-2SFP Switch (JH017A)
Product Description	Unmanaged Gigabit Ethernet switch for small businesses with 24 RJ-45 10/100/1000 ports and 2 SFP 100/1000 Mbps ports, featuring fanless operation.
Port Configuration	24 x 10/100/1000 RJ-45 ports, 2 x 100/1000 SFP ports
Switching Capacity	52 Gbps
Throughput	Up to 38.7 Mpps (64-byte packets)
Energy Efficiency	Supports IEEE 802.3az for low power consumption
Fanless Design	Silent operation
Compliance	IEEE 802.3x flow control
Mounting Options	Rack-mountable; hardware included
MAC Address Table	8,192 entries
Dimensions	17.32 x 6.81 x 1.73 inches (44 x 17.3 x 4.4 cm)
Weight	4.85 lb (2.2 kg)
Operating Temperature	32°F to 104°F (0°C to 40°C)
Operating Humidity	5% to 95%, non-condensing

Product Code	JH017A
Type	Unmanaged Layer 2 Gigabit Ethernet switch
Standards Compliance	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3az
Power Consumption	Maximum 16 W
Data Transfer Rates	1 Gbps per port (Gigabit Ethernet)
LED Indicators	Link, activity, and status
Management Features	Plug-and-play, no configuration required
Usage	Desktop or rack-mounted
Ports	24 autosensing 10/100/1000 ports, 2 SFP 100/1000 Mbps ports
