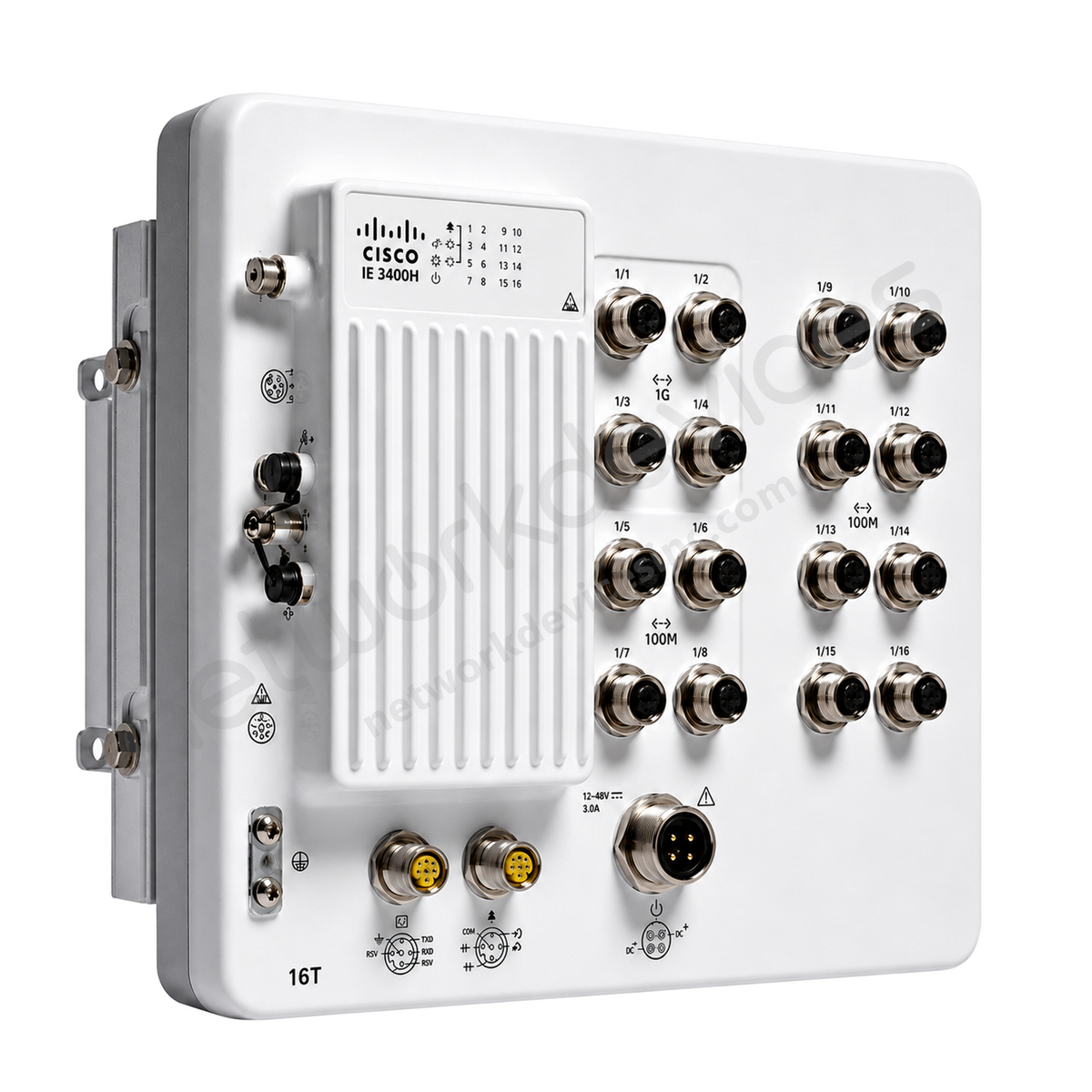

Cisco Catalyst IE-3400H-16T-A 16-Port Gigabit Ethernet IP67 M12 Industrial Switch, Network Advantage
- Catalyst IE3400 Heavy Duty, 16 x GE M12 interfaces, IP67, with Network Advantage license
Overview
The Cisco Catalyst IE3400 Heavy Duty Series is Cisco's IP66/IP67-rated industrial switch line, delivering capabilities similar to the DIN-rail IE3400 Rugged Series in places with heavy exposure to dust and water, using M12 connectors and wall mounting with no housing cabinet. The IE-3400H-16T-A is the 16-port Gigabit Ethernet configuration at the Network Advantage tier. This is the Network Advantage member of the pair, which is what separates it from the otherwise-identical Network Essentials IE-3400H-16T-E. Network Advantage unlocks full dynamic routing along with SGT and SGACL group-based segmentation using Cisco TrustSec. It runs IOx edge applications and supports Cisco Cyber Vision and Secure Equipment Access, and because it has a single power input and no stacking, resiliency is built with REP, MRP, DLR, and PRP ring topologies at the network layer.
Technical Details
The Cisco Catalyst IE-3400H-16T-A is a Layer 3 managed, fanless, IP66/IP67-rated industrial switch with 16 Gigabit Ethernet M12 (X-coded) ports, running Cisco IOS XE with the perpetual Network Advantage license. It is sealed against dust and water and is wall-mounted without a housing cabinet. It forwards at line rate on all ports for all packet sizes and holds up to 16,000 MAC addresses. It carries no Power over Ethernet, and all connectivity is over fixed M12 copper ports with no SFP or fiber uplinks. It supports full dynamic routing (OSPF, BGP, IS-IS, RIP, and EIGRP for IPv4 and IPv6) and SGT/SGACL segmentation with Cisco TrustSec. Operating temperature is -40 °C to +75 °C with airflow, and power is a single DC input over an M12 mini-change connector. It is used for secure wired connectivity of industrial devices such as PLCs, HMIs, drives, cameras, and sensors directly on factory floors, trackside, and outdoor sites exposed to dust and water.
Best For
The IE-3400H-16T-A suits harsh, wet, or dusty industrial sites such as factory floors, trackside cabinets, water treatment, and outdoor installations that connect industrial devices such as PLCs, HMIs, drives, and cameras over 16 Gigabit Ethernet M12 ports without needing a sealed housing cabinet. Its IP66/IP67 sealing, M12 connectors, fanless design, and -40 °C to +75 °C operating range let it mount directly in the environment. The Network Advantage license fits deployments that need SGT/SGACL Cisco TrustSec segmentation or dynamic routing such as OSPF, BGP, or EIGRP.
Not suitable if:
- you only need Layer 2 switching with static routing and no group-based segmentation, since the base Network Essentials IE-3400H-16T-E would be sufficient
- you need to power endpoints over the switch, since the IE3400 Heavy Duty models are data-only and do not source Power over Ethernet
- you need SFP fiber uplinks or RJ45 ports, since all ports are fixed M12 copper connectors
- you are installing in a protected cabinet and do not need IP67 sealing, since the DIN-rail Catalyst IE3400 Rugged Series covers that at a smaller size
IE-3400H-16T-A Specifications
| Class & Licensing | |
|---|---|
| License Tier | Network Advantage |
| License Detail / MTBF | Network Advantage; MTBF 489,458 hours; IP66/IP67 rated |
| Ports & Uplinks | |
| Port Speed | Gigabit |
| Uplink Configuration | None (all M12 ports; no dedicated SFP uplinks) |
| Performance & Scale | |
| Stacking | No |
| Switching Capacity | Not published |
| Forwarding Rate | Line rate (all ports, all packet sizes) |
| MAC Table | 16,000 |
| IPv4 Routes | 3,000 indirect routes |
| Hardware & Memory | |
| DRAM | 4 GB |
| Flash | 1.5 GB user accessible |
| Power & Thermal | |
| Power Input / PSU | Single DC input via M12 Mini-change connector, 9.6 V to 60 V DC (4.4 A at 9.6 V) |
| Redundant PSU | No (single power input) |
| Cooling | Fanless |
| Physical & Environmental | |
| Dimensions (H x W x D) | 9.6 x 10.9 x 3.2 in (24.3 x 27.7 x 8.0 cm) |
| Weight | 11.25 lbs (5.10 kg) |
| Operating Temperature | -40°C to +75°C (with 200 LFM airflow) |
| Operating System | Cisco IOS XE |
| Software | |
| Routing Protocols | OSPF, BGP, IS-IS, RIP, EIGRP (IPv4/IPv6); OSPFv3; VRF-lite; SGT/SGACL TrustSec |
Part Number Decode
- IE-3400H — IE-3400H is the platform prefix, identifying the Cisco Catalyst IE3400 Heavy Duty Series, an IP66/IP67-rated M12-connector industrial switch line deployed without a housing cabinet.
- 16 — 16 is the port count, indicating 16 total M12 ports.
- T — T is the speed marker, indicating 10/100/1000 Gigabit Ethernet ports on M12 X-coded connectors.
- A — A is the license suffix for the perpetual Network Advantage tier, which adds full dynamic routing and SGT/SGACL Cisco TrustSec segmentation.
IE-3400H-16T-A Accessories
| PWR-IE160W-67-DC= | IP67-rated PoE DC-DC power supply, Input: 18V–60V, Output: 54V, 3.1A max, 160W |
FAQ
Does the Cisco Catalyst IE-3400H-16T-A support PoE?
No. The Cisco Catalyst IE-3400H-16T-A is a data-only switch, and its M12 ports do not source Power over Ethernet. It cannot power devices such as IP cameras, wireless access points, or IP phones over its ports. Cisco offers a separate IP67-rated DC-DC power supply accessory for the platform, but the switch itself does not deliver PoE to connected endpoints.
What are the IP rating and environmental specifications of the IE-3400H-16T-A?
The Cisco Catalyst IE-3400H-16T-A is rated IP66 and IP67, meaning it is dust-tight and protected against water submersion, so it can be wall-mounted directly in harsh environments without a housing cabinet. It uses M12 connectors (D-coded for Fast Ethernet, X-coded for Gigabit Ethernet, and a mini-change connector for power), is fanless and convection-cooled with no moving parts, and operates from -40 °C to +75 °C with airflow. It is powered by a single DC input from 9.6 to 60 VDC.
Can the Cisco Catalyst IE-3400H-16T-A be stacked, and is its power redundant?
No. The Cisco Catalyst IE-3400H-16T-A does not support stacking, and it has a single power input rather than dual redundant power supplies. Multiple units are managed as individual switches. Network-layer resiliency is built with Resilient Ethernet Protocol (REP), Media Redundancy Protocol (MRP), Device Level Ring (DLR), or Parallel Redundancy Protocol (PRP) on select ports, so ring topologies rather than stacking or dual power provide redundancy.
What is the difference between the IE-3400H-16T-A and the IE-3400H-16T-E?
The Cisco Catalyst IE-3400H-16T-A and IE-3400H-16T-E are the same IP67 M12 hardware, with 16 Gigabit Ethernet ports, and identical performance, and differ only in license tier. The IE-3400H-16T-E ships with perpetual Network Essentials, which covers Layer 2 switching with inter-VLAN and IPv4 static routing. The IE-3400H-16T-A ships with perpetual Network Advantage, which adds full dynamic routing (OSPF, BGP, RIP, IS-IS, and EIGRP for IPv4 and IPv6), VRF-lite, MACsec-256, and SGT/SGACL group-based segmentation with Cisco TrustSec. The 3,000 IPv4 route scale also requires Network Advantage.
Does the Cisco Catalyst IE-3400H-16T-A support TrustSec and dynamic routing?
Yes. With its perpetual Network Advantage license the Cisco Catalyst IE-3400H-16T-A is a full Layer 3 switch that runs dynamic routing protocols including OSPF, BGP, RIP, IS-IS, and EIGRP for IPv4 and IPv6, and it supports SGT and SGACL group-based segmentation with Cisco TrustSec, VRF-lite, and MACsec-256. It holds up to 3,000 IPv4 and 512 IPv6 indirect routes.
What is the difference between the IE3400 Heavy Duty IE-3400H-16T-A and the IE3400 Rugged Series?
The Cisco Catalyst IE-3400H-16T-A is the IP66/IP67-rated Heavy Duty model, sealed against dust and water with M12 connectors and wall mounting, so it needs no housing cabinet. The DIN-rail IE3400 Rugged Series offers similar switching, routing, and security features but uses RJ45 and SFP ports and is designed to sit in a protected cabinet or enclosure. Choose the Heavy Duty IE-3400H-16T-A when the switch must survive direct exposure to dust and water; choose the Rugged Series for cabinet installs that can use RJ45 and fiber.
Does the IE-3400H-16T-A require a subscription to operate?
No. The Cisco Catalyst IE-3400H-16T-A runs on its perpetual Network Advantage license indefinitely, and no subscription is required for it to operate. Cisco offers optional, separately purchased Cisco Catalyst Center Essentials or Advantage licenses that add discovery, assurance, analytics, and automation; the Catalyst Center Advantage tier also requires the switch to carry Network Advantage. These Catalyst Center licenses are management add-ons, are not mandatory, and do not change the switch's network feature tier.
Is the Cisco Catalyst IE-3400H-16T-A end of life?
No. Cisco has not published a hardware End-of-Sale or End-of-Life notice for the Catalyst IE3400 Heavy Duty Series or the IE-3400H-16T-A. The published end-of-life notices for the series cover specific Cisco IOS XE software releases and the 4GB SD card accessory, not the switch hardware, so the IE-3400H-16T-A remains an actively available product.
What condition is the IE-3400H-16T-A sold in, and what warranty applies?
The Cisco Catalyst IE-3400H-16T-A is sold new and factory-sealed. It is covered by a Network Devices Inc. one-year warranty and a 30-day return policy.
