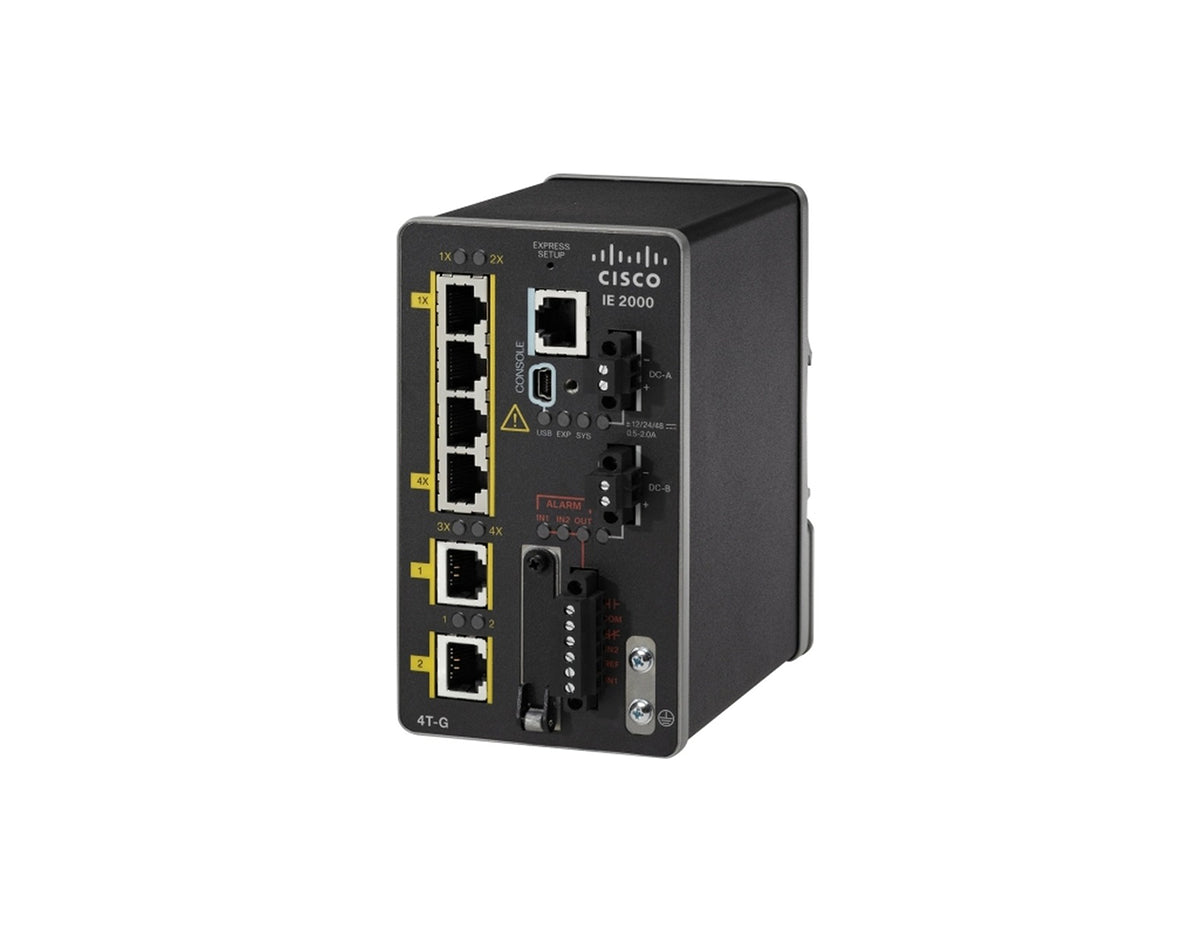

CISCO IE-2000-4T-G-L SWITCH
| Part No: | IE-2000-4T-G-L |
| Detail: |
Switch , Managed, 4 x 10/100 + 2 x 10/100/1000, DIN Rail Mountable |
| List Price: |
|
| Price: |
$685.00
|
| You Save: | $876.00 (56% OFF) |
| Condition: | Brand New Sealed |
| Availability: | Ask For ETA |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ, TX, FL and PA |
| Quantity: |
|
Description
Cisco IE-2000-4T-G-L Industrial Ethernet Switch
The Cisco IE-2000-4T-G-L is a compact, rugged industrial Ethernet switch designed to provide reliable network connectivity in challenging environments. This switch features 4 Fast Ethernet ports, making it an ideal solution for connecting a variety of industrial devices such as IP cameras, sensors, and controllers. The IE-2000-4T-G-L is engineered to withstand harsh conditions, ensuring continuous operation in demanding industrial settings while offering essential Layer 2 management features for network segmentation and traffic control.
Key Features:
- 4 x Fast Ethernet Ports: Provides reliable data connectivity for a range of industrial devices, ensuring stable and efficient network communication.
- Ruggedized Design: Built to operate in harsh industrial environments, capable of withstanding extreme temperatures, shock, and vibration.
- Layer 2 Management: Includes essential Layer 2 features such as VLANs, QoS, and IGMP snooping, providing flexibility and control over network traffic.
- Compact Form Factor: Designed for space-constrained installations, making it suitable for small enclosures and industrial cabinets.
- Energy Efficient: Engineered to minimize power consumption, reducing operational costs while maintaining high performance.
Technical Overview:
- Recommended for: Industrial environments requiring reliable Ethernet connectivity with basic management features.
- Ports: 4 x Fast Ethernet ports.
- Operating Temperature: Designed to operate in a wide temperature range suitable for industrial applications.
- Management: Managed through a web interface, CLI, and SNMP for easy network setup and monitoring.
- Form Factor: Rugged, compact design suitable for space-constrained industrial environments.
You can check the related tab for the Cisco IE-2000-4T-G-L datasheet.
Accessories
| Accessories and License Upgrade PIDs | |
| SD-IE-1GB | 1 GB Ruggedized SD memory card (must be ordered, not inclueded by default) |
| STK-RACK-DINRAIL | 19 in. DIN Rail mount kit |
| IE-LICENSE-SPARE | Spare license for software upgrade (L2 to L3 features, MRP ring, etc) |
| L-IE2000-L-B | IE2000 LAN Lite to LAN Base e-license |
| L-IE2000-B-E | IE2000 LAN Base to Enhanced LAN Base e-license |
| LIC-IE2000-IP-L | IE2000 LAN Base or Enhanced LAN Base to IPLite e-license |
| LIC-IE2000-L-IP | IE2000 LAN Lite to IPLite e-license |
| LIC-MRP-MANAGER | MRP Ring Manager license |
| LIC-MRP-Client | MRP Ring Client license |
| Wallmount-IE2k-04 | Wall mount kit accessory for IE2000 4-ports downlink PID |
| IE 2000 Series Power Supplies | |
| Product Number | Wattage |
| PWR-IE50W-AC | 50W AC Power Supply |
| PWR-IE50W-AC-L | 50W AC-L Power Supply |
| PWR-IE65W-PC-AC | 65W PC- AC Power Supply |
| PWR-IE65W-PC-DC | 65W PC - DC Power Supply |
| PWR-IE170W-PC- AC | 170W PC - AC Power Supply |
| PWR-IE170W-PC- DC | 170W PC - DC Power Supply |
| PWR-IE240W-PCAC-L | 240W PC - AC-L Power Supply |
| PWR-IE480W-PCAC-L | 480W PC - AC-L Power Supply |
Specifications
| Specifications | IE-2000-4T-G-L |
| DRAM | 256 MB DRAM with ECC Memory |
| Flash Memory | 64 MB |
| Hardware | IEEE 1588v2 FPGA 1 GB removable SD flash memory card (optional) Mini-USB connector |
| Max. Forwarding Bandwidth | 3.8 Gbps |
| Max. Switching Bandwidth | 7.6 Gbps |
| Max. Forwarding Rate | 5.66 Mpps |
| Egress Buffer | 2 MB |
| Unicast MAC Addresses | 8000 |
| Internet Group Managament Protocol (IGMP) Multicast Groups | 255 |
| Max. VLANs | 1005 |
| IPv4 MAC Security ACEs | 384 (default TCAM template) Bidirectional 128 NAT translation entries |
| IPv4 Routing | 3500 |
| IPv6 Routing | 1750 |
| Alarm | Alarm I/O: Two alarm inputs to detect dry contact open or close; one alarm output relay |
| Power consumption | 9.5 - 15 W |
| Connectors and cabling | 100BASE-FX MMF (2 km), -LX SMF (10 km) -ZX SMF (100 km), BX10 SMF (10 km) SFP and CWDM SFP- based ports: LC fiber connectors 10/100/1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling |
| Mean Time Between Failure (MTBF) | 374,052 hours (42.7 years) |
| Operating Temperature | -40C to +70C (vented enclosure - 40 LFM Air Flow) -40C to +60C (sealed enclosure 0 LFM Air Flow) -34C to +75C (fan or blower-equipped enclosure 200 LFM Air Flow) -40C to +85C (IEC 60068-2-2 Environmental Type Testing 16 hours) |
| Storage Temperature | -40 C to +85 C |
| Operating Altitude | Up to 15,000 ft |
| Safety Certifications | UL/CSA 60950-1 EN 60950-1 CB to IEC 60950-1 (with country deviations) NOM to NOM-019-SCF1 (through partners and distributors) CE Marking |
| EMI Emissions and Immunity Compliance | FCC 47 CFR Part 15 Class A EN 55022A Class A VCCI Class A RoHS compliance AS/NZS CISPR 22 Class A, AS/NZS CISPR 24 CISPR11 Class A, CISPR22 Class A ICES 003 Class A KCC -Korea CE Marking C-Tick (Australia) Russia certification Brazil certification IEC/EN/EN61000-4-2 (Electro Static Discharge), 15kV /8kV contact IEC/EN 61000-4-3 (Radiated Immunity, 10 and 20 V/m) IEC/EN 61000-4-4 (Fast Transients - 4kV power line, 4kV data line) IEC/EN 61000-4-5 (Surge 2 kV/1 kV) IEC/EN 61000-4-6 (Conducted Immunity, 10 V/emf) IEC/EN 61000-4-8 (Power Frequency Magnetic Field Immunity) IEC/EN 61000-4-9 (Pulse Magnetic Field Immunity) IEC/EN 61000-4-10 (Oscillatory Magnetic Field Immunity) IEC/EN 61000-4-11 (AC power Voltage Immunity) IEC/EN 61000-4-29 (Voltage Dips Immunity) IEC/EN 61000-6-1 (Immunity for Light Industrial Environments) IEC/EN 61000-6-2 (Immunity for Industrial Environments) IEC/EN 61000-6-4 Class A EN 61326 |
| Shock and Vibration | IEC 60068-2-27 (Operational Shock: 30G 11ms, half sine) IEC 60068-2-27 (Non-Operational Shock 55-70G, trapezoidal) IEC 60068-2-6, IEC 60068-2-64, EN 61373 (Operational Vibration) IEC 60068-2-6, IEC 60068-2-64, EN 61373 (Non-operational Vibration) |
| Industry Standards | UL508 CSA C22.2 No. 142 EN 61131-2 (EMC/EMI, environmental, mechanical) Protective coating (specific models only) Marine DnV Substation KEMA (IEEE 1613, IEC 61850-3) Railway EN 50155 (EMI/EMC, environmental, mechanical) EN50121-3-2 EN50121-4 NEMA TS-2 (EMC, environmental, mechanical) ABB Industrial IT certification IP30 ODVA Industrial Ethernet/IP support PROFINETv2.3 support |
| Hazard Locations (* Cabinet enclosure required) | ANSI/ISA 12.12.01 (Class1, Div2 A-D) * EN 60079-0, -15 ATEX Certificate (Class 1, Zone2 A-D) * |
| Humidity | IEC 60068-2-52 (salt fog mist, test Kb) marine environments IEC 60068 -2-3 IEC 60068-2-30 Relative humidity: 5% to 95% non-condensing |
Properties
| Properties | Cisco IE-2000-4T-G-L |
| Description | IE2000 with 4 FE Copper ports and 2 GE Copper ports (Lan Lite) |
| Product Family | Industrial Ethernet 2000 |
| Product Type | Ethernet Switch |
| Switches | |
| Total Ports | 6 |
| RJ45 Ports | 4 FE, 2 GE |
| Combo Ports (SFP or RJ45) | - |
| SFP Ports | - |
| Manufacturing License | LAN Lite |
| Type of Possible Upgrade | 3 |
| IEEE 1588 | - |
| NAT | - |
| PoE(+) | - |
| Conformal Coating | - |
| Type of possible upgradelegend | |
| 1 | LAN Base to IP Lite Cisco IOS Software Upgrade |
| 2 | Enhanced LAN Base to IP Lite Cisco IOS Software Upgrade |
| 3 | LAN Lite to LAN Base Cisco IOS Software Upgrade |
| 4 | LAN Base to Enhanced LAN Base Cisco IOS Software Upgrade and License Upgrade |
| U | Upgradable to L2NAT via Enhanced Lan Base or IP Lite license |
| Software Features | |
| LAN Lite License | Baseline Features |
| Layer 2 Switching | IEEE 802.1, 802.3, 802.3at, 802.3af standard (see Table 8), VTPv2, NTP, UDLD, CDP, LLDP, Unicast MAC filter, Resilient Ethernet Protocol (REP), Media Redundancy Protocol (MRP) Ring (IEC 62439-2) |
| Security | SCP, SSH, SNMPv3, TACACS+, RADIUS Server/Client, MAC Address Notification, BPDU Guard, SPAN session |
| Multicast | IGMPv1, v2, v3 Snooping, IGMP filtering, IGMP Querier |
| Managament | Fast Boot, Express Setup, Web Device Manager, CNA, Cisco Prime, LMS, MIB, SmartPort, SNMP, syslog |
| Industrial Ethernet | EtherNet/IP, Profinet v2 |
| Dimensions (HxWxD) Inches | 5.1H x 2.95W x 4.51D in (130mm H x 74.9mm W x 115mm D) |
| Weight | 2.45 lb (1.11 kg) |
