Cisco IE-2000-16T67P-G-E Switch

Name: Cisco IE-2000-16T67P-G-E Switch
Brand: Cisco
SKU: IE-2000-16T67P-G-E-NEW
Price: 3575.0 USD
Availability: InStock

Part Number: IE-2000-16T67P-G-E

Technical Details

Switch Managed, 16 x 10/100 (M12 D-coded) + 2 x 1G (M12 X-coded) IP67, wall-mountable enclosure PoE/PoE+ capable on FE downlinks

$3,575.00

Ask an Expert

sales@networkdevicesinc.com

1-201-559-1474

Availability: In Stock

Condition: Brand New Sealed

Free Shipping on Orders $100+Arrives in 1-6 business days within the U.S.

International DeliveryWorldwide shipping in 7–15 business days

30 Days Return

12 Months Warranty Support

sales@networkdevicesinc.com

1-201-559-1474

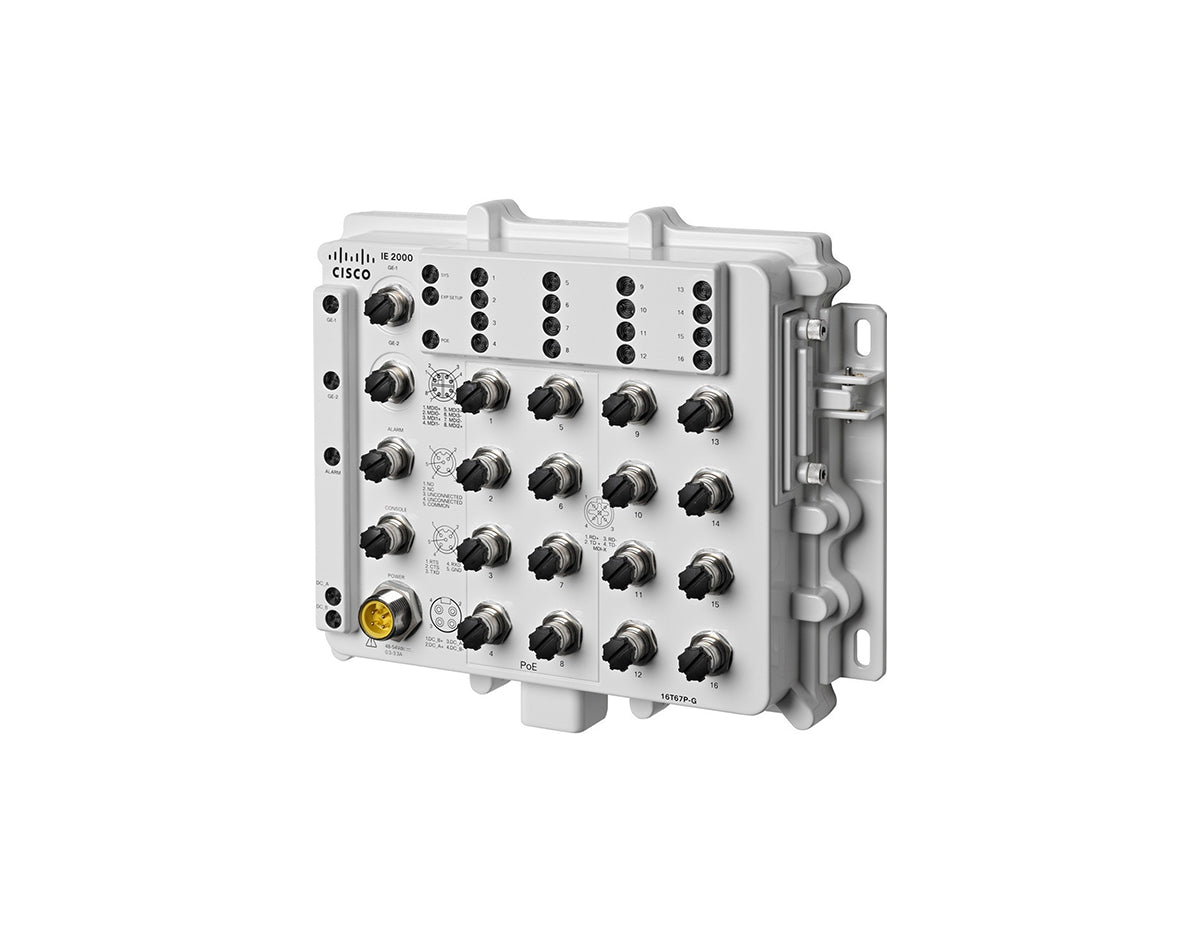

Cisco IE-2000-16T67P-G-E Industrial Ethernet Switch

The Cisco IE-2000-16T67P-G-E is a high-performance industrial Ethernet switch designed to provide reliable and secure network connectivity in harsh environments. This model offers 16 Fast Ethernet (10/100) M12 D-coded downlinks and 2 Gigabit Ethernet M12 X-coded uplinks, with PoE/PoE+ support available on Fast Ethernet downlinks to power field devices when used with the appropriate power supply.

Key Features:

16 x Fast Ethernet Downlinks + 2 x Gigabit Uplinks: Downlinks use M12 D-coded connectors (10/100); uplinks use M12 X-coded Gigabit for high-speed backhaul.
PoE/PoE+ Capability: Supports powering endpoints on Fast Ethernet downlinks (up to 12 powered ports: 8 PoE + 4 PoE+ on the 16-port PoE model).
Ruggedized Design: IP67 enclosure engineered for extreme temperatures, shock, and vibration.
Layer 2 Management: VLANs, QoS, IGMP snooping, REP, EtherChannel, and more for deterministic industrial networking.
Fast Deployment: Zero-touch DHCP, express setup, and sub-60-second boot help speed rollouts.

Technical Overview:

Recommended for: Harsh industrial environments requiring durable switching with PoE/PoE+ support.
Ports: 16 x 10/100 (M12 D-coded) + 2 x 1G (M12 X-coded).
Operating Temperature: -40°C to +75°C (with additional rated modes per enclosure/airflow).
Management: Web UI, CLI, SNMP; Cisco DNA Center support with DNA Essentials licensing.
Form Factor: Wall-mountable IP67 chassis, 9.5” x 11.84” x 3.2”, 7.28 lb.

You can check the related tab for the Cisco IE-2000-16T67P-G-E datasheet.

Properties

Properties	Cisco IE-2000-16T67P-G-E Switch
Description	The Cisco IE-2000-16T67P-G-E is an IP67-rated industrial Ethernet switch with 18 total ports: 16 Fast Ethernet (10/100) M12 D-coded downlinks and 2 Gigabit Ethernet M12 X-coded uplinks. The model supports PoE/PoE+ on Fast Ethernet downlinks (up to 12 powered ports: 8 PoE + 4 PoE+, with the appropriate power supply), making it well-suited for demanding deployments in manufacturing, transportation, and utilities.
Product Family	Cisco Industrial Ethernet 2000 IP67 Series Switches
Product Type	Ethernet Switch
IE 2000 IP67 product highlights
Certified IP67 rating	The solution is IP67-rated to protect against dust and submersion in water. It meets the most rigorous industrial and safety standards for extreme temperature and vibration, humidity, electromagnetic emissions, and other factors.
Compliant with industrial automation standards	The rugged switch supports EtherNet/IP (CIP) and PROFINET so you can easily integrate it with any Ethernet-based industrial equipment and management system. It also supports Precision Time Protocol (PTP) v2 for demanding synchronized applications.
Easy deployment	With zero-touch discovery using Dynamic Host Control Protocol (DHCP), express setup, and sub-60-second boot-up times, you can easily migrate to an all-IP-over-Ethernet networking environment.
Strong endpoint security	Support for the following: ● 802.1x ● Port security ● Dynamic port-based authentication using DHCP ● Encrypted administrative traffic ● Centralized authentication
Resiliency	Cisco brings recovery mechanisms such as Flex Links and Cisco Resilient Ethernet Protocol (REP) to the factory floor or other industrial site. PROFINET MRP ring provides the open standard industrial resiliency.
Manageability	Cisco DNA Center enables centralized automation and assurance at scale with a Cisco DNA Essentials 3-year, 5-year, or 7-year term-based subscription license. ● The solution is easy for operations staff to configure and manage. Cisco Auto Smart Port lets you configure the right Quality of Service (QoS) settings for any port in seconds. It also allows for secure web-based administration and easy integration with your network management system.
Network Address Translation (NAT)	The switches provide line-rate, hardware-enabled static address translation to easily connect complex Layer-2/machine node networks.
Industrial Power-over-Ethernet (PoE)	Select switch models let you connect and power endpoints with a single cable in compliance with PoE and PoE+ standards.
Removable SD flash memory	With tightly secured swappable SD cards, you can quickly replace switches in the field with minimal disruption.
Platform flexibility	The Cisco IE2000 IP67 Series is available with 8, 16, or 24 10/100 Base-T fixed-configuration Ethernet ports and 2x Gigabit Ethernet ports. It provides M12 D-coded, X-coded, and a mini-change dual-power connector in an industrial-hardened, wall-mountable form factor.

Specifications

Specifications	Cisco IE-2000-16T67P-G-E Switch
Total ports	18
100 MB D-code	16
GE X-code ports	2 GE
Manufacturing license	LAN Base
IEEE1588	X
NAT	X (Requires LAN Base to LAN Enhanced image to enable Layer 2 NAT)
PoE (+)	X
Hardware	● 256MB DRAM with ECC memory
	● IEEE 1588v2 FPGA
	● 64MB on-board flash memory
	● 1GB removable SD flash memory card (optional)
Alarm	● One alarm output relay using an M12 A-coded 5-pin connector (Max. rated: 24VDC @ 1A / 48VDC @ 0.5A)
Alarm
Input voltage supported	With PoE: 44–57VDC; with PoE+: 50–57VDC
Dimensions (H x W x D)	9.5” x 11.84” x 3.2” (241.7 x 300.7 x 81.5 mm)
Weight	7.28 lbs (3.30 kg)
Cisco IE 2000 software features - LAN Base license (Default)
Layer 2 switching	IEEE 802.1, 802.3, 802.3at, 802.3af standards, VTPv2, NTP, UDLD, CDP, LLDP, Unicast MAC filter, Flex Link, REP, VTPv3, EtherChannel, Voice VLAN
Layer 2 switching
Security	SCP, SSH, SNMPv3, TACACS+, RADIUS Server/Client, MAC Address Notification, BPDU Guard, SPAN session (1), Port-Security, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard, 802.1x, Guest VLAN, MAC Authentication Bypass, 802.1x Multi-Domain Authentication, Storm Control, Trust Boundary



Multicast	IGMPv1, v2, v3 Snooping, IGMP filtering, IGMP Querier
QoS	IPv4 Ingress Policing, Rate-Limiting, Egress Queuing/Shaping, AutoQoS
Management	Fast Boot, Express Setup, Web Device Manager, CNA, Cisco Prime, LMS, MIB, SmartPort, SNMP, syslog, Port-Based DHCP, Storm Control—Unicast/Multicast/Broadcast, SPAN Sessions (2), RSPAN, DHCP Server, Customized TCAM/SDM Size Configuration


Industrial Ethernet	EtherNet/IP, PROFINET, PROFINET MRP, IEEE 1588 PTPv2
IPv4 routing	IPv4 static routing
IPv6 routing	IPv6 host support, HTTP over IPv6, SNMP over IPv6
Industrial Management (Enhanced LAN Base)	Layer 2 Switching with 1:1 static NAT
(IP Lite license) IPv4 Routing	RIP, OSPF, EIGRP, VRF Lite
(IP Lite license) IPv6 Routing	IPv6 Static routing, OSPFv3

Accessories

Connectors and cabling
Data cable	● Copper 100 Base-T M12 D-coded 4-pole (pin) cable connector ● Copper GE M12 X-coded 8-pole (pin) cable connector
Alarm cable	● M12 A-coded 5-pin cable
Console cable	● M12 A-coded 5-pin connector
Power supply cables	● Power cable for power source, Mini-Change A-size single-ended cord set, 4 poles, female to pigtail, 16 AWG PVC cable. Molex part #130006-0737 ● Power cable to IE2000 IP67 switch: Mini-Change A-size double-ended cordset, 4 poles male to female, 16 AWG TPE cable. Molex part #130010-0863 ● Power cable for AC-DC power source, Mini-Change A-size single-ended cord set, 3 pins, female insert on one end to pigtail, 16 AWG PVC cable, Molex part #130006-2419 ● Power cord from power source to power supply: 2-hole female power cord to open for input DC connector. Molex part #130006-2419
Cisco IE 2000 Cisco DNA license
IE2000-DNA-E-L	Cisco DNA Essentials license (up to 12 ports)
IE2000-DNA-E-L-3Y	Cisco DNA Essentials 3-year term license (up to 12 ports) option
IE2000-DNA-E-L-5Y	Cisco DNA Essentials 5-year term license (up to 12 ports) option
IE2000-DNA-E-L-7Y	Cisco DNA Essentials 7-year term license (up to 12 ports) option
IE2000-DNA-E-M	Cisco DNA Essentials license (up to 24 ports)
IE2000-DNA-E-M-3Y	Cisco DNA Essentials 3-year term license (up to 24 ports) option
IE2000-DNA-E-M-5Y	Cisco DNA Essentials 5-year term license (up to 24 ports) option
IE2000-DNA-E-M-7Y	Cisco DNA Essentials 7-year term license (up to 24 ports) option
