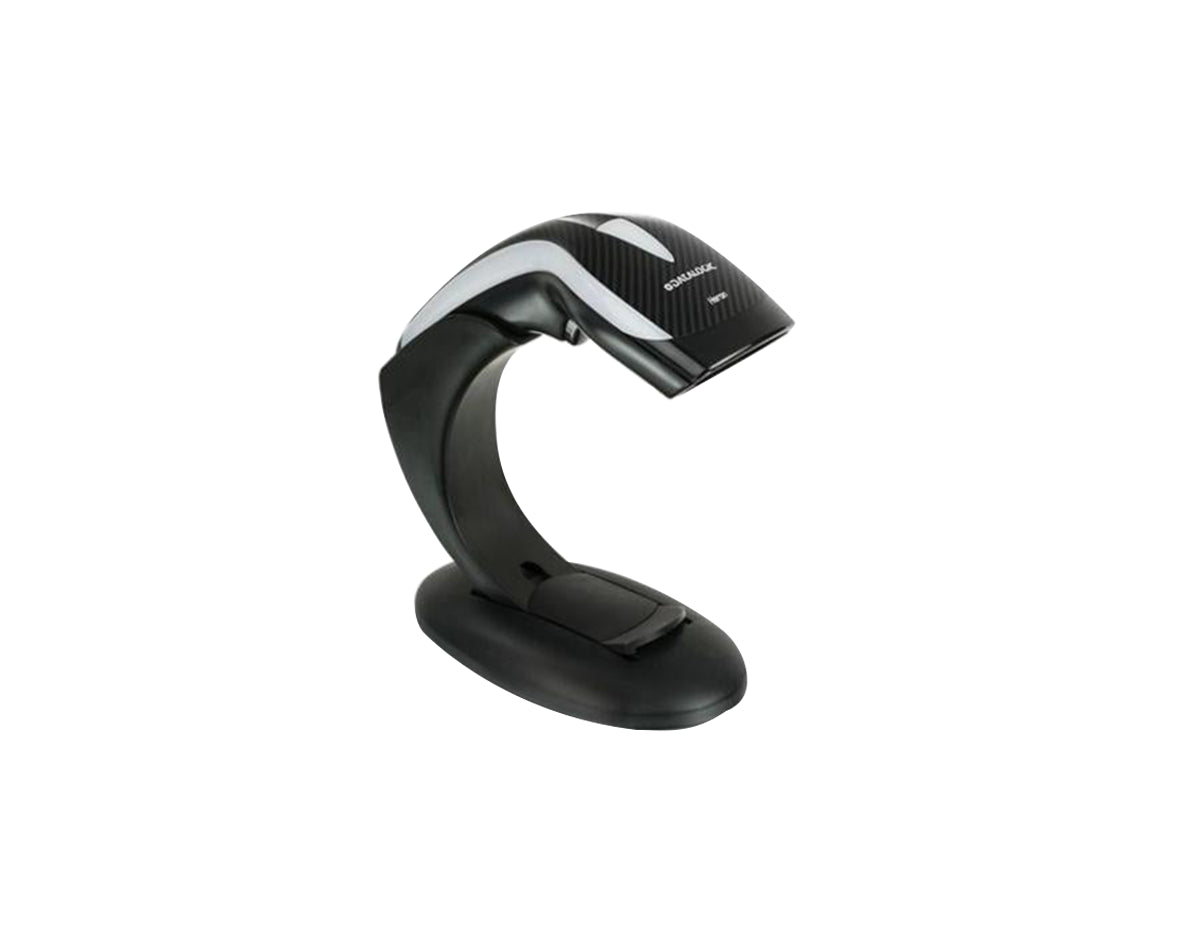

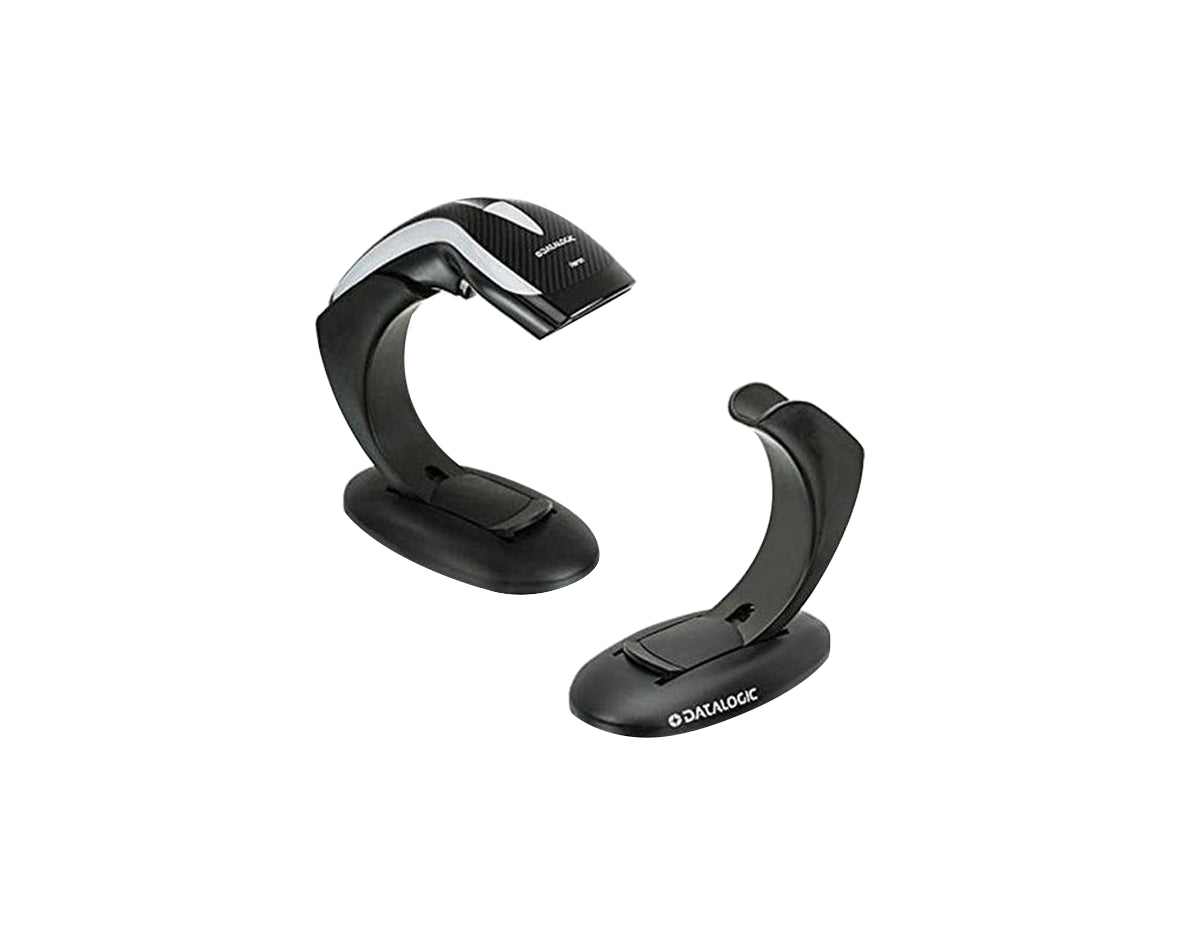

Datalogic HD3430-BKK1B Barcode Scanner

Datalogic HD3430-BKK1B Barcode Scanner

The Datalogic Heron HD3430-BKK1B 2D area imager is an advanced scanning device that combines modern 2D reading technology with a sleek and streamlined design, making it an ideal choice for point-of-sale applications. It delivers exceptional performance when reading 1D and 2D codes and enables users to capture images. The Heron HD3430 boasts a stylish silhouette that is further enhanced by color-changing lights, innovative design materials, and an audio speaker that enhances the customer's brand experience at the point of sale.

Quick Specs:

• Scanning Capability: 1D and 2D
• Scan Rate: 270 scan/s
• USB Cable separate
• Automatic switching between handheld and hands-free operations

Please see the related tabs for the HD3430-BKK1B datasheet and compatible accessories.

Product Name	Datalogic Heron HD3430-BKK1B Barcode Scanner
Product Description	Advanced 2D area imager with a sleek design, ideal for point-of-sale applications, offering exceptional performance in reading 1D and 2D codes, along with image capture capabilities.
Compatibility	Supports multiple interfaces including USB, RS-232, and Keyboard Wedge
Scanning Capability	1D and 2D barcodes
Scan Rate	270 scans per second
Form Factor	Handheld with automatic switching to hands-free mode
Compliances	CE, FCC, UL, RoHS
Color Options	Black and White
Customizable Features	Color-changing lights and audio speaker for enhanced brand experience
Trigger	Manual trigger with auto-sense capability
Programming Method	Remote management through Aladdin configuration software
Configuration Options	Multiple programming options for custom use

Light Source	White LED illumination
Aiming System	4-Dot LED aimer with center cross for targeted scanning
Image Sensor	Wide VGA: 752 x 480 pixels
Depth of Field	Up to 40 cm (depending on barcode resolution)
Print Contrast Ratio (Minimum)	25%
Drop Resistance	Withstands drops from 1.5 meters onto concrete
Environmental Sealing	IP40
Dimensions (W x D x H)	68 x 152 x 153 mm
Weight	150 g
Power Consumption	Operating: 340 mA @ 5 VDC; Standby: 190 mA @ 5 VDC
Operating Temperature Range	0°C to 50°C (32°F to 122°F)
Operating Humidity Range	5% to 90% (non-condensing)
