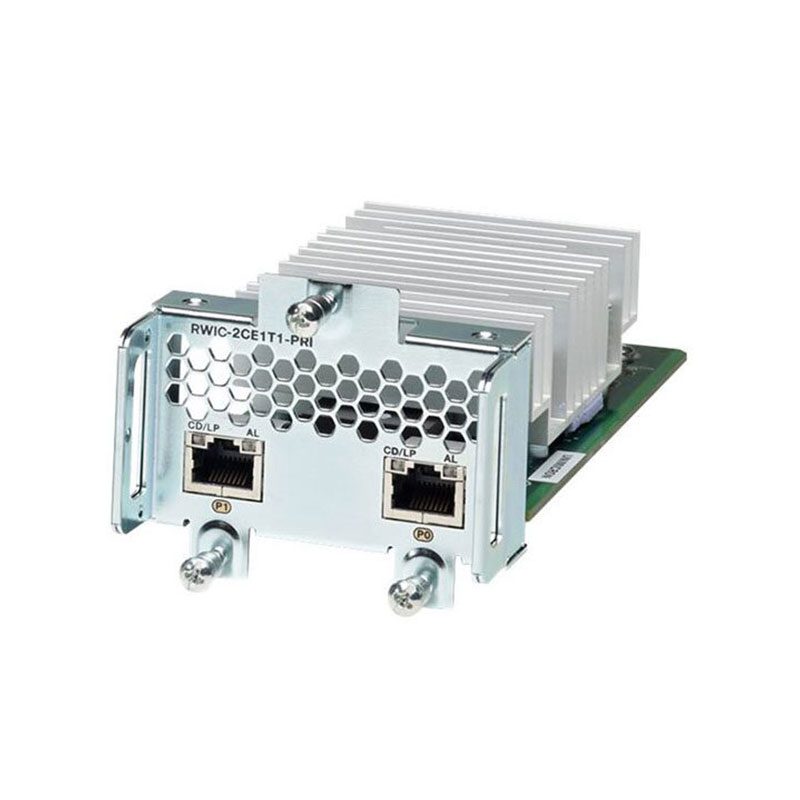

CISCO GRWIC-2CE1T1-PRI INTERFACE CARD
| Part No: | GRWIC-2CE1T1-PRI |
| Detail: | T1/E1, integrated services router, voice and data, Primary Rate Interface, reliable connectivit |
| List Price: | |
| Price: | $650.00 |
| You Save: | $4,318.12 (87% OFF) |
| Condition: | Brand New Sealed |
| Availability: | Out of Stock |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |
The GRWIC-2CE1T1-PRI is a T1/E1 voice and data card designed for use with Cisco Integrated Services Routers (ISRs). It supports both voice and data applications, providing reliable connectivity for mission-critical business communications. The card supports Primary Rate Interface (PRI) for voice applications, allowing for up to 23 voice channels over a single T1/E1 connection. This makes it an ideal solution for businesses that require high-quality voice and data connectivity. The GRWIC-2CE1T1-PRI is easy to install and configure, allowing businesses to quickly deploy it in their network. It is a cost-effective solution for businesses that need a reliable and scalable voice and data solution.
Specifications
| Line Coding | E1: High-Density Bipolar Order 3 (HDB3); T1: Alternate Mark Inversion (AMI) and Binary 8-Zero Substitution (B8ZS) |
| Framing Formats | E1: CRC4; T1: Super Frame (SF) and Extended Super Frame (ESF) |
| Output Levels | E1: Short-haul/Long-haul; T1 (Line Build-Out): 0, -7.5, or -15 dB |
| Alarm Detection | Yellow Alarm (Receive/Send), Blue Alarm (Receive Alarm Indication Signal), Red Alarm (Loss of Network Signal) |
| Diagnostic Loopback Support | Local, Remote, Line, and Payload Loopbacks |
| Management Features | Support for Multilink PPP and Multilink Frame Relay (FRF.16) |
| Regulatory Compliance | IEEE 1613, IEC 61850-3 |
Properties
| Product Name | Cisco GRWIC-2CE1T1-PRI Interface Card |
| Product Description | 2-port Channelized T1/E1 and ISDN PRI Rugged WAN Interface Card for Cisco 2010 Connected Grid Router |
| Compatibility | Cisco 2010 Connected Grid Router (CGR 2010) |
| Ports | 2 x RJ-48 T1/E1 |
| Interface Type | Channelized T1/E1 and ISDN Primary Rate Interface (PRI) |
| Integrated CSU/DSU | Yes |
| Form Factor | Single-wide GRWIC |
| Dimensions (H x W x D) | 2.52 x 3.0 x 7.81 inches (6.4 x 7.6 x 19.8 cm) |
| Weight | 0.84 lbs (0.38 kg) |
| Line Bit Rate per Port | E1: 2.048 Mbps; T1: 1.544 Mbps |
